| Case:: | Plastic |
|---|---|
| Dimensions:: | 85 x 47 x 67 mm |
| Input voltage:: | 100 V ... 240 V AC |
| Maximum output current:: | 1000 mA |
| Number of inputs:: | 1 pc. RJ-45 |
| Operating temperature / relative humidity:: | 0 ... 40 °C / 20 ... 80 % |
| Output power:: | 24 watts (Printing) |
| Output voltage:: | 24 VDC |
| Scales:: | 0.1 kg |

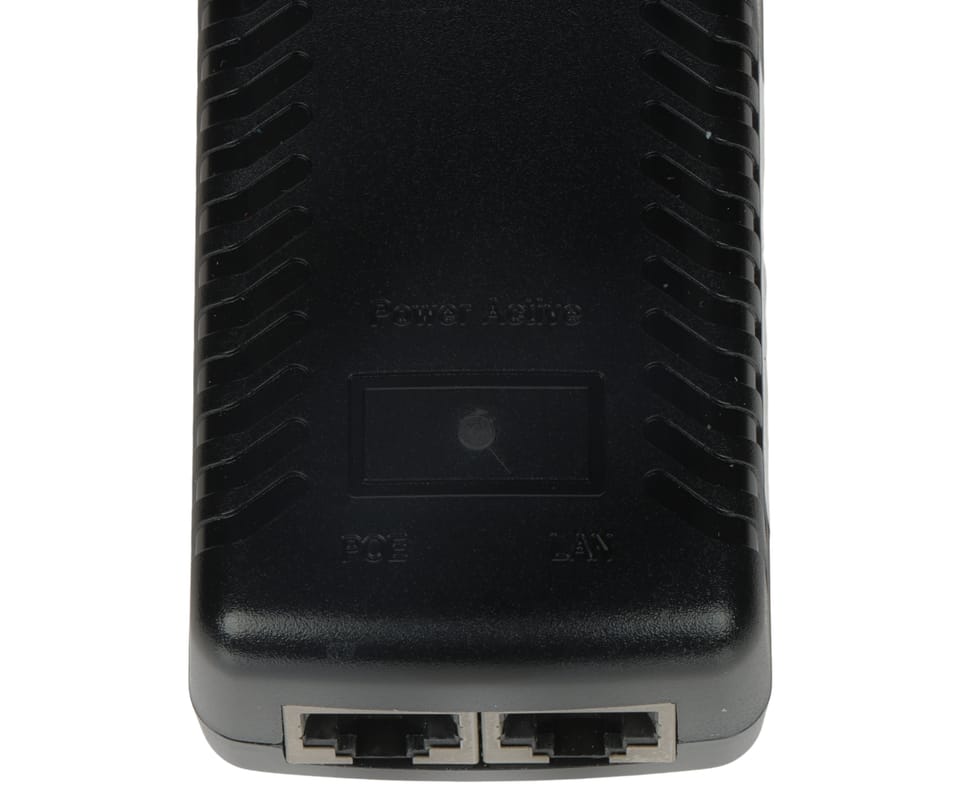

| Signal diodes:: | red LED - power supply green LED - operation LED flashing - error |
| Warranty:: | 2 years |

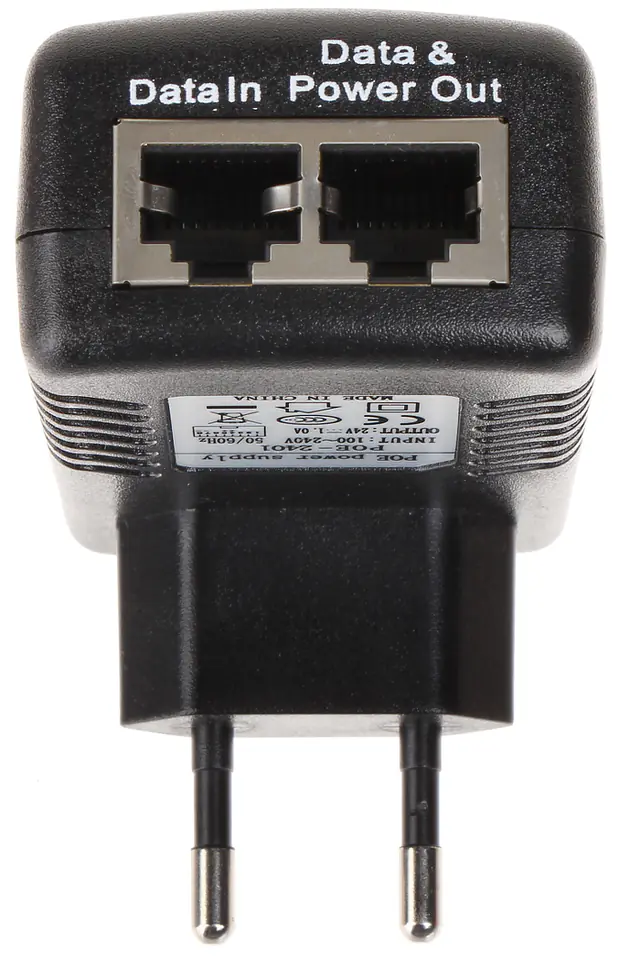

Switching power supply for POE powered IP devicesThe power supply is not compliant with the IEEE 802.3af standard
Remark! If the power supply is designed for continuous operation (24H), the rated current of the power supply should not exceed 80% of the maximum current
Special attention should be paid to the proper cooling of the power supply during operation!
