SWITCHING POWER SUPPLY 12V/8A/PA9

€43.47
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
Availability:
moderate quantity
Product code:
12V/8A/PA9 / 5902887021633

Specification

Connector type::Cable clamps
Current efficiency (total)::8 A
Dimensions::236 x 207 x 52 mm

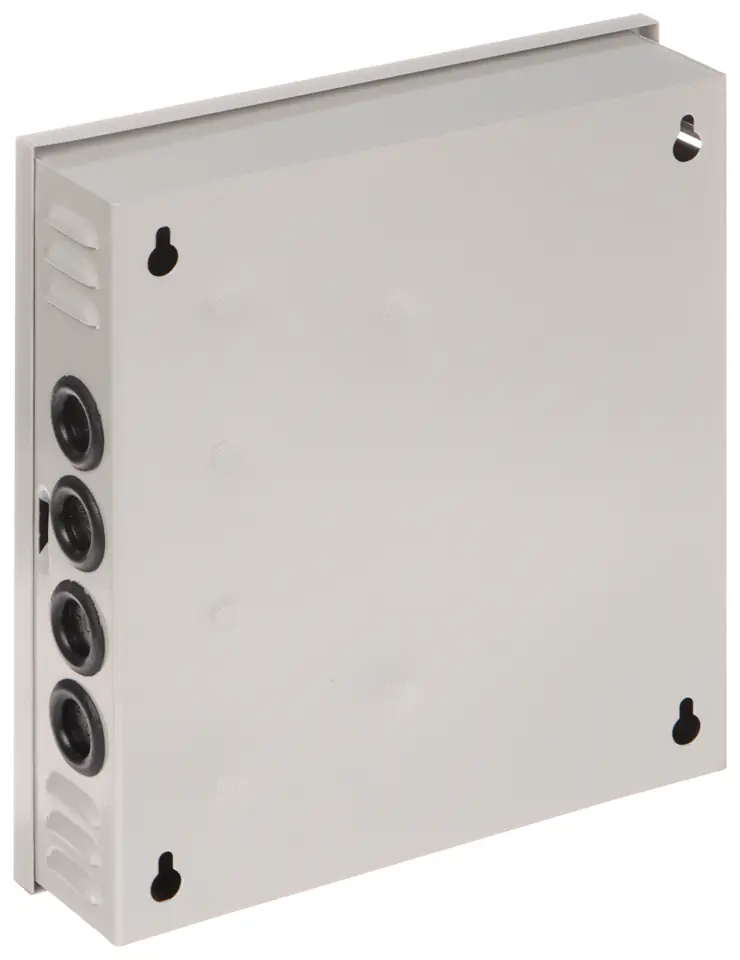

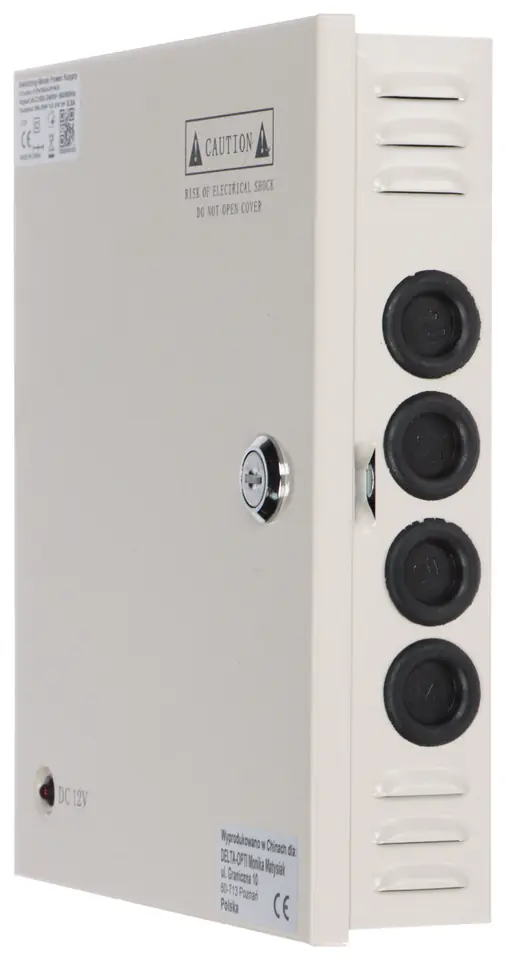

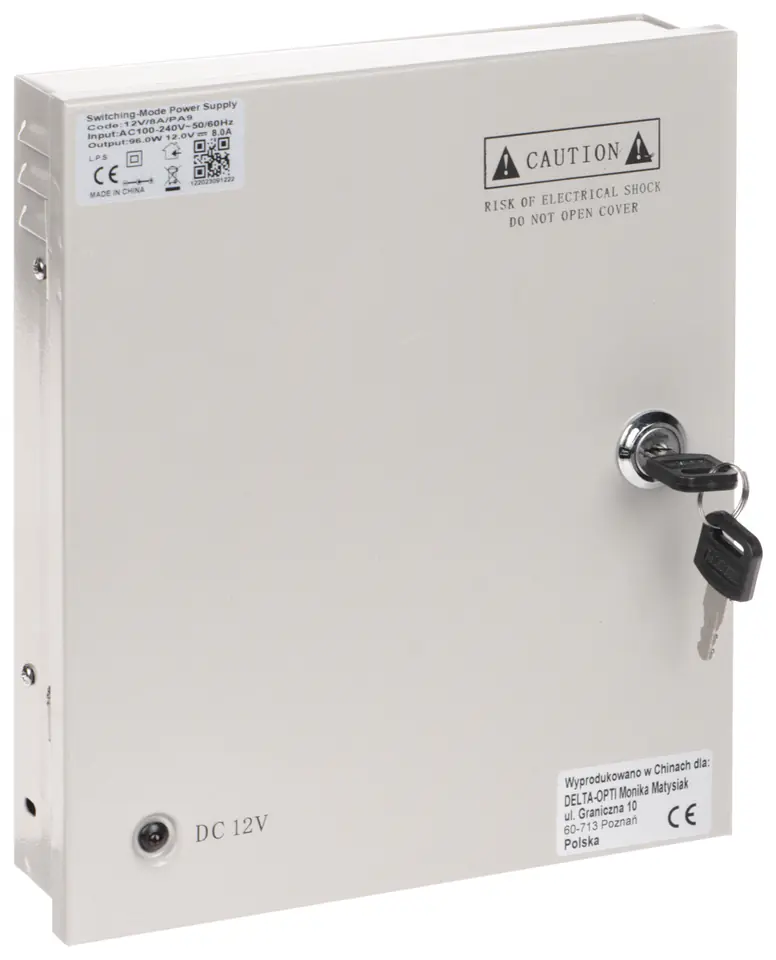

Housing type::Metal, wall mounted
Input voltage::230 VAC
Max. single output current::1.5 A
Number of outputs::9
Output voltage adjustment::11  ... 12.7 volts
Output voltage::12 VDC
Power supply type::Pulse
Power::96 watts (Printing)
Scales::1.47 kg
Security::Overload Short-circuit
Warranty::2 years

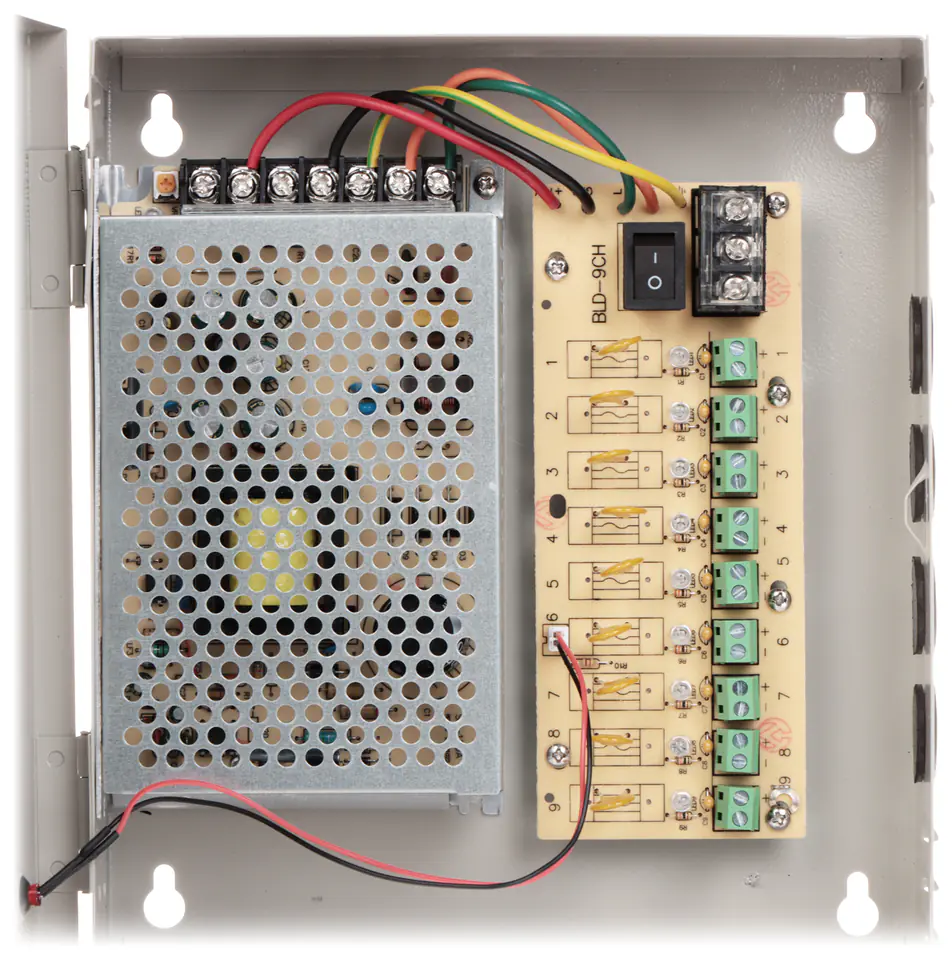

The power supply is placed in an aesthetic, solid metal housingThe operation of the power supply is signaled by an LED placed in the housingThe output voltage of the power supply is stabilizedThe power supply has 9 independent current paths (supports up to 9 devices)Max. the load of a single output is 1.5A, with a total of no more than 8A, with uniform use of all 9 outputs max. the load for a single output is 880mAEvery current path is protected by a polymer fuse and has an LED indicating the voltage at a given output

Remark! If the power supply is designed for continuous operation (24H), the rated current of the power supply should not exceed 80% of the maximum currentSpecial attention should be paid to the proper cooling of the power supply during operation!

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
