| Current efficiency of the power supply:: | 8.3 A |
|---|---|
| Dimensions:: | 162 x 42 x 39 mm |
| Frequency range:: | 50 / 60 Hz |
| Housing type:: | Plastic |
| Number of outputs:: | 1 pc. |
| Operating temperature:: | -30 °C ... 70 °C |
| Output voltage:: | 12 VDC |
| Power supply type:: | Pulse |
| Power supply:: | 100 watts (Printing) |
| Scales:: | 0.4 kg |
| Sealing:: | IP67 |
| Security:: | Overload Short-circuit Overvoltage |
| Selected features:: | Wall-mountable housing |
| Supply voltage:: | 200 ... 240 V AC |
| Warranty:: | 2 years |

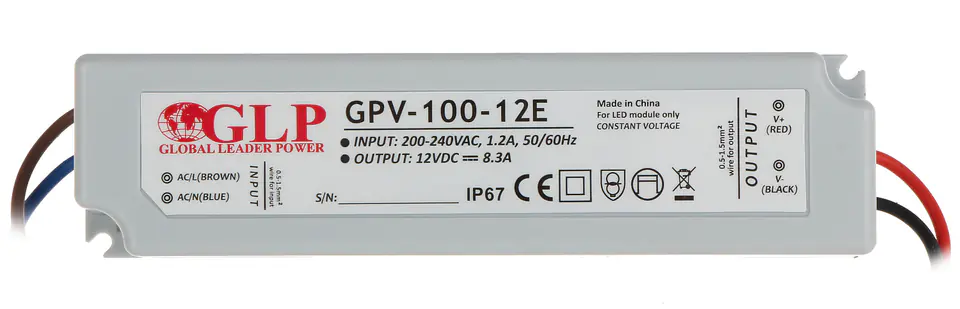

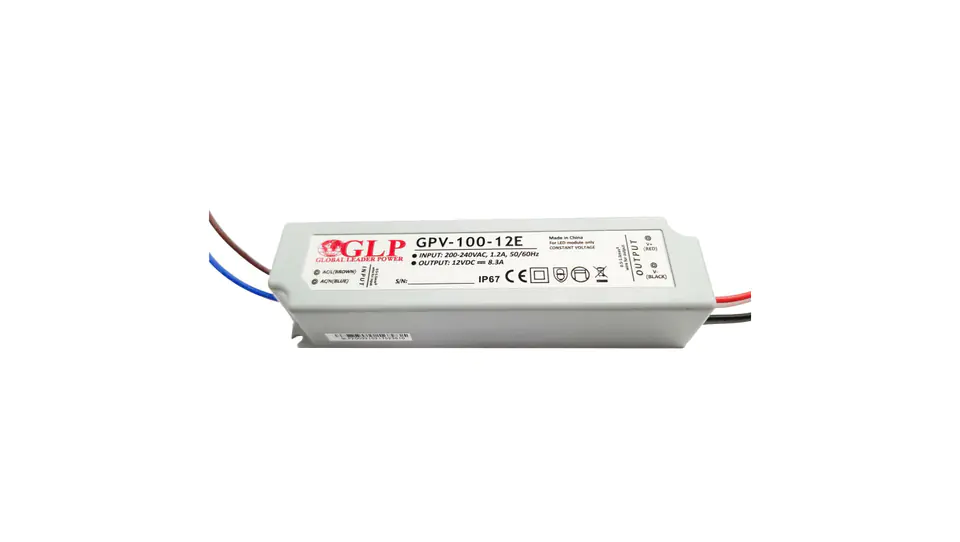

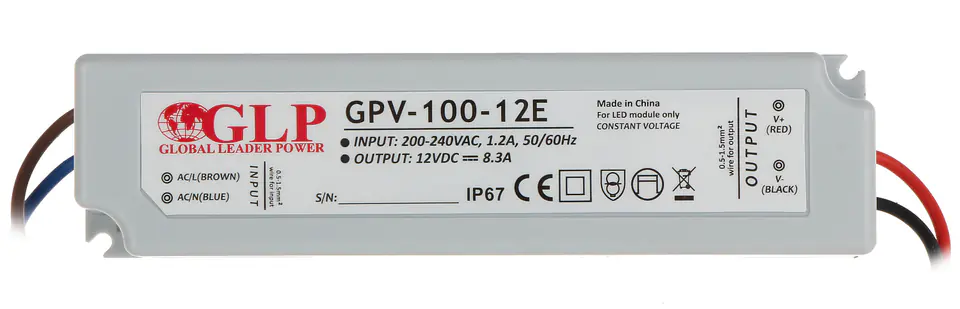

Hermetic power supply in a plastic housing, designed specifically to power LED / IR LED illuminators
Remark! If the power supply is designed for continuous operation (24H), the rated current of the power supply should not exceed 80% of the maximum current
Special attention should be paid to the proper cooling of the power supply during operation!
