| Current efficiency of the power supply:: | 25 A |
|---|---|
| Dimensions:: | 200 x 110 x 50 mm |
| Number of fans:: | 1 pc. |
| Number of outputs:: | 3 pcs. |
| Operating temperature / relative humidity:: | -10 °C ... 60 °C / 20 % ... 90 % |
| Output voltage adjustment:: | 11 ... 12.7 volts |
| Output voltage:: | 12 VDC |
| Power supply type:: | Pulse |
| Power supply:: | 300 watts (Printing) |
| Scales:: | 0.710 kg |
| Security:: | Surge Protector, Overload |

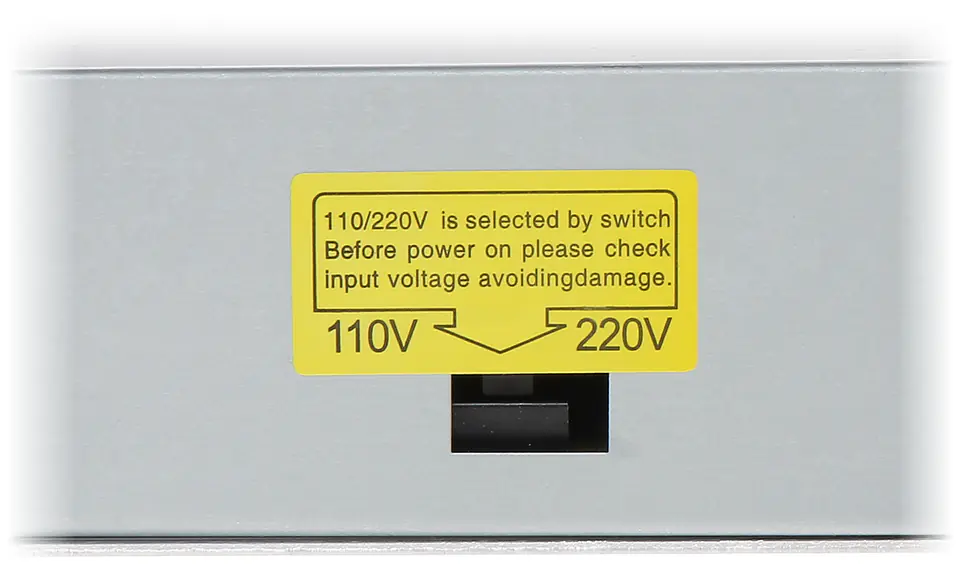

| Supply voltage:: | 230 / 115 VAC |
| Warranty:: | 2 years |

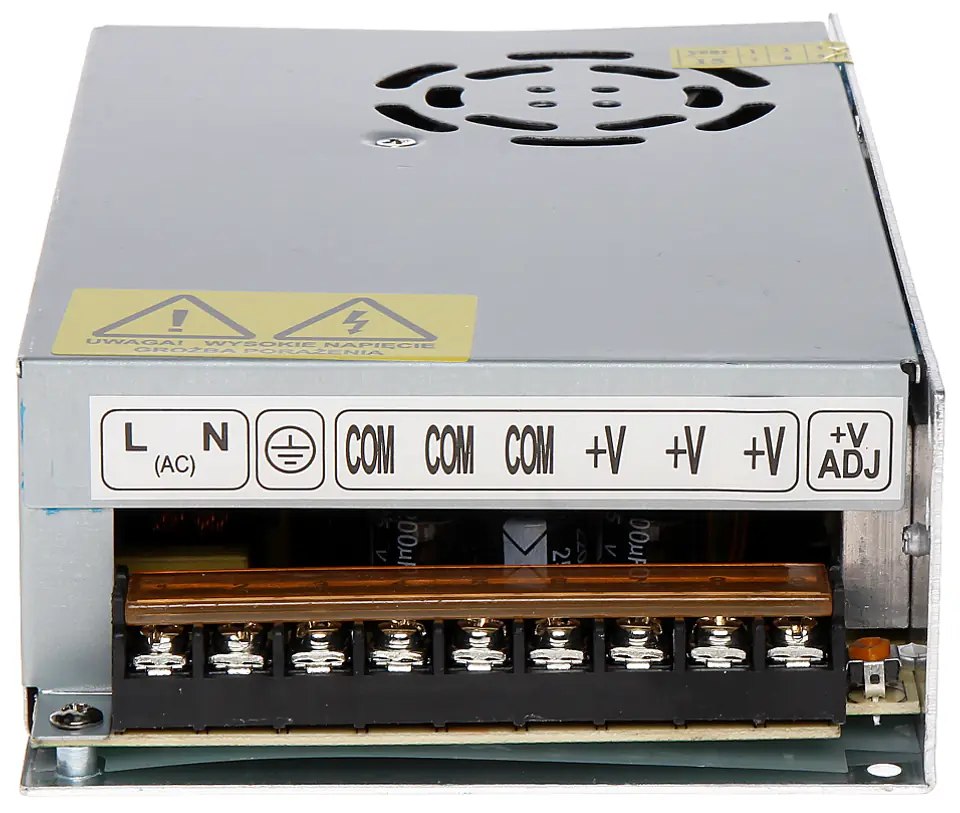

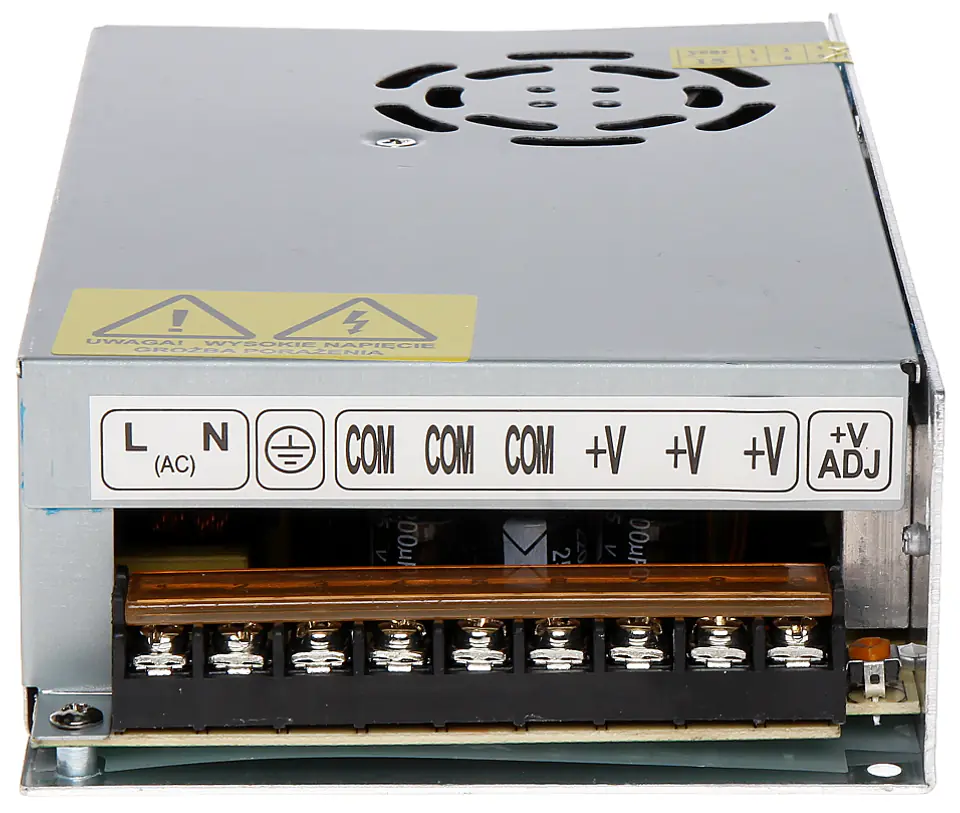

Three-pair output terminal power supply
Remark! If the power supply is designed for continuous operation (24H), the rated current of the power supply should not exceed 80% of the maximum current
Remark! The three -V terminals are physically shorted together, as are the three +V terminals of the power supply
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
