SWITCHING POWER SUPPLY 12V/21A/PA18

€37.32
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Dec 30 - Wed, Jan 1
14 days returnUnconditional return policy
Availability:
moderate quantity
Product code:
12V/21A/PA18 / 5902887034787

Specification

Connector type::Cable clamps
Current efficiency (total)::21 A
Dimensions::212 x 314 x 65 mm
Housing type::Metal, wall mounted
Input voltage::230 VAC
Max. single output current::1.1 A
Number of outputs::18
Output voltage adjustment::11  ... 13 volts
Output voltage::12 VDC
Power supply type::Pulse
Power::252 watts (Printing)
Scales::1.89 kg
Warranty::2 years

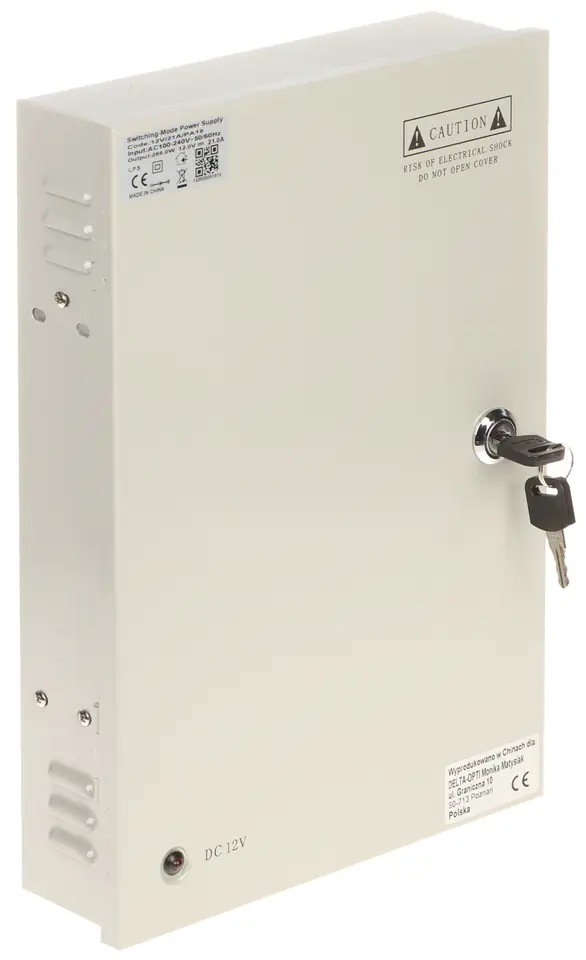

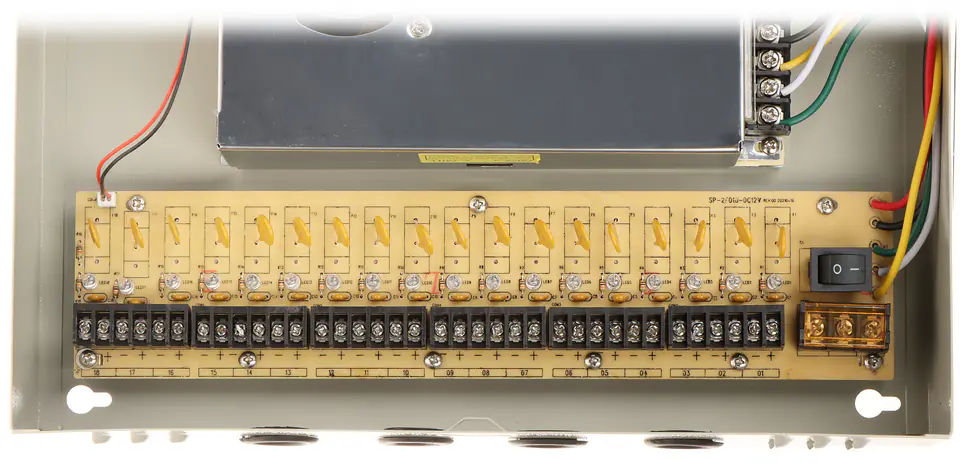

The power supply has an aesthetic, solidly made metal housingThe operation of the power supply is signaled by an LED placed in the housingEvery current path is protected by a polymer fuse and has an LED informing about the voltage at a given outputThe power supply has jumpers that allow you to cut off the power supply for each of the outputs

Remark! If the power supply is designed for continuous operation (24H), the rated current of the power supply should not exceed 80% of the maximum currentSpecial attention should be paid to the proper cooling of the power supply during operation!

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
