| Current efficiency of the power supply:: | 20 A |
|---|---|
| Dimensions:: | 200 x 110 x 51 mm |
| Number of fans:: | 1 pc. |
| Number of outputs:: | 3 pcs. |
| Operating temperature / relative humidity:: | -10 °C ... 50 °C / 20 % ... 90 % |
| Output voltage adjustment:: | 9 ... 13 volts |
| Output voltage:: | 12 VDC |
| Power supply type:: | Pulse |
| Power supply:: | 240 watts (Printing) |
| Scales:: | 0.66 kg |
| Security:: | Overload Short-circuit |
| Supply voltage:: | 110 V AC 230 V AC |
| Warranty:: | 2 years |
Three-pair output terminal power supply
Remark! If the power supply is designed for continuous operation (24H), the rated current of the power supply should not exceed 80% of the maximum current

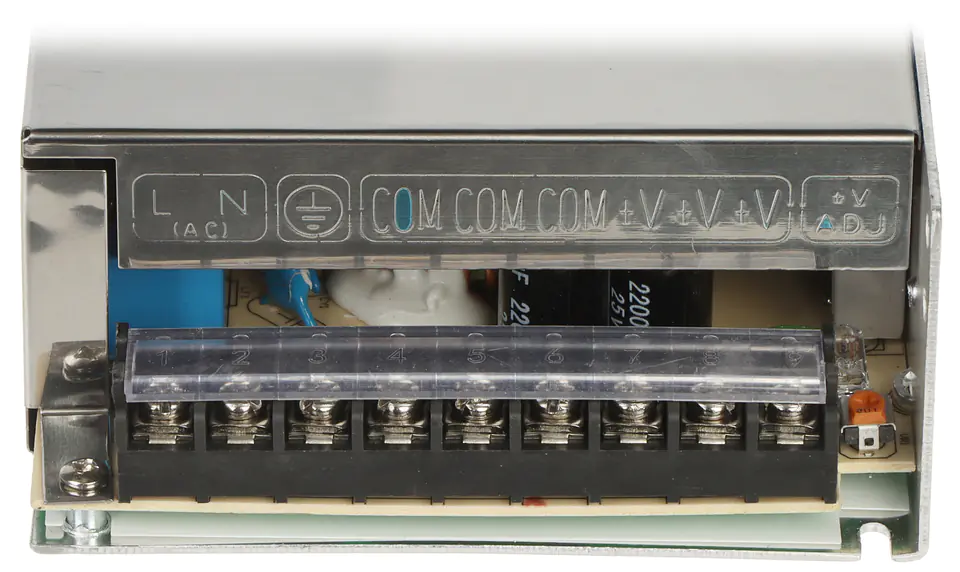

Remark! +V terminals are physically shorted together, just like COM terminals
