| Current efficiency of the power supply:: | 16 A |
|---|---|
| Dimensions:: | 205 x 70 x 45 mm |
| Frequency range:: | 50 / 60 Hz |
| Housing type:: | Plastic |
| Number of outputs:: | 1 pc. |
| Operating temperature:: | -30 °C ... 70 °C |
| Output voltage:: | 12 VDC |
| Power supply type:: | Pulse |
| Power supply:: | 192 watts (Printing) |
| Scales:: | 1.1 kg |
| Sealing:: | IP67 |
| Security:: | Overload Short Circuit Overvoltage Thermal |
| Selected features:: | Wall-mountable housing |
| Supply voltage:: | 200 ... 240 V AC |
| Warranty:: | 2 years |

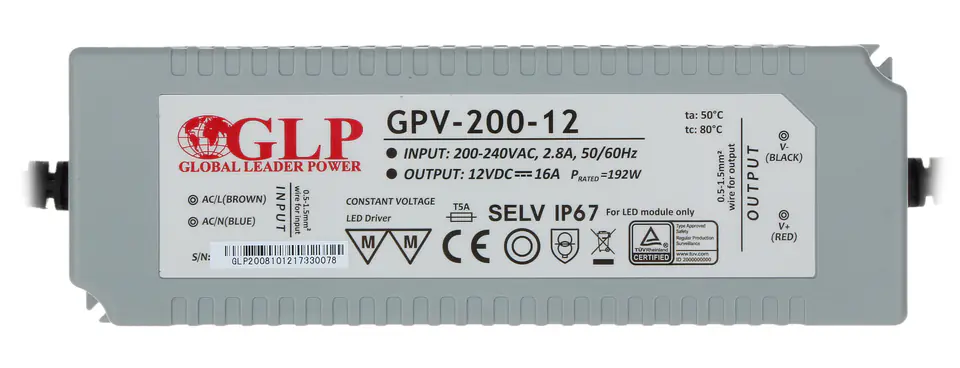

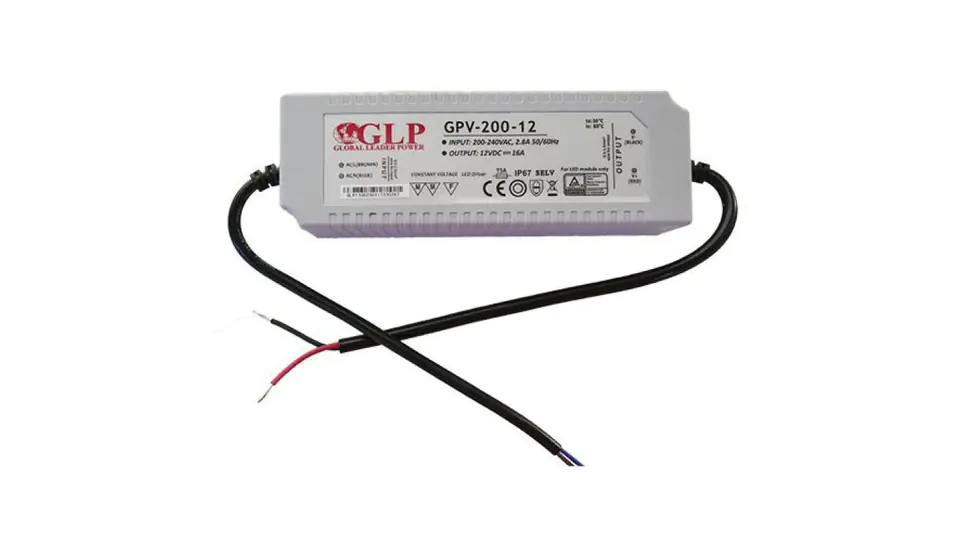

Hermetic power supply in a plastic housing, designed specifically to power LED / IR LED illuminators
Remark! If the power supply is designed for continuous operation (24H), the rated current of the power supply should not exceed 80% of the maximum current
Special attention should be paid to the proper cooling of the power supply during operation!
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
