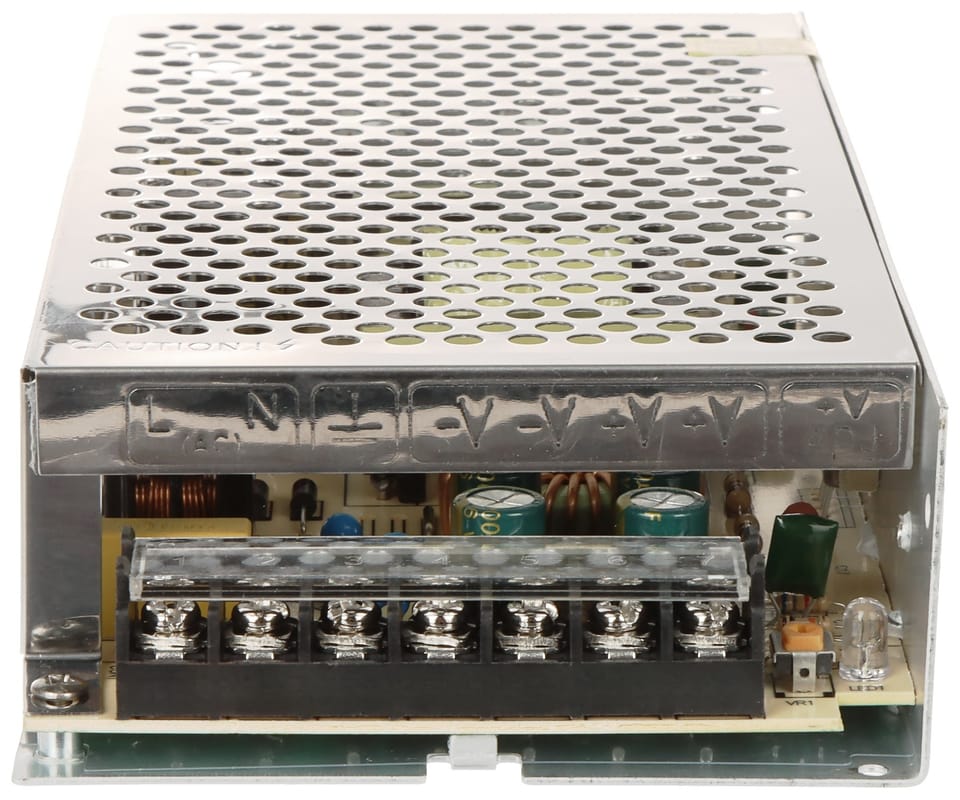

SWITCHING POWER SUPPLY 12V/10A/P

€10.78

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Mon, Dec 30 - Tue, Dec 31

14 days returnUnconditional return policy

Availability:: moderate quantity
Product code:: 12V/10A/P / 5902887021459

Specification

Current efficiency of the power supply::	10 A
Dimensions::	200 x 98 x 42 mm
Number of outputs::	2 pcs.
Operating temperature / relative humidity::	-10 °C ... 50 °C / 20 % ... 90 %
Output voltage adjustment::	10.2 ... 15 volts
Output voltage::	12 VDC
Power supply type::	Pulse
Power supply::	120 watts (Printing)
Scales::	0.452 kg
Security::	Short-circuit Overload
Supply voltage::	230 VAC
Warranty::	2 years

Dual-pair output power supply

Remark! If the power supply is designed for continuous operation (24H), the rated current of the power supply should not exceed 80% of the maximum currentSpecial attention should be paid to the proper cooling of the power supply during operation! In rack cabinets and poorly ventilated places, we recommend using the following elements together with the power supply: A19-W12 fan and FR-1 rotation controller

Remark! Both -V terminals are physically shorted together, as are the two +V terminals of the power supply

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
