Switch mode power supply installed on TS35/7.5 or 15 DIN rail, resistant to high operating temperatures (up to 70°C)

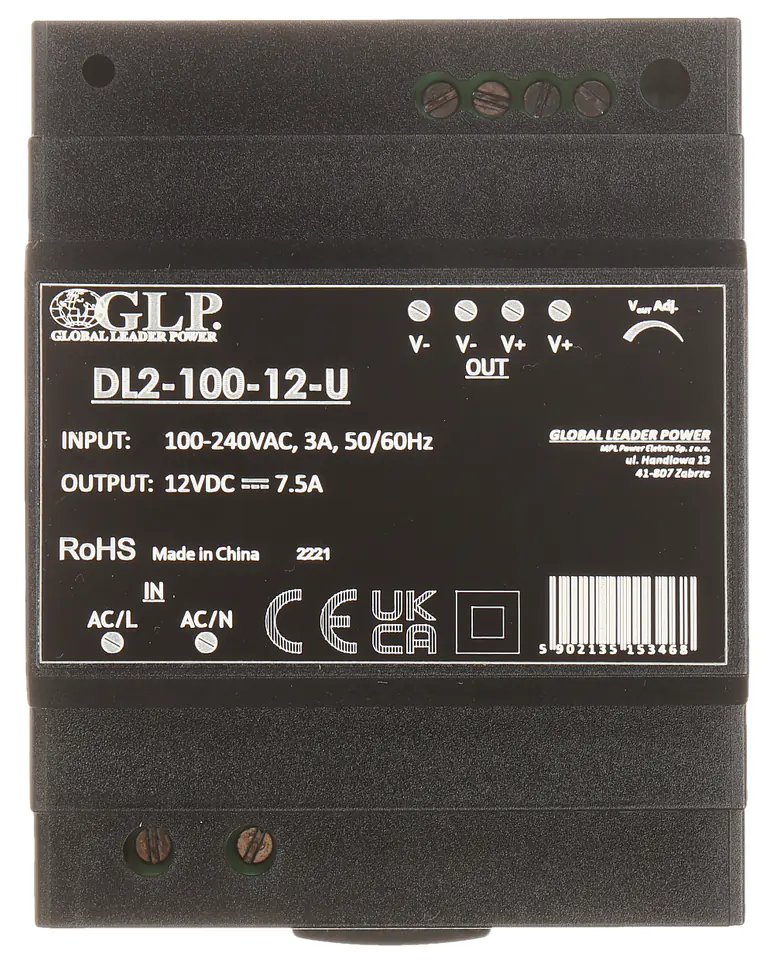

SWITCHING MODE POWER SUPPLY DL2-100-12-U
This product is not available
- Availability:
- expected delivery
- Product code:
- DL2-100-12-U / 5902135153468
Share this product:
Specification

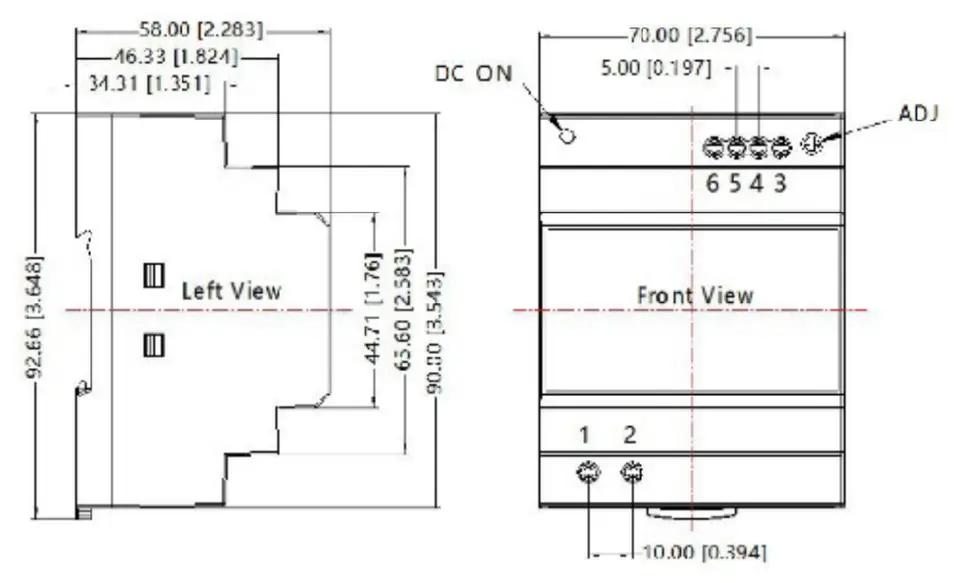

| Dimensions: | 92.7 x 70 x 58 mm |
|---|---|
| Efficiency: | 88 % |
| Enclosure type: | DIN |
| Number of outputs: | 2 pcs. |
| Operating temperature / relative humidity: | -40 °C ... 70 °C / 10 ... 95 % |
| Output voltage: | 12 volts DC |
| Output voltage adjustment: | 12.0 ... 13.8 VDC |
| Power supply: | 90 watts (Printing) |
| Power supply current efficiency: | 7.5 amps |
| Scales: | 0.25 kg |
| Security: | Short circuit overload suppression surge protector |
| Supply voltage: | 85 ... 264 volts AC 120 ... 370 VDC |
| Type of power supply: | Pulse |
| Warranty: | 3 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
