| Dimensions: | 148 x 32 x 28 mm |
|---|---|
| Enclosure type: | Plastic |
| Frequency range: | 50 / 60 Hz |
| Number of outputs: | 1 pc |
| Operating temperature: | -20 °C ... 70 °C |
| Output voltage: | 12 volts DC |
| Power supply: | 36 watts (Printing) |
| Power supply current efficiency: | 3 A |
| Scales: | 0.21 kg |
| Sealing: | IP67 |
| Security: | Overload short-circuit overvoltage |
| Selected features: | Wall-mountable housing |
| Supply voltage: | 100 ... 240 VAC |
| Type of power supply: | Pulse |
| Warranty: | 2 years |

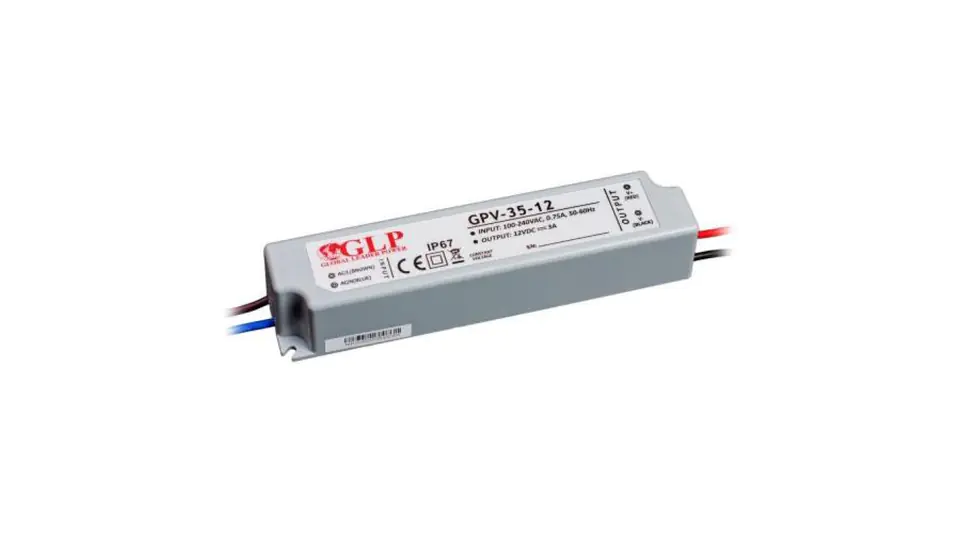

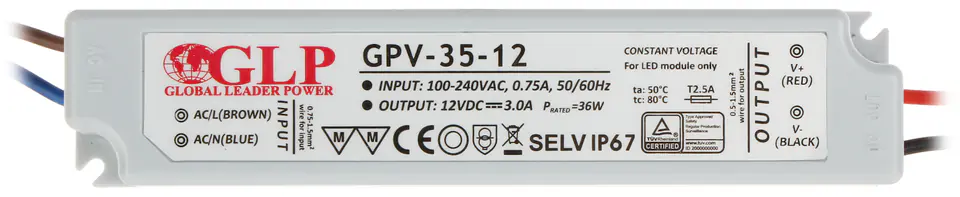

Hermetic power supply in a plastic housing, designed in particular for powering LED / IR LED illuminators
Remark! If the power supply is designed for continuous operation (24H), the rated current of the power supply should not exceed 80% of the maximum current
Particular attention should be paid to the proper cooling of the power supply during operation!
