| Dimensions: | 140 x 32 x 25 mm |
|---|---|
| Enclosure type: | Plastic |
| Frequency range: | 50 / 60 Hz |
| Number of outputs: | 1 pc |
| Operating temperature: | -30 °C ... 70 °C |
| Output voltage: | 12 volts DC |
| Power supply: | 24 watts (Printing) |
| Power supply current efficiency: | 2 A |
| Scales: | 0.18 kg |
| Sealing: | IP67 |
| Security: | Overload short-circuit overvoltage temperature |
| Selected features: | Wall-mountable housing |
| Supply voltage: | 100 ... 240 VAC |
| Type of power supply: | Pulse |
| Warranty: | 2 years |

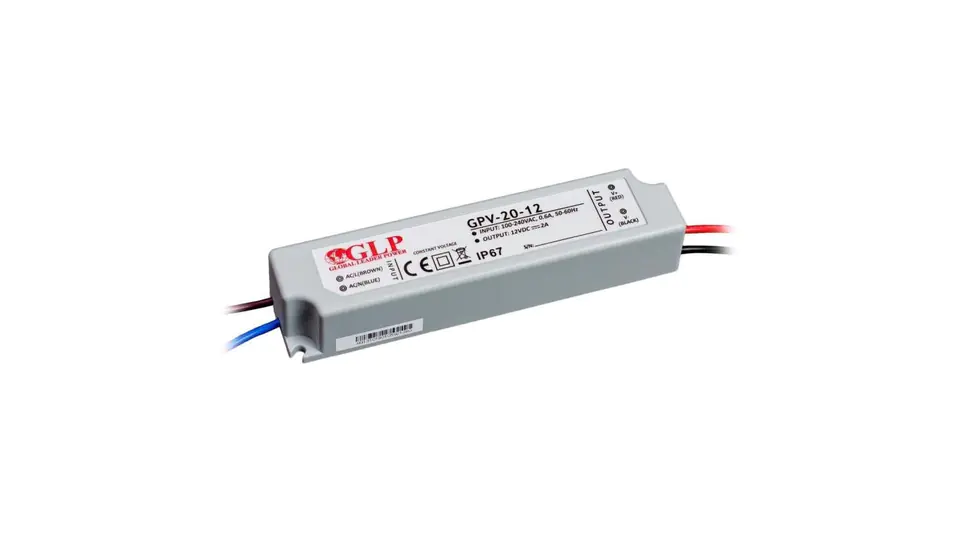

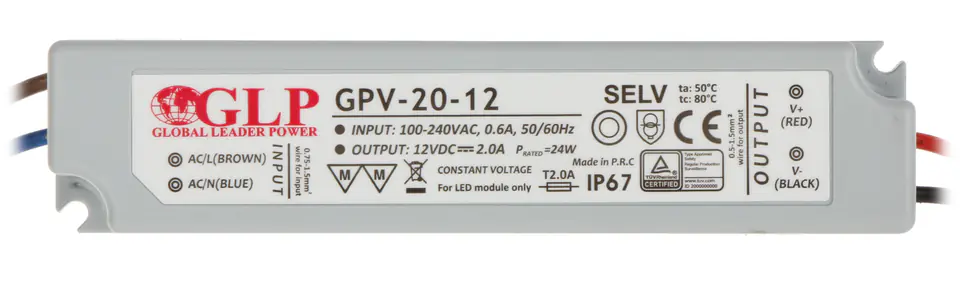

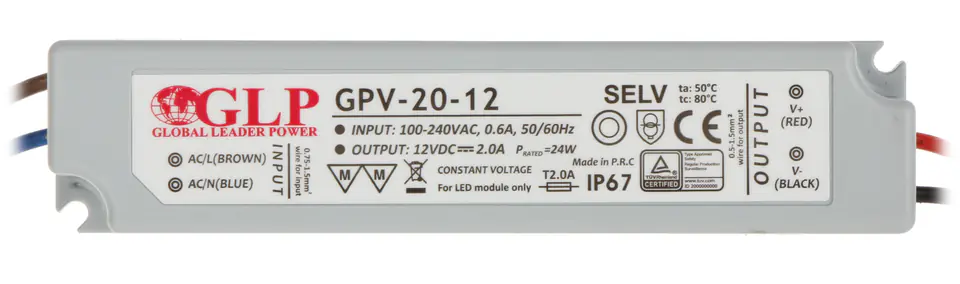

Hermetic power supply in a plastic housing, designed in particular for powering LED / IR LED illuminators
Remark! If the power supply is designed for continuous operation (24H), the rated current of the power supply should not exceed 80% of the maximum current
Particular attention should be paid to the proper cooling of the power supply during operation!
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
