| Battery charging current:: | 1 A / 2 A |
|---|---|
| Battery space:: | 12V/17Ah |
| Control of power supply operation:: | AC Mains Power Indication Signaling the Presence of DC Output Voltage Battery Charging |
| Current efficiency (total):: | 7 A |
| Dimensions:: | 305 x 305 x 113 mm |
| Input voltage:: | 200 V ... 240 V AC |
| Manufacturer / brand:: | PULSAR |
| Max. battery dimensions:: | 250 x 172 x 100 mm |
| Number of outputs:: | 1 |
| Output voltage:: | 11.0 V ... 13.8 V (buffer operation) |
| Power supply type:: | Pulse |
| Power:: | 97 watts (Printing) |
| Scales:: | 2.3 kg |
| Security:: | Short-circuit Overload Surge Anti-Tamper Anti-Tamper Reverse Connection Before Over-Discharge |
| Warranty:: | 2 years |

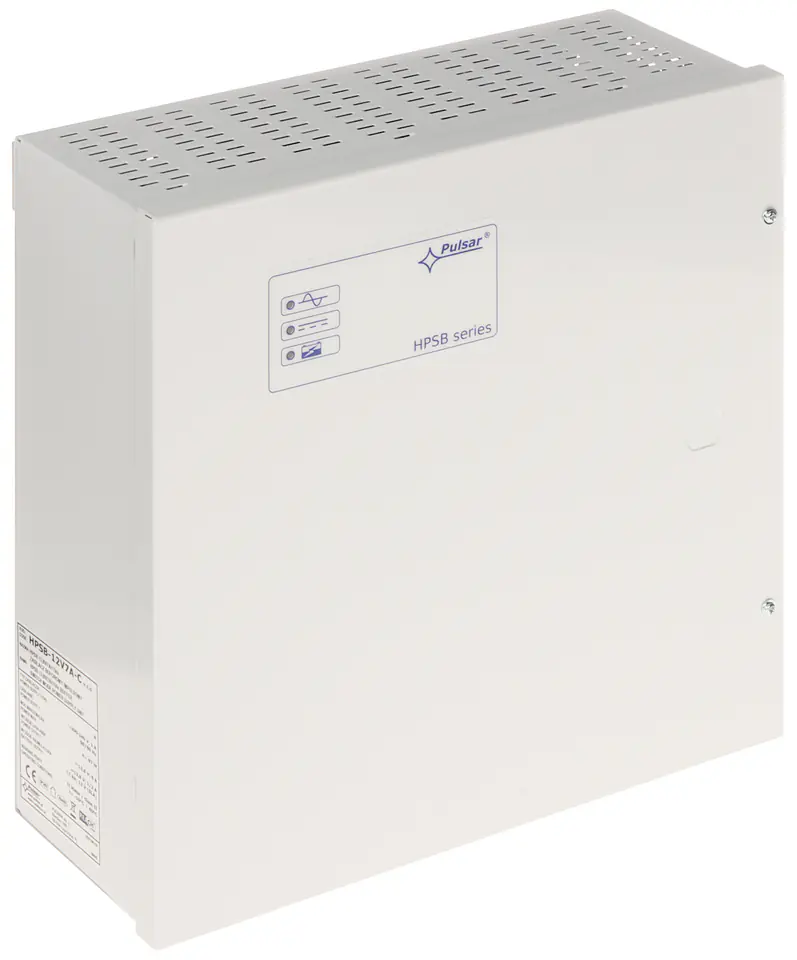

The buffer power supply is designed to power alarm control panels, sensors, code locks, cameras, keypads, intercoms and other devices included in the alarm system
Special attention should be paid to the proper cooling of the power supply during operation!
