| Battery charging current:: | 0.5 A / 1 A (switchable) |
|---|---|
| Battery space:: | 12V/7Ah |
| Control of power supply operation:: | AC Mains Indication Battery Status Battery Charging Signaling |
| Current efficiency (total):: | 3 A |

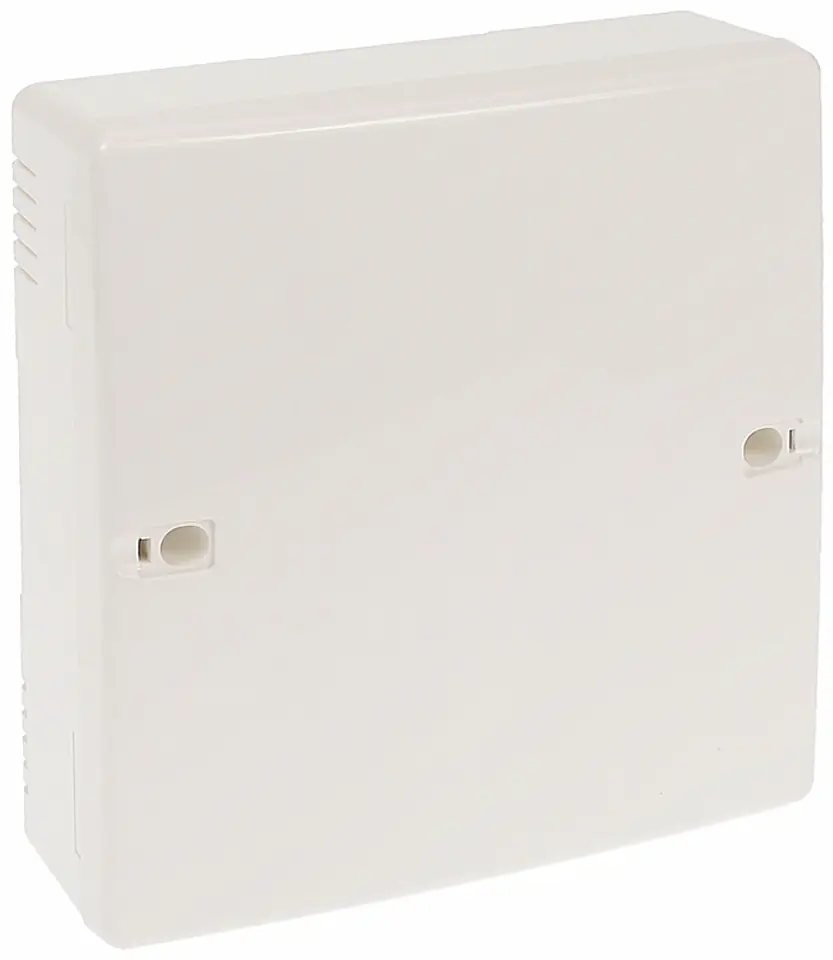

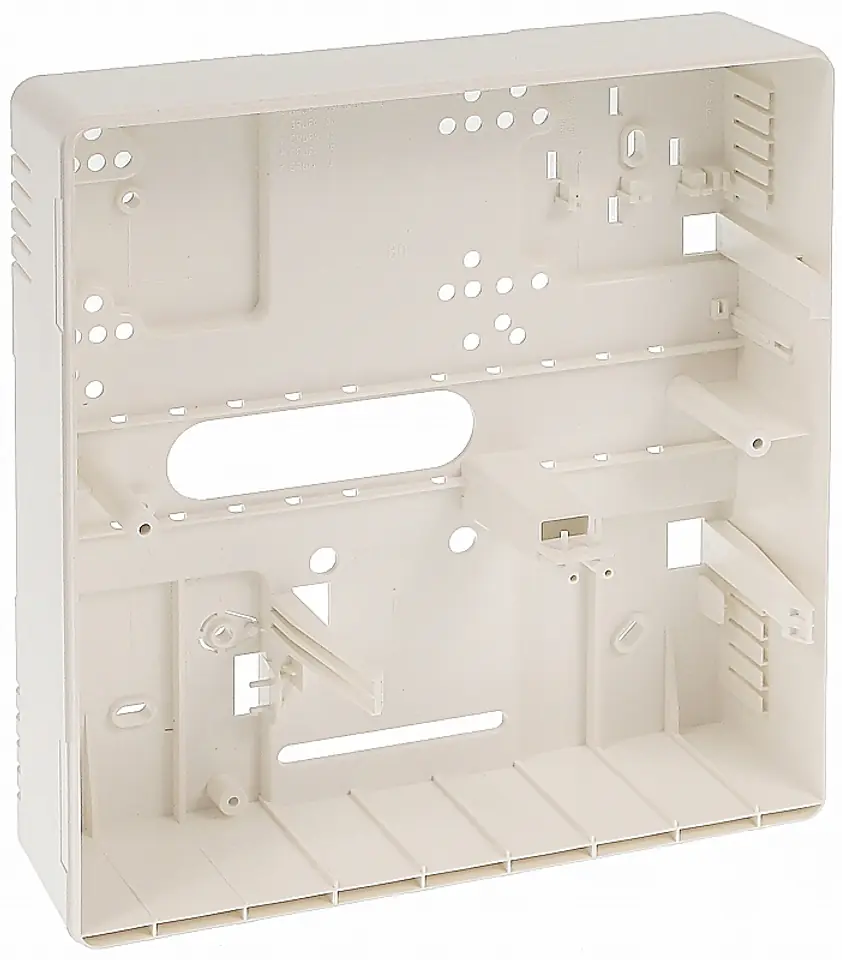

| Dimensions:: | 266 x 286 x 100 mm Enclosure |
| Input voltage:: | 230 VAC |
| Manufacturer / brand:: | SATEL |
| Max. battery dimensions:: | 151 x 100 x 65 mm |
| Number of outputs:: | 3 pcs. |
| Operating temperature:: | 5 °C ... 40 °C |
| Output voltage:: | 12 VDC |
| Power supply type:: | Pulse |
| Power:: | 36 watts (Printing) |
| Scales:: | 2.4 kg |
| Security:: | Short-circuit Overload |
| Selected features:: | Output voltage - stabilized Microprocessor battery charge status control system Battery status check and disconnect discharged battery Ability to work without a connected battery Acoustic signaling failure Sabotage signaling LED signaling 2 x OC output |
| Warranty:: | 2 years |

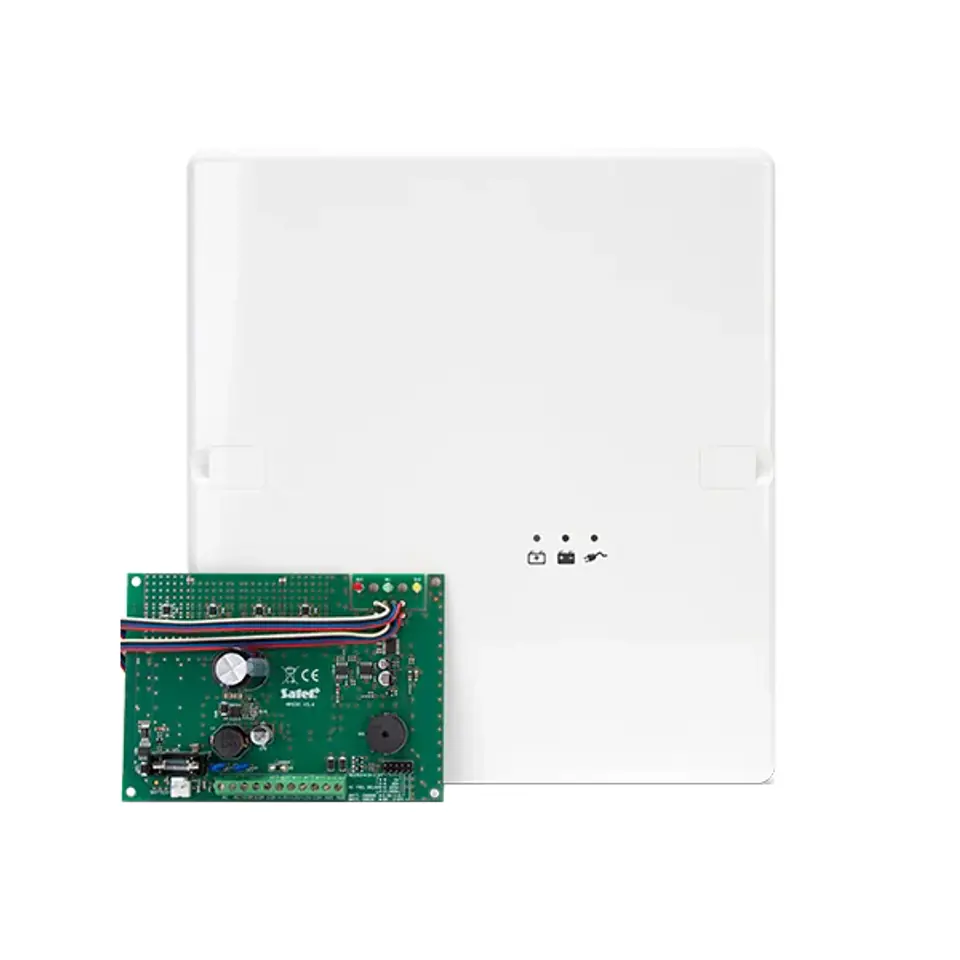

The buffer power supply is designed to power alarm control panels, sensors, code locks, cameras, keypads, intercoms and other devices included in the alarm system
Special attention should be paid to the proper cooling of the power supply during operation!
