| Case: | Plastic (PC + ABS) |
|---|---|
| Compatibility: | 2-wire door entry system DAHUA |
| Dimensions: | 131 x 103 x 40 mm |
| Number of ports: | 1 x DAHUA 2-wire ,1 x RJ-45 |
| Operating temperature: | -10 °C ... 55 °C |
| Power: | 48 V DC / 1 ... 3 A |
| Power consumption: | .max. 15 W (at full load) |
| Producer / brand: | DAHUA |
| Scales: | 0.24 kg |
| Selected features: | LED signaling Cascade can be mounted Can be mounted on a wall or on a TS-35 DIN rail |
| Warranty: | 3 years |

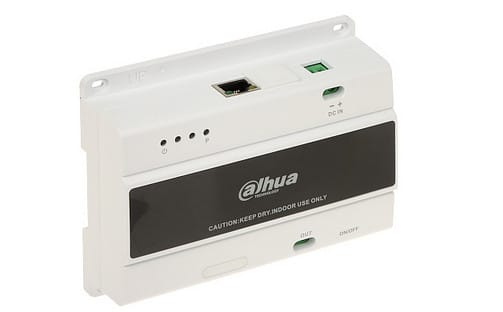

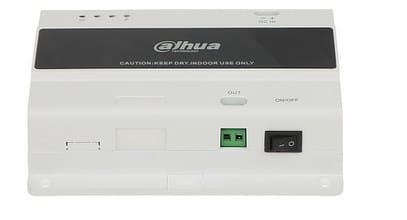

The device has one 2-wire bus output allowing to connect up to 20 internal panels of the VTH series and 2 VTO series video intercoms
The switch can also be connected to a LAN, which allows to expand the installation with additional DAHUA devices operating in the IP standard and connect the entire video door phone system to the Internet
