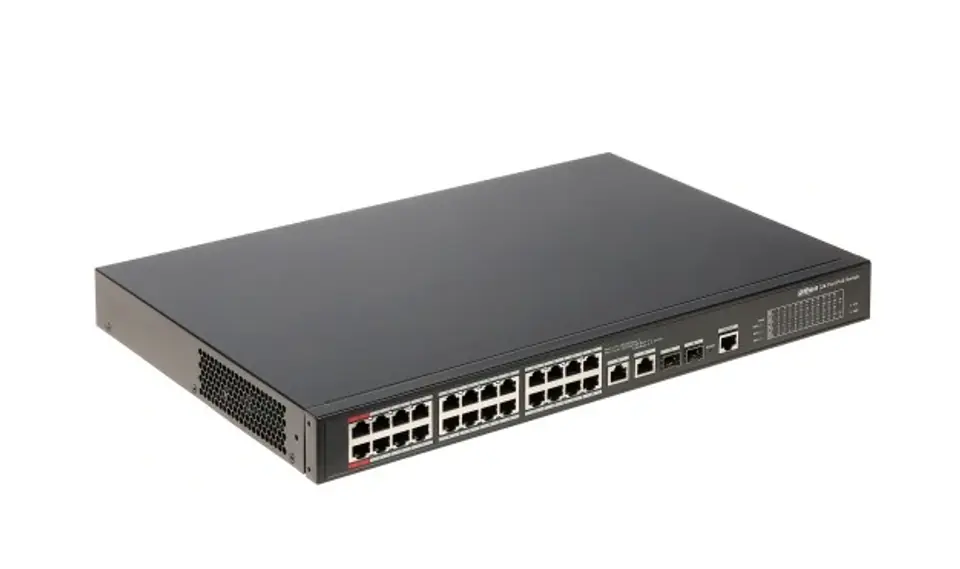

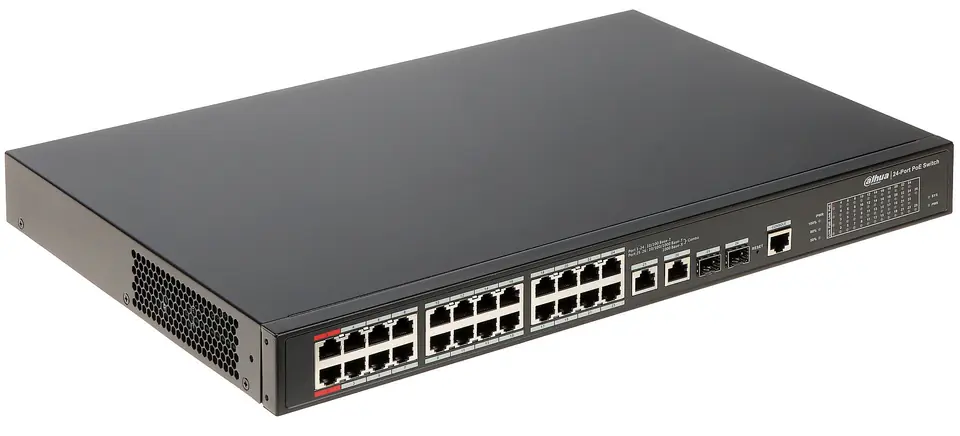

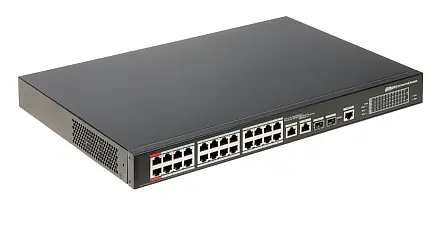

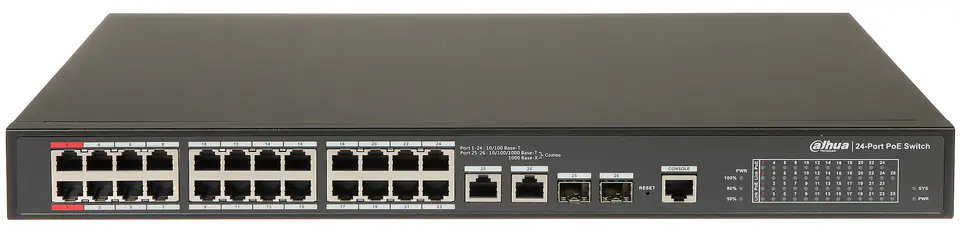

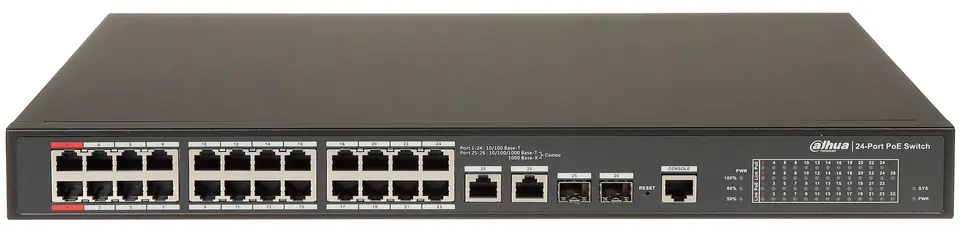

With reliability and high transmission quality, the PFS4226-24ET-360-V3 24-Port Desktop PoE Switch is ideal for expanding your home or office network
Remark! The SFP port requires the purchase of an SFP module, which is available in our offer
Basic switching rj-45 ethernet ports quantity: | 24 |
---|---|
Basic switching rj-45 ethernet ports type: | Fast Ethernet (10/100) |
Baud: | Ethernet - 10 Mb/s Full Duplex, Fast Ethernet - 100 Mb/s Full Duplex, Gigabit Ethernet - 1000 Mb/s Full Duplex (Uplink) |
Certificates: | CE |
Combo sfp ports quantity: | 2 |
Depth: | 300 mm |
Dhcp client: | Yes |
Dimensions: | 440 x 300 x 44 mm |
Drive device, buffer size: | 2,75 MB |
Enclosure type: | 19" RACK, 1U |
Fanless: | Yes |
Forwarding rate: | 6.55 Mpps |
Green poe: | Yes |
Height: | 44 mm |
Igmp snooping: | Yes |
Input voltage: | 100 - 240 V |
Instruction sheet: | Y |
Lan ports: | 24 x RJ45 - 10/100 Base-T ( 22 PoE (802.3af/at) + 2 Hi-PoE / PoE (802.3bt) / PoE (802.3af/at) ), 2 x Combo ports: SFP (1000 Base-X) / RJ45 (10/100/1000 Base-T) - Uplink, 1 x RJ45 - Console |
Led indicators: | Yes |
Leds: | Power: 50 % / 80 % / 100 %, Link, PoE, System |
Mac address table: | 4K |
Maximum output power: | 30W / PoE port 90W / Hi-PoE port / PoE 802.3bt port |
Maximum total power: | 360 watts (Printing) |
Mounting kit: | Yes |
Mounting options: | Control or metering cabinet, Tabletop |
Networking standards: | IEEE 802.3x, IEEE 802.3u, IEEE 802.3ap, IEEE 802.3, IEEE 802.3az |
Operating modes: | Extend On : 250 m, 10 Mbps Extend Off : 100 m, 100 Mbps |
Operating temperature: | -10 °C ... 55 °C |
Operating temperature (t-t): | -10 - 55 °C |
Package weight: | 4.5 kg |
Poe (power over ethernet) range: | Up to 250 m - Extend Mode (managed by DIP switch) |
Poe standard: | IEEE 802.3af/at/bt, Hi-PoE |
Poe watchdog: | Yes |
Power: | 100 ... 240 VAC |
Power consumption (idle): | 10 W |
Power consumption (max): | 360 W |
Power over ethernet (poe): | Yes |
Power over ethernet (poe) ports quantity: | 24 |
Power over ethernet (poe) power per port: | 30 W |
Power over ethernet (poe) type supported: | Hi-PoE, PoE+, PoE |
Power source type: | AC |

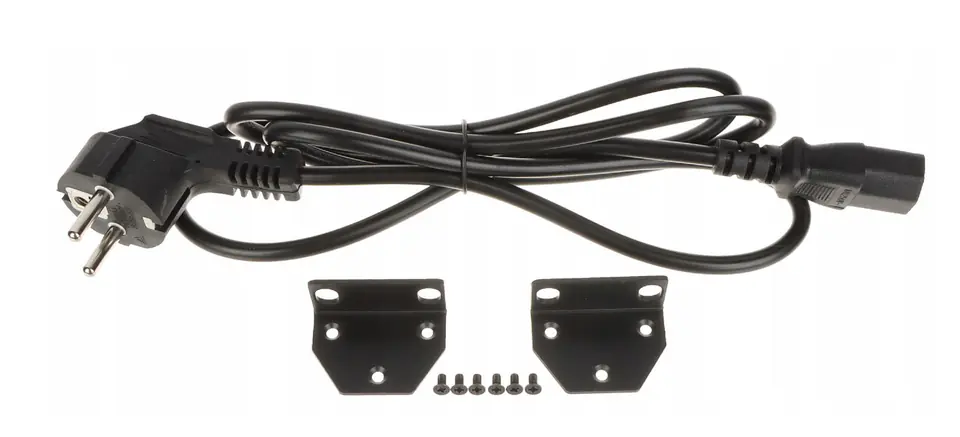

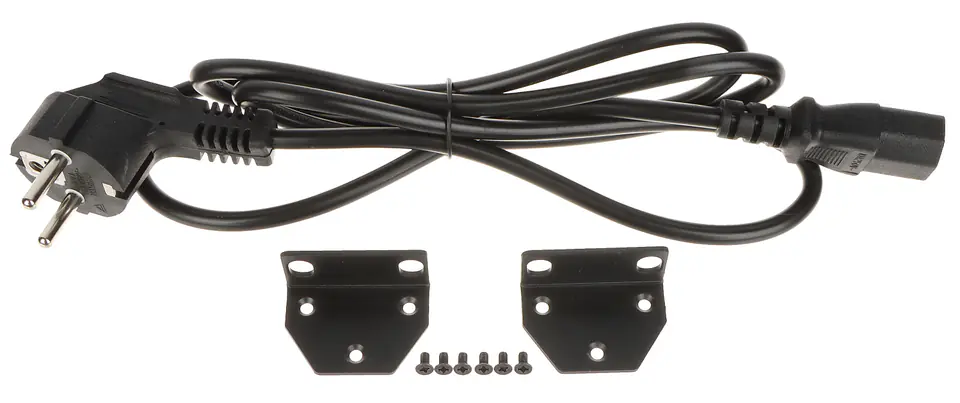

Power supply cable: | Yes |
Producer / brand: | DAHUA |
Product colour: | Black |
Regulatory approvals: | CE, FCC, RoHS |
Scales: | 3.38 kg |
Selected features: | The switch is managed via www Intelligent management of the output power stage of the Green PoE power supply Protection against lightning and potential differences between IEEE 802.1Q VLAN Spanning Tree STP/RSTP devices Flow control (802.3x) Port mirroring IGMP Snooping DHCP Client Hardware-based IP+MAC address binding MAC address filtering IEEE 802.1x port authentication QoS/DSCP traffic prioritization based on IEEE 802.1p PoE Watchdog standard Red ports support IEEE802.3af, IEEE802.3at, IEEE802.3bt and Hi-PoE standards with a maximum output power of 90W per port - designed to power high-power devices PoE range: 250 m @ 10 Mbps The device supports 8-pin power supply Console : RJ-45 output RESET button |
Size of mac address table: | 4000 |
Storage relative humidity (h-h): | 10 - 90% |
Store-and-forward: | Yes |
Switching capacity: | 8.8 Gbit/s |
Total power over ethernet (poe) budget: | 360 W |
Warranty: | 3 years |
Web-based management: | Yes |
Weight: | 3.38 kg |
Width: | 440 mm |
With reliability and high transmission quality, the PFS4226-24ET-360-V3 24-Port Desktop PoE Switch is ideal for expanding your home or office network
Remark! The SFP port requires the purchase of an SFP module, which is available in our offer
