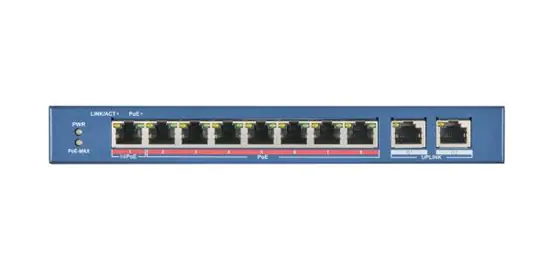

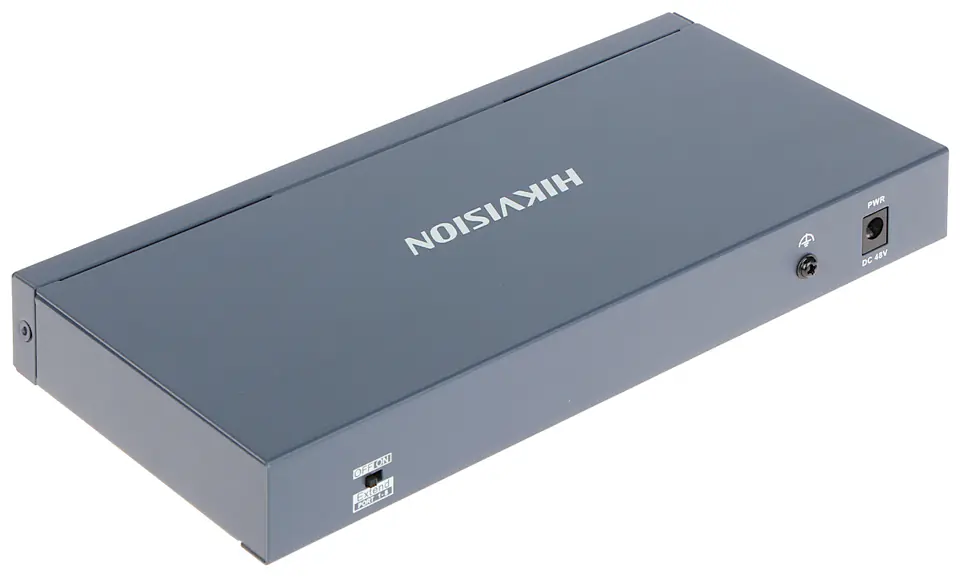

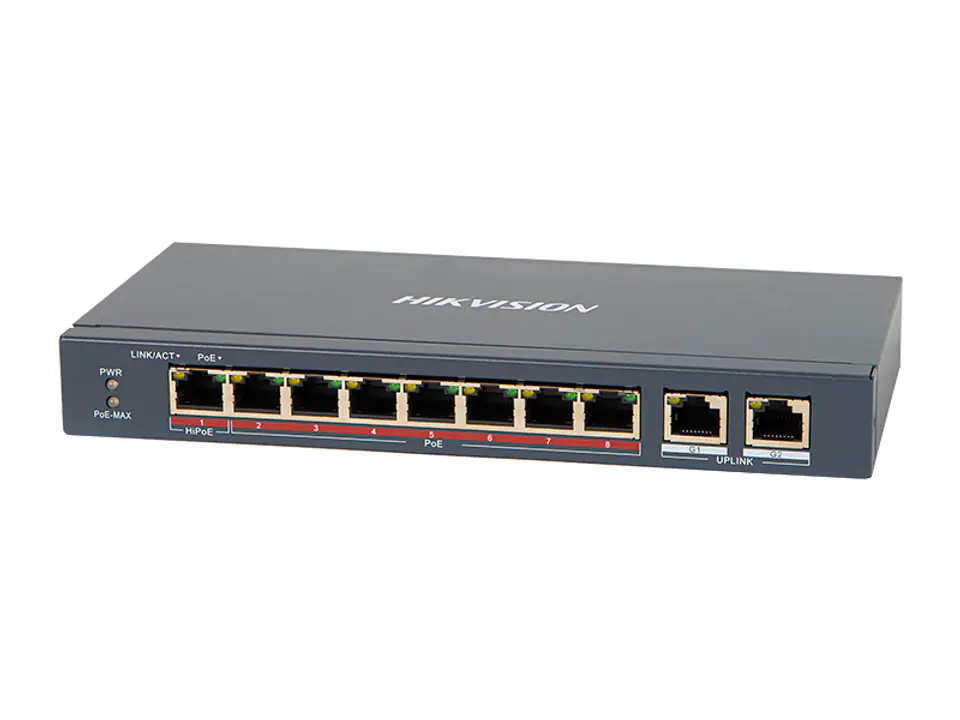

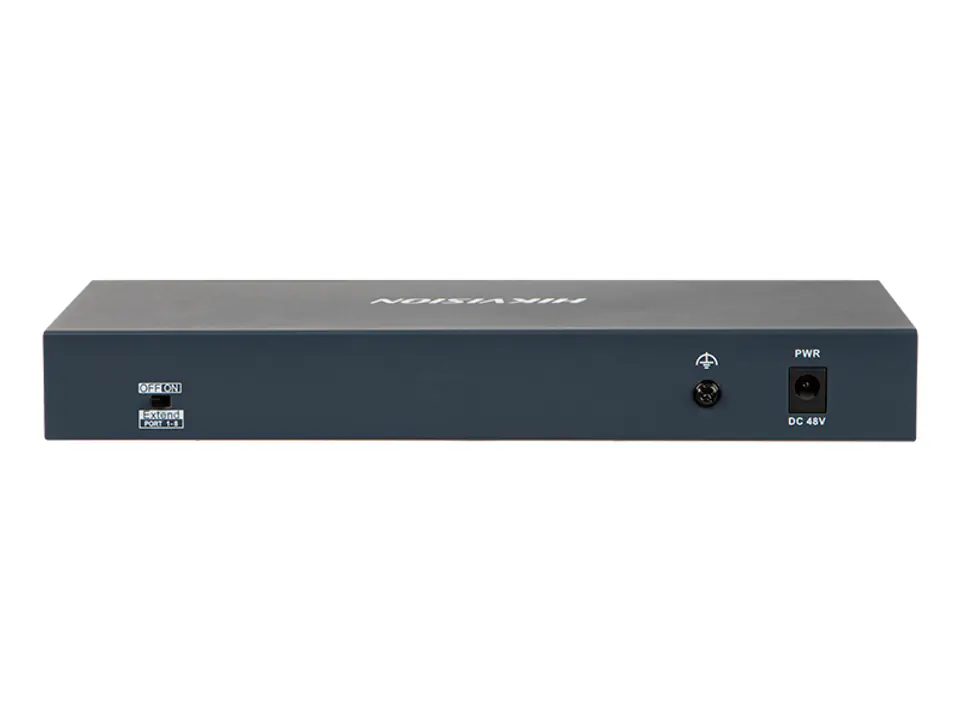

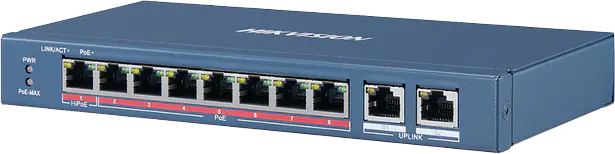

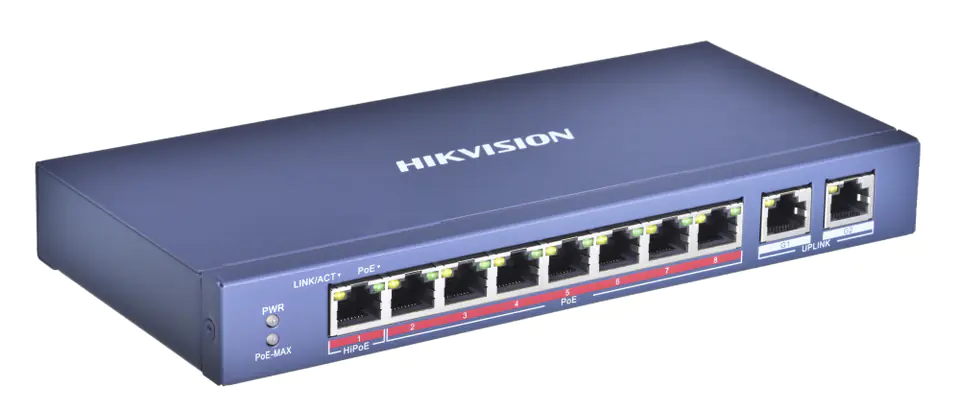

SWITCH POE HIKVISION DS-3E0310HP-E 10-PORTOWY

Name: SWITCH POE HIKVISION DS-3E0310HP-E 10-PORTOWY
Brand: HIKVISION
SKU: 94290
Price: 69.59 EUR
Availability: InStock

€69.59

Shipping from warehouse: ⁨H7⁩

Estimated shipping: Fri, Nov 29 - Mon, Dec 2

14 days returnUnconditional return policy

Availability:: large quantity
Brand:
Product code:: DS-3E0310HP-E / 6954273693350

Specification

10g support:	No
Auto mdi/mdi-x:	Yes
Basic switching rj-45 ethernet ports quantity:	8
Basic switching rj-45 ethernet ports type:	Fast Ethernet (10/100)
Dc input voltage:	48 V
Depth:	103.3 mm
Forwarding rate:	4.166 Mpps
Full duplex:	Yes
Gigabit ethernet (copper) ports quantity:	2
Height:	27.8 mm
Housing material:	Metal
Input current:	2.5 A
Led indicators:	Yes
Mac address table:	16000 entries
Networking standards:	IEEE 802.3x, IEEE 802.3at, IEEE 802.3, IEEE 802.3ab, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3z, IEEE 802.3af
Operating relative humidity (h-h):	5 - 95%
Operating temperature (t-t):	-10 - 55 °C
Package weight:	1.22 kg
Power consumption (max):	120 W
Power consumption (typical):	10 W
Power over ethernet (poe):	Yes
Power over ethernet (poe) ports quantity:	8
Power over ethernet (poe) power per port:	60 W
Product colour:	Blue
Storage relative humidity (h-h):	5 - 95%
Storage temperature (t-t):	-40 - 85 °C
Store-and-forward:	Yes
Switch type:	Unmanaged
Switching capacity:	5.6 Gbit/s
Total power over ethernet (poe) budget:	110 W
Weight:	550 g
Width:	217.6 mm

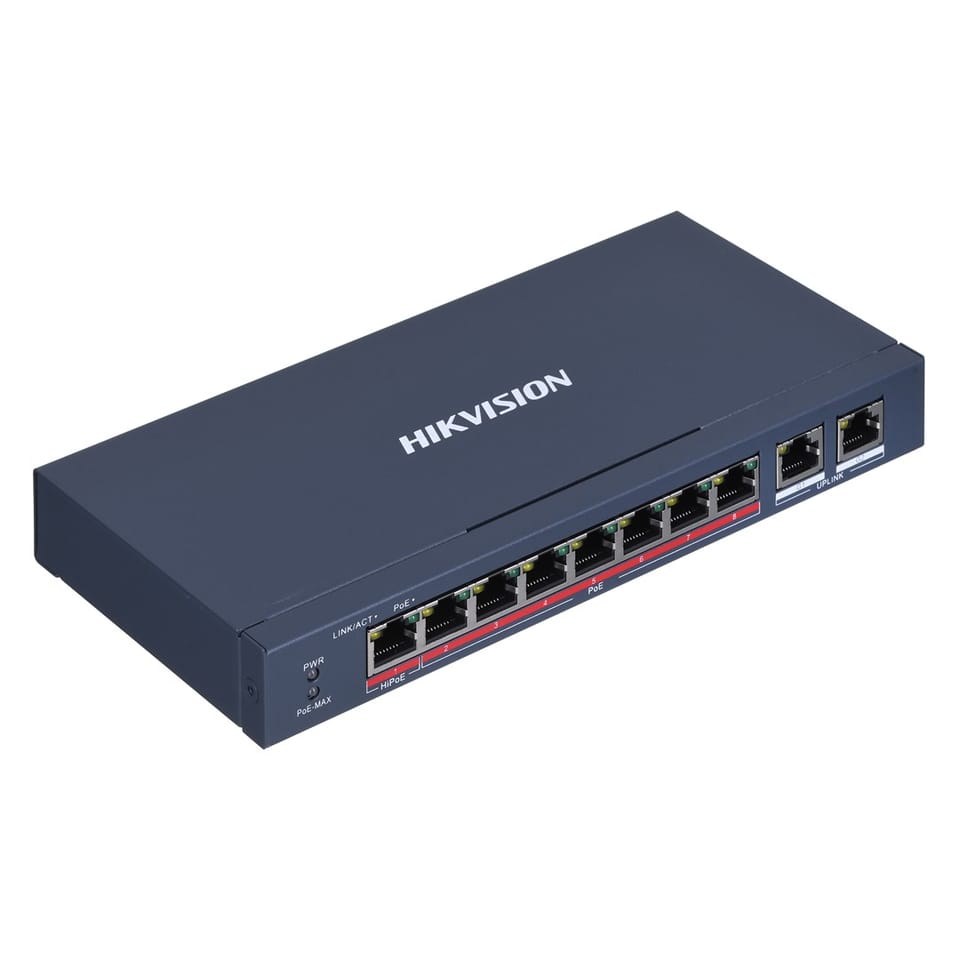

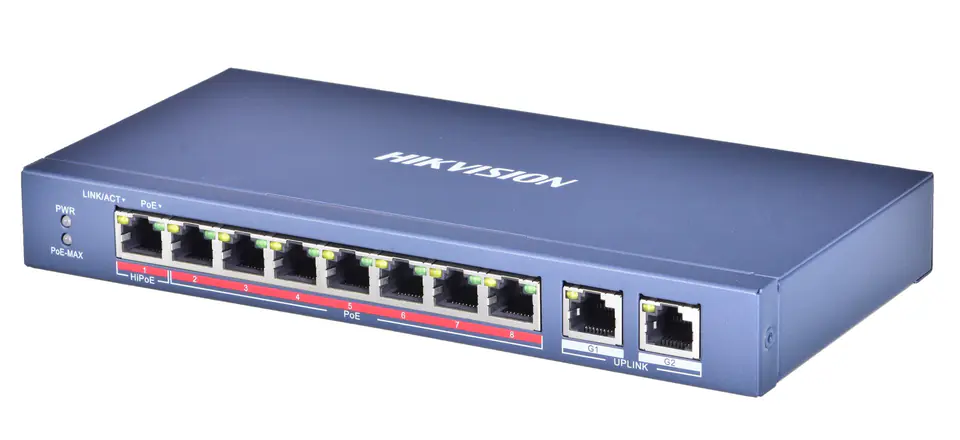

Switch PoE HikVision DS-3E0310HP-E

Liczba portów: 10
Liczba portów PoE: 8
Prędkość transmisji: 10/100 Mbps
Liczba portów Uplink: 2
Odporna i solidna konstrukcja
Energooszczędna technologia
Ochrona przeciwprzepięciowa dla portów PoE

Szczegółowe dane techniczne:
Standardy: IEEE 802.3, IEEE 802.3u,x,ab,af,at,bt
Porty LAN: 10x RJ45
Metoda transmisji: Zachowaj i prześlij

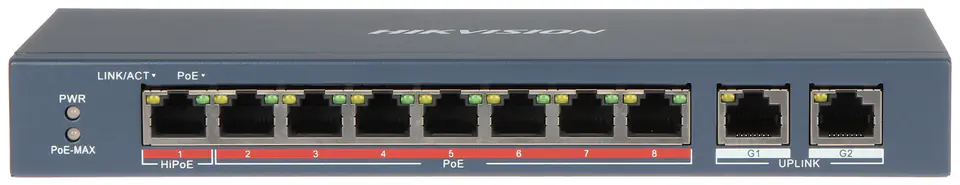

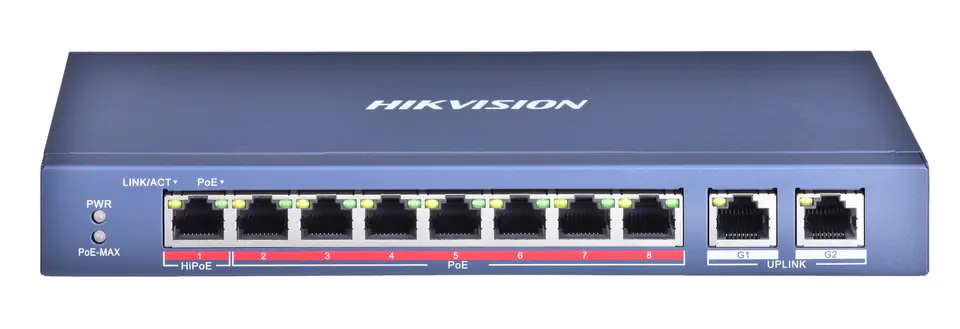

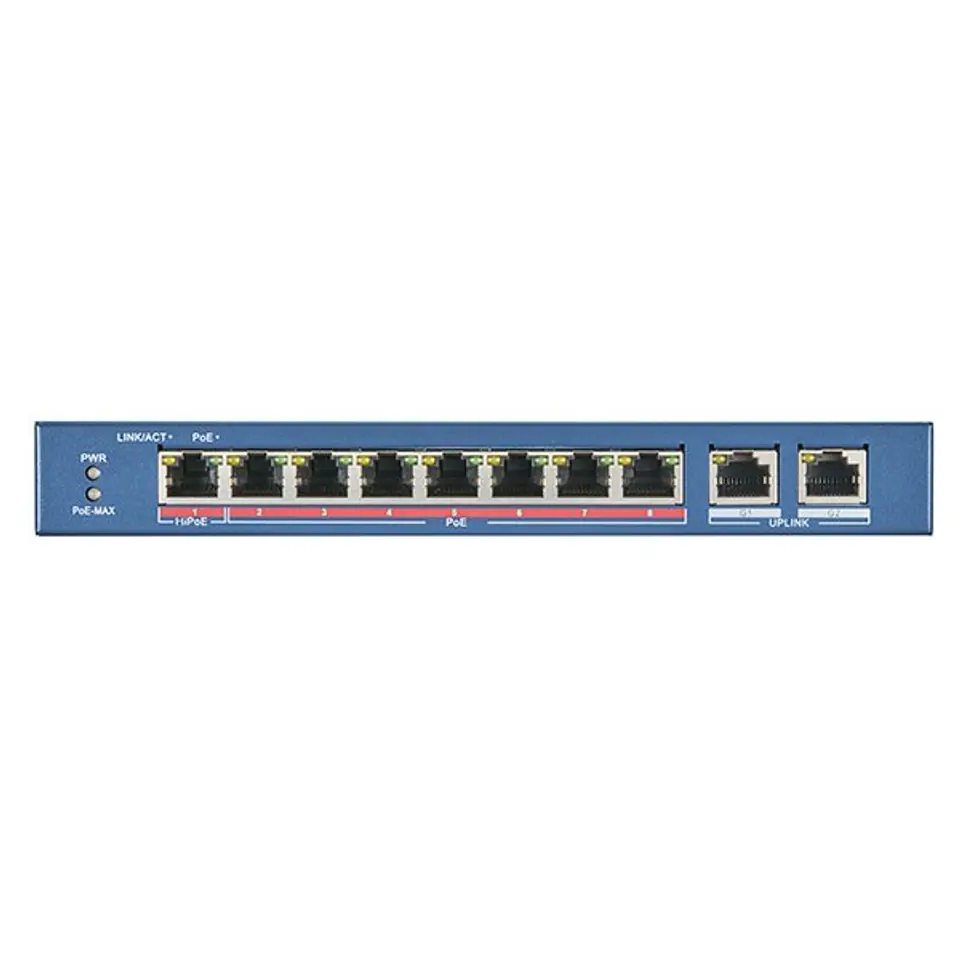

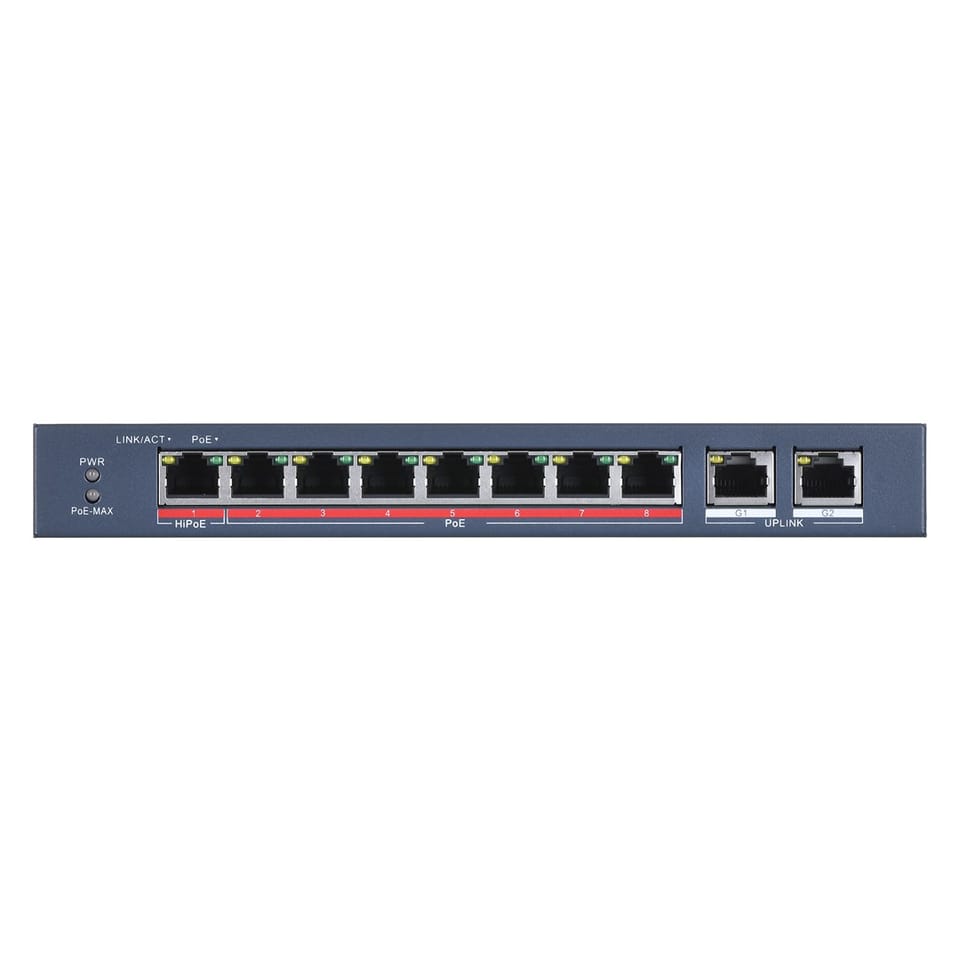

Diody LED: Power, PoE Max, PoE, Link/Act
Szybkość transmisji: 10/100 Mb/s
Maksymalna Moc: 35 W
Tablica adresów MAC: 16k

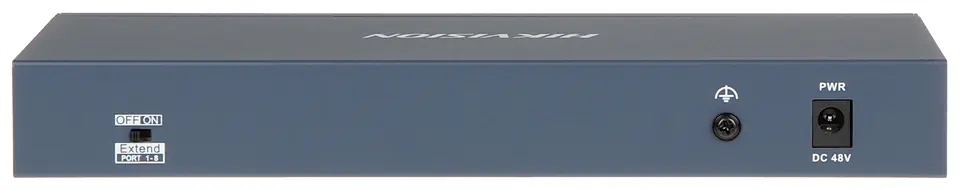

Tryby pracy: Standard, Extend

Tryby pracy:

Extend On : 150 m, 10 Mb/s @ Hi-PoE (802.3bt) / 250 m, 10 Mb/s @ PoE (802.3af/at)

Extend Off : 100 m, 100 Mb/s @ PoE (802.3af/at/bt)

Ceryfikaty: CE

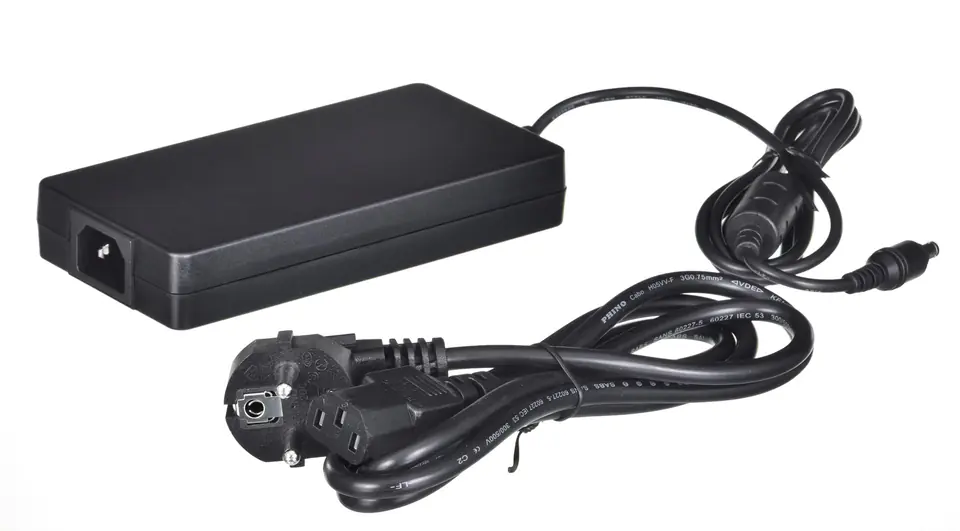

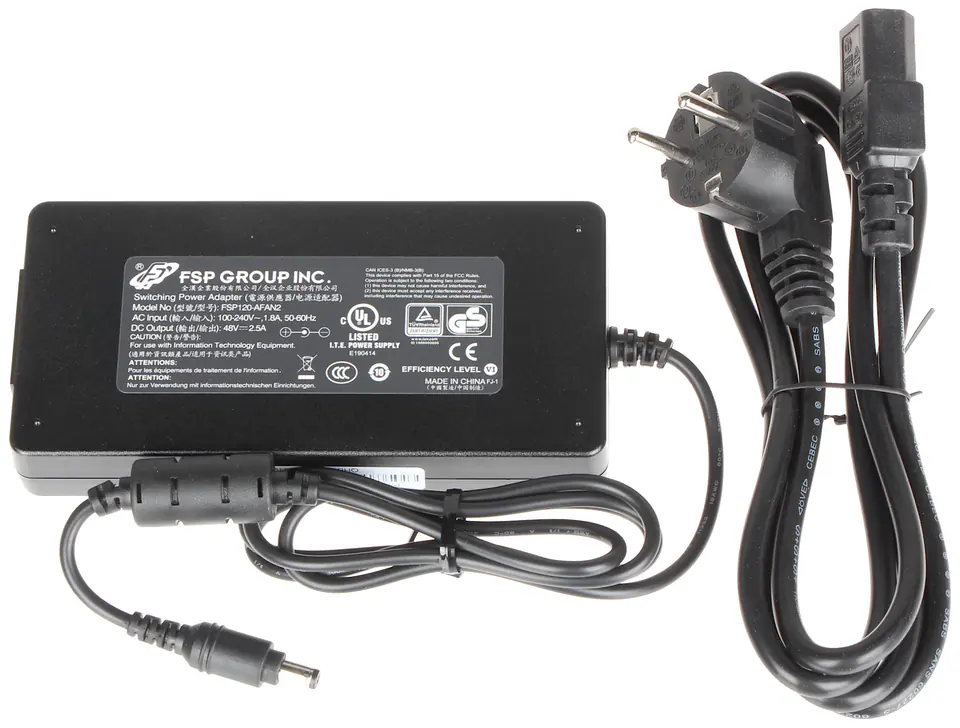

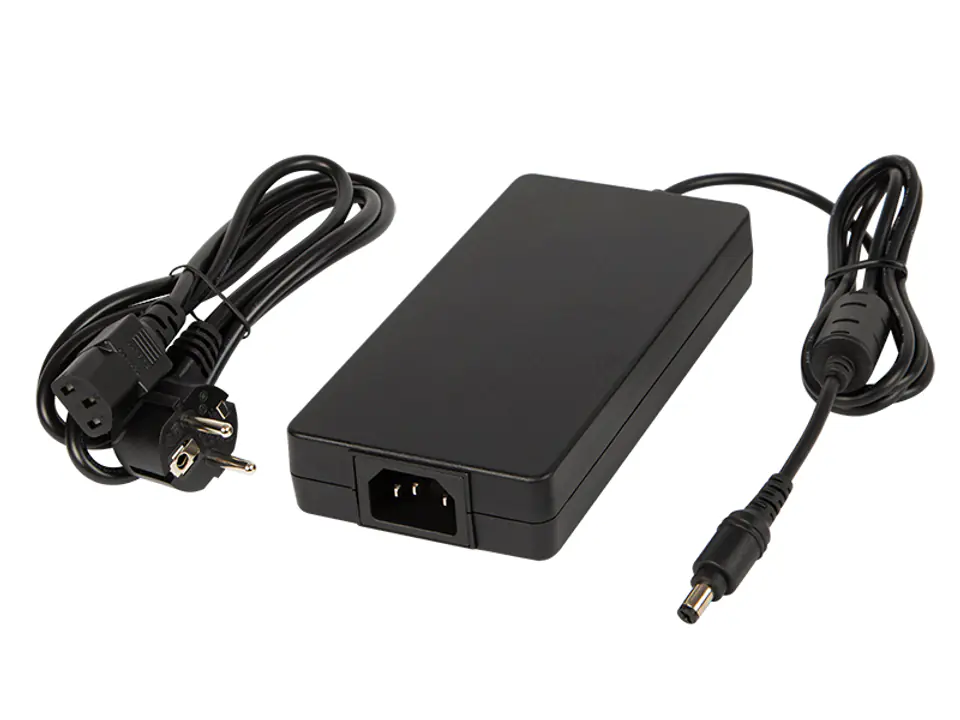

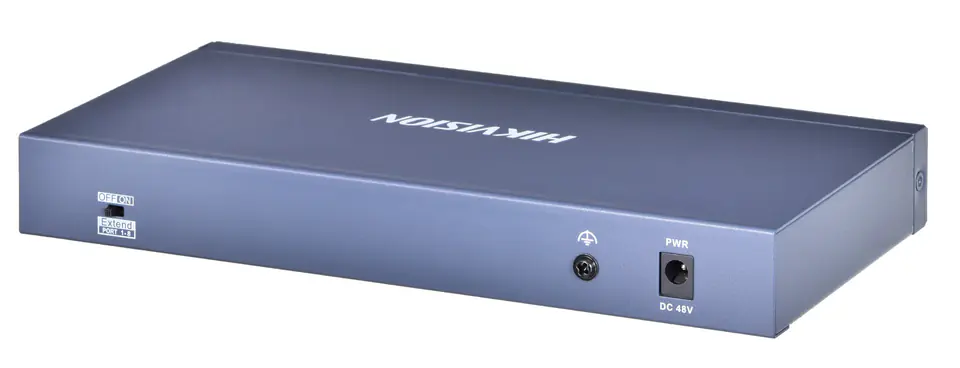

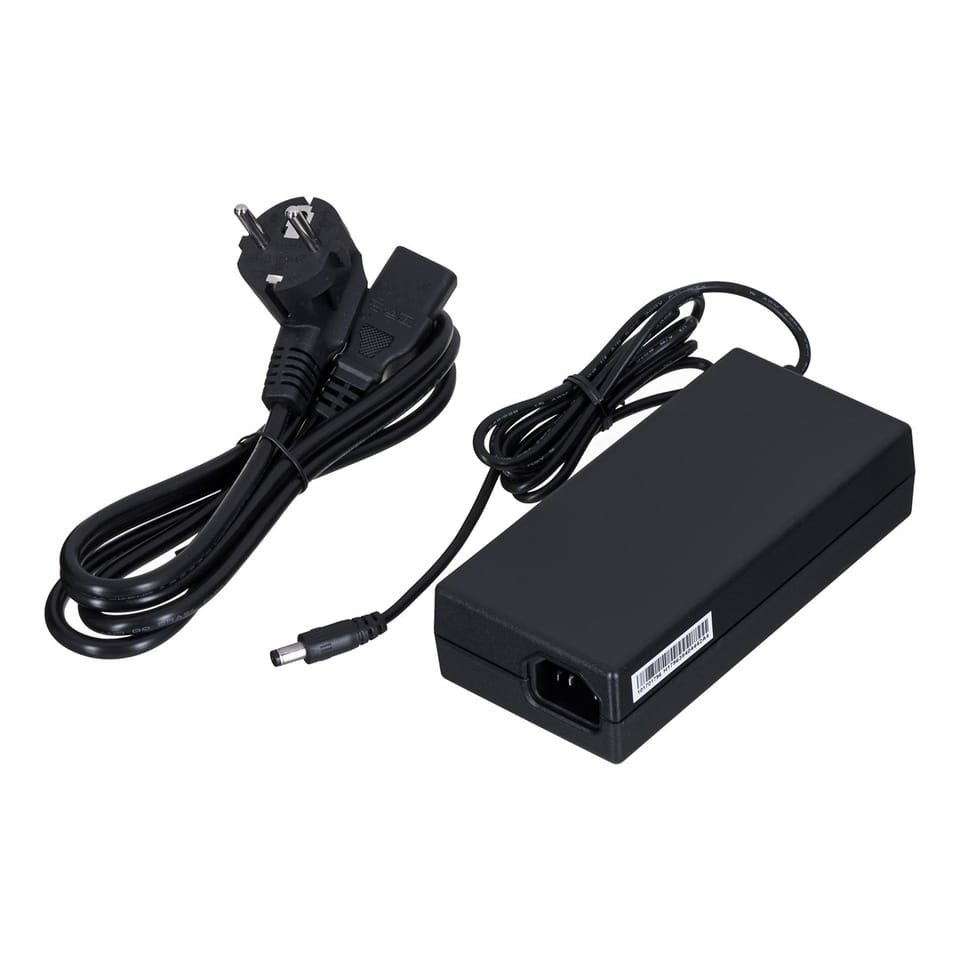

Zasilanie: 48 V DC/ 2,5A (zasilacz w zestawie)
Producent: HikVision

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
