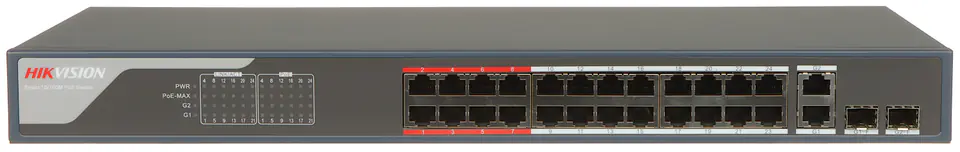

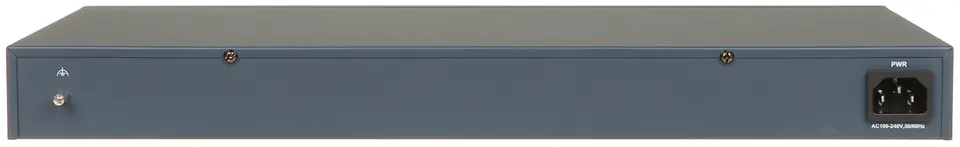

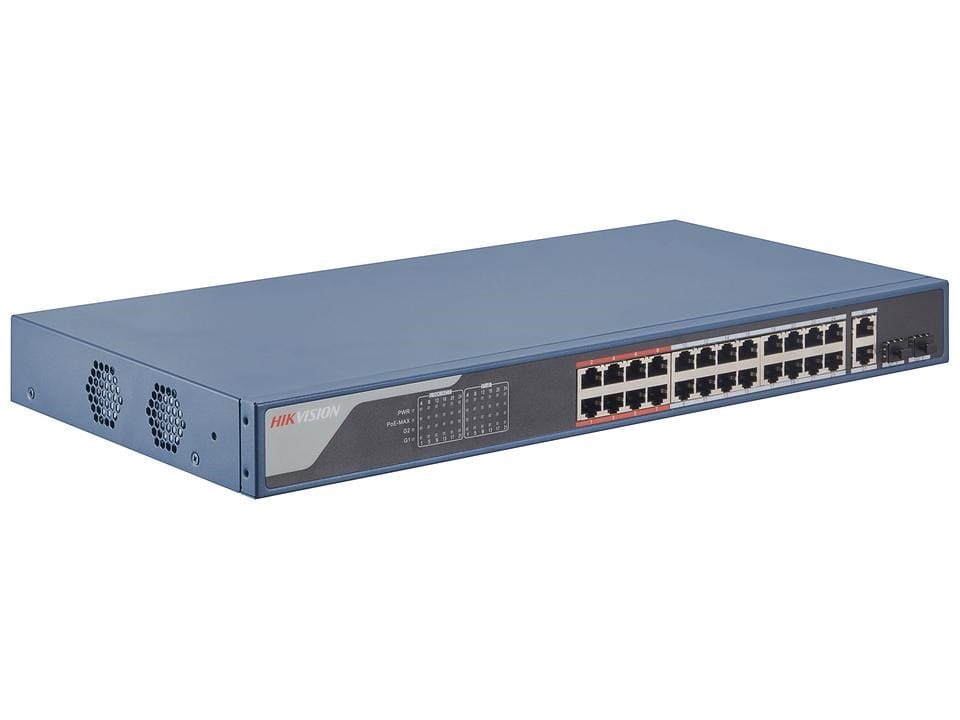

The DS-3E1326P-EI(V2) switch has been designed for large video streams in IP CCTV networks
Remark! The SFP port requires the purchase of an SFP module, which is available in our offer
Baud: | 10 / 100 Mbps - 24 LAN & PoE 10 / 100 / 1000 Mbps ports - 2 x 1000 Mbps uplink ports - 2 SFP ports |
---|---|
Certificates: | CE |
Default administrator login / password: | admin/- |
Default ip address: | 192.168.1.64 |
Dimensions: | 440 x 221 x 44 mm |
Lan ports: | 2 x Combo ports: SFP (Base-X) / RJ45 (Base-T) 24 x RJ45 10/100 Base-T ( 24 x PoE (802.3af/at) ) |
Leds: | Power, Link/Act, PoE, PoE Max, G1, G2 |
Mac address table: | 16k |
Maximum output power: | 30W/PoE port |
Maximum total power: | 370 watts (Printing) |
Operating modes: | Extend On : 300 m, 10 Mbps @ UTP Cat. 5e, 6 Extend Off : 100 m, 100 Mbps @ UTP Cat. 5e, 6 |
Operating temperature: | -10 °C ... 55 °C |
Power: | 100 ... 240 VAC |
Producer / brand: | Hikvision |
Sap code: | 301802305 |
Scales: | 2.74 kg |
Selected features: | 6 kV protection against lightning and potential differences between devices High priority ports : 1 ... 8 Configuration and management from the iVMS-4200 application Overview of topology and network status Data flow control Possibility of aggregation of ports G1, G2 Statistics reports Remote configuration Remote software update |
Warranty: | 3 years |
The DS-3E1326P-EI(V2) switch has been designed for large video streams in IP CCTV networks
Remark! The SFP port requires the purchase of an SFP module, which is available in our offer
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
