| Dimensions: | 160 x 98 x 42 mm |
|---|---|
| Number of outputs: | 2 pcs. |
| Operating temperature / relative humidity: | -10 °C ... 50 °C / 20 % ... 90 % |
| Output voltage: | 12 volts DC |
| Output voltage adjustment: | 11 ... 15 volts |
| Power supply: | 60 watts (Printing) |
| Power supply current efficiency: | 5 A |
| Scales: | 0.27 kg |
| Security: | Short-circuit overload |
| Supply voltage: | 230 VAC |
| Type of power supply: | Pulse |
| Warranty: | 2 years |

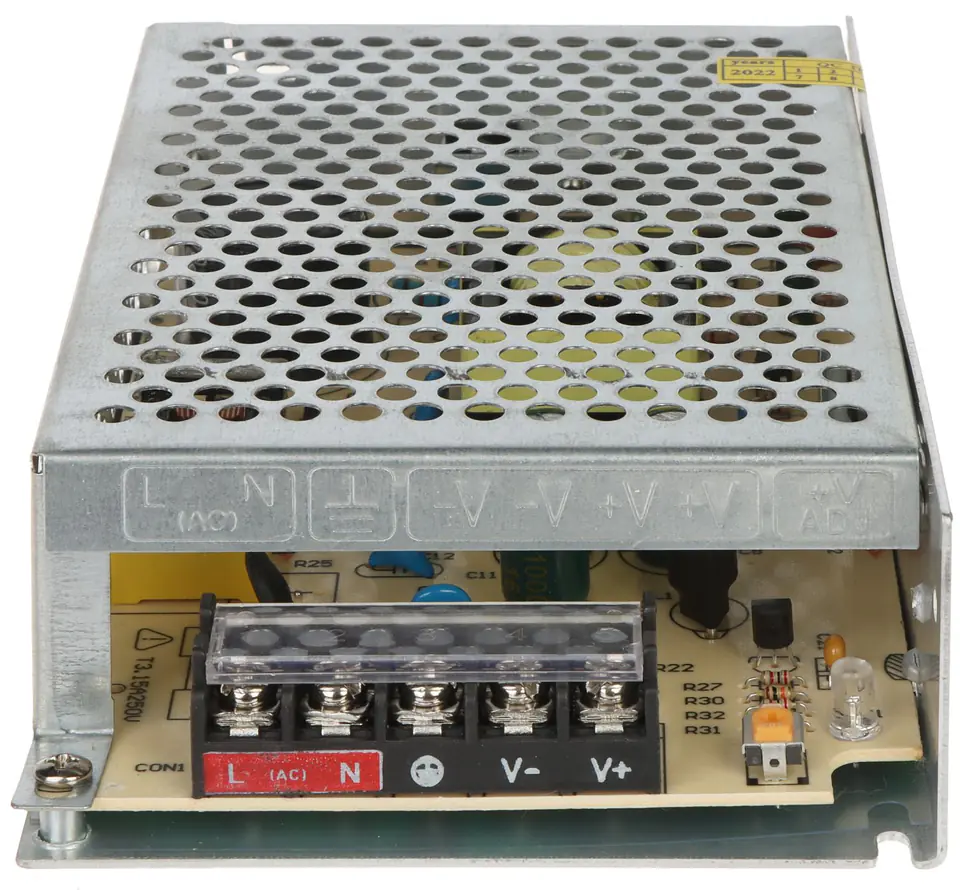

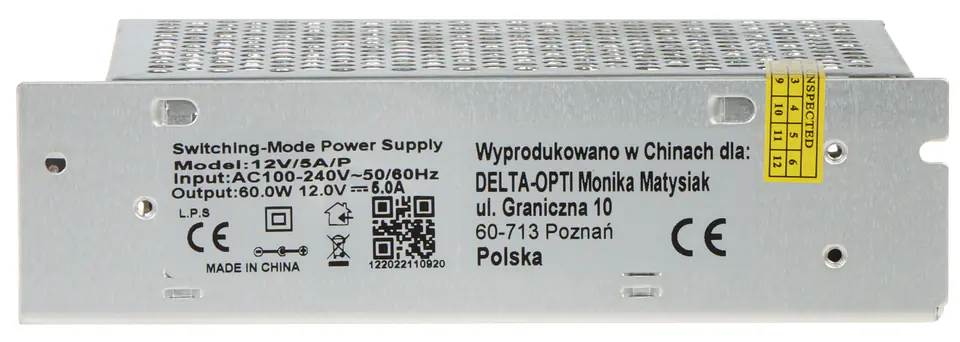

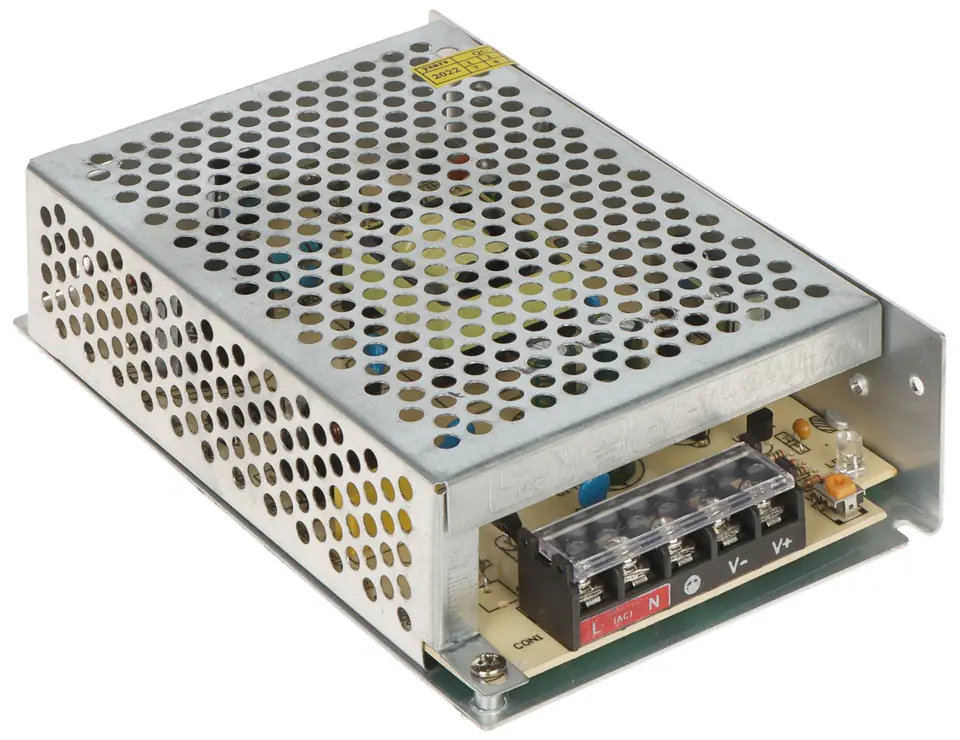

Single-output switched-mode power supply with small form factor
Remark! If the power supply is designed for continuous operation (24H), the rated current of the power supply should not exceed 80% of the maximum currentParticular attention should be paid to the proper cooling of the power supply during operation! In rack cabinets and poorly ventilated areas, we recommend using the following elements with the power supply: A19-W12 fan and FR-1 speed controller
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
