| Dimensions: | 241 x 124 x 66 mm |
|---|---|
| Number of fans: | 1 pc |
| Number of outputs: | 3 pcs. |
| Operating temperature / relative humidity: | -10 °C ... 60 °C / 20 % ... 90 % |
| Output voltage: | 12 volts DC |
| Output voltage adjustment: | 10.3 ... 13.7 volts |
| Power supply: | 500 watts (Printing) |
| Power supply current efficiency: | 41 amps |
| Scales: | 1.38 kg |
| Security: | Short-circuit overload |
| Supply voltage: | 110 / 230 VAC |
| Type of power supply: | Pulse |
| Warranty: | 2 years |

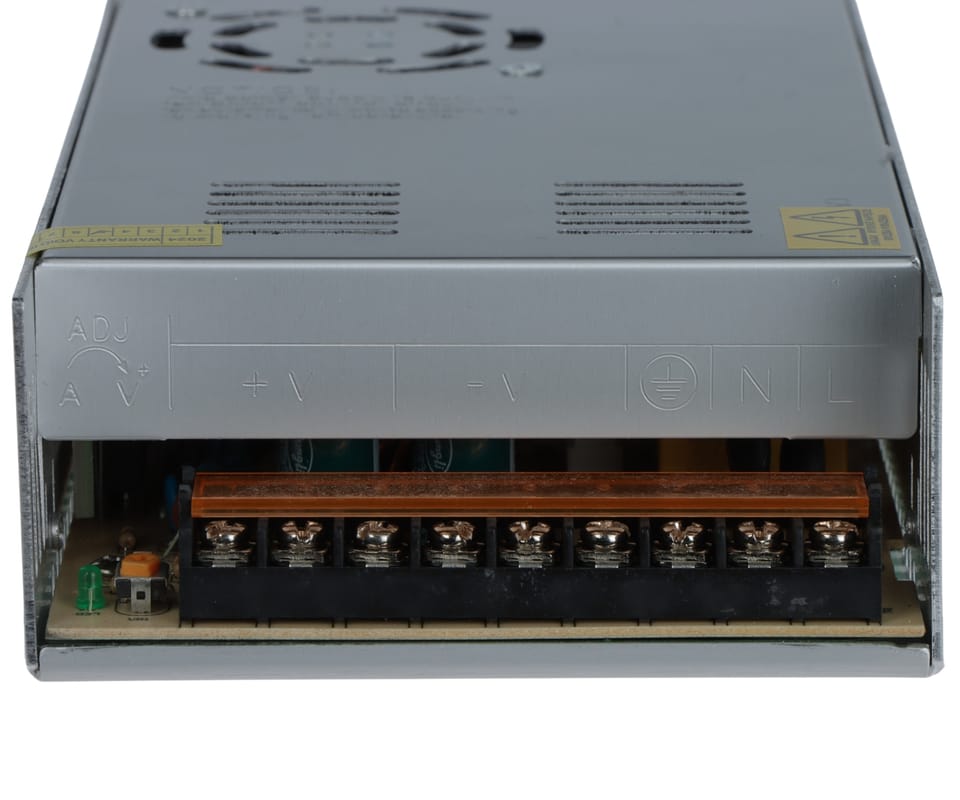

Power supply with three pairs of output terminals
Remark! If the power supply is designed for continuous operation (24H), the rated current of the power supply should not exceed 80% of the maximum current
Remark! The three -V terminals are physically shorted together, as are the three +V terminals of the power supply
