| Ac input frequency: | 47 ... 63 Hz |
|---|---|
| Average operating efficiency: | 75.6 % |
| Cable length: | 1.45 m |
| Dimensions: | 60 x 39 x 64 mm |
| Enclosure type: | Plug-in housing |
| Input voltage: | 100 - 240 VAC |
| Model id: | 12V/300MA/J-ESPE |
| Number of outputs: | 1 pc |
| Output: | 0.3 A |
| Output power: | 3.6 watts |
| Output voltage: | 12.0 VDC |

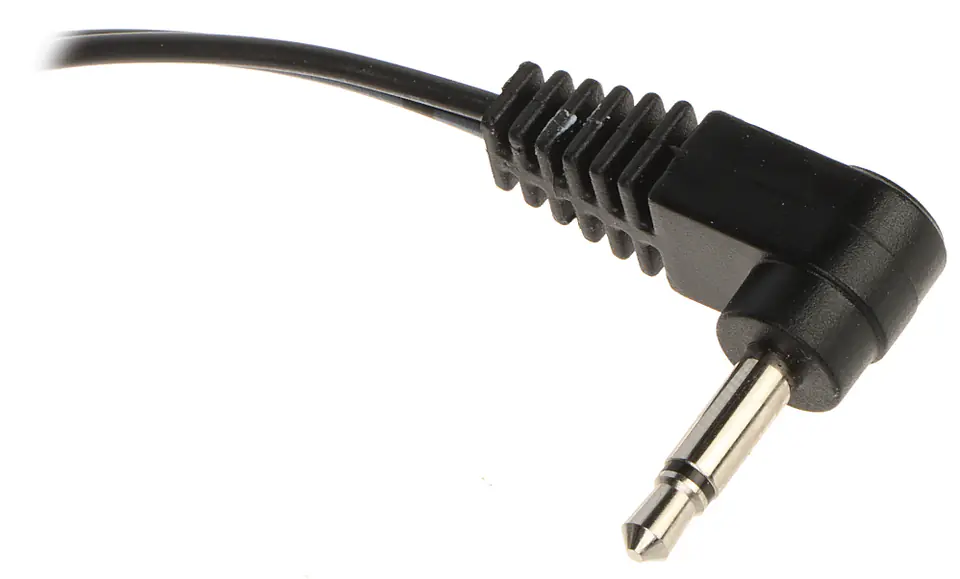

| Power connector type: | 230 V Plug 12 V : Jack 3.5 mm - Angled plug |
| Power consumption in no-load condition: | 0.10 watts |
| Scales: | 0.06 kg |
| Security: | Short-circuit overcurrent (overload) - automatic return to normal operation after the failure subsides Surge protectors |
| Type of power supply: | Pulse |
| Warranty: | 2 years |
Remark! If the power supply is designed for continuous operation (24H), the rated current of the power supply should not exceed 80% of the maximum current
Particular attention should be paid to the proper cooling of the power supply during operation!
