Remark! If the power supply is designed for continuous operation (24H), the rated current of the power supply should not exceed 80% of the maximum current
Particular attention should be paid to the proper cooling of the power supply during operation!
SWITCH MODE POWER SUPPLY 12V/1A/5.5*P100
€330.35
Shipping from warehouse: D4
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- 12V/1A/5.5*P100 /
Share this product:
Specification
| Ac input frequency: | 50 / 60 Hz |
|---|---|
| Average operating efficiency: | 83.0 % |
| Cable length: | 1 m |
| Dimensions: | 80 x 55 x 75 mm |
| Enclosure type: | Plug-in housing |
| In the package: | 100 pcs. Price per pack |
| Input voltage: | 100 - 240 VAC |
| Low load efficiency (10%): | 67.1 % |
| Model id: | 12V/1A/5.5*P100 |
| Number of outputs: | 1 pc |
| Output: | 1.0 A |
| Output power: | 12.0 watts |
| Output voltage: | 12.0 VDC |

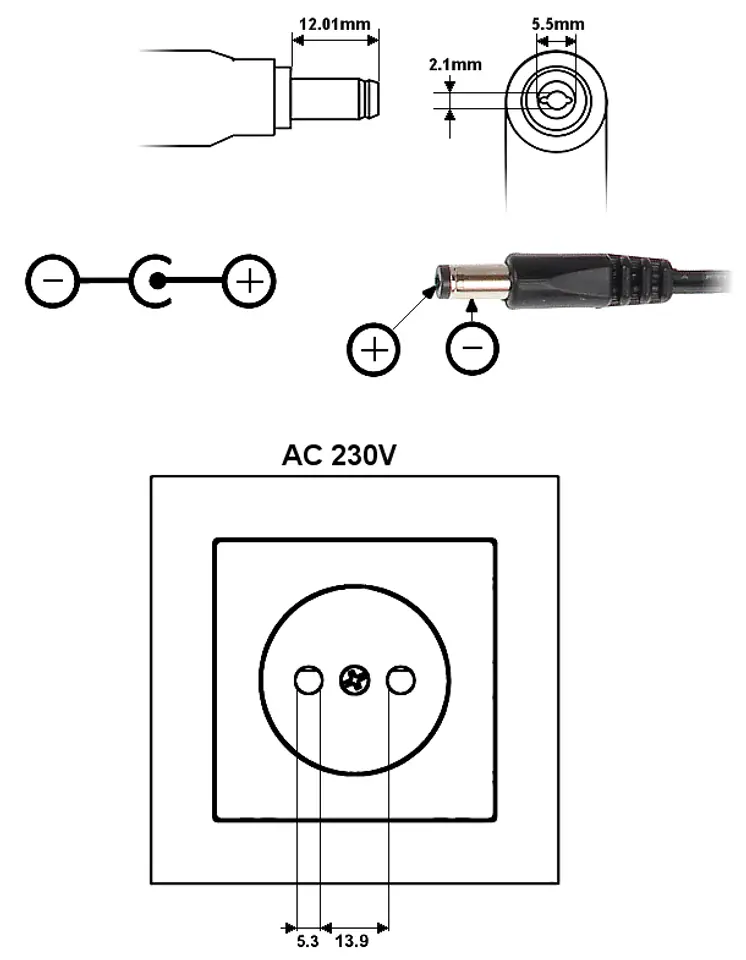

| Power connector type: | 230 V Plug 12 V - 2.1/5.5 mm Straight plug |
| Power consumption in no-load condition: | < 0.10 W |
| Scales: | 0.125 kg |
| Security: | Overload |
| Type of power supply: | Pulse |
| Warranty: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
