| Dimensions: | 87 x 37 x 28 mm |
|---|---|
| Enclosure type: | Aluminium |
| Frequency range: | 50 ... 60 Hz |
| Max. case temperature: | 75 °C |
| Max. operating temperature: | 50 °C |
| Number of outputs: | 1 pc |
| Output voltage: | 12 volts DC |
| Power supply: | 15 watts |
| Power supply current efficiency: | 1.25 amps |
| Scales: | 0.125 kg |
| Sealing: | IP67 |
| Selected features: | Wall-mountable housing |
| Supply voltage: | 170 ... 264 VAC |
| Type of power supply: | Pulse |
| Warranty: | 2 years |

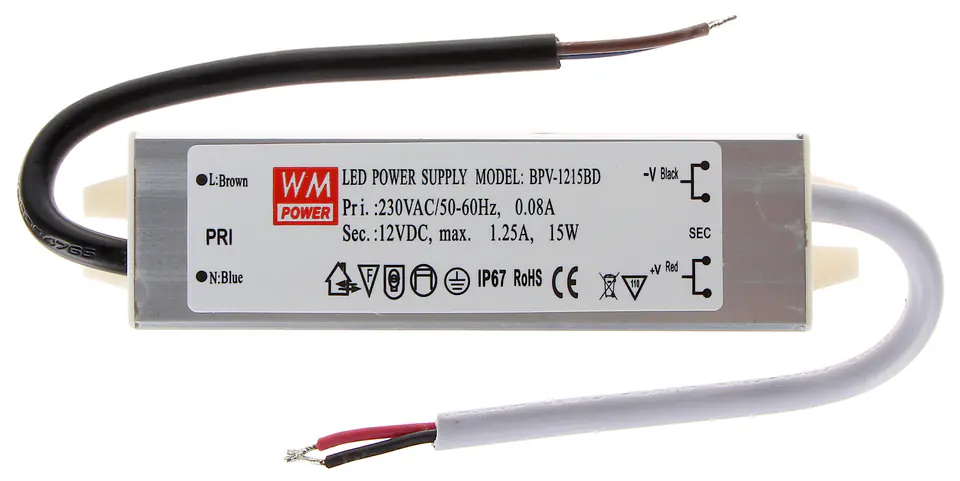

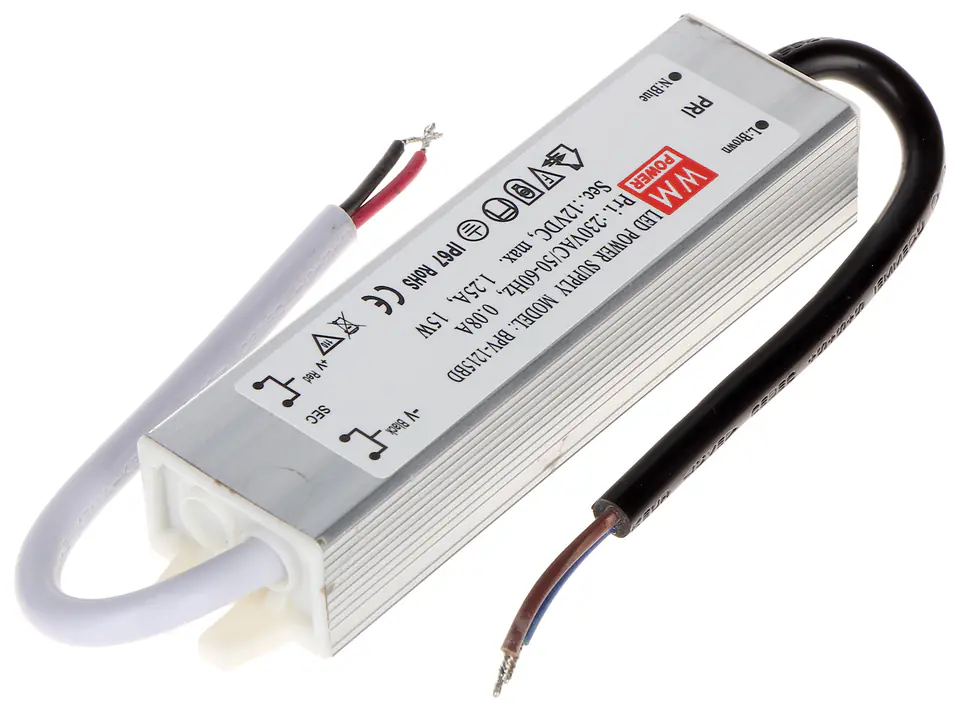

Hermetic power supply in a metal housing, designed in particular for powering LED / IR LED illuminators
Remark! If the power supply is designed for continuous operation (24H), the rated current of the power supply should not exceed 80% of the maximum current
Particular attention should be paid to the proper cooling of the power supply during operation!
