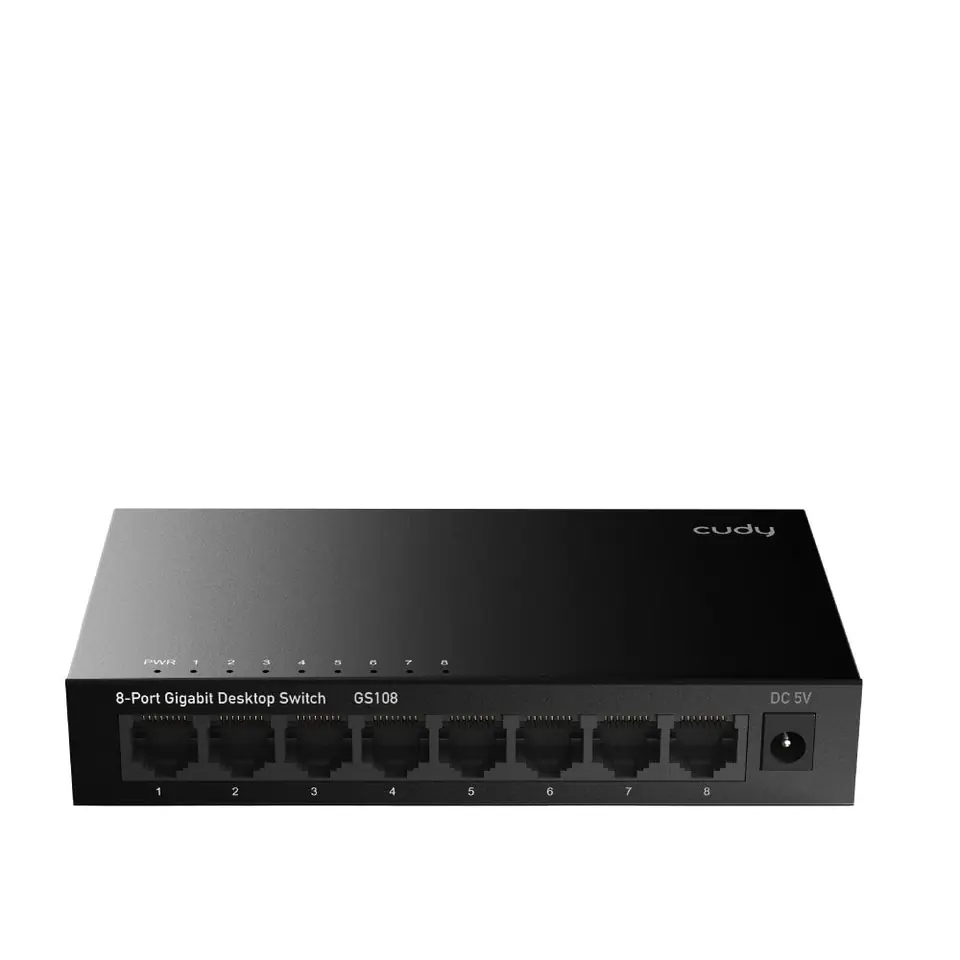

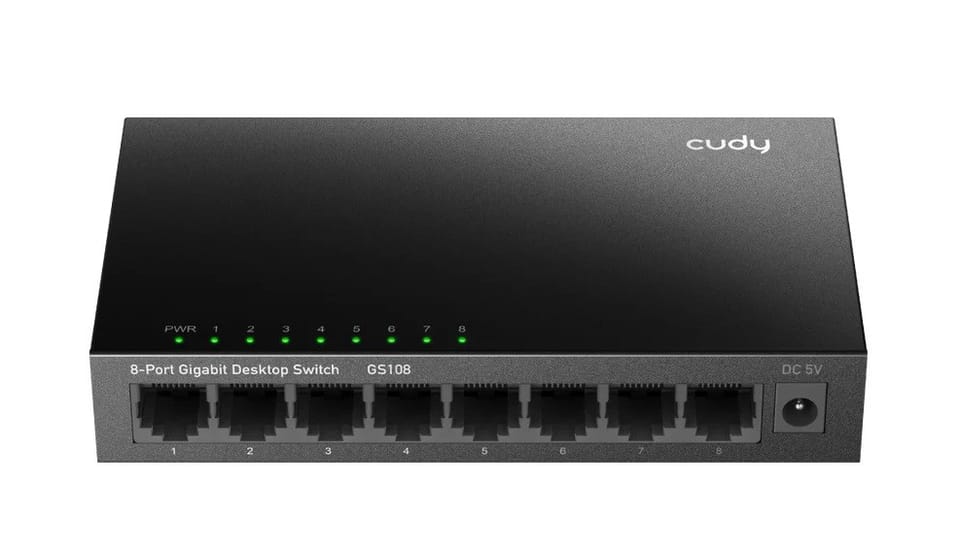

SWITCH LAN 8-port GS108 1Gbps 10/100/1000 metal

€23.22
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Cudy
Product code:
GS108 / 6971690790554

Specification

Ac input voltage:100 - 240 V
Auto mdi/mdi-x:Yes
Auto-negotiation:Yes
Basic switching rj-45 ethernet ports quantity:8
Basic switching rj-45 ethernet ports type:Gigabit Ethernet (10/100/1000)
Cable types supported:Cat6, Cat8.1, Cat6a, Cat6e, Cat7e, Cat3, Cat7, Cat6+, Cat8, Cat4, Cat5, Cat5e
Cables included:DC
Copper ethernet cabling technology:1000BASE-TX, 100BASE-TX, 10BASE-T
Dc input voltage:5 V
Depth:77 mm
Ethernet lan data rates:10,100,1000 Mbit/s
Flow control support:Yes
Full duplex:Yes
Half duplex:Yes
Height:25 mm
Jumbo frames:2000
Jumbo frames support:Yes
Led indicators:Link, Power, Loop
Mac address auto-aging supported:Yes
Mac address auto-learning supported:Yes
Mac address table:1000 entries
Master (outer) case gross weight:21 kg
Master (outer) case height:400 mm
Master (outer) case length:320 mm
Master (outer) case width:505 mm
Mean time between failures (mtbf):100000 h
Networking standards:IEEE 802.3ab, IEEE 802.3x, IEEE 802.3, IEEE 802.3u
Operating altitude:0 - 3048 m
Operating relative humidity (h-h):10 - 90%
Operating temperature (t-t):-10 - 50 °C
Package depth:120 mm
Package height:63 mm
Package type:Box
Package weight:500 g
Package width:175 mm
Packet buffer memory:2.5 MB
Power over ethernet (poe):No
Power source:AC/DC
Power supply included:Yes
Product colour:Black
Products per master (outer) case:40 pc(s)
Quick start guide:Yes
Rack mounting:No
Storage relative humidity (h-h):5 - 90%
Storage temperature (t-t):-40 - 70 °C
Store-and-forward:Yes
Switching capacity:16 Gbit/s
Throughput:11.9 Mpps
Vlan support:Yes
Weight:300 g
Width:137 mm

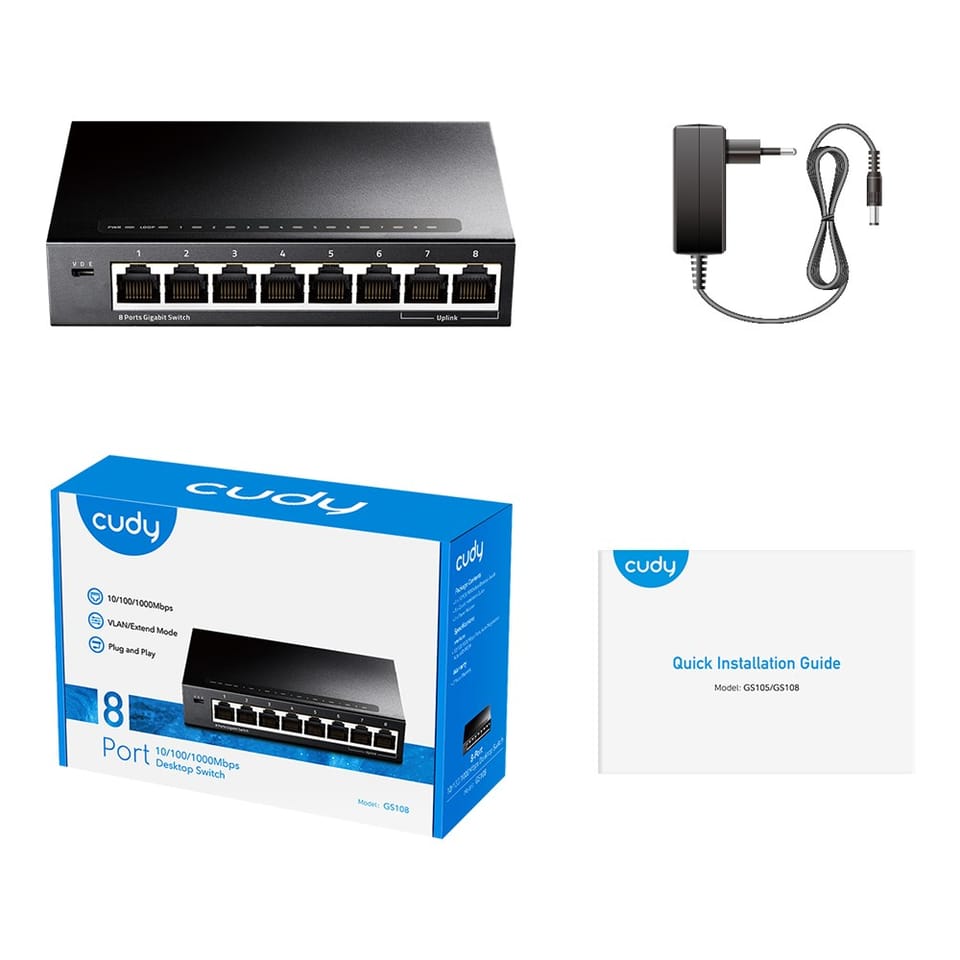

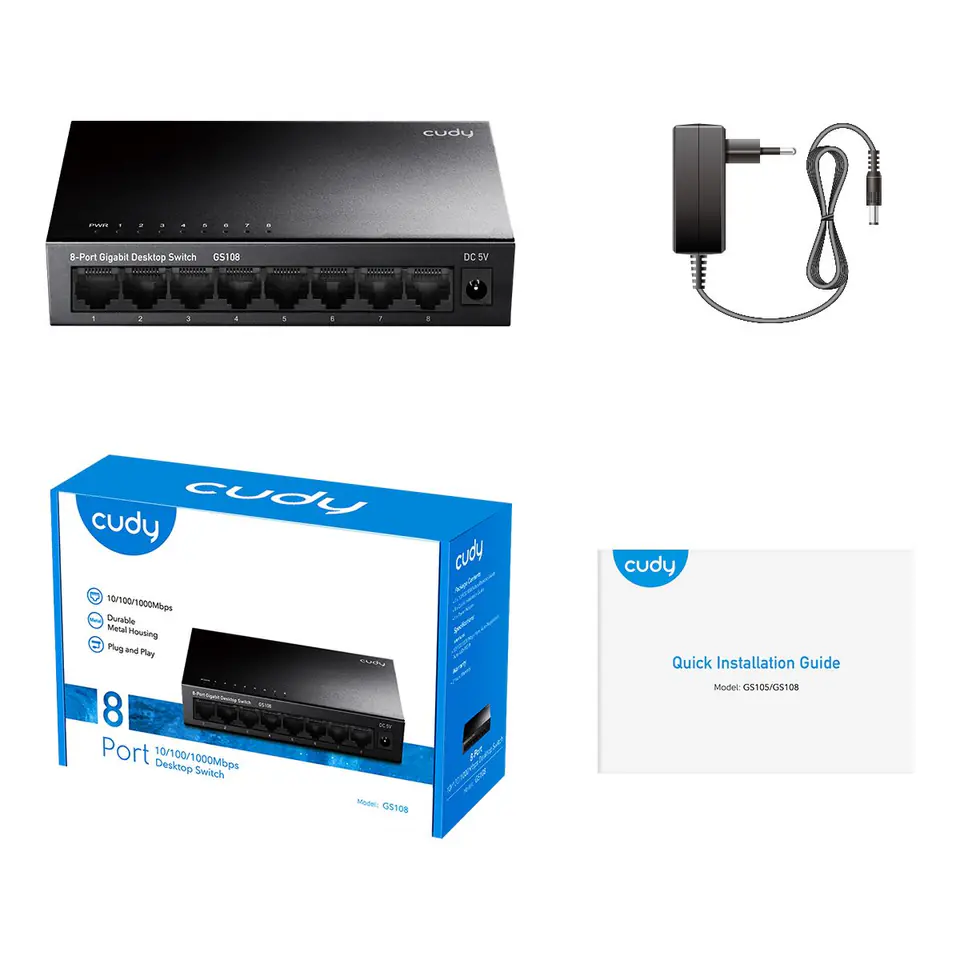

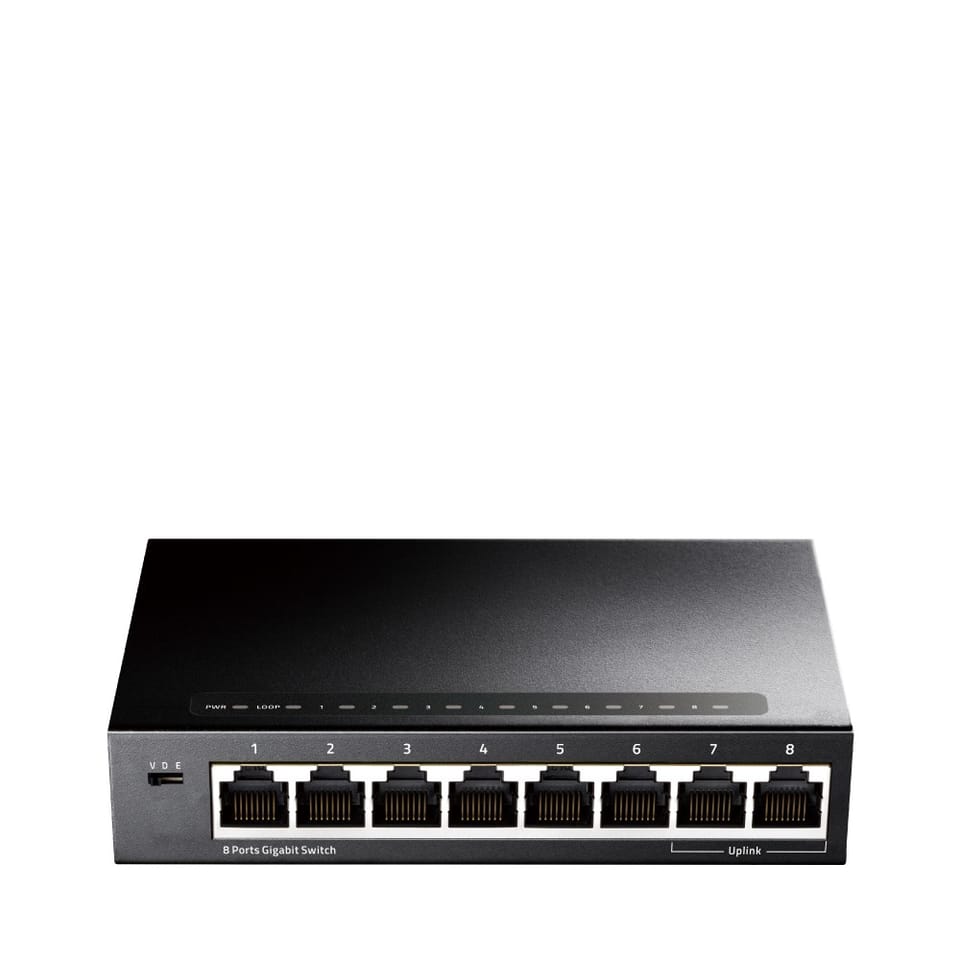

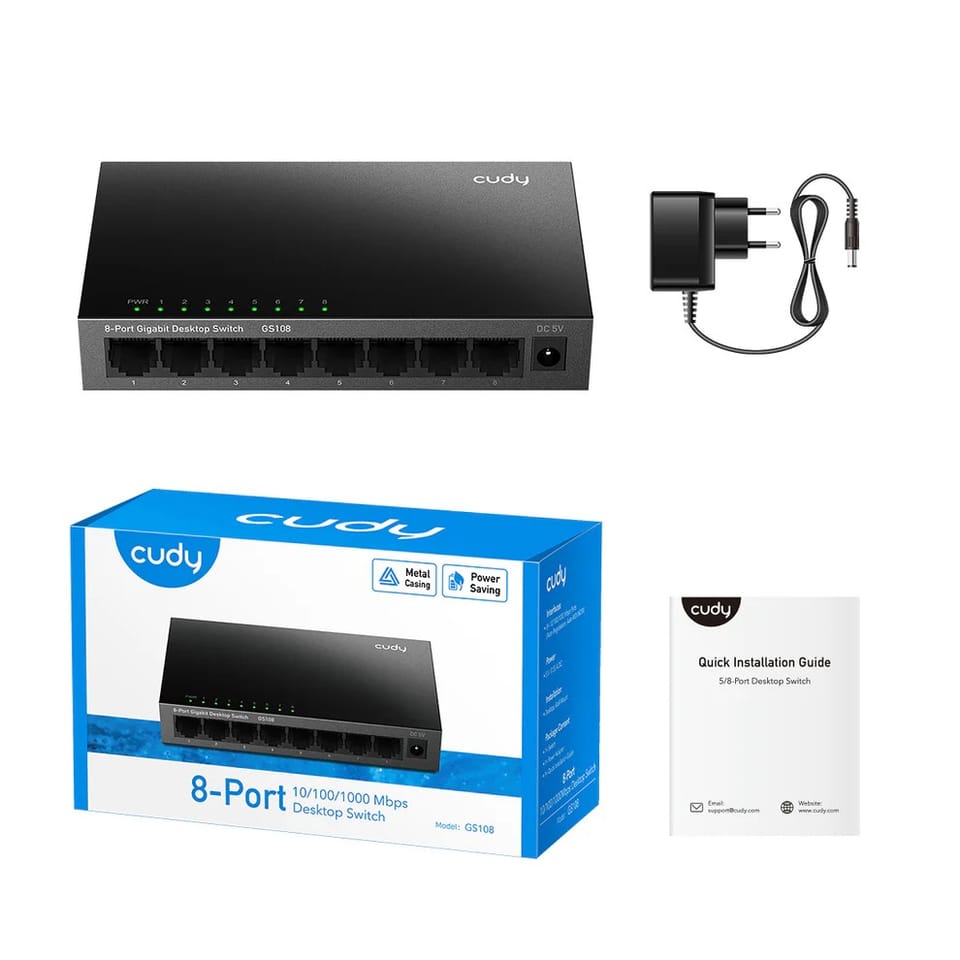

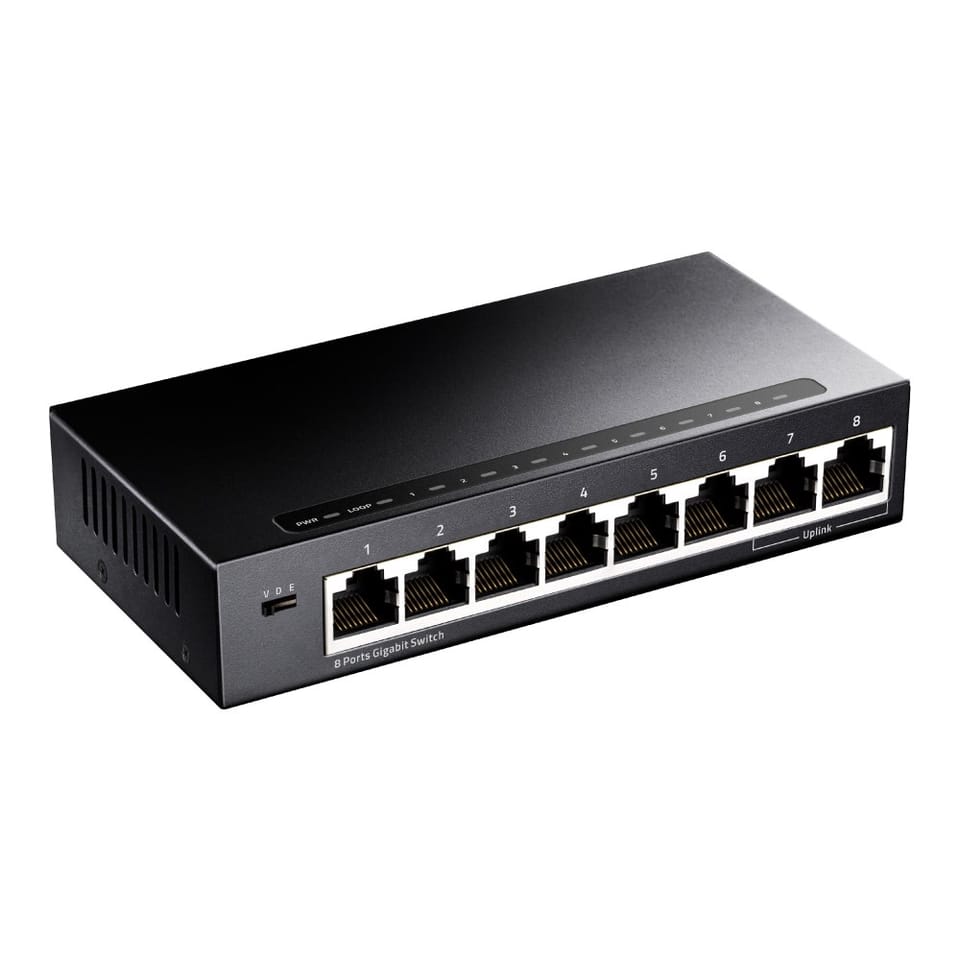

8-port office SWITCH CUDY GS108 - 2 inputs and 6 outputs 10/100/1000 Mbps

SWITCH LAN 8-port GS108 1Gbps 10/100/1000 metal
  • IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab compliant
  • 8 10/100/1000 Mbps Auto-negotiation, Auto-MDI/MDIX ports provide intelligent switching between 10 Mbps, 100 Mbps and 1000 Mbps hardware
  • Non-blocking switching architecture allows packets to be transmitted and filtered at full wired speed
  • Store-and-Forward Switching Method
  • Supports 16K automatic learning of MAC addresses
SWITCH LAN 8-port GS108 1Gbps 10/100/1000 metal

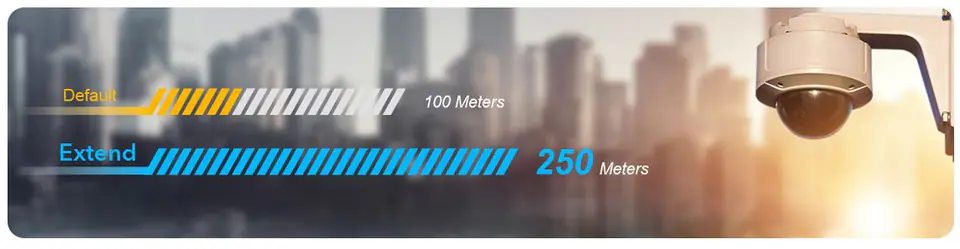

Long Range Extended Mode

Traditionally, the switch provides power and data over distances of up to 100 meters. If you want to deploy the power supply device over a greater distance, you need to add an additional switch to increase the distance. Therefore, you need to spend more money on it. Now, with the GS150, you can meet the need to deploy an access point in a remote location and reduce costs.

SWITCH LAN 8-port GS108 1Gbps 10/100/1000 metal

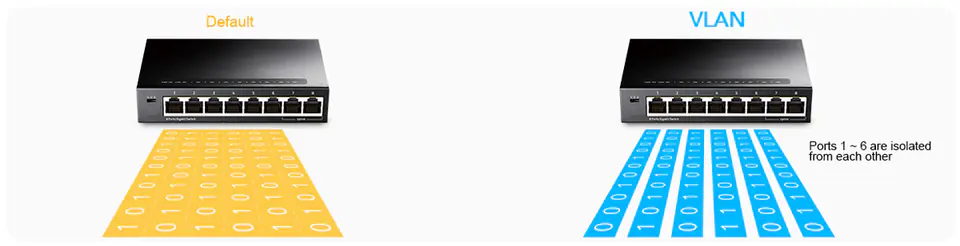

Virtual access network VLAN - will increase the security of your data

Anyone who has at least a little knowledge of the subject of network security is well aware of the importance, but often forgotten, of the use of an additional firewall in the form of separating ports in switches. It is such a simple and basic device that hardly anyone remembers that virutal local area networks can become the only obstacle for people who want to acquire the organization's data. Properly configuring the VLAN will make it more difficult for a malicious user to start the packet sniffer and intercept all network traffic passing through the switch.

SWITCH LAN 8-port GS108 1Gbps 10/100/1000 metal
SWITCH LAN 8-port GS108 1Gbps 10/100/1000 metal

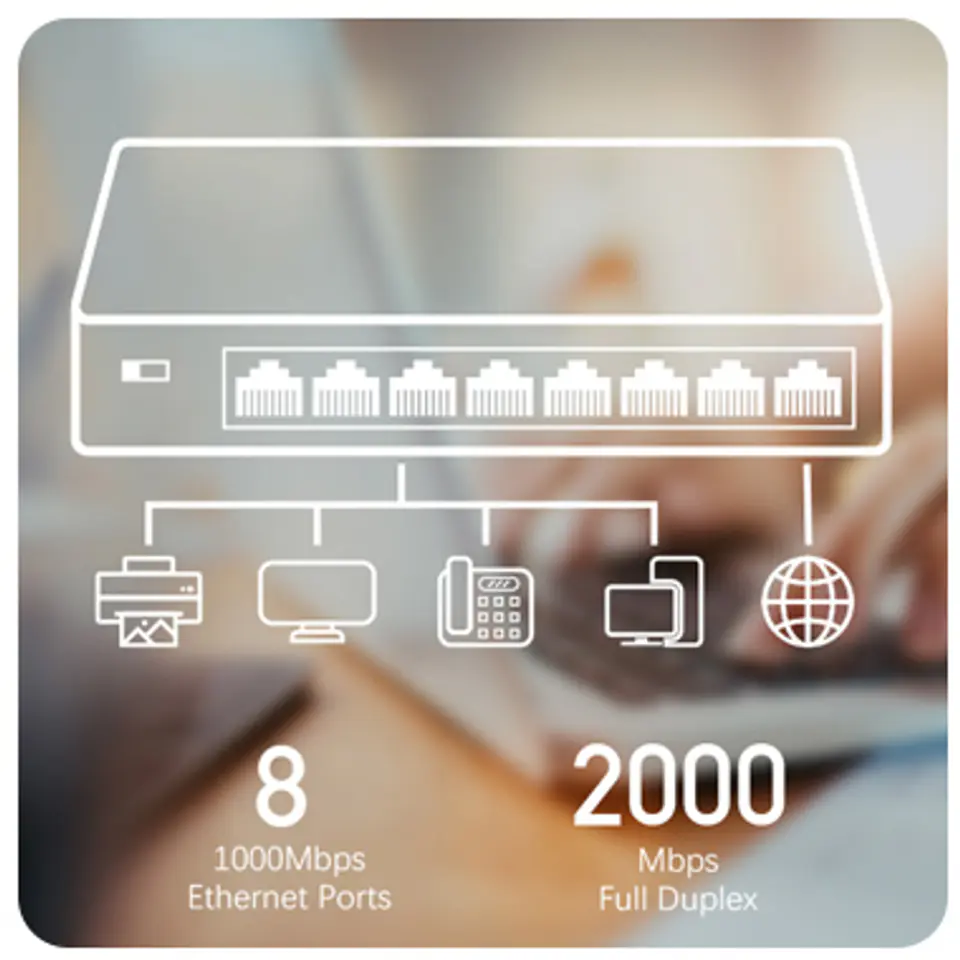

Boost your network speed with the 8-port Gigabit switch. Non-blocking, 5 10/100/1000 Mbps ports allow you to instantly transfer large and high-bandwidth files without interruption.

SWITCH LAN 8-port GS108 1Gbps 10/100/1000 metal

The auto-negotiation RJ-45 ports can transfer large files and be compatible with any 10/100/1000 Mbps Ethernet device.

SWITCH LAN 8-port GS108 1Gbps 10/100/1000 metal

RJ45 ports adjust the transfer speed of small and large files depending on the network load.

SWITCH LAN 8-port GS108 1Gbps 10/100/1000 metal

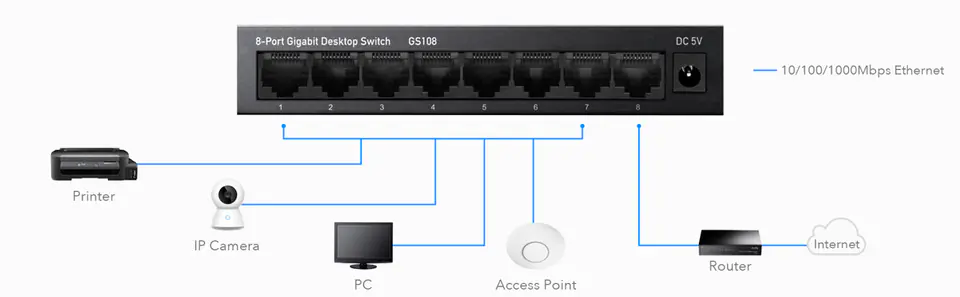

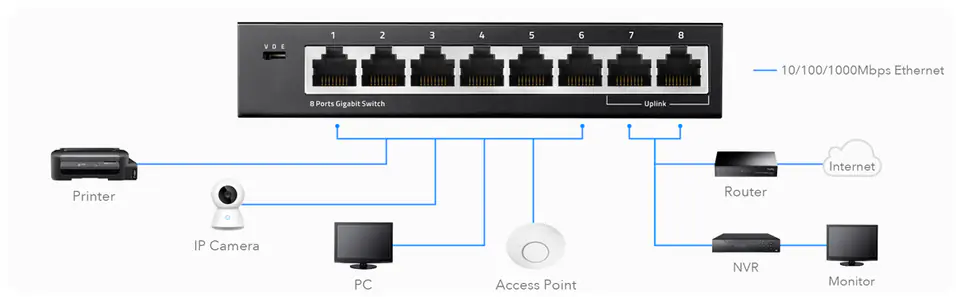

Works with IP cameras for home and office, small business

SWITCH LAN 8-port GS108 1Gbps 10/100/1000 metal

Works with VoIP phones for business conferences

SWITCH LAN 8-port GS108 1Gbps 10/100/1000 metal

Works with WiFi access points for office and business

Technical Specifications

Model-  GS108
Standard configuration - 8 x 10/100/1000M RJ-45 adaptive ports
Switching capacity - 16 Gb/s
Performance - 11.9 Mpps
Package buffer - 2,5M
MAC address - 1K
Jumbo Frame - 2K
Transfer mode -  Store and forward
MTBF - 100000 hours

Network Protocol

  • IEEE802.3 (10Base-T)
  • IEEE802.3u (100Base-TX)
  • IEEE802.3ab (1000Base-TX)
  • IEEE802.3x (flow control)

Industry standard

  • EMI: FCC Part 15 CISPR (EN55032) class A
  • EMS: EN61000-4-2 (ESD)、EN61000-4-4 (EFT)
  • Shock: IEC 60068-2-27
  • Free Fall: IEC 60068-2-32
  • Vibration: IEC 60068-2-6

Network medium

  • 10Base-T: Cat3,4,5 or higher UTP (≤100m)
  • 100Base-TX: Cat5 or higher UTP (≤100m)
  • 1000Base-TX: Cat5 or laterUTP (≤100m)

Working environment

  • Operating Temperature: -10~50°C
  • Storage Temperature: -40~70°C
  • Operating humidity: 10%~90% (non-condensing)
  • Storage Temperature: 5%~90% (non-condensing)
  • Working Height: Maximum 10,000ft
  • Storage Height: 10,000 feet maximum

LED Indicators

  • PWR(Power Indicator)、Link(Network Link)、LOOP(Loop Alarm)

DIP switch

  • VLAN: Port isolation, 1-6 ports are isolated from each other, all communicate with 7/8 uplink port;
  • Default: default mode, secondary loop alarm;
  • Expansion: Monitor mode, 1-6 ports support 100M speed reduction negotiation, support 250 meters in 10Mbps mode, ports 7 and 8 as uplink port

Structure size

  • Product size: 137*77*25mm
  • Package size: 175*120*63mm
  • Product Net Weight: 0.3kg;
  • Product gross weight: 0.5 kg

Packaging information

  • MEASUREMENT: 505*320*400mm;
  • Package quantity: 40 pieces
  • Package weight: 21 KG;

Tension

  • Supply input voltage: AC 100-240V
  • Input voltage switch: DC 5V
SWITCH LAN 8-port GS108 1Gbps 10/100/1000 metal

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
