Specification

Auto mdi/mdi-x:	Yes
Auto-negotiation:	Yes
Basic switching rj-45 ethernet ports quantity:	8
Basic switching rj-45 ethernet ports type:	Fast Ethernet (10/100)
Cable types supported:	Cat4, Cat5, Cat5e, Cat3
Cables included:	DC
Copper ethernet cabling technology:	10BASE-T, 100BASE-TX
Dc input voltage:	5 V
Depth:	52.3 mm
Ethernet lan data rates:	10,100 Mbit/s
Full duplex:	Yes
Half duplex:	Yes
Height:	20 mm
Input current:	0.5 A
Mac address auto-aging supported:	Yes
Mac address auto-learning supported:	Yes
Mac address table:	2 entries
Manual:	Yes
Networking standards:	IEEE 802.3u, IEEE 802.3, IEEE 802.3x
Operating relative humidity (h-h):	10 - 90%
Operating temperature (t-t):	0 - 40 °C
Power source:	DC

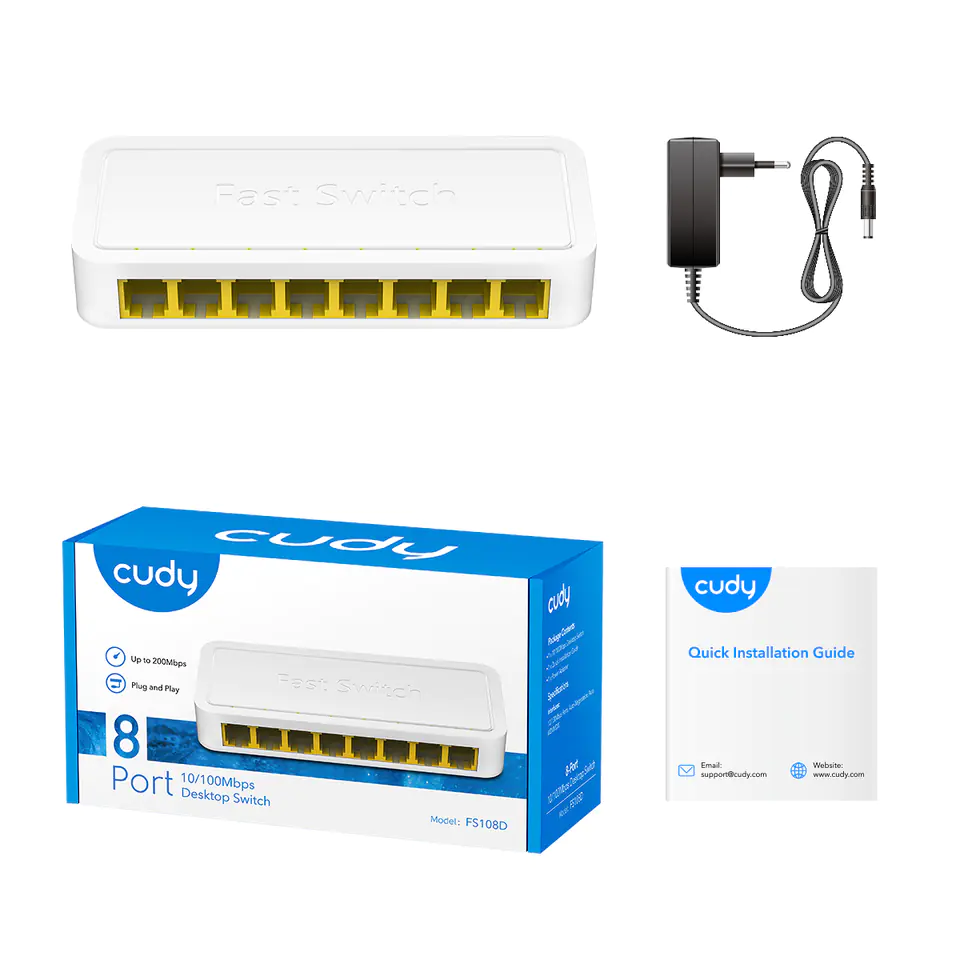

Power supply included:	Yes
Product colour:	White
Storage relative humidity (h-h):	5 - 95%
Storage temperature (t-t):	-40 - 70 °C
Switching capacity:	1.6 Gbit/s
Weight:	191 g
Width:	130.7 mm

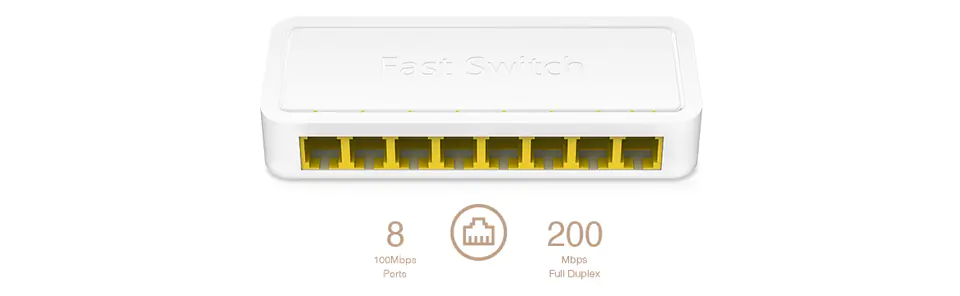

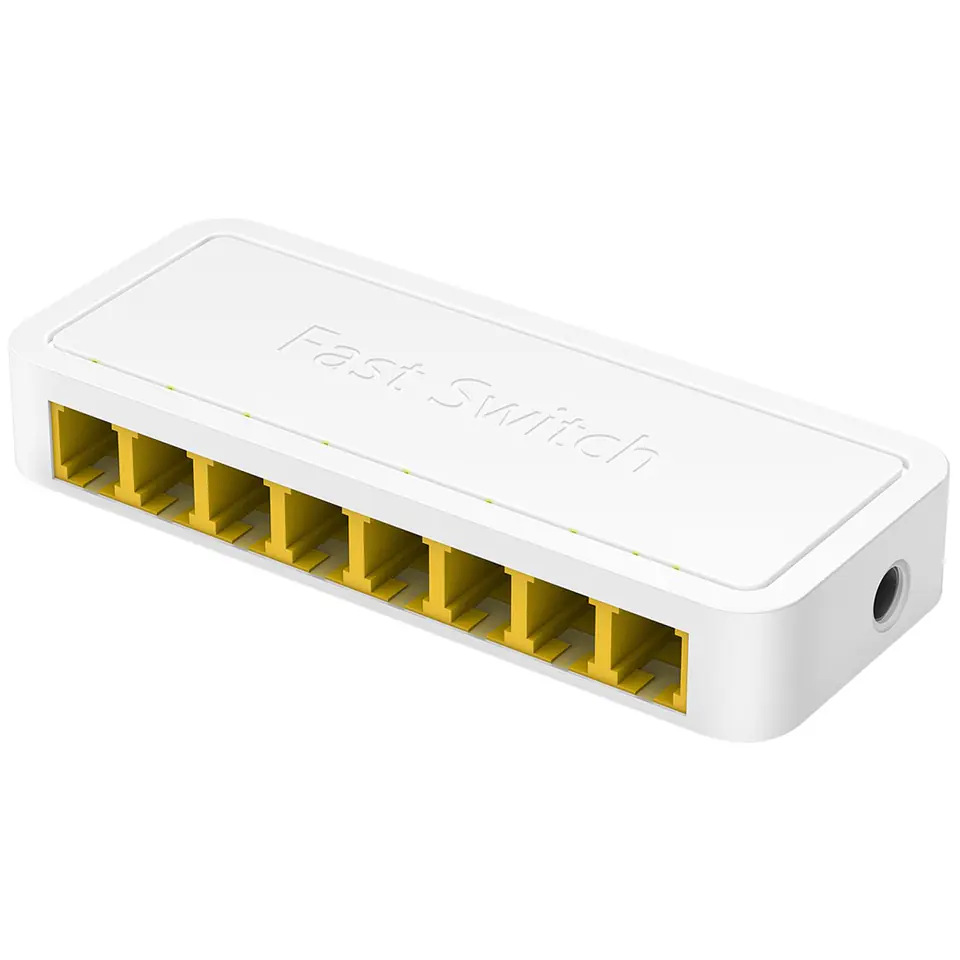

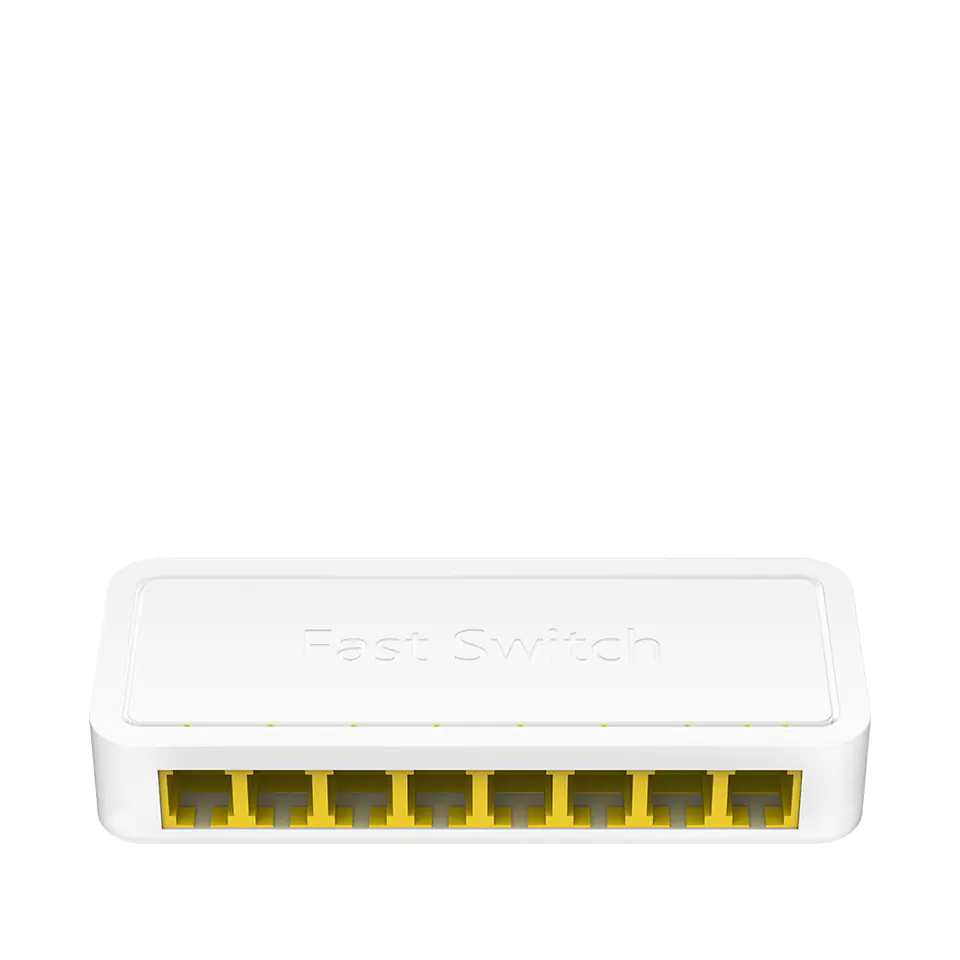

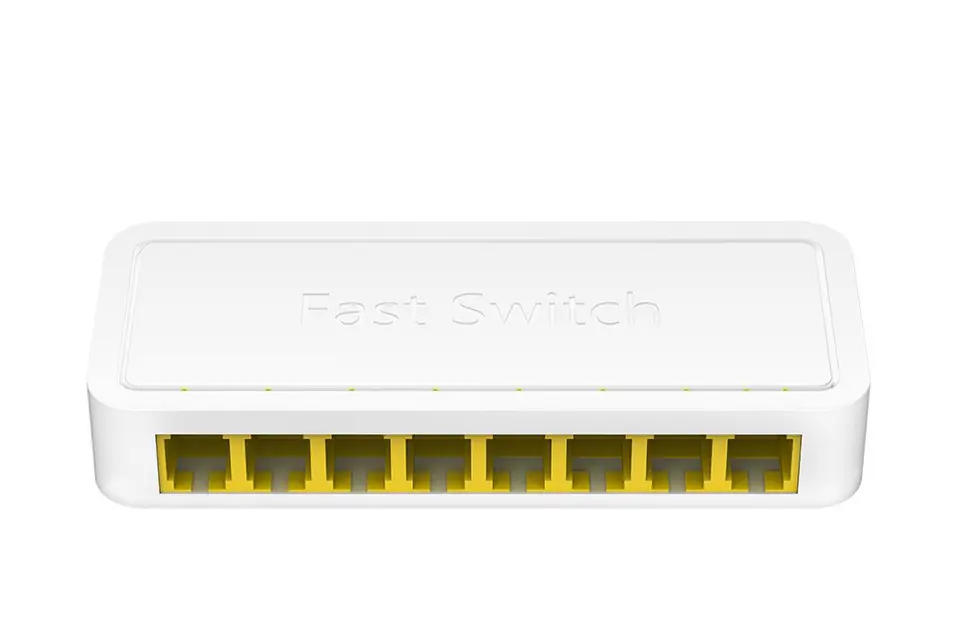

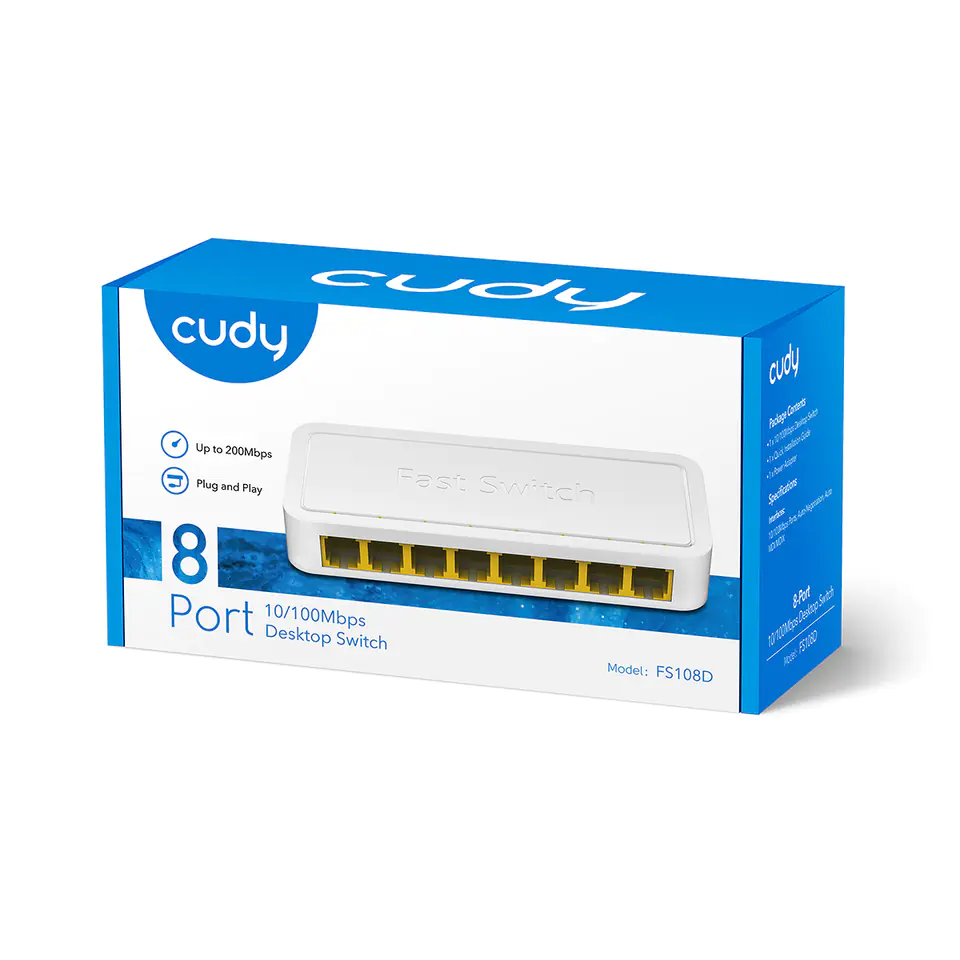

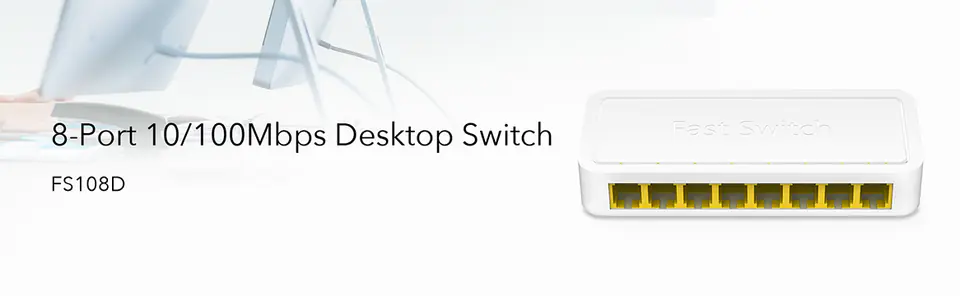

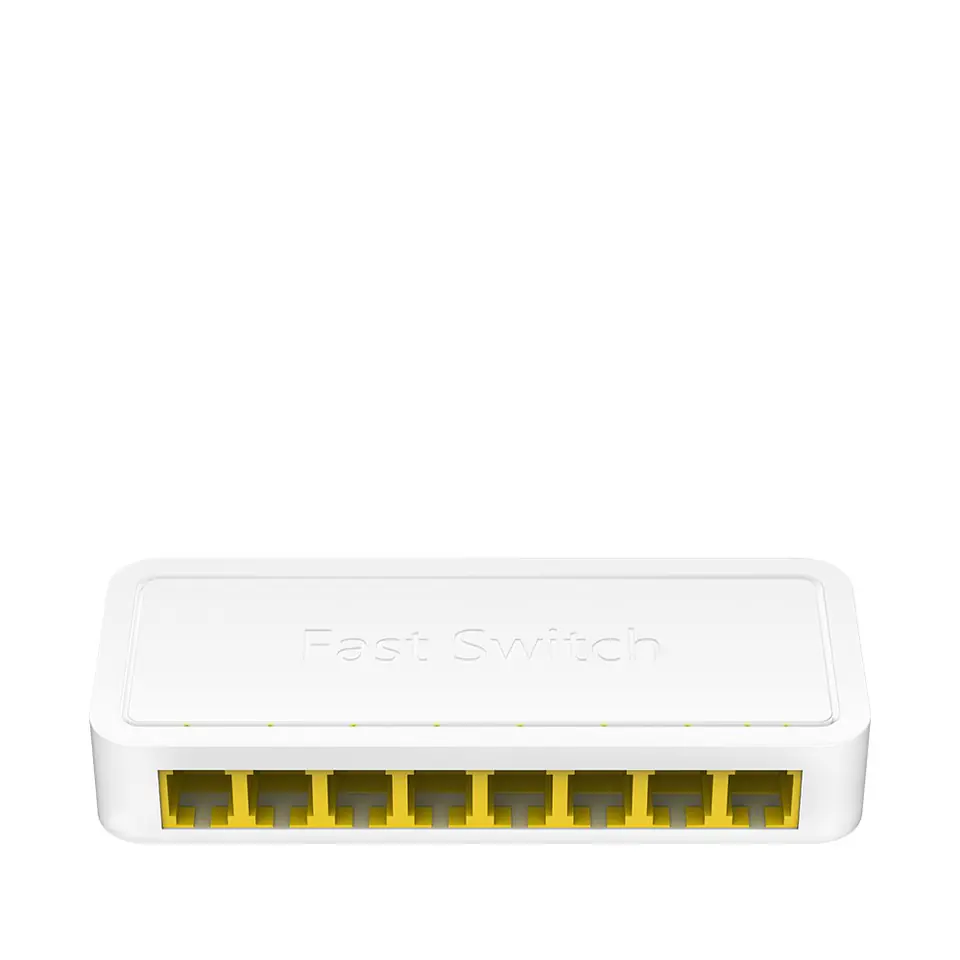

8-port CUDY FS108D 10/100 Mbps office SWITCH

8 auto-negotiation 10/100Mbps RJ45 ports
Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x standards
Support automatic learning and automatic aging of MAC addresses
Support IEEE802.3x flow control for full duplex mode and back vacuum for half duplex mode

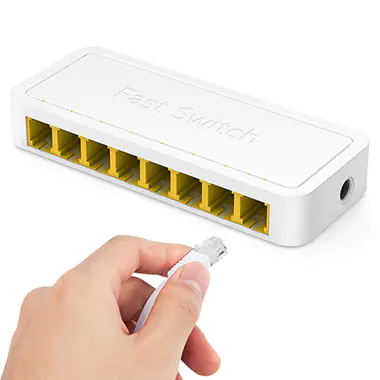

Plug & Play, desktop design
Cudy Green technology saves up to 84% energy

8-portowy przełącznik SWITCH domowy Cudy FS108D 10/100 Mbps

High performance

Auto-negotiation RJ-45 ports can transfer large files and be compatible with any 10/100 Mbps Ethernet device. With a non-blocking switching architecture, the product forwards and filters packets at full wiring speed, ensuring maximum throughput.
IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode provide increased bandwidth to relieve network congestion, keeping the switch running reliably.

Technical Specifications

Model- FS108D
Number of ports - 8 10/100 RJ-45 ports
Transfer mode - Storage and Forward
Power supply - DC 5 V 0.5 A
Protocol - CSMA/CD
MAC address table - 2 thousand entries per deviceSwitching functions - Automatic MAC address learning and automatic obsolescence, Half-duplex and full-duplex 1 Gbps backplane throughput

Standards

IEEE802.3x
IEEE802.3u
IEEE802.3

Working environment

Operating Temperature: 0~40°C
Storage Temperature: -40~70°C
Operating humidity: 10%~90% (non-condensing)
Storage Temperature: 5%~95% (non-condensing)

LED Indicators

LAN-LAN8, power supply

Size

Product size: 130x52x20mm
Weight: 191g

Baud

Ethernet: 10 Mbps half-duplex/20 Mbps full-duplex
High-speed Ethernet: 100 Mbps half-duplex/200 Mbps full duplex

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
