| 10g support: | No |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Auto mdi/mdi-x: | Yes |
| Auto-sensing: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 8 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Built-in processor: | Yes |
| Cloud-managed: | Yes |
| Depth: | 195 mm |
| Dhcp features: | DHCP client |
| Flash memory: | 256 MB |
| Flow control support: | Yes |
| Form factor: | 1U |
| Full duplex: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Height: | 43.9 mm |
| Igmp snooping: | Yes |
| Internal memory: | 512 MB |
| Jumbo frames support: | Yes |
| Latency (1 gbps): | 2.8 µs |
| Latency (10-100 mbps): | 5.2 µs |
| Link aggregation: | Yes |
| Mac address table: | 8000 entries |
| Memory type: | SDRAM |
| Networking standards: | IEEE 802.1ab, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3at, IEEE 802.1D, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1w, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3az |
| Operating relative humidity (h-h): | 15 - 95% |
| Operating temperature (t-t): | 0 - 40 °C |
| Packet buffer memory: | 1.5 MB |
| Port mirroring: | Yes |
| Power consumption (max): | 83.67 W |
| Power over ethernet (poe): | Yes |
| Power source: | AC |
| Power supply included: | Yes |
| Processor frequency: | 800 MHz |
| Processor model: | ARM Cortex-A9 |
| Quality of service (qos) support: | Yes |
| Rack mounting: | Yes |
| Spanning tree protocol: | Yes |
| Ssh/ssl support: | Yes |
| Storage relative humidity (h-h): | 15 - 95% |
| Storage temperature (t-t): | -40 - 70 °C |
| Switch layer: | L2 |
| Switch type: | Managed |
| Switching capacity: | 16 Gbit/s |
| Throughput: | 11.9 Mpps |
| Total power over ethernet (poe) budget: | 65 W |
| Vlan support: | Yes |
| Web-based management: | Yes |
| Weight: | 1.54 kg |
| Width: | 245 mm |

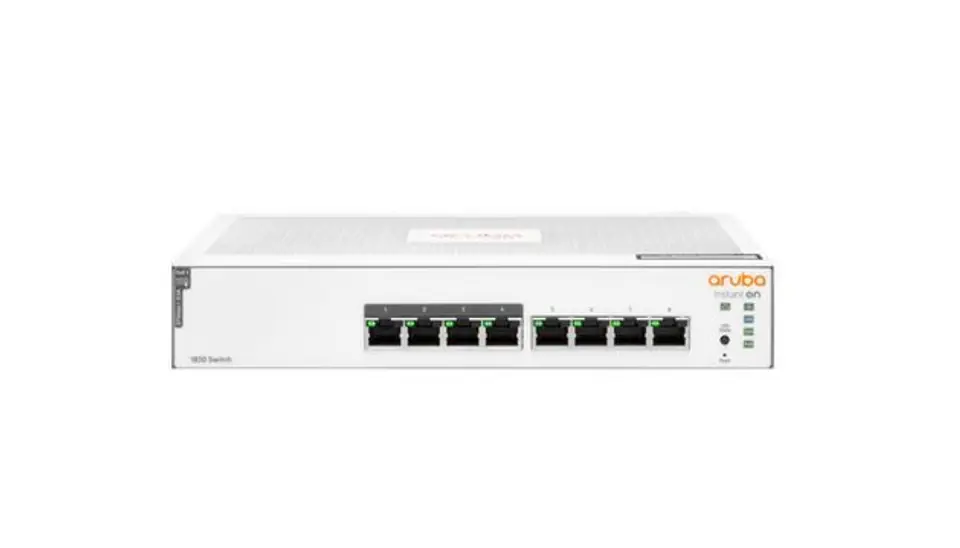

Switch Instant On 1830
The Aruba Instant On 1830 switch series provides an easy-to-use and affordable wired solution for networks supporting IT, mobile and cloud applications. This affordable and easy to deploy series of intelligent managed switches is ideal for small businesses looking for a cost-effective wired infrastructure to meet changing network requirements.
