| 10g support: | No |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Auto mdi/mdi-x: | Yes |
| Auto-sensing: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 24 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Built-in processor: | Yes |
| Cloud-managed: | Yes |
| Depth: | 443 mm |
| Dhcp features: | DHCP client |
| Flash memory: | 256 MB |
| Flow control support: | Yes |
| Form factor: | 1U |
| Full duplex: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Height: | 43.9 mm |
| Igmp snooping: | Yes |
| Internal memory: | 512 MB |
| Jumbo frames support: | Yes |
| Latency (1 gbps): | 2.8 µs |
| Latency (10-100 mbps): | 5.2 µs |
| Link aggregation: | Yes |
| Mac address table: | 16000 entries |
| Memory type: | SDRAM |
| Networking standards: | IEEE 802.1ab, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1D, IEEE 802.3z, IEEE 802.1w, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3az |
| Operating relative humidity (h-h): | 15 - 95% |
| Operating temperature (t-t): | 0 - 40 °C |
| Packet buffer memory: | 1.5 MB |
| Port mirroring: | Yes |
| Power consumption (max): | 7.8 W |
| Power over ethernet (poe): | No |
| Power source: | AC |
| Power supply included: | Yes |
| Processor frequency: | 800 MHz |
| Processor model: | ARM Cortex-A9 |
| Quality of service (qos) support: | Yes |
| Rack mounting: | Yes |
| Sfp module slots quantity: | 2 |
| Spanning tree protocol: | Yes |
| Ssh/ssl support: | Yes |
| Storage relative humidity (h-h): | 15 - 95% |
| Storage temperature (t-t): | -40 - 70 °C |
| Switch layer: | L2 |
| Switch type: | Managed |
| Switching capacity: | 52 Gbit/s |
| Throughput: | 38.68 Mpps |
| Vlan support: | Yes |
| Web-based management: | Yes |
| Weight: | 2.49 kg |
| Width: | 215.9 mm |

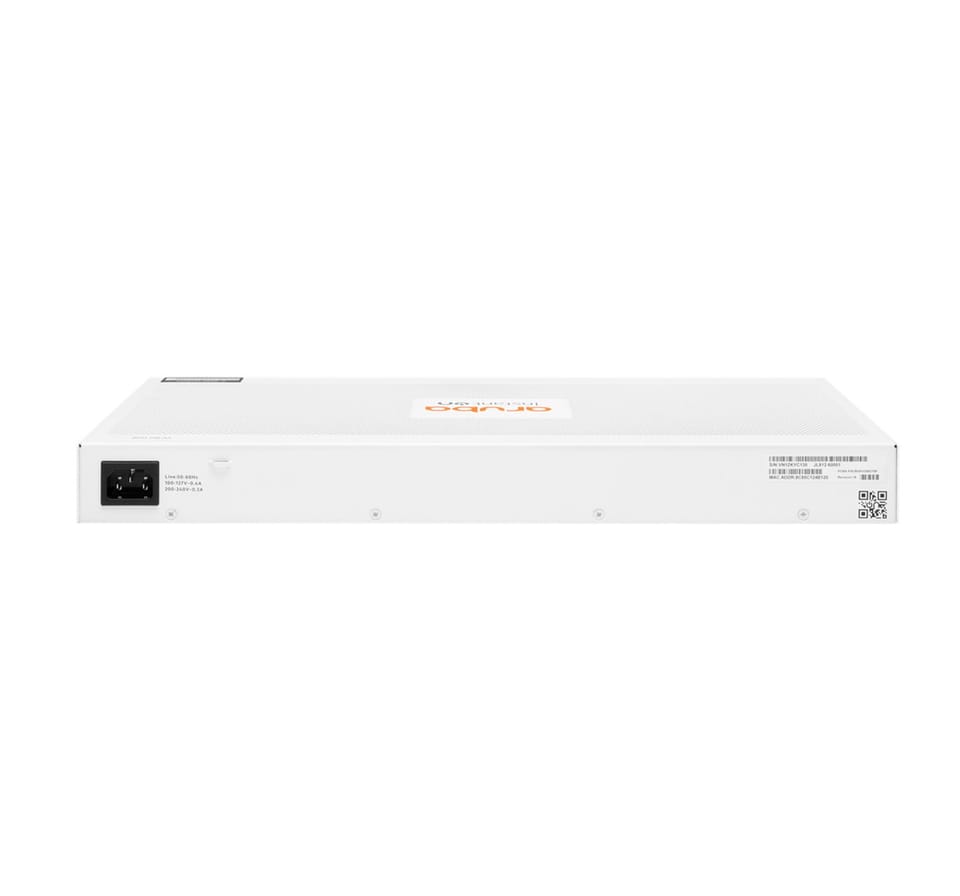

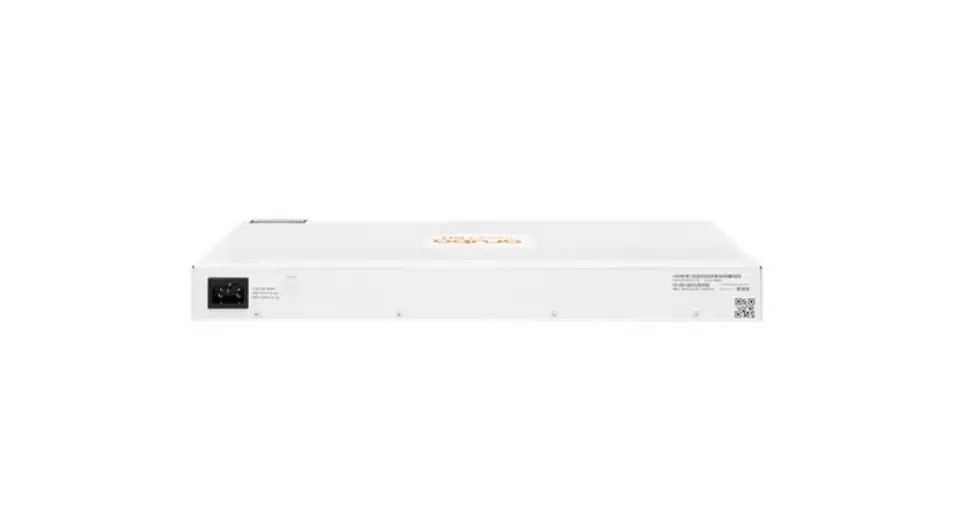

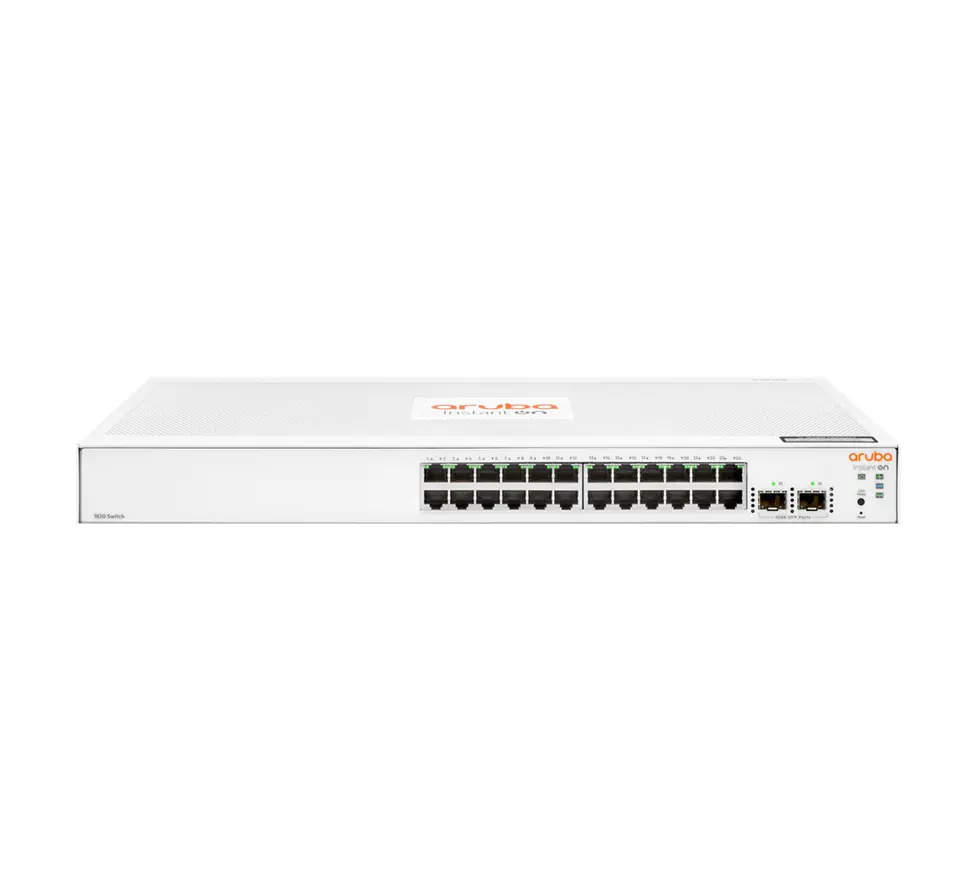

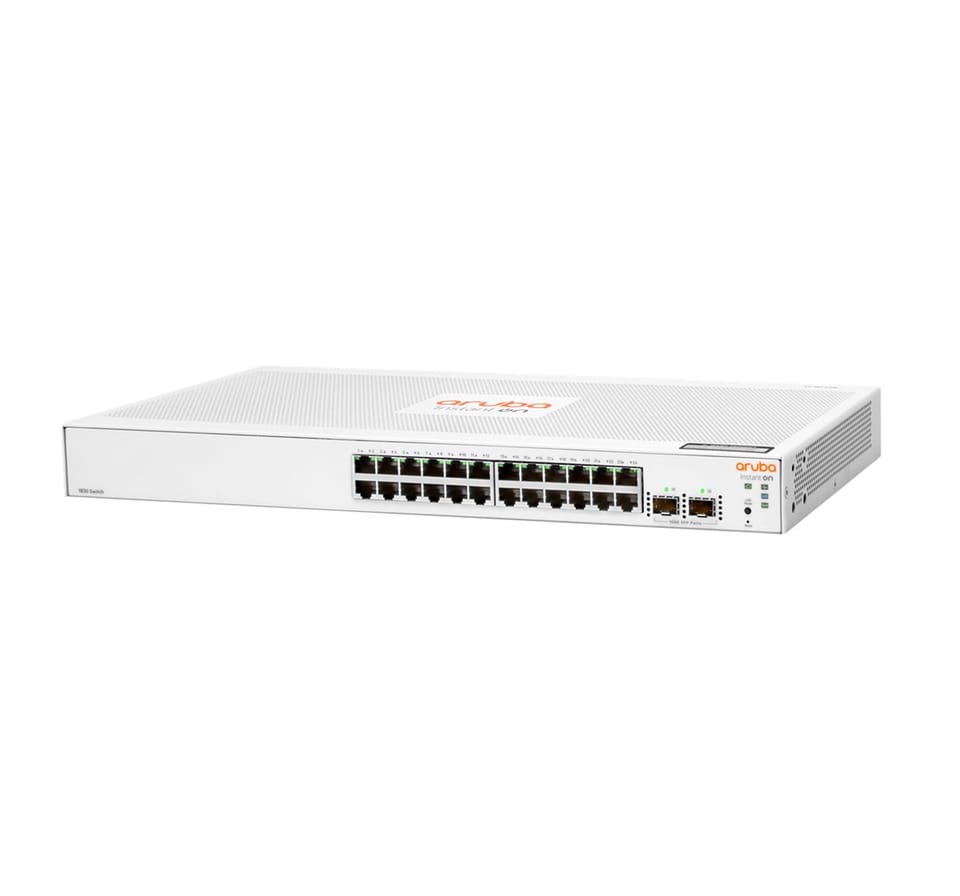

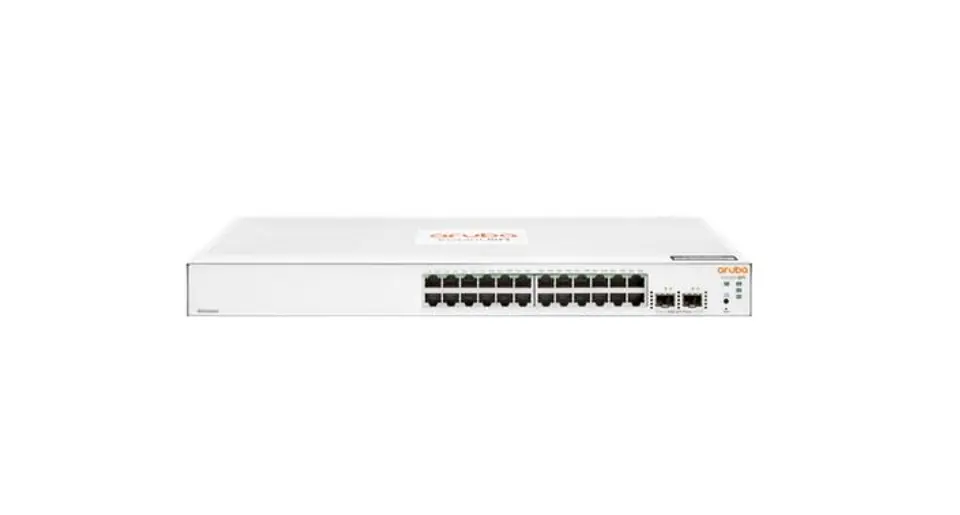

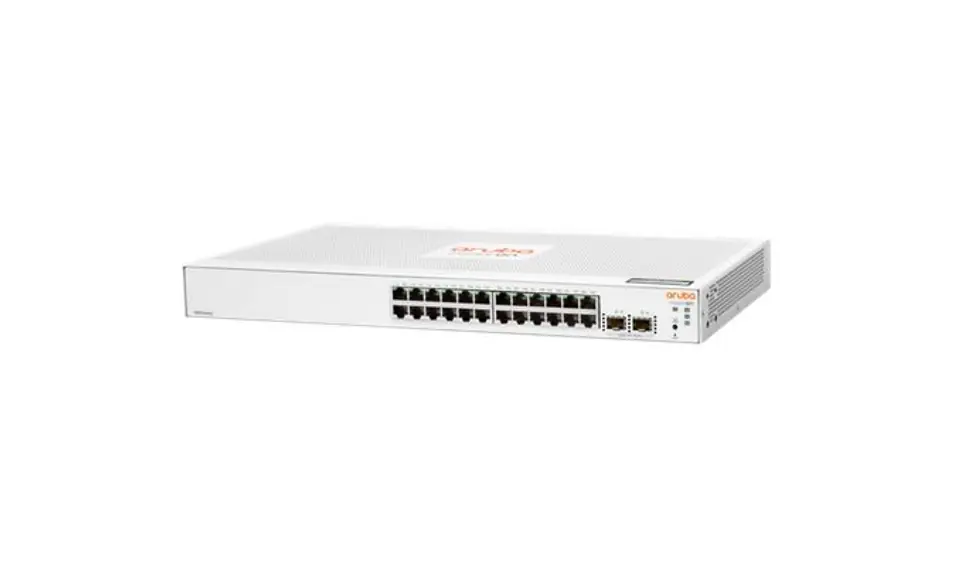

Switch Instant On 1830
The Aruba Instant On 1830 switch series provides an easy-to-use and affordable wired solution for networks supporting IT, mobile and cloud applications. This affordable and easy to deploy series of intelligent managed switches is ideal for businesses looking for a cost-effective wired infrastructure to meet changing network requirements.
