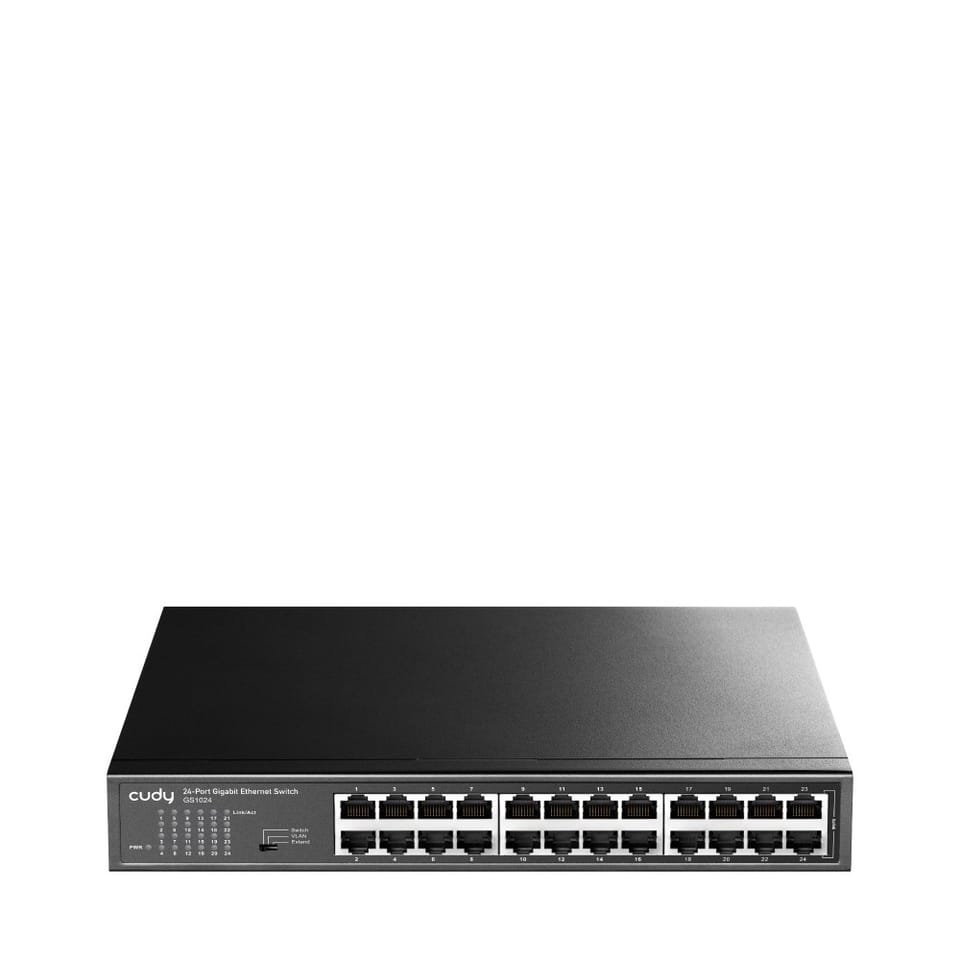

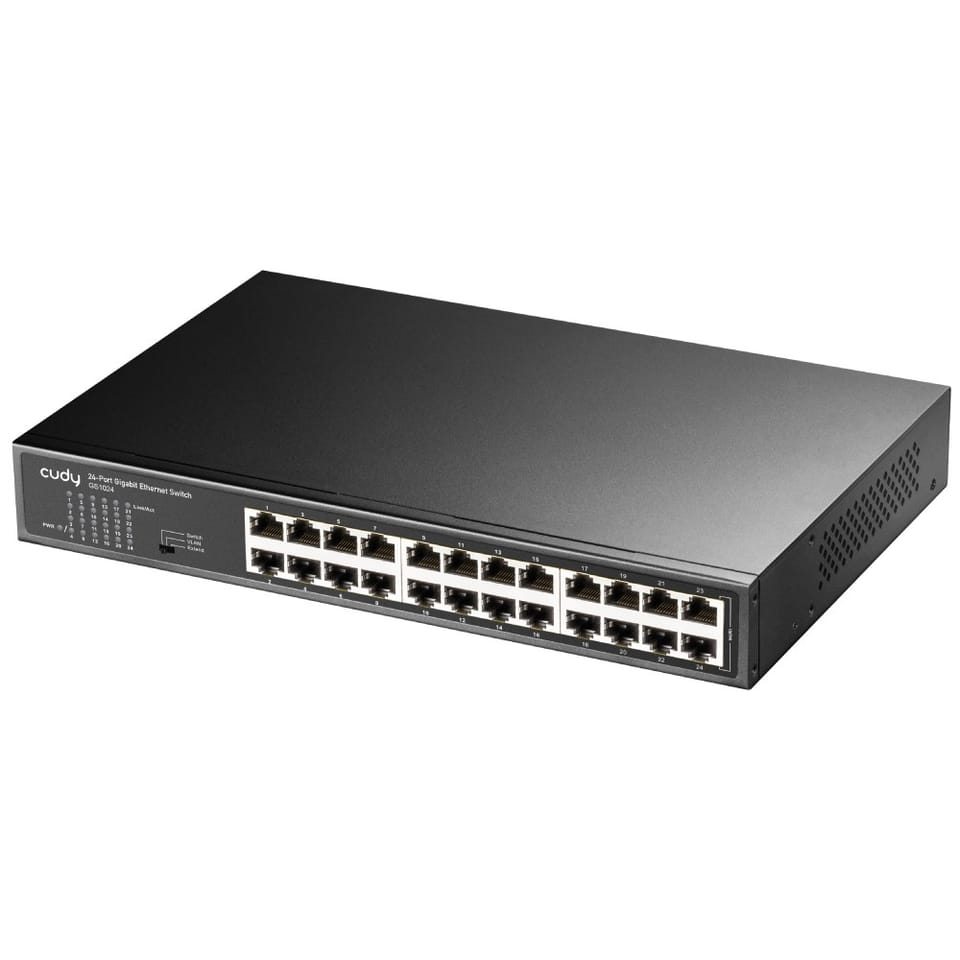

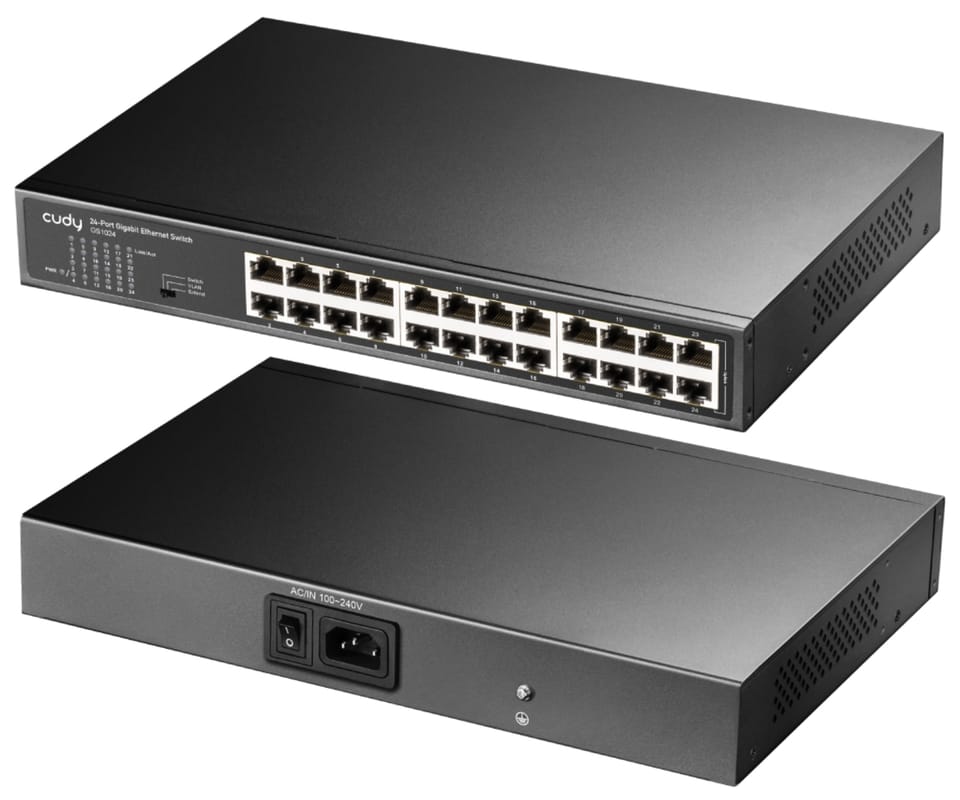

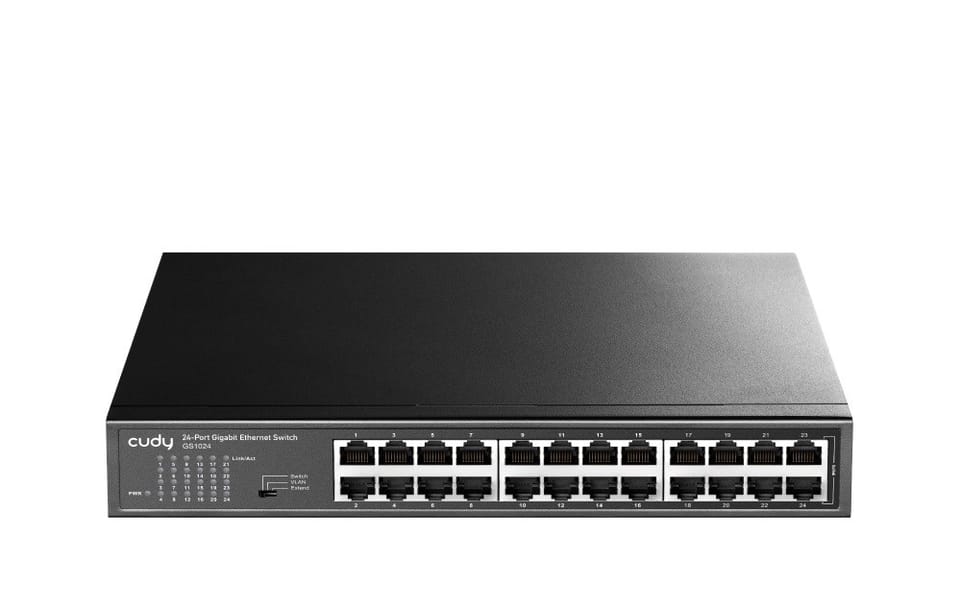

GS1024 24-port Gigabit Ethernet switch
- Compliant with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
- 24 10/100/1000 Mbps auto-negotiation ports, Auto-MDI/MDIX
- Store-and-Forward switching method

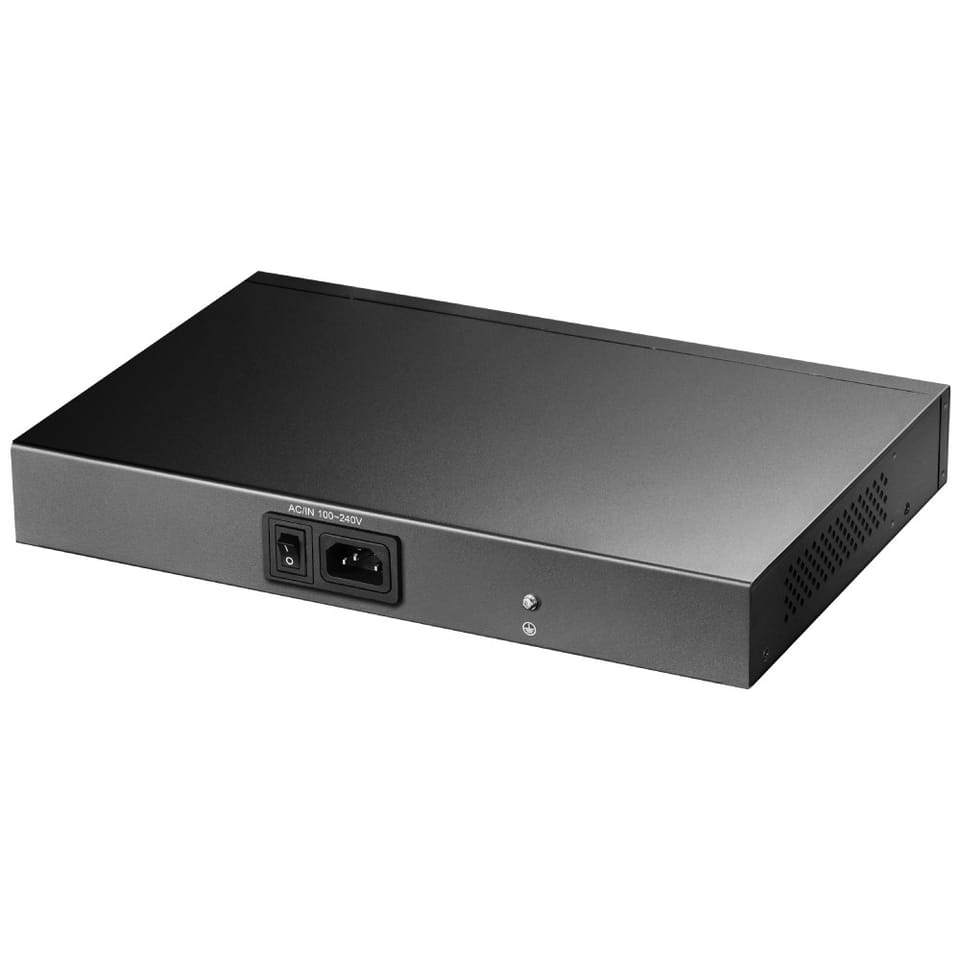

Ac input voltage: | 100 - 240 V |
---|---|
Auto mdi/mdi-x: | Yes |
Basic switching rj-45 ethernet ports quantity: | 24 |
Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |

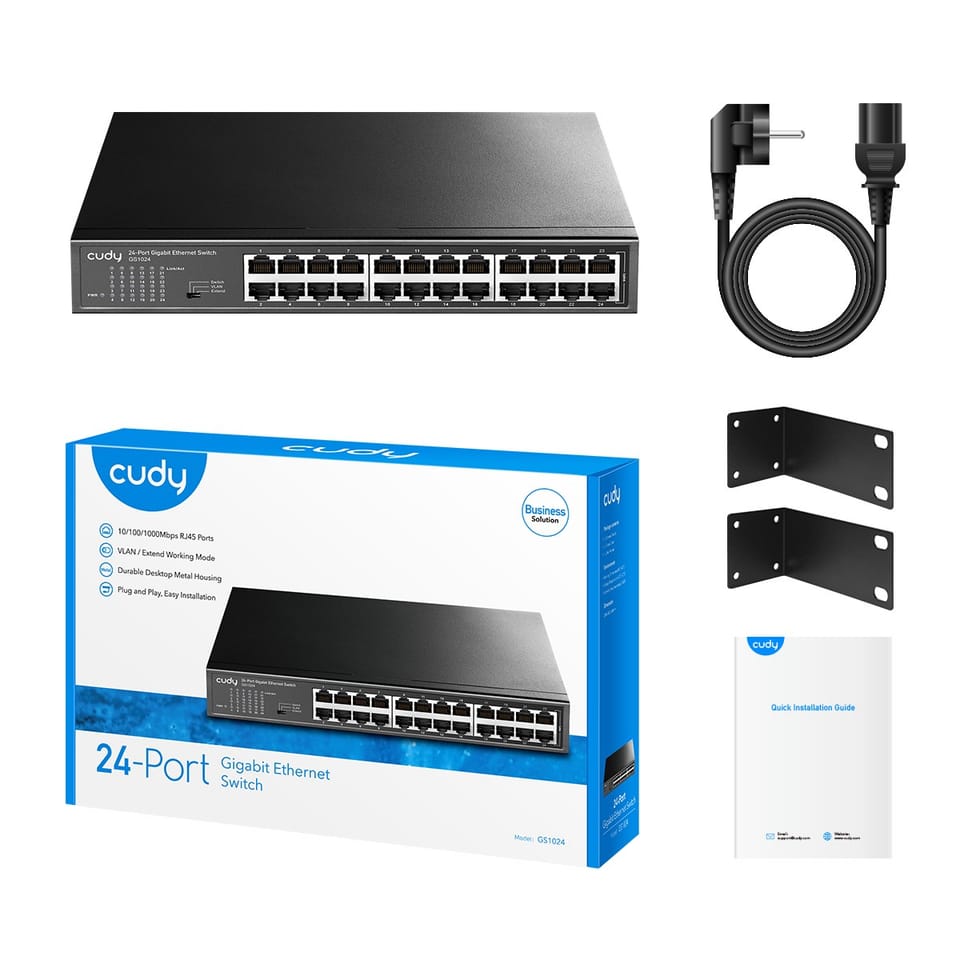

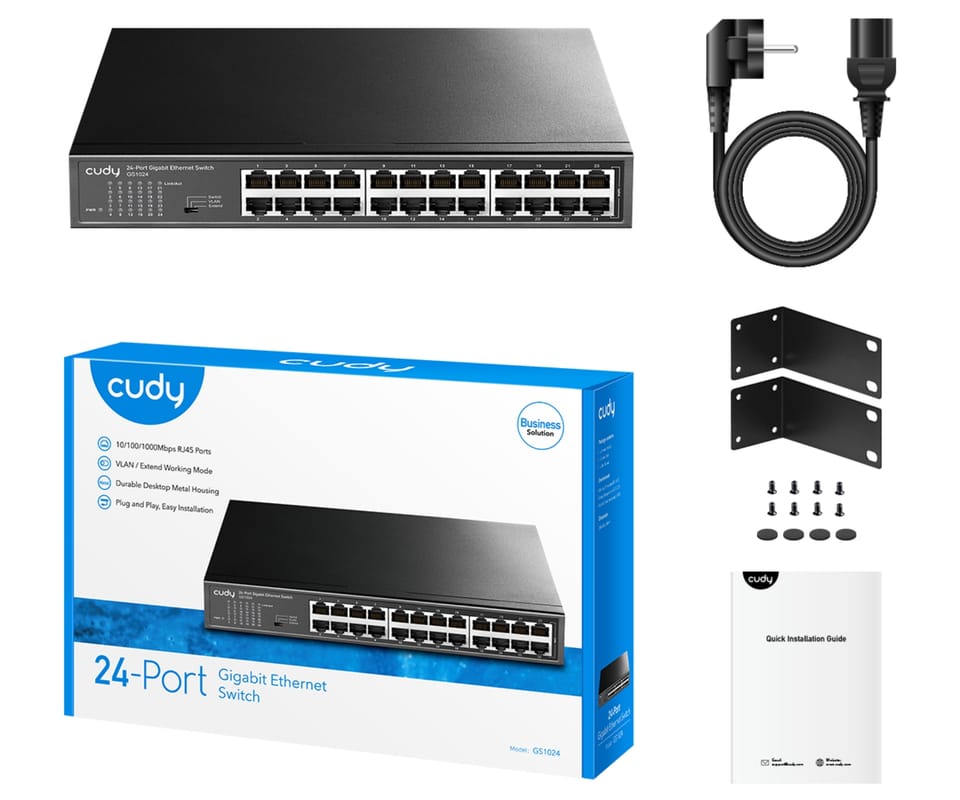

Cables included: | AC |
Depth: | 270 mm |
Gigabit ethernet (copper) ports quantity: | 24 |
Height: | 44 mm |
Mac address table: | 8 entries |
Manual: | Yes |
Networking standards: | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
Operating relative humidity (h-h): | 10 - 85% |
Operating temperature (t-t): | 0 - 40 °C |
Packet forwarding rate (10 mbps): | 14.88 pps |
Packet forwarding rate (100 mbps): | 148.8 pps |
Power consumption (typical): | 15 W |
Power source: | AC |
Power supply included: | Yes |
Product colour: | Black |
Rack mounting: | Yes |
Storage relative humidity (h-h): | 5 - 85% |
Storage temperature (t-t): | -40 - 70 °C |
Store-and-forward: | Yes |
Switching capacity: | 48 Gbit/s |
Transmission distance (max): | 0.1 km |
Width: | 180 mm |
GS1024 24-port Gigabit Ethernet switch
