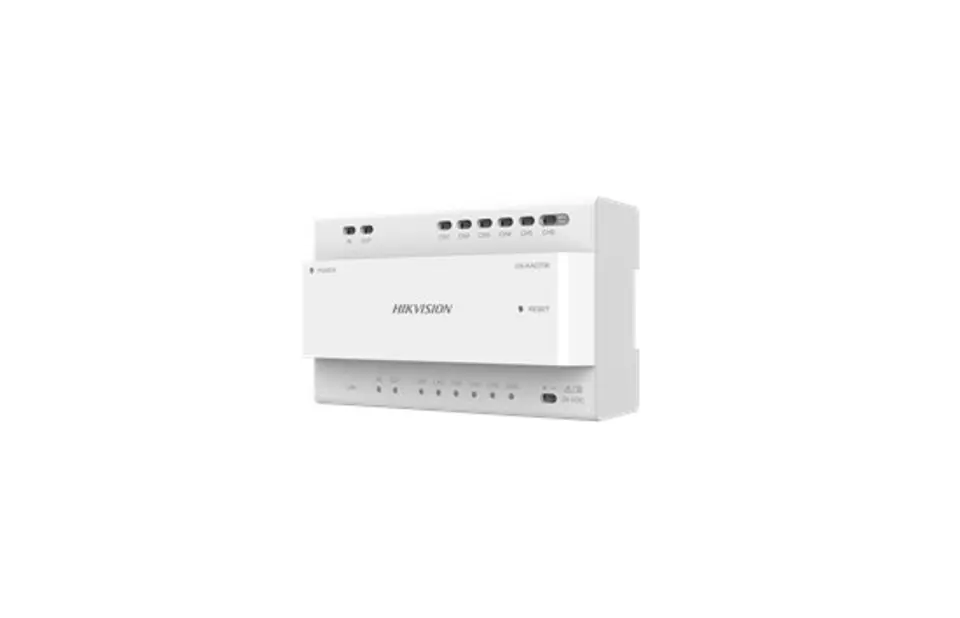

SWITCH DS-KAD706 FOR HIKVISION 2-WIRE VIDEO DOOR PHONE SYSTEMS

Name: SWITCH DS-KAD706 FOR HIKVISION 2-WIRE VIDEO DOOR PHONE SYSTEMS
Brand: HIKVISION
SKU: 515881
Price: 118.5 EUR
Availability: InStock

€118.50

Shipping from warehouse: ⁨A3⁩

Estimated shipping: Fri, Jan 24 - Mon, Jan 27

14 days returnUnconditional return policy

Availability:: large quantity
Brand:
Product code:: DS-KAD706 / 6941264027294

Specification

Case::	Plastic
Compatibility::	Hikvision 2-wire intercom system
Dimensions::	144 x 90 x 66 mm
Manufacturer / brand::	Hikvision
Number of ports::	6 x HIKVISION 2-wire ( 1 x max. 16 W ), 2 x HIKVISION 2-wire - Uplink1 x RJ-45
Operating relative humidity (h-h):	0 - 90%
Operating temperature (t-t):	-10 - 55 °C
Operating temperature::	-10 °C ... 50 °C
Output voltage:	24 V
Power consumption::	< 9 W
Power::	24 VDC
Product colour:	White
Sap code::	305301460
Scales::	0.27 kg

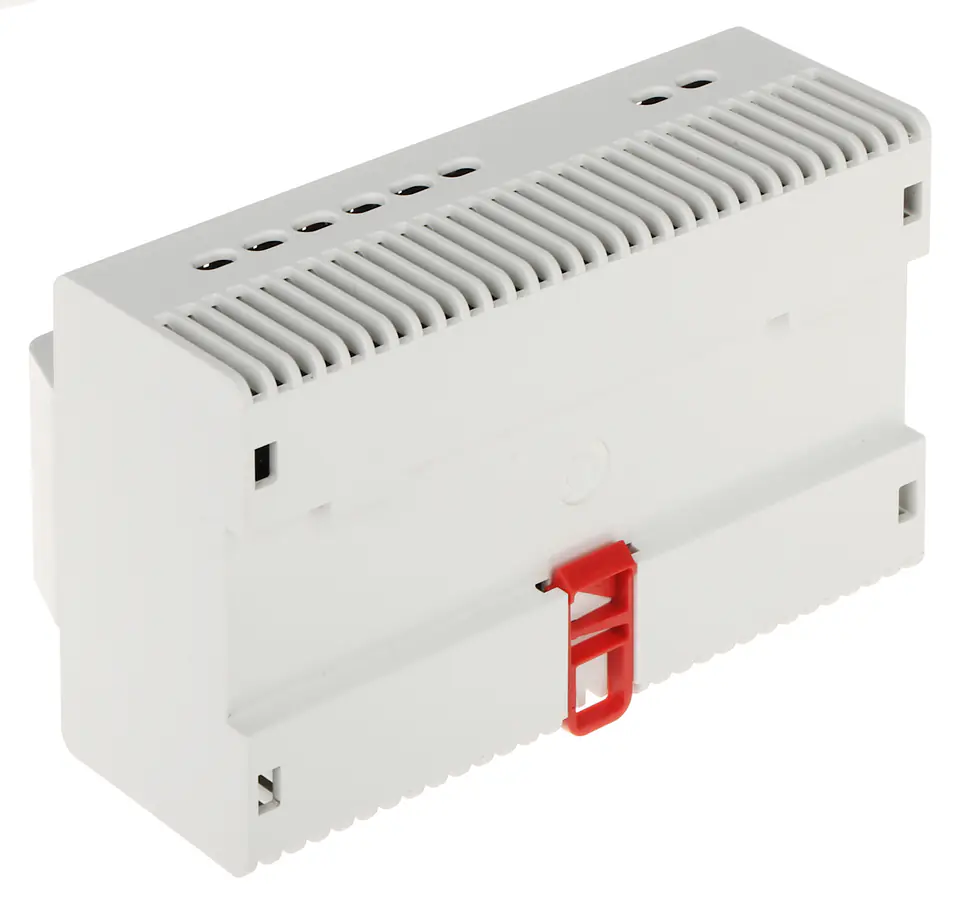

Selected features::	Can be cascaded on DIN rail mounting, TS-35
Warranty::	3 years

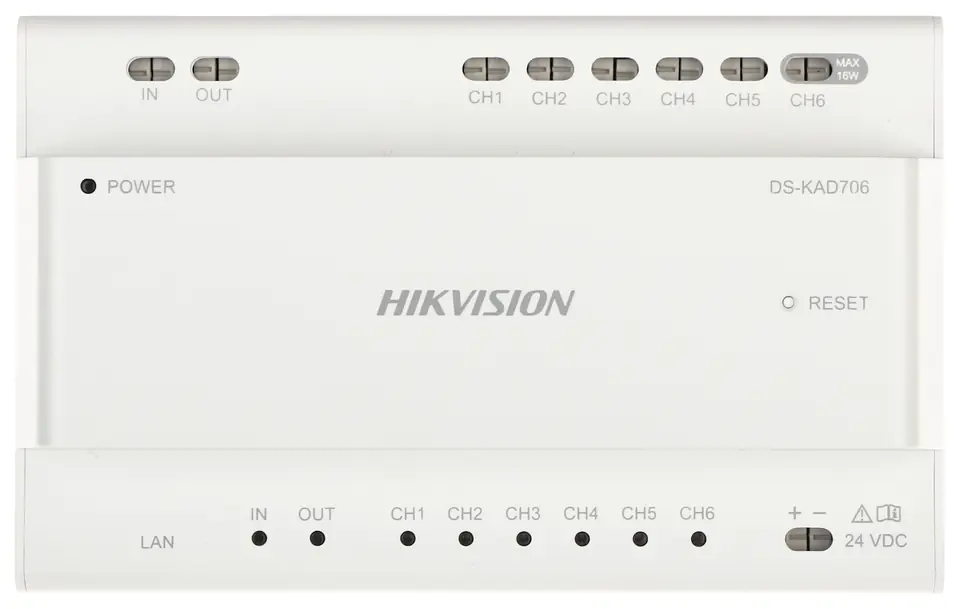

The device has 6 2-wire buses for connecting monitors and external panels (power supply and signal transmission) and 1 Ethernet socket for connecting the LAN networkIn addition, one of the ports is adapted to power an extended door station with a maximum power consumption of 16WIn addition, the switch is equipped with additional 2-wire bus outputs for cascading connection to DS-KAD706-S

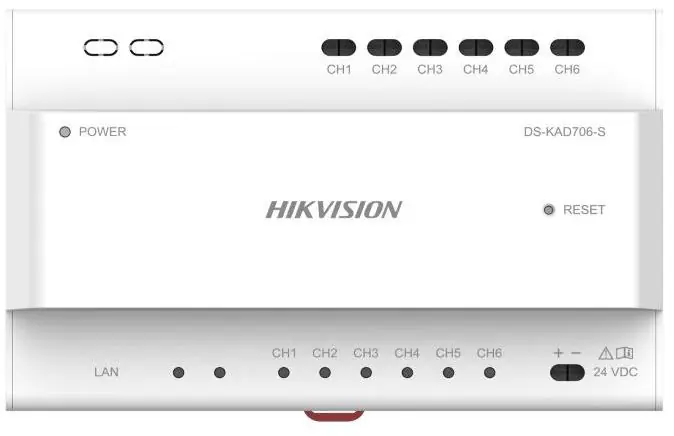

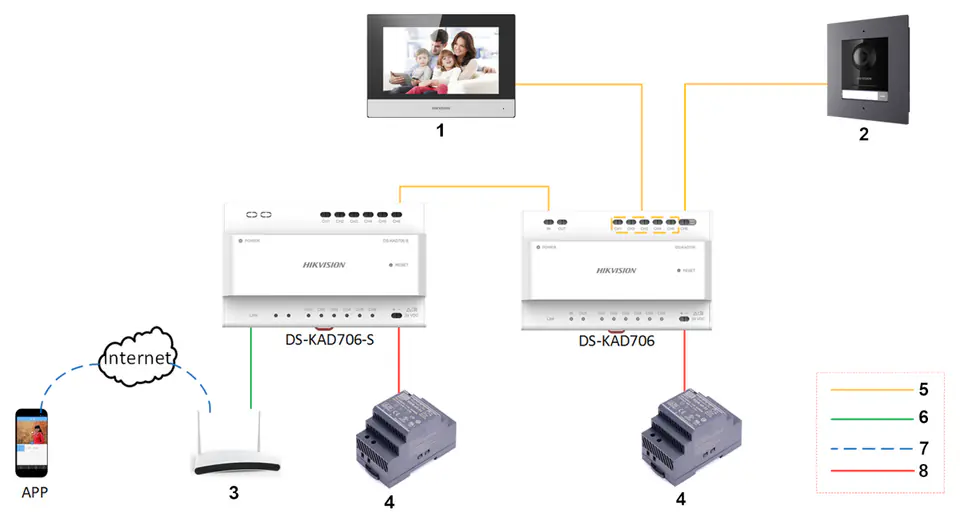

The switch can also be connected to the LAN, which allows access to the opening of the gateway and the ability to receive a call from the video intercom via the mobile applicationIn the case of connecting a cascade of devices to the LAN, it is recommended to connect the DS-KAD706-S switch to it

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
