Specification

10g ethernet (copper) ports quantity:	5
10g support:	Yes
Auto mdi/mdi-x:	Yes
Auto-negotiation:	Yes
Basic switching rj-45 ethernet ports quantity:	5
Basic switching rj-45 ethernet ports type:	10G Ethernet (100/1000/10000)
Cables included:	AC
Depth:	131 mm
Fanless:	Yes
Forwarding rate:	74.4 Mpps
Harmonized system (hs) code:	85176990
Height:	35 mm
Input current:	2 A

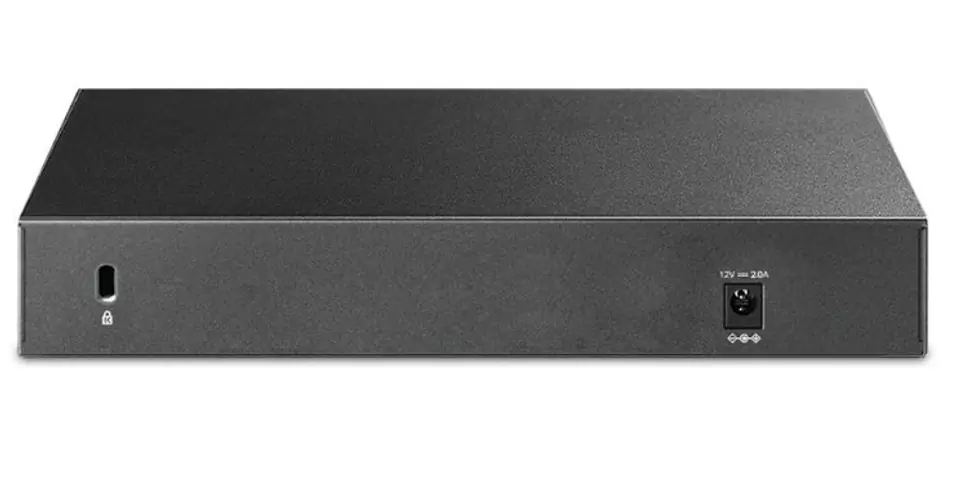

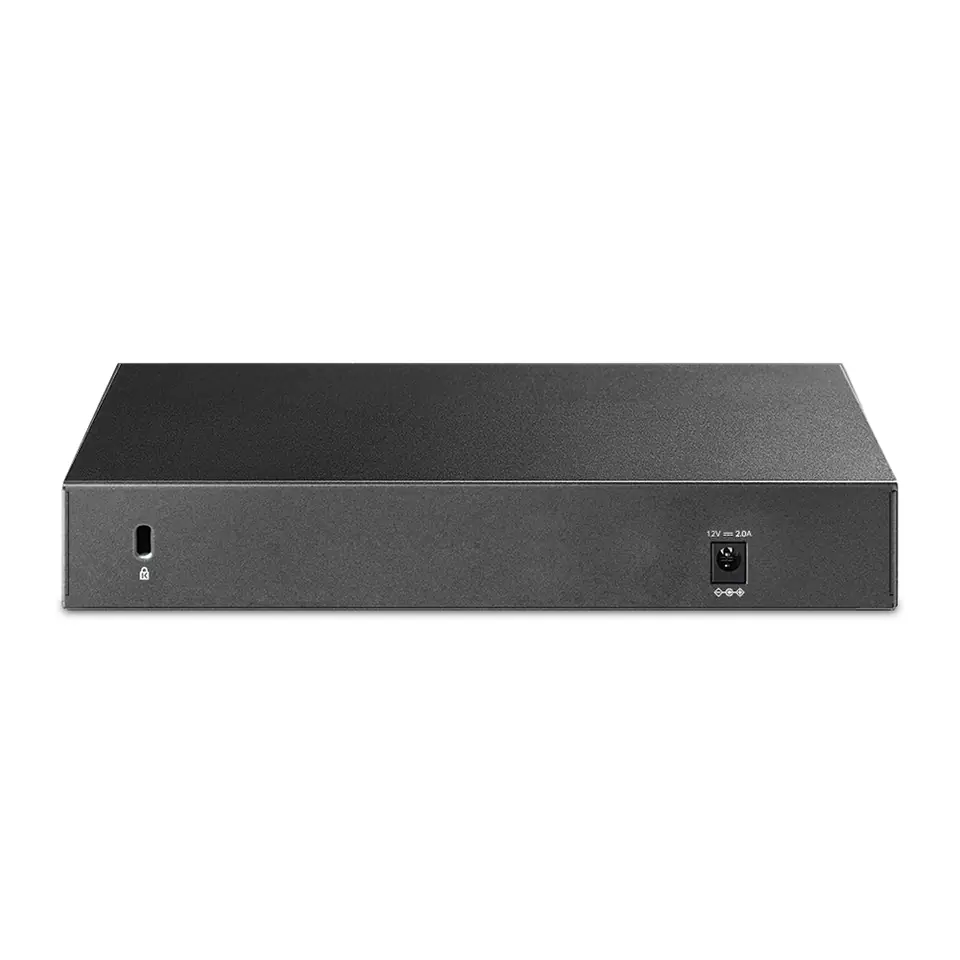

Input voltage:	12 V
Jumbo frames:	10000
Jumbo frames support:	Yes
Led indicators:	Yes
Mac address table:	32000 entries
Manual:	Yes
Networking standards:	IEEE 802.3ab, IEEE 802.1p, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Operating relative humidity (h-h):	10 - 90%
Operating temperature (t-t):	0 - 40 °C
Package depth:	315 mm
Package height:	70 mm
Package type:	Box
Package weight:	1.58 kg
Package width:	240 mm
Packet buffer memory:	16 MB
Power consumption (max):	21.4 W
Power over ethernet (poe):	No
Power source:	DC
Power supply included:	Yes
Product colour:	Black
Rack mounting:	No
Storage relative humidity (h-h):	5 - 90%
Storage temperature (t-t):	-40 - 70 °C
Store-and-forward:	Yes
Switch type:	Unmanaged
Switching capacity:	100 Gbit/s
Wall mountable:	Yes
Width:	226 mm

Top 10G/multi-gigabit performance

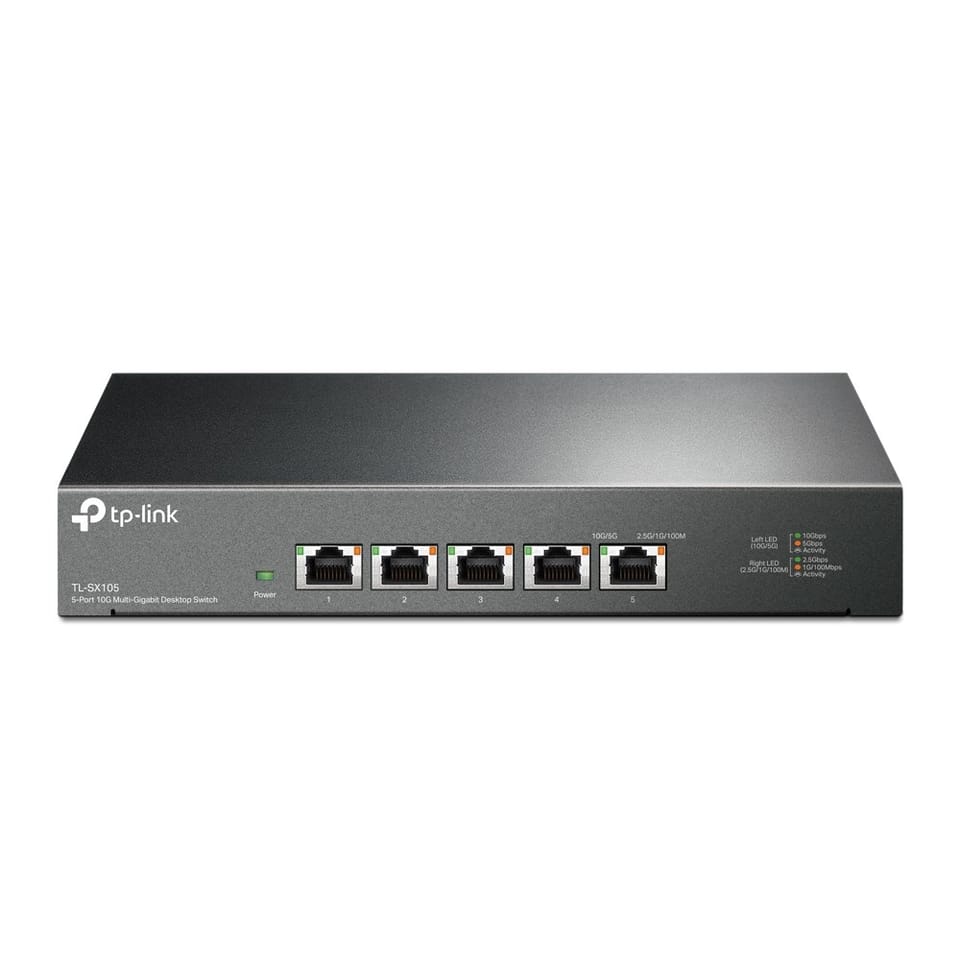

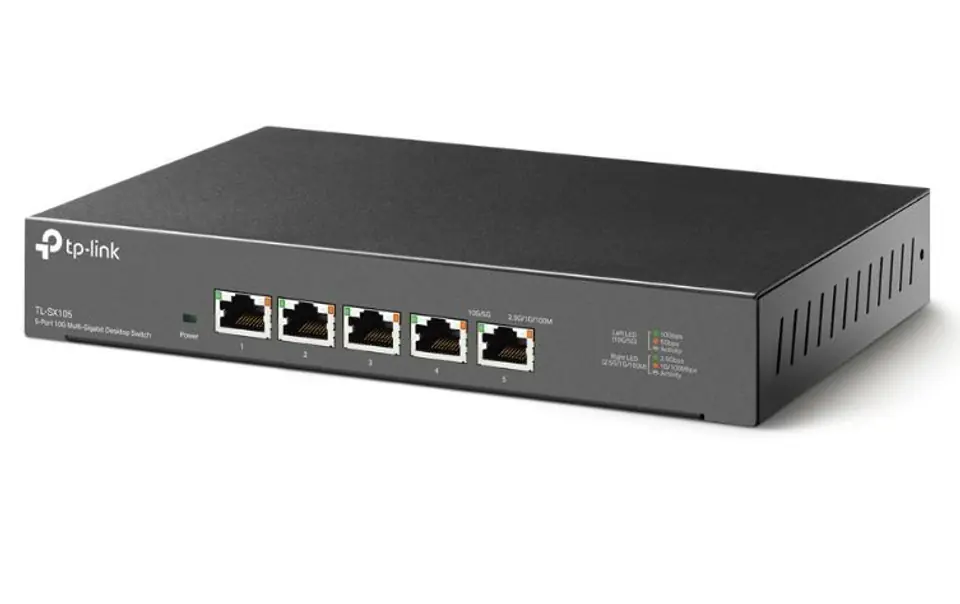

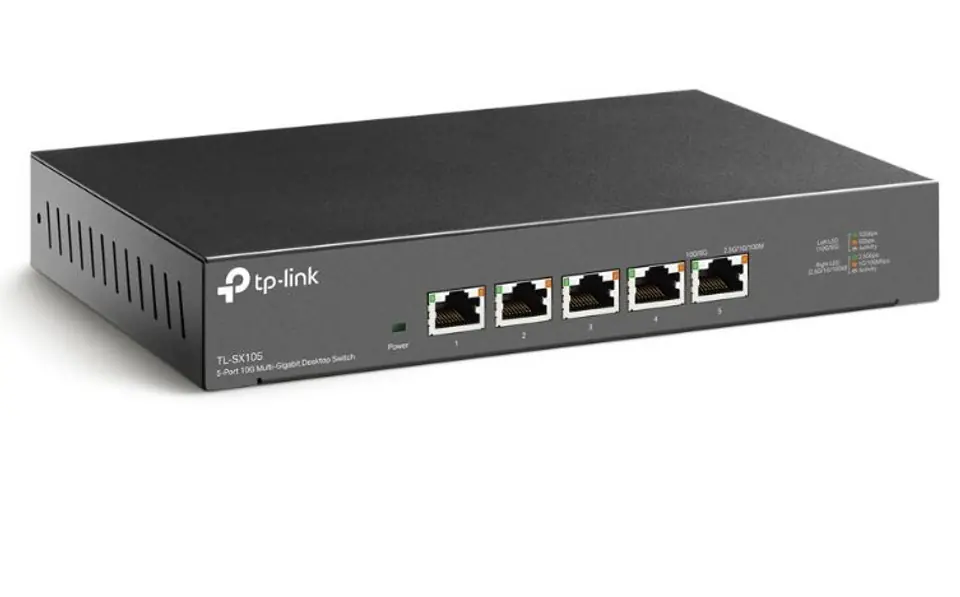

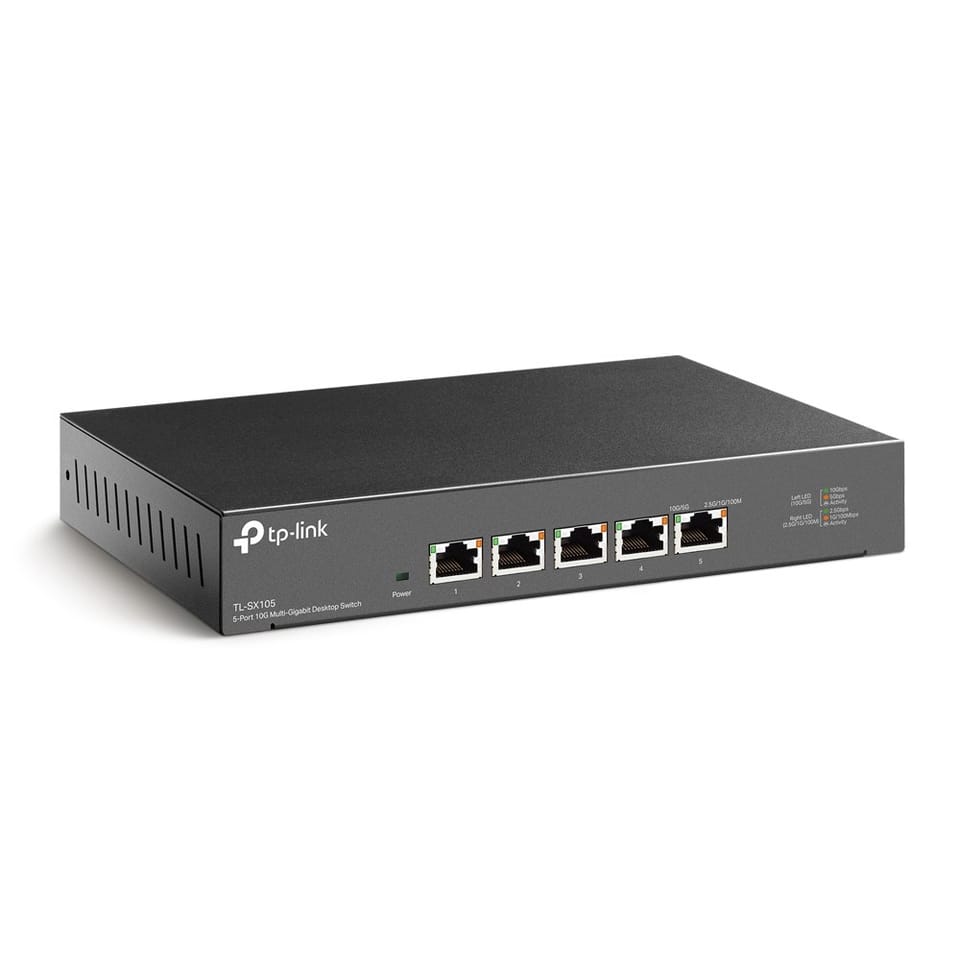

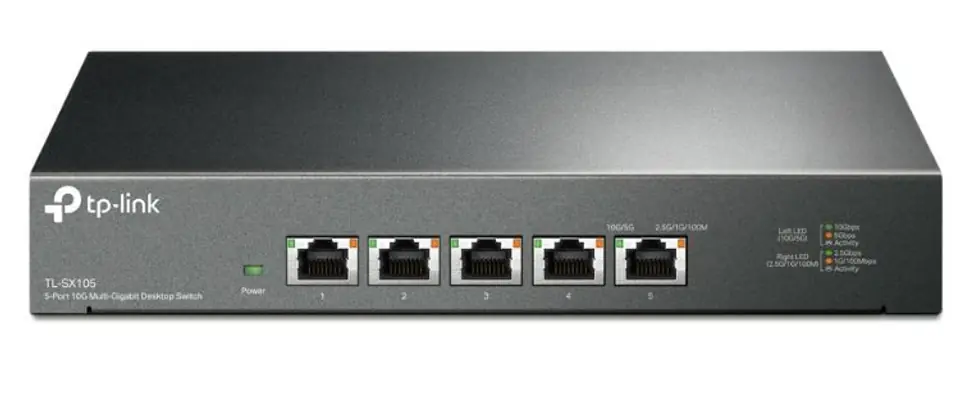

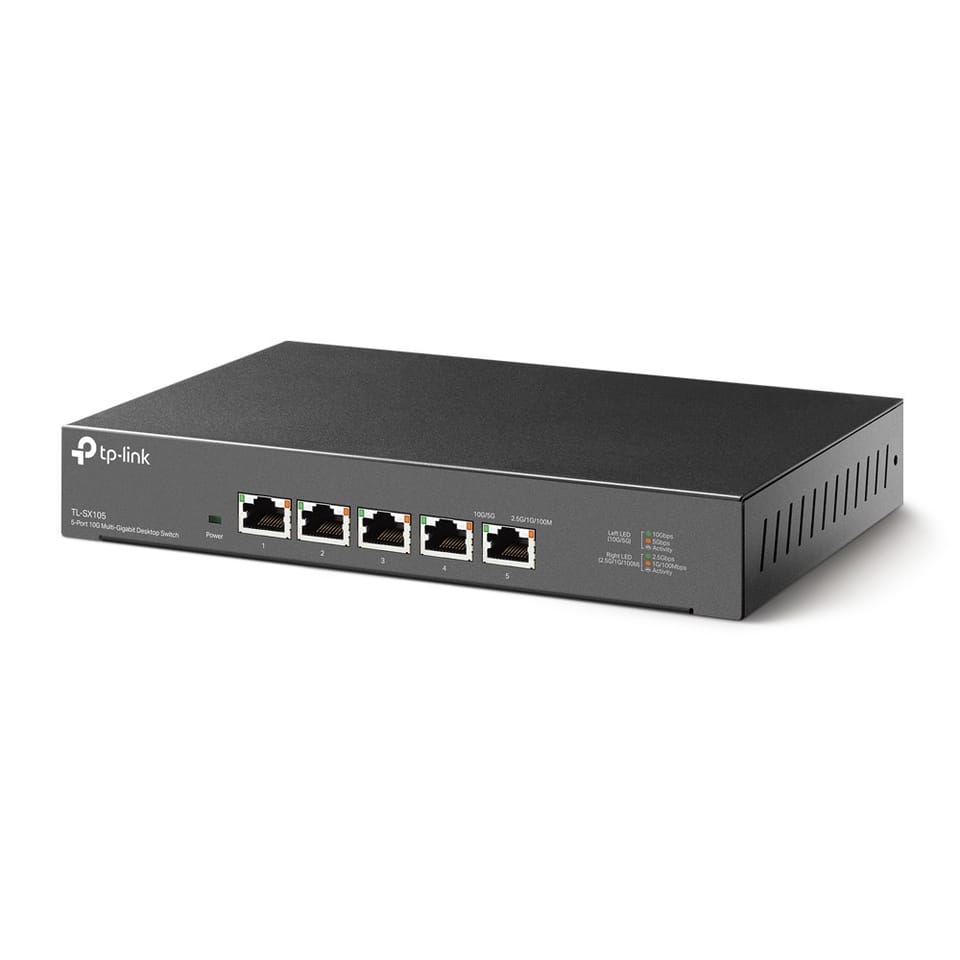

A flagship 10G product, the TL-SX105 is a 5-port desktop 10G switch providing switching capacity of up to 100Gbps. Autonegotiation at 5 speeds (100Mbps / 1G / 2.5G / 5G / 10G) intelligently adjusts ports for compatibility and optimal performance for all devices, including 10G NAS, 10G Servers, Workstations, Gaming PCs, 2.5G / 5G / 10G Access Points, 8K Video, Desktop PCs and more.

Built for LAN Parties

Never host a LAN Party with Lags again. Experience unparalleled speed, lower latency and prioritise your gaming traffic with QoS. Let the smooth gameplay begin!

State-of-the-art fanless design for quiet operation

The device has no fans, so it runs very quietly and is therefore a great addition to your home or office networking equipment. The robust metal chassis, the ability to be mounted on a countertop or wall and the highly effective heat dissipator are features that make the TL-SX105 switch a versatile device.

Plug and access the network

Plug-and-Play operation ensures easy deployment without the need for a technician to configure the device.

5 10G ports: Offers the highest performance for 10G/multi-gigabit devices and provides switching capacity of up to 100 Gbps.
Lightning fast connections: Provides lightning-fast connections to 10G NAS, Servers, 10G PCIe network adapters/cards, Gaming PCs, 2.5G/5G/10G WiFi 6 access points, 8K video and more.
Ideal for multiple applications: Built for lightning fast connections in business, home offices, workstations, LAN Parties and home entertainment.
Optimal connections at 5 speeds: Autonegotiation in 5 speeds (100Mbps, 1G, 2.5G, 5G, 10G) ensures optimal performance.
Quiet operation: The state-of-the-art fanless design ensures the switch operates quietly, so the device is perfect for both home and office use.
Metal chassis: The robust chassis, desktop or wall-mounting capability and heat dissipation design are features that make the TL-SX105 switch a versatile device.
Plug and Play: Installation is easy and requires no expert assistance.
