The device is widely used in small computer networks, housing estate networks
SWITCH DES-105/E 5-PORT D-Link
This product is not available
- Availability:
- expected delivery
- Brand:
- Product code:
- DES-105/E / 5902887065484
Share this product:
Specification
| 10g support: | N |
|---|---|
| Auto mdi/mdi-x: | Y |
| Basic switching rj-45 ethernet ports quantity: | 5 |
| Baud:: | 10 / 100 Mbps, 5 LAN Ports - Fast Ethernet |
| Case:: | Metal, Desktop |
| Certificates:: | FCC, CE Mark, RoHS, Energy Star |
| Connectivity technology: | Wired |
| Copper ethernet cabling technology: | 100BASE-TX, 10BASE-T |
| Data transfer rate: | 200 Mbit/s |
| Dimensions (wxdxh): | 100 x 98 x 28 mm |
| Dimensions:: | 100 x 98 x 28 mm |
| Flow control support: | Y |
| Full duplex: | Y |
| Harmonized system (hs) code: | 85176990 |
| Housing material: | Metal |
| Input current: | 1 A |
| Input voltage: | 5 V |
| Jumbo frames support: | Y |
| Lan ports:: | 5 x (RJ45) 10/100 Mb Auto-Negotiation |
| Led indicators: | Link, Power |
| Leds:: | Power, Link/Act |
| Mac address filtering: | Y |
| Mac address table: | 2000 entries |
| Mac address table:: | 2k |
| Manufacturer / brand:: | D-Link |
| Master (outer) cases per pallet (air): | 75 pc(s) |
| Master (outer) cases per pallet (sea): | 75 pc(s) |
| Maximum data transfer rate: | 0.1 Gbit/s |
| Mean time between failures (mtbf): | 495709 h |
| Networking standards: | IEEE 802.3x, IEEE 802.3u, IEEE 802.3az, IEEE 802.3, IEEE 802.1p |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | 0 - 50 °C |
| Package depth: | 220 mm |
| Package height: | 62 mm |
| Package weight: | 450 g |
| Package width: | 170 mm |
| Packet buffer memory: | 0.384 MB |
| Pallet gross length: | 120 cm |
| Pallet gross weight (air): | 434 kg |
| Pallet gross weight (sea): | 434 kg |
| Pallet gross width: | 110 cm |
| Pallet height (air): | 2.04 m |
| Pallet height (sea): | 2.04 m |
| Power connector: | DC-in jack |
| Power consumption (typical): | 1.9 W |
| Power over ethernet (poe): | N |

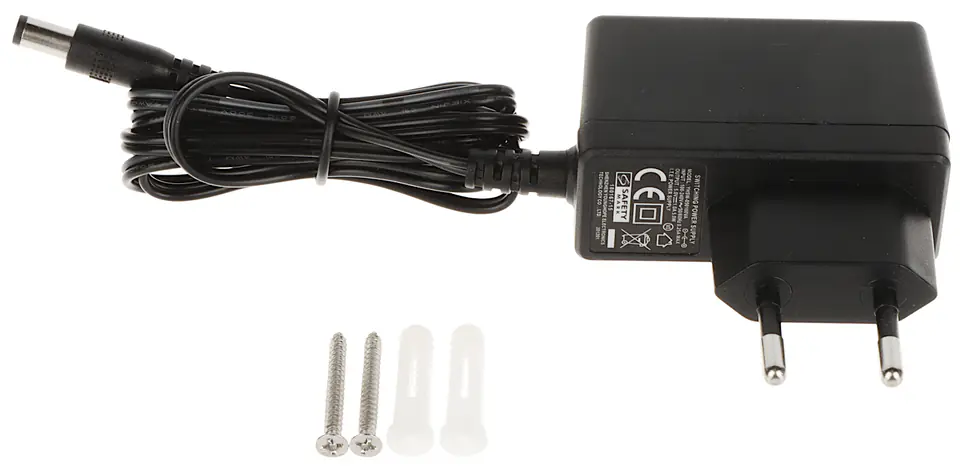

| Power:: | 5 V DC / 1 A (power supply included) |
| Product colour: | Black |
| Products per pallet (air): | 750 pc(s) |
| Products per pallet (sea): | 750 pc(s) |
| Products per shipping (inner) case: | 10 pc(s) |
| Quality of service (qos) support: | Y |
| Rack mounting: | N |
| Scales:: | 0.25 kg |
| Selected features:: | QoS - mechanisms and standards that ensure high quality transmission Green D-LINK technology - great energy savings |
| Shipping (inner) case gross weight: | 5.5 kg |
| Shipping (inner) case height: | 36.6 cm |
| Shipping (inner) case length: | 33.5 cm |
| Shipping (inner) case net weight: | 4.5 kg |
| Shipping (inner) case width: | 23 cm |
| Storage relative humidity (h-h): | 5 - 90% |
| Storage temperature (t-t): | -10 - 70 °C |
| Store-and-forward: | Y |
| Supported data transfer rates: | 10/100 Mbps |
| Switch layer: | L2 |
| Switch type: | Unmanaged |
| Switching capacity: | 1 Gbit/s |
| Warranty:: | 3 years |
| Weight: | 265 g |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
