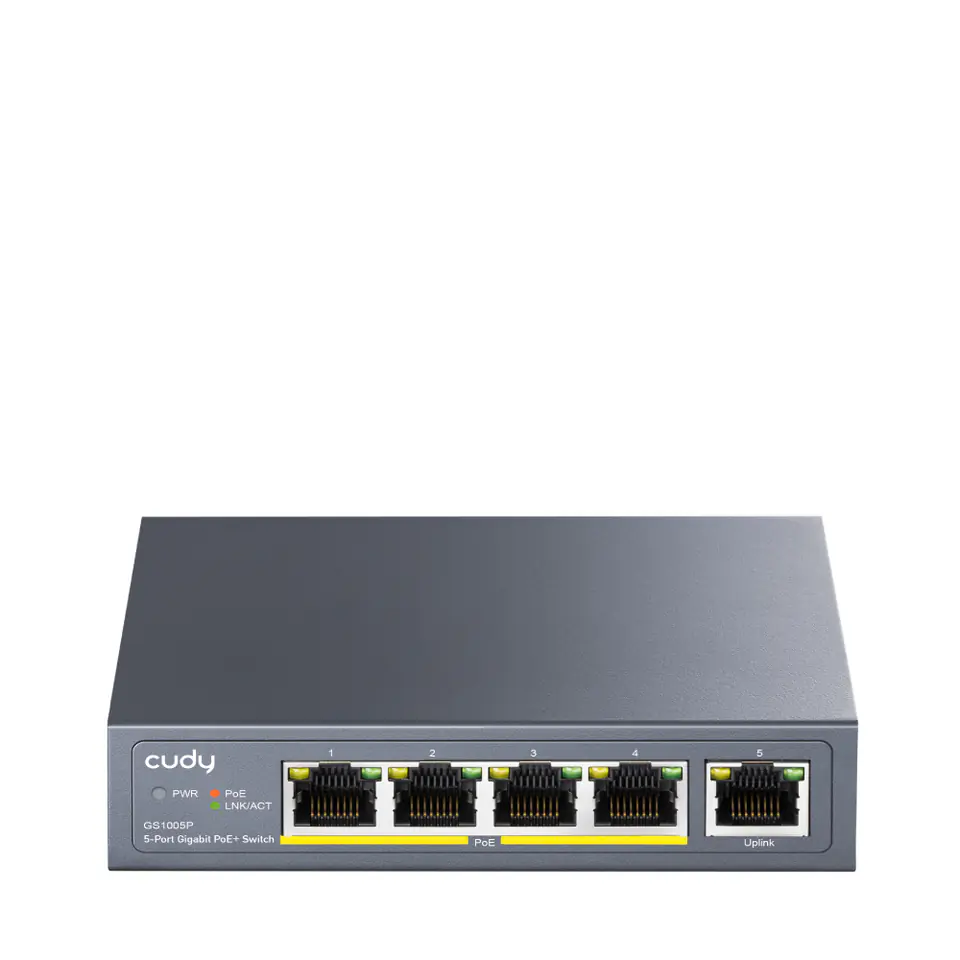

SWITCH 5-Port 1000M PoE+ 120W Industrial Outdoor

€55.02
Shipping from warehouse: ⁨A3⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Cudy
Product code:
GS1005P / 6971690790998

Specification

Basic switching rj-45 ethernet ports quantity:5
Basic switching rj-45 ethernet ports type:Gigabit Ethernet (10/100/1000)

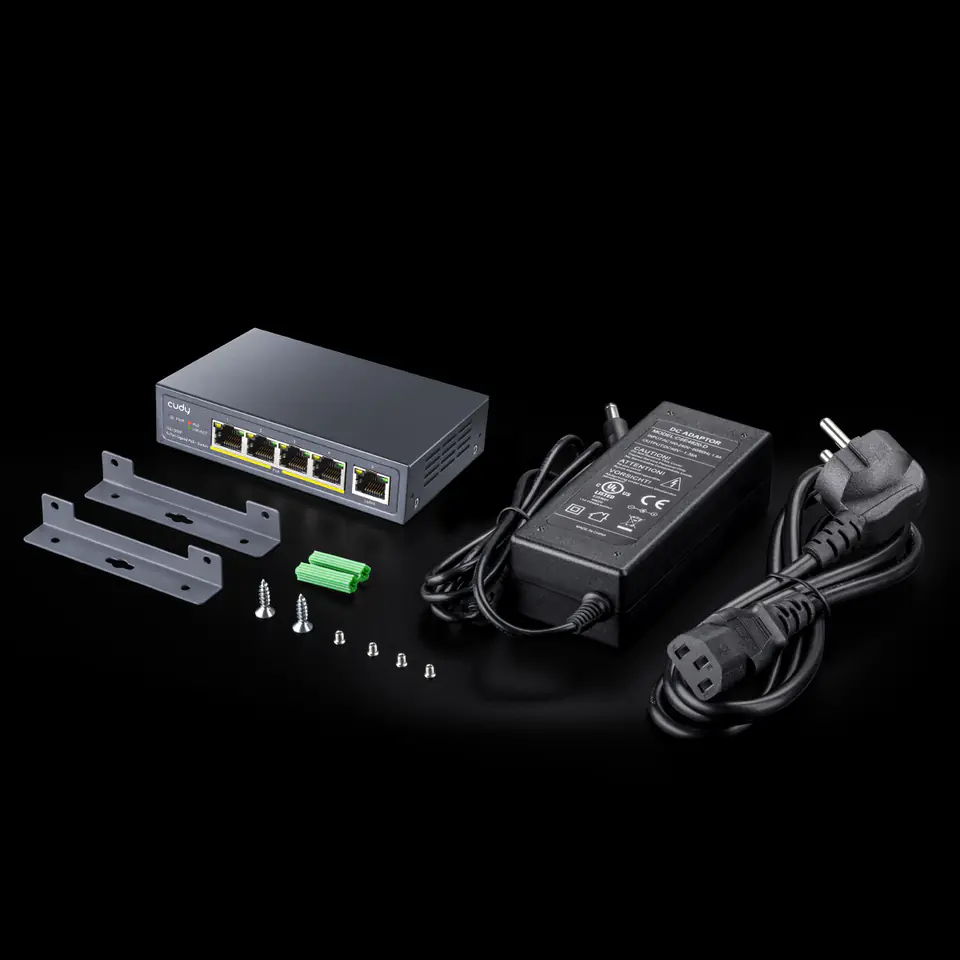

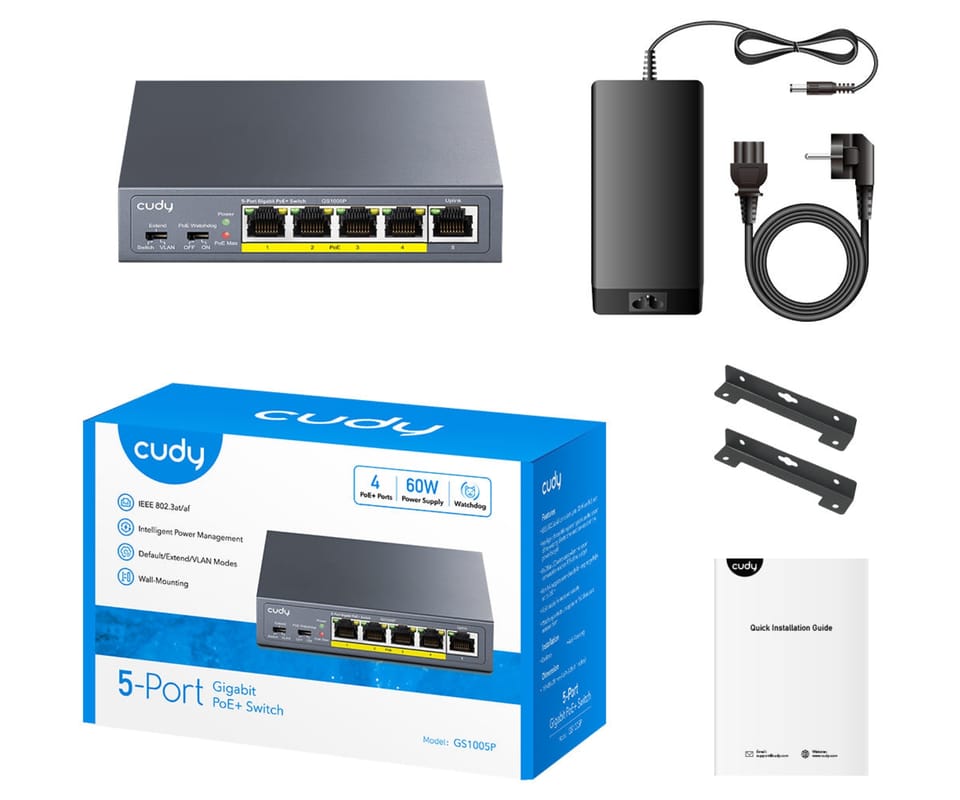

Cables included:DC, AC
Dc input voltage:48 - 57 V
Depth:85 mm
Ethernet lan data rates:10,100,1000 Mbit/s
Fanless:Yes
Flow control support:Yes
Height:28 mm
Housing material:Metal
Led indicators:PoE, Link, Power, Activity
Mac address table:2000 entries
Networking standards:IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3at
Operating relative humidity (h-h):0 - 90%
Operating temperature (t-t):0 - 40 °C
Package type:Box
Packet forwarding rate (1 gbps):1488000 pps
Packet forwarding rate (10 mbps):14880 pps
Packet forwarding rate (100 mbps):148800 pps
Plug and play:Yes
Power consumption (typical):5 W
Power over ethernet (poe):Yes
Power over ethernet (poe) ports quantity:4
Power over ethernet (poe) power per port:30 W
Power over ethernet plus (poe+) ports quantity:1
Power source:AC/DC
Power supply included:Yes
Product colour:Grey
Rack mount kit:Yes
Rack mounting:Yes
Storage temperature (t-t):-40 - 70 °C
Switching capacity:10 Gbit/s
Total power over ethernet (poe) budget:60 W
Uplink ports quantity:1
User guide:Yes
Width:119 mm

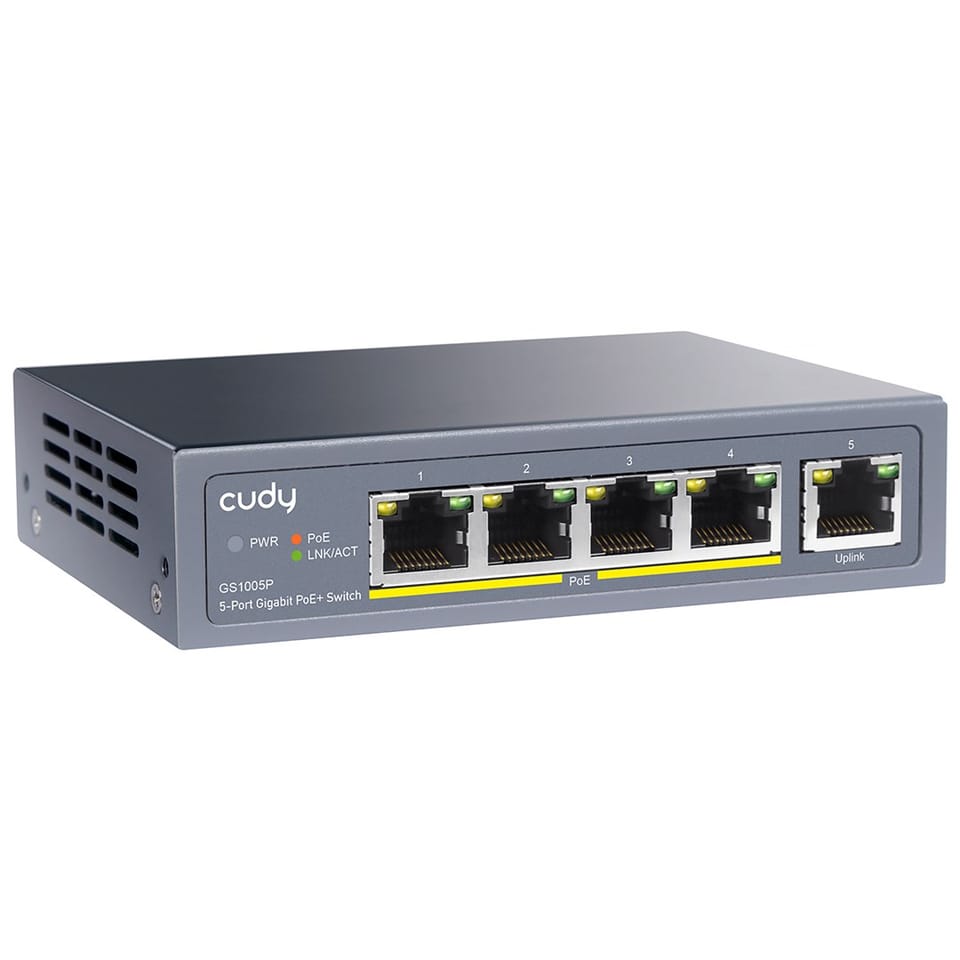

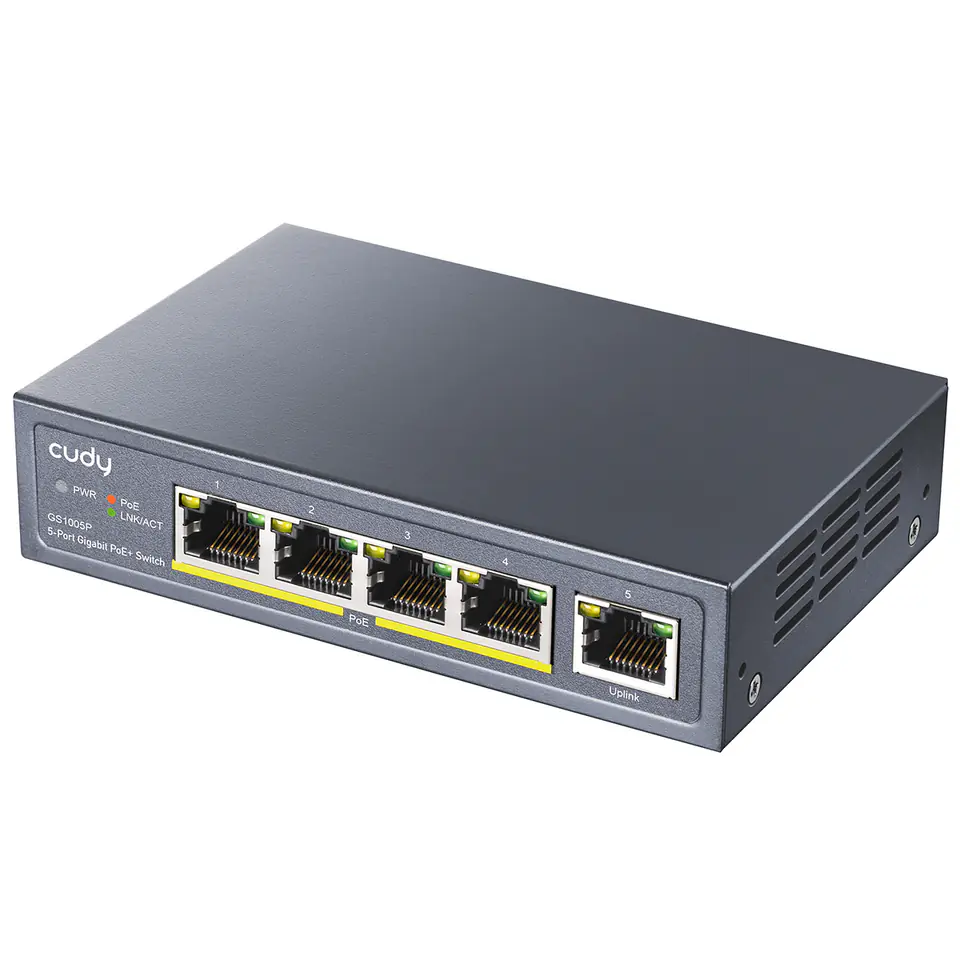

PoE+ Gigabit Switch 5 Port 60W / 30W Cudy GS1005P

SWITCH 5-Port 1000M PoE+ 120W Industrial Outdoor


The PoE+ switch by Cudy will allow us not only to divide the internet synals into various devices, but will also provide them with power. The switch has 5 BASE-T ports with Gigabit speed (10/100/1000Mbps), thanks to which we have the ability to connect many devices without worrying about the speed of data transfer. This model allows you to power devices up to 60W (up to 30W per port). The switch has power auto-detection, which prevents the non-standard device from burning. The PoE switch is compliant with the IEEE902.3af/at standard. The switch is perfect for network installations, monitoring, etc.


Power over Ethernet PoE - what is it?

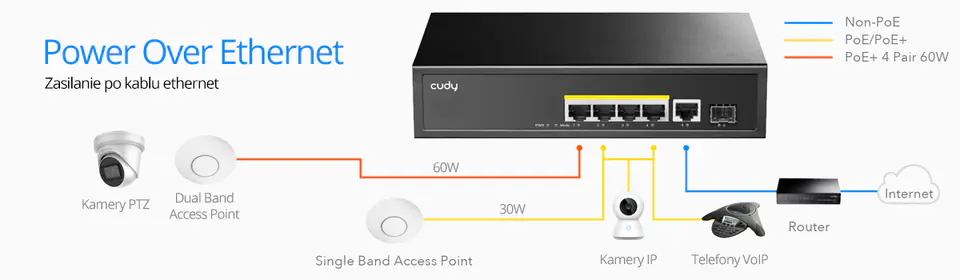

Przykładowy schemat działania urządzeń PoE


Power over Ethernet (PoE for short) is a technology that transmits power over an ethernet cable. Thanks to this, we can simultaneously power the device and ensure the exchange of information. PoE technology is particularly popular for IP cameras, VoIP phones, Internet Access Points and POS terminals. Network devices using PoE are convenient to use, which makes them liked by installers. Taking, for example, a monitoring network - normally you would have to pull the power and transmission cable separately to each of the cameras. Here we can use a switch that will simultaneously power the devices and send information from them.

Key features of the PoE device:

SWITCH 5-Port 1000M PoE+ 120W Industrial Outdoor


- can be mounted on the wall or in a rack cabinet
- Plug & Play

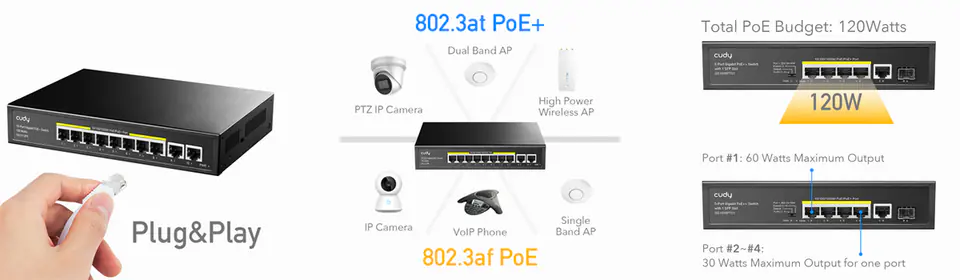

- total power supply: 60W
- up to 30W per port (port #1 max 60W)
- 4x 10/100/1000Mbps PoE + ports
- 1x 1000Mbps uplink port
- IEEE802.3af/at compatible
- IEEE 802.3x Flow Control



Technical specification:

SWITCH 5-Port 1000M PoE+ 120W Industrial Outdoor

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
