Manufacturer name: PROFRAME 600

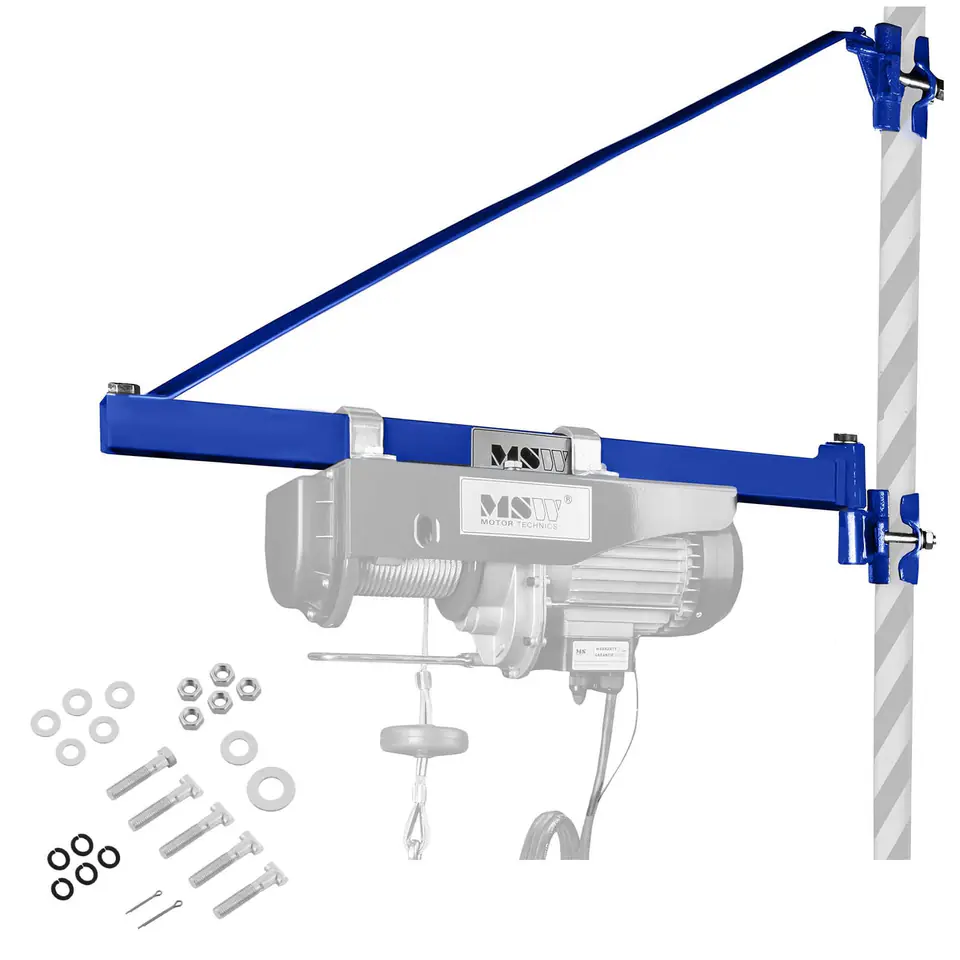

Professional swinging arm for rope winches, German manufacturer MSW.
Made of steel painted with durable powder paint, it is very durable and corrosion resistant. The arm is very easy to mount on fixed building structures or in vehicles, where it can be used as a base for a loading winch.
We recommend professional winches and rope winches PROLIFTOR series of the German manufacturer MSW. Winches with different lifting capacities are available in our store.
Technical parameters:
- - Model - PROFRAME 600
- - Catalogue number - 6011
- - Stan - New
- - Maximum load - 600 kg
- - Boom length - 750 mm
- - Fastening - Fastening ties matched to steel pipes 40-50 mm
- - Distance of fastening clips - Top edge to bottom 520 mm
- - Boom dimensions - 47 x 47 mm
- - Spare parts list - T-bolt type M12 x 60 – 4 pcs. / Hexagon bolt M12 x 70 – 1 pc / Flat gasket ⌀12 – 5 pcs. / Spring washer ⌀12 – 4 pcs. / Nut M12 – 5 pcs. / Cotter pin – 2 pcs.
- - Dimensions (LxWxH) - 75 x 4.7 x 4.7 cm
- - Weight - 5.4 kg
- - Shipping dimensions (LxWxH) - 89 x 10 x 9 cm
- - Shipping weight - 5,9 kg
