| < 0.5 db: | Attenuation: |
|---|---|
| 10 mv / 230 v ac: | Residual voltage: |
| 12: | Number of tracks: |
| 2 years: | Warranty: |
| 2.22 kg: | Scales: |
| 315 x 235 x 128 mm: | Dimensions: |
| 35 volts: | Voltage protection: |
| 5 ... 2400 mhz: | Frequency range: |
| 5 ... 300 mhz - 85 db300 ... 470 mhz - 80 db470 ... 1000 mhz - 75 db: | Shielding efficiency: |
| 75 ω: | Impedance: |
| F socket: | Input connector, input: |
PP-ZPP-4645F/12F set is an integrated solution designed to provide comprehensive protection of collective TV systemsThe purpose of the set is to protect the multiswitch system against the effects of overvoltages resulting from lightning

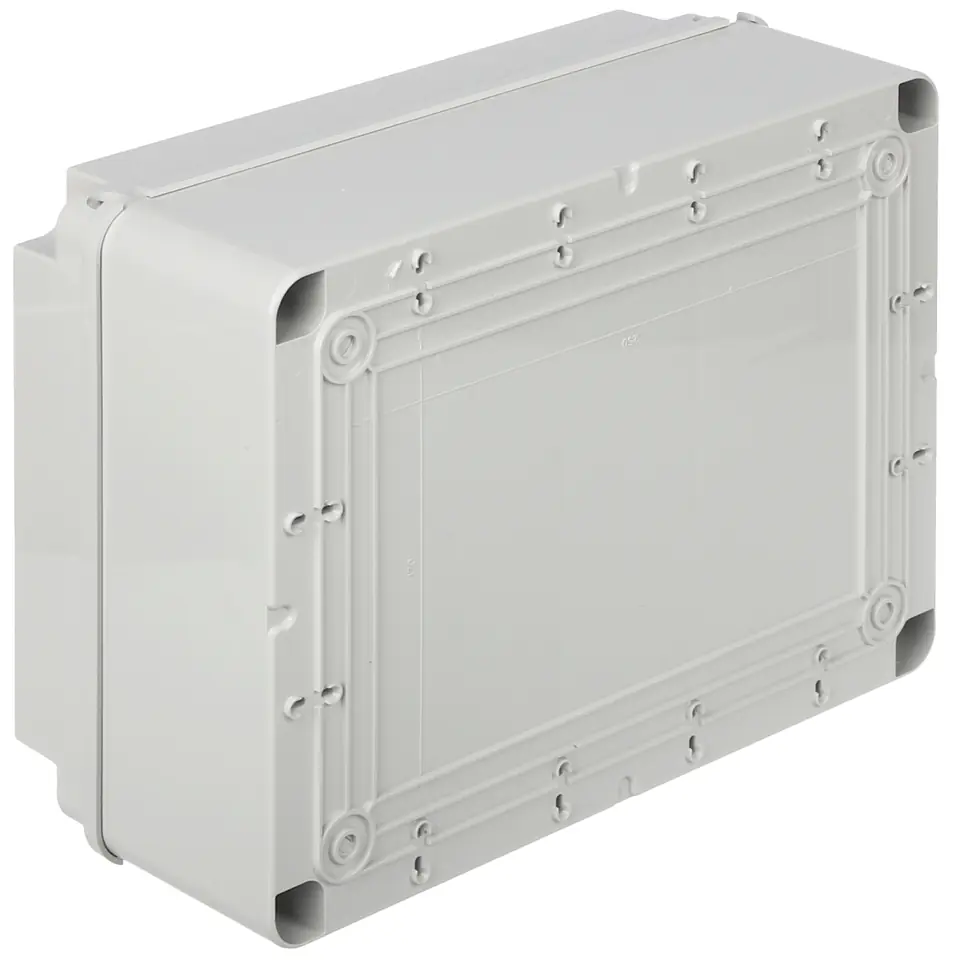

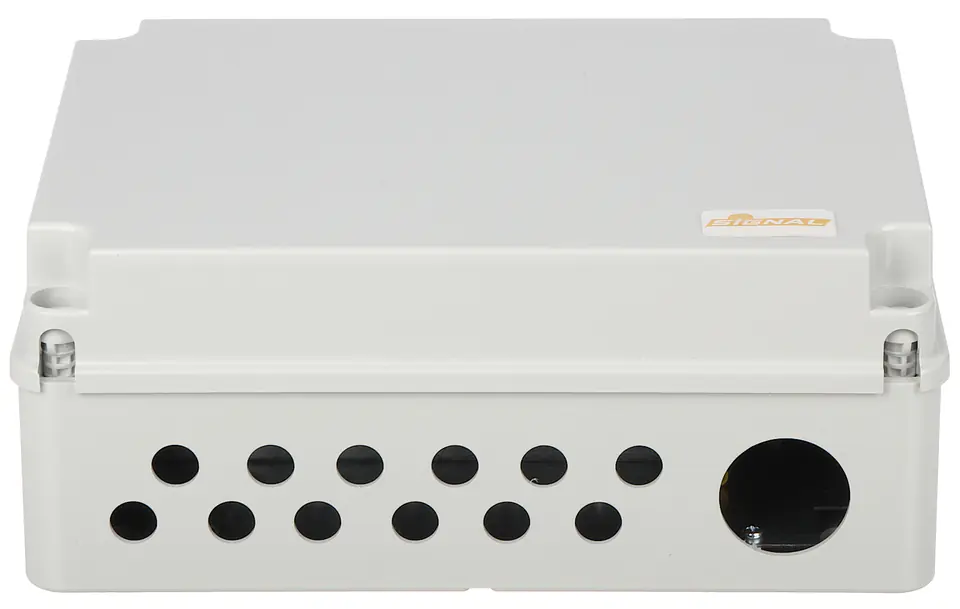

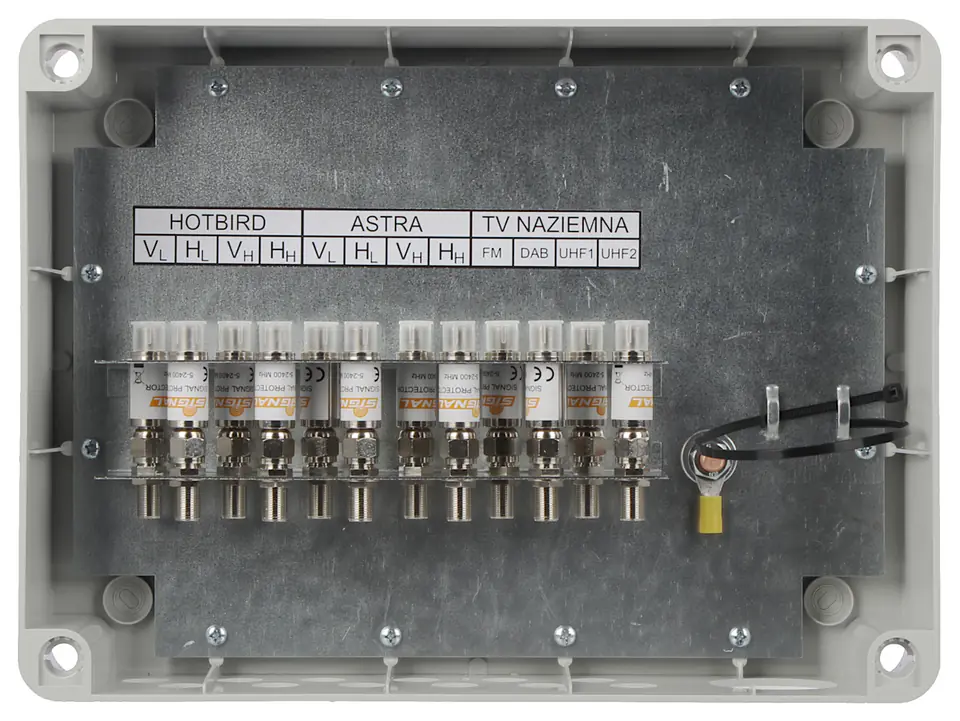

Protection for up to 12 signal paths is provided by ZPP-4645F protectors placed in a practical housing
