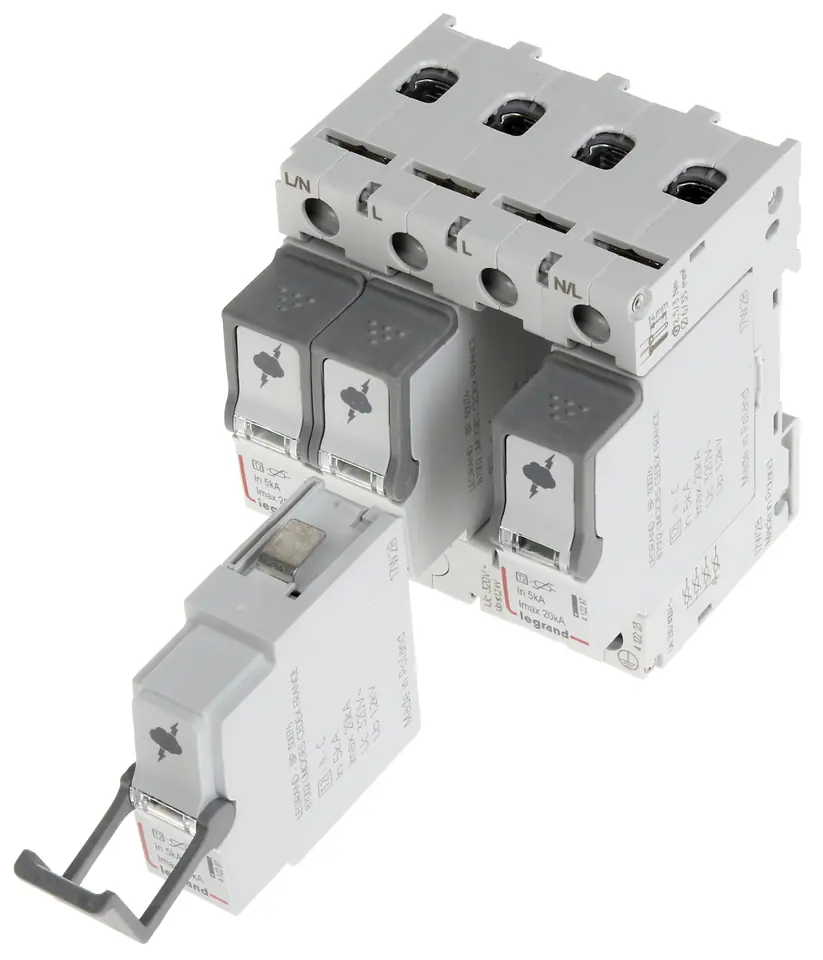

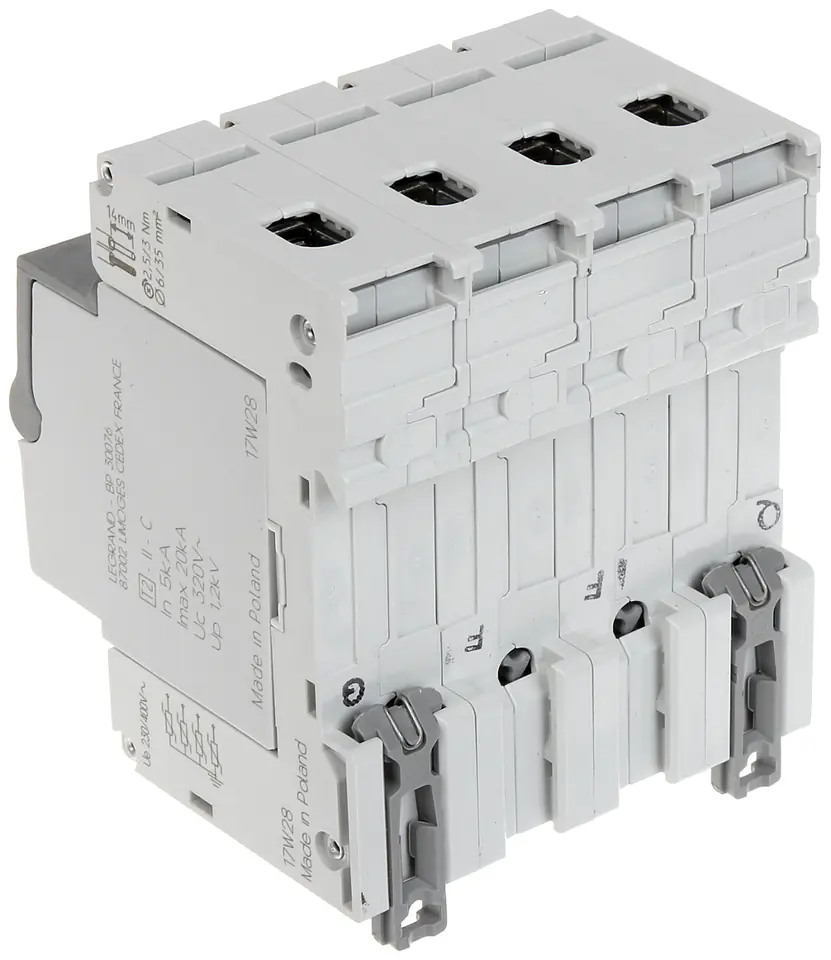

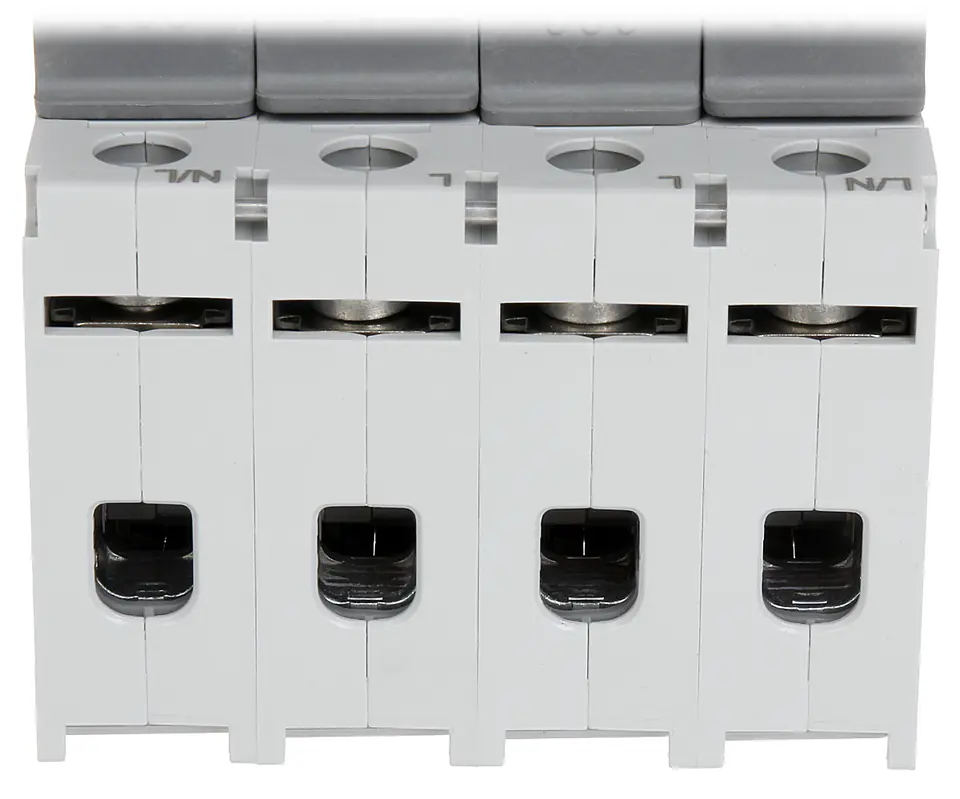

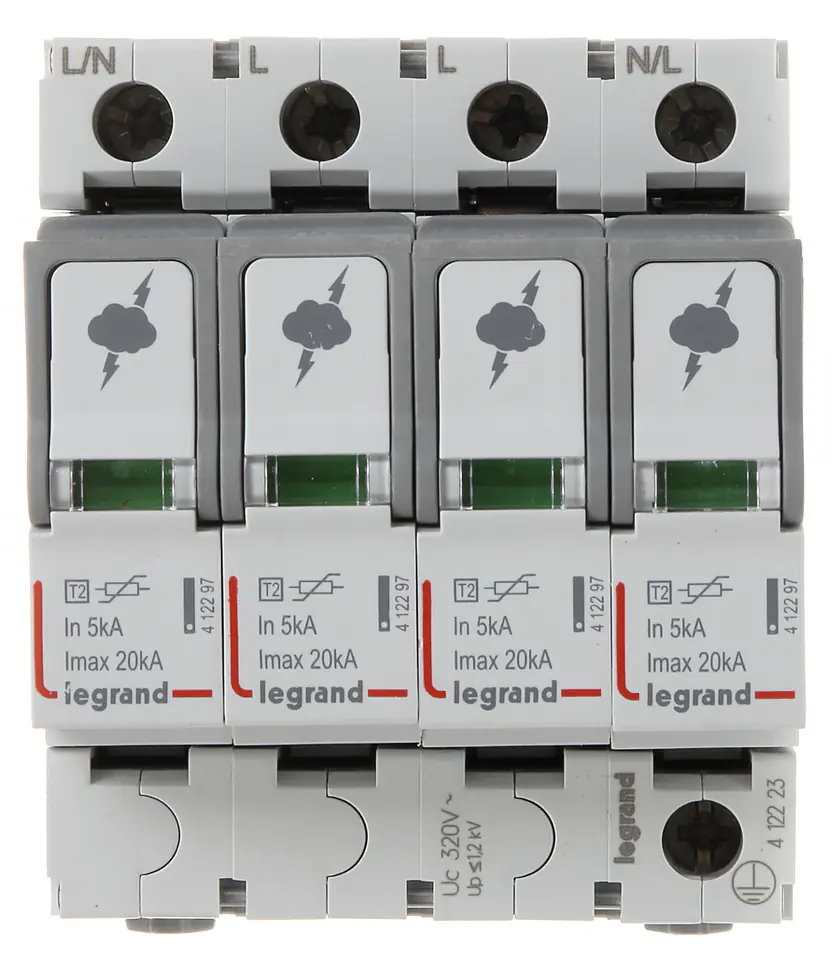

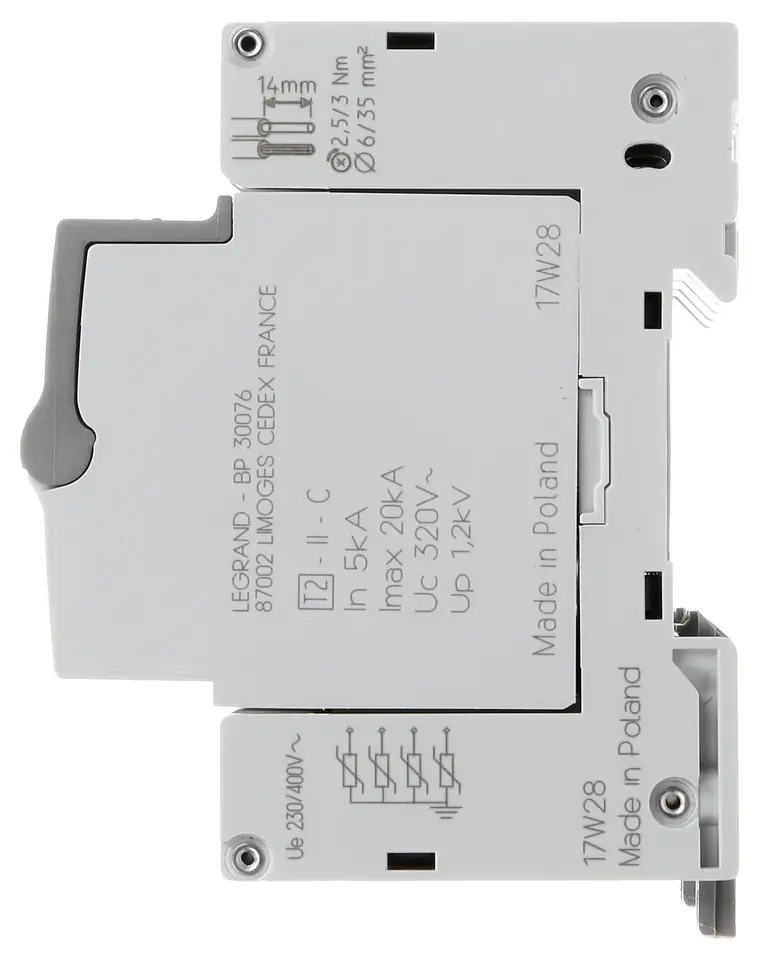

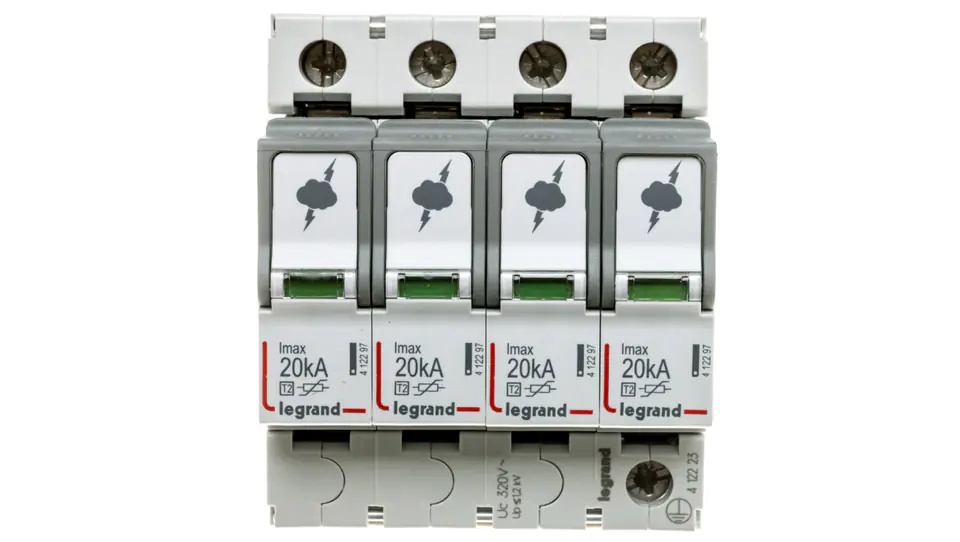

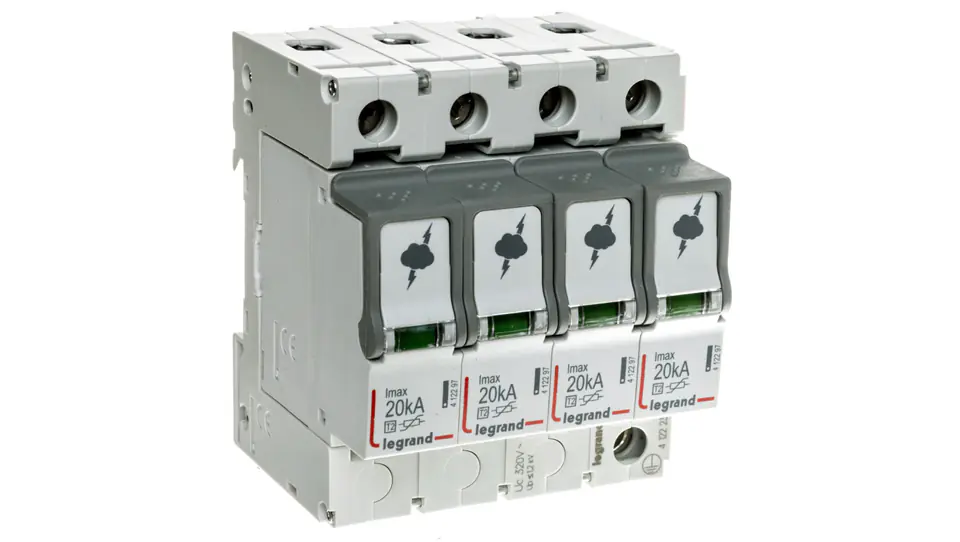

Surge arrester C Type 2 4P 20kA 1,2kV ON 300 412223
€54.89
Shipping from warehouse: T2
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Legrand
- Product code:
- 412223 / 3414970517982
Share this product:
Specification
| Cross-section of rigid wire (single-wire, multi-wire) [mm2] from: | 0,5 |
|---|---|
| Cross-section of rigid wire (single-wire, multi-wire) [mm2] to: | 16 |
| Cross-section of the connected cable (flexible, multi-wire) [mm2] from: | 0,5 |
| Cross-section of the connected cable (flexible, multi-wire) [mm2] to: | 25 |
| Indication of activation on the device: | Optical |
| Integrated security: | No |
| Maximum permanent ac operating voltage [v]: | 320 |
| Poles: | 4 |
| Protection level [kv]: | 1,2 |
| Rated ac voltage [v]: | 230 |
| Rated discharge current - peak (8/20) [ka]: | 20 |
| Size: | 4 modules |
| Type 2: | Yes |
| With contact for remote signalling: | No |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
