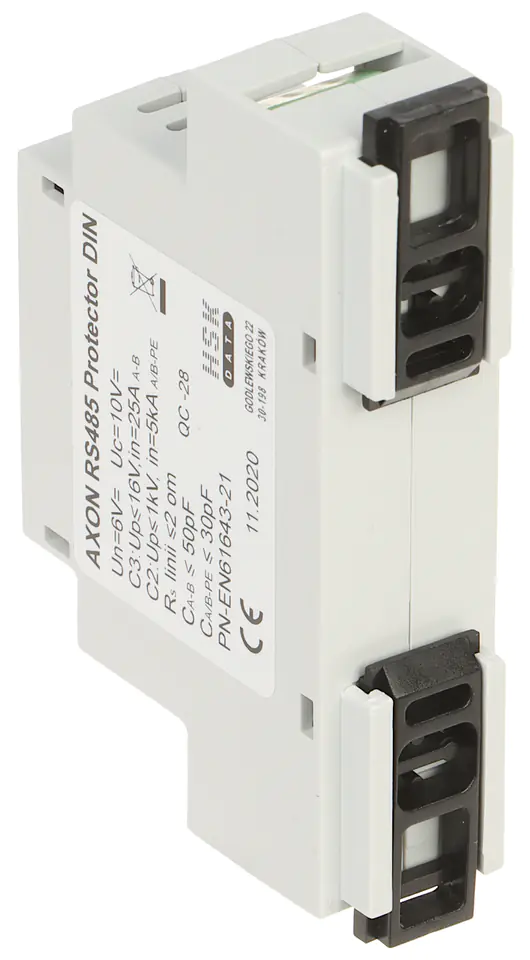

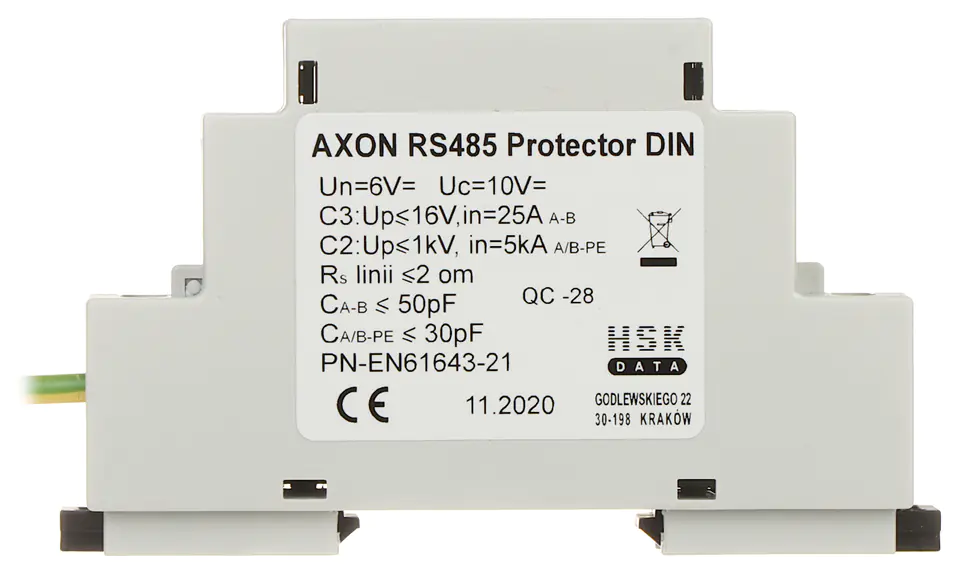

The AXON-RS485/DIN surge arrester is designed for surge protection of electronic devices operating in control systems of industrial cameras based on RS-485 transmission or its variants with a voltage not higher than 5VAXON-RS485/DIN It contains protective elements limiting overvoltages occurring between the transmission line and the PE protective wire, enabling the jamming charge to be discharged to the groundThe device also uses elements limiting the dangerous tension that may occur between the lines

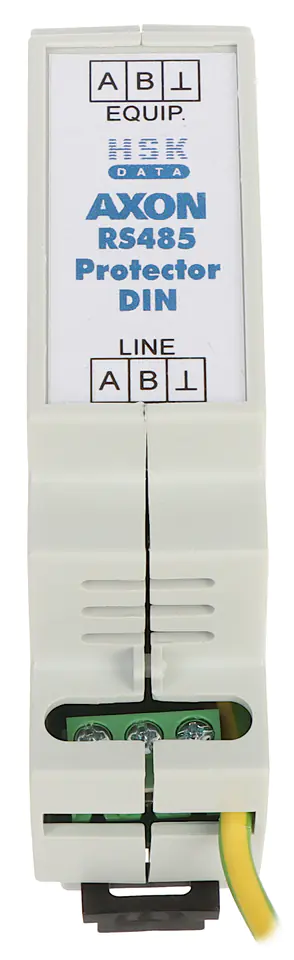

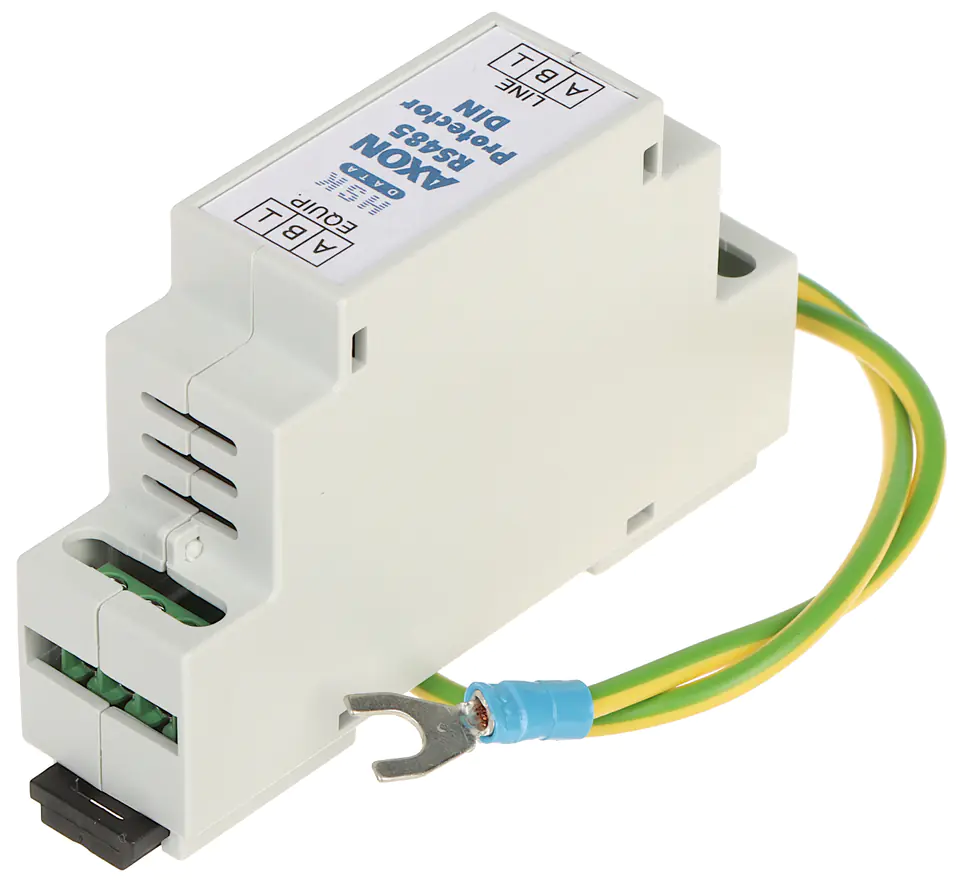

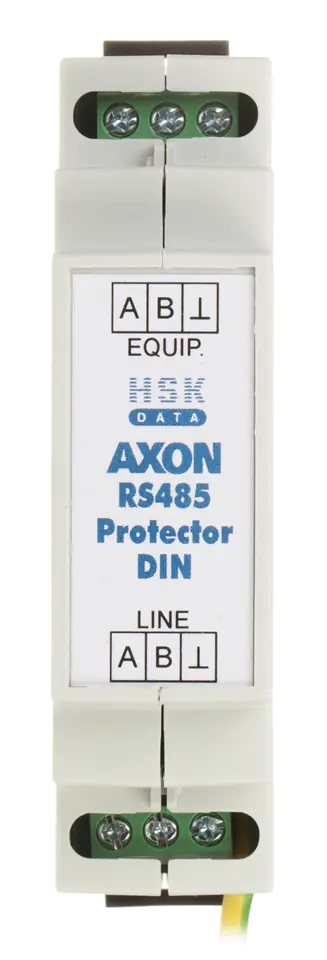

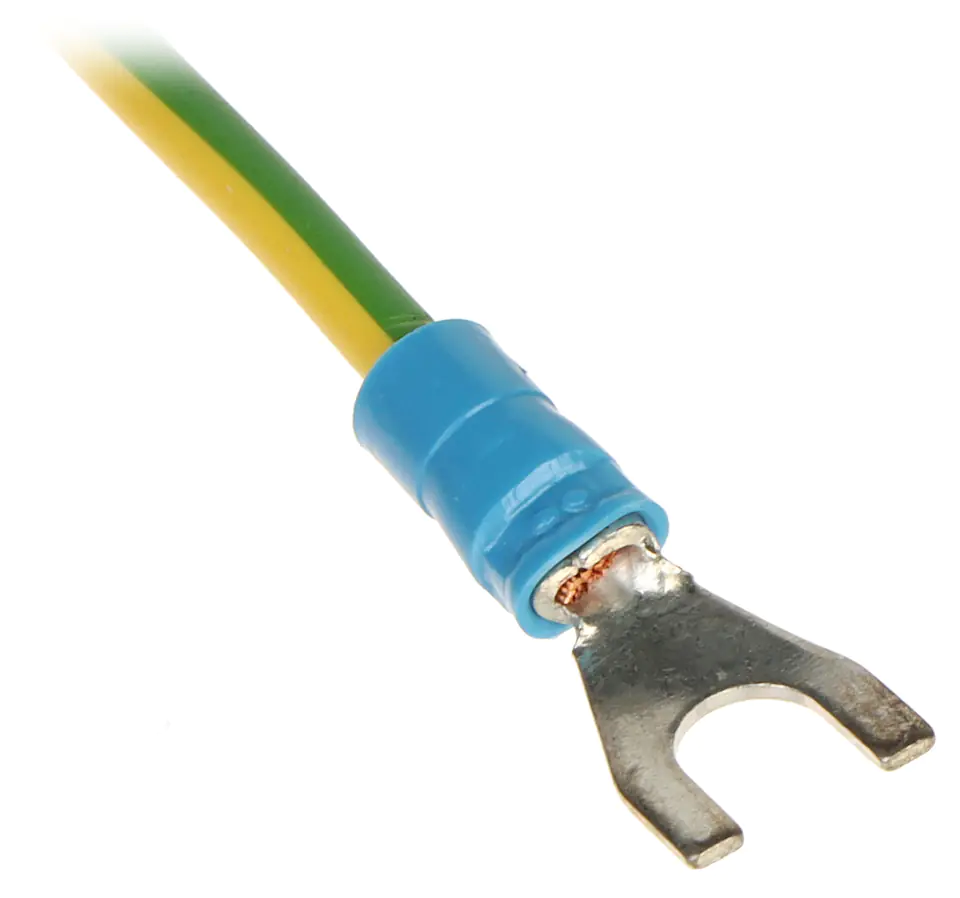

As a result, AXON-RS485/DIN provides comprehensive protection for the devices attached to itAXON-RS485/DIN is designed for mounting on a 35 mm DIN railAs connecting elements, clamping connectors are usedTerminals A, B are used to connect protected transmission lines, while the third terminal can be used by the installer as signal ground if necessaryThe ground cable terminated with a fork end is led out and connects directly to the housingThe device is an unbalanced protectorThe transmission line is connected to the \"Line\" terminals, while the protected device to the \"Equip\" The condition for proper operation of AXON-RS485/DIN is to connect it to an efficient grounding or PE protective conductor
