SURGE ARRESTER AXON-PRO-IP-POE+

€54.65

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Mon, Nov 25 - Tue, Nov 26

14 days returnUnconditional return policy

Availability:: moderate quantity
Product code:: AXON-PRO-IP-POE+ / 5904743334307

Specification

≤ 1000 v - 1.2/50 μs:	Line-to-ground protection voltage [C2]:
0.104 kg:	Scales:
0.23 m stp:	Cable length:
0.29 m:	Ground wire length:
1:	Number of channels:
1, 2, 3, 4, 5, 6, 7, 8:	Protected cable pairs:
120 volts:	Voltage:
150 volts:	Maximum voltage:
2 ka - 8/20 μs:	Nominal discharge current (line-ground) [C2]:
2 years:	Warranty:
50 x 40 x 30 mm:	Dimensions:
600 ma:	Nominal supply current:
Metal, black:	Case:

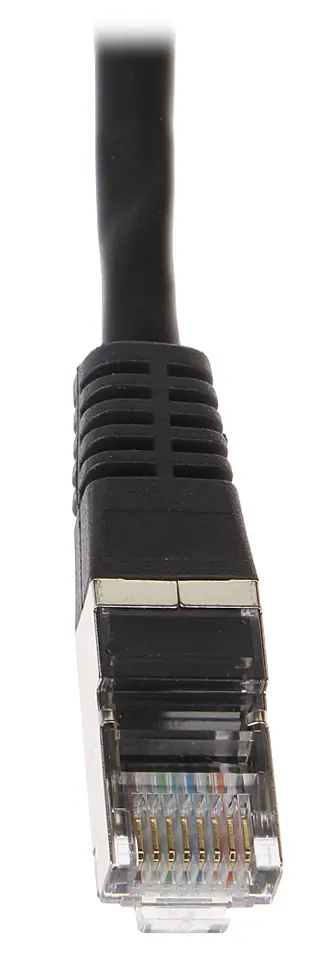

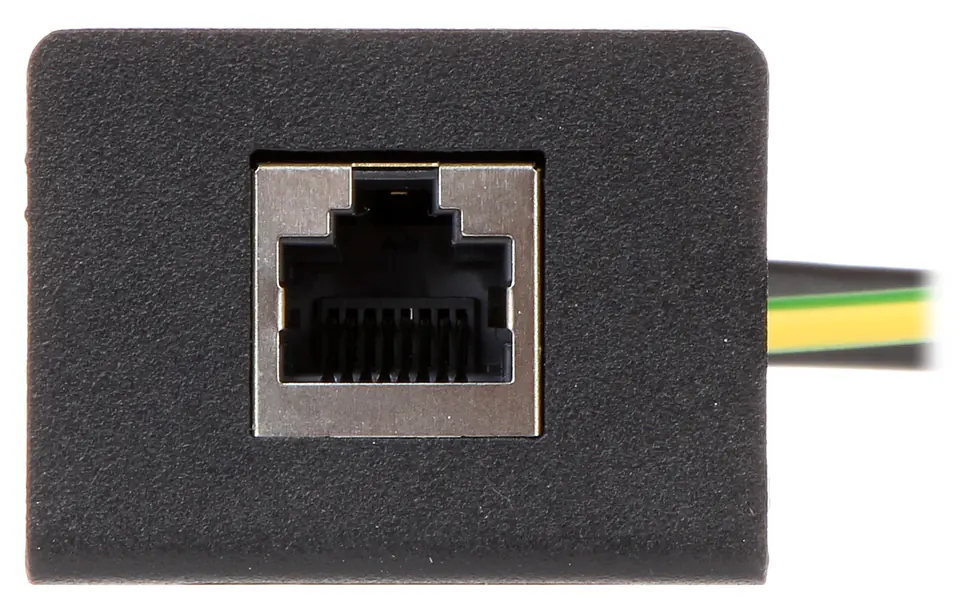

Rj-45 socket shielded rj45 plug (8p8c) on cable, shielded:	Connector type:

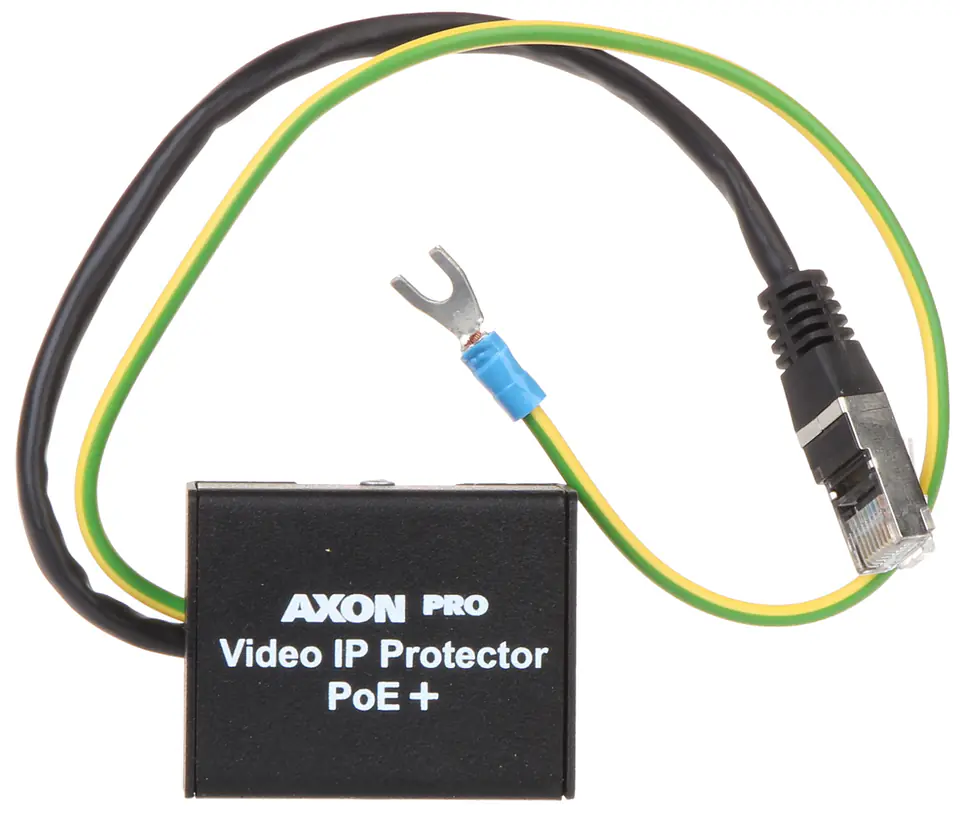

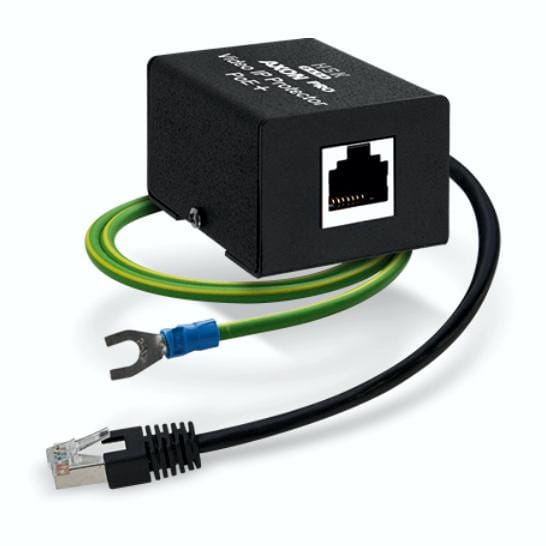

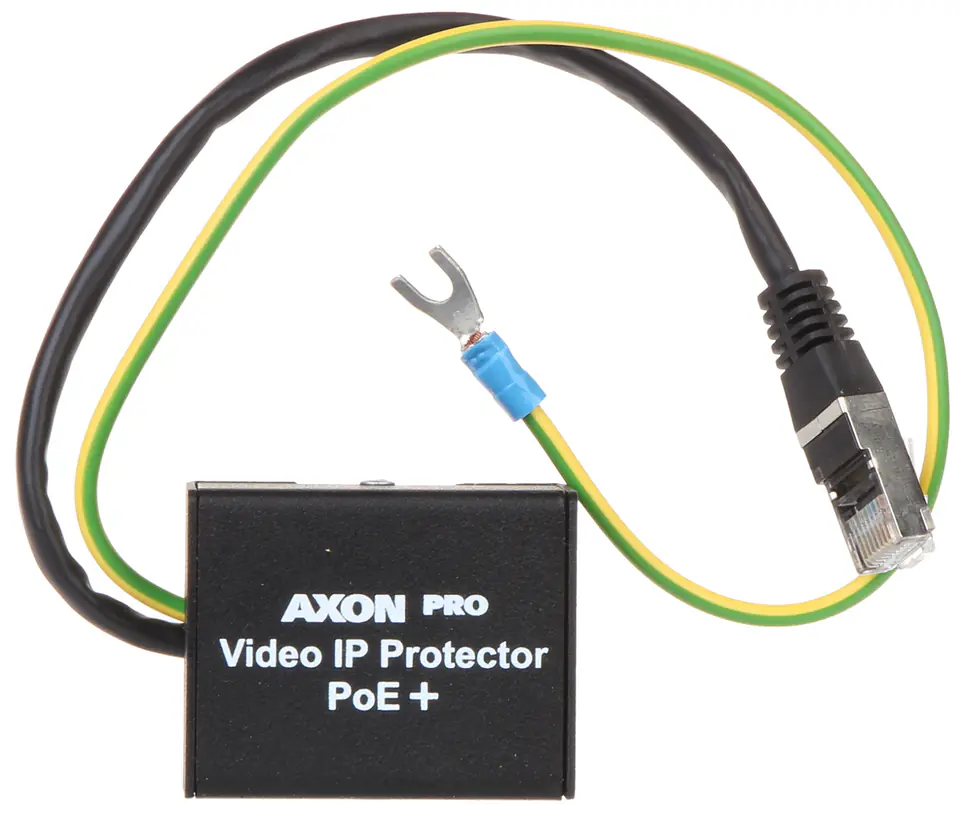

AxON-PRO-IP-POE+ is designed for surge protection of CCTV systems connected via 10/100/1000 Mbps Ethernet and powered remotely in PoE+ technology PoE+ technology allows to power devices with increased power consumption, e.g. HD cameras

Protects every wire in a four-pair cable and discharges the electrical charge to the groundProtects both the data transfer path and the power supply pathThe use of a shielded RJ-45 socket allows you to maintain the continuity of the screen when using FTP twisted pair The condition for proper operation of AXON-PRO-IP-POE+ is to connect it to a smooth ground or PE protective wire

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
