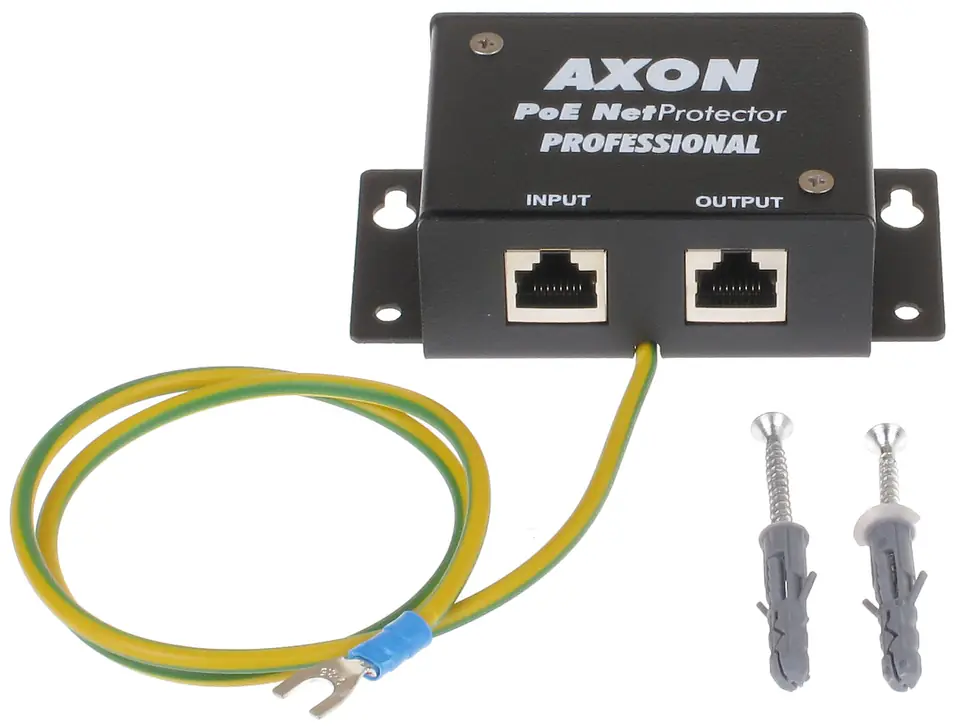

SURGE ARRESTER AXON-POE/PROF

€49.20

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Mon, Nov 25 - Tue, Nov 26

14 days returnUnconditional return policy

Availability:: moderate quantity
Product code:: AXON-POE/PROF / 5904743331207

Specification

Case::	Metal, black
Dimensions::	95 x 50 x 30 mm
Line-to-ground protection voltage for power supply::	≤ 1000 V - 1 kV/μs
Line-to-ground protection voltage::	≤ 600 - 1 kV/μs
Line-to-line protection level::	≤ 40 - 1 kV/μs
Line-to-line protection voltage for power supply::	≤ 95 V - 1 kV/μs
Maximum supply voltage::	56 volts
Maximum voltage::	6 volts
Nominal discharge current (line to line)::	20 A (10/1000μs)
Nominal discharge current (line-ground)::	20 A (10/1000μs)
Nominal power discharge current (line-ground)::	2 kA (8/20μs)
Power supply path - lines 4, 5 and 7, 8::	Power supply path - lines 4, 5 and 7, 8:
Rated current of power supply::	400 mA
Rated line-to-line discharge current for power supply::	10 A (10/1000μs)
Rated supply voltage::	50 volts
Scales::	0.18 kg
Signal path - lines 1, 2, 3, 6::	Signal path - lines 1, 2, 3, 6:2
Socket types::	RJ45 (8P8C)
Standard::	Complies with PN-EN61643-21
Voltage::	5 volts
Warranty::	2 years

A device designed to protect devices connected to the 10/100/1000 Mbps Ethernet network, powered remotely through unused pairs of wiresThe device contains 2 paths - data transfer path (lines 1-2, 3-6) and power supply path (lines 4-5, 7-8)In order to increase the load capacity of the power supply path, line 4 is shorted with 5, and line 7 with 8

AXON-POE/PROF is a reinforced version of the popular AXON-POE deviceThe use of the shielded RJ-45 socket allows you to maintain the continuity of the screen when using FTP twisted pair

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
