SURGE ARRESTER AXON-POE-MULTINET

€109.20

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Tue, Dec 24 - Fri, Dec 27

14 days returnUnconditional return policy

Availability:: moderate quantity
Product code:: AXON-POE-MULTINET / 5904743333201

Specification

Case::	Metal, black
Dimensions::	167 x 50 x 32 mm
General data::	General data:
Line-to-ground protection voltage for power supply::	1000 V (1.2/50μs)
Line-to-ground protection voltage::	600 V - 1 kV/μs
Line-to-line protection level::	40 V - 1 kV/μs
Line-to-line protection voltage for power supply::	95 V - 1 kV/μs
Maximum supply voltage::	56 volts
Maximum voltage::	6 volts
Nominal discharge current (line to line)::	20 A (10/1000μs)
Nominal discharge current (line-ground)::	20 A (10/1000μs)
Nominal power discharge current (line-ground)::	2 kA (8/20μs)
Nominal supply current::	400 mA
Number of channels::	4
Power supply path - lines 4, 5 and 7, 8::	Power supply path - lines 4, 5 and 7, 8:
Protection parameters::	Complies with PN-EN61643-21
Rated line-to-line discharge current for power supply::	10 A (10/1000μs)
Rated supply voltage::	50 volts
Scales::	0.33 kg
Signal path - lines 1, 2, 3, 6::	Signal path - lines 1, 2, 3, 6:2
Socket type::	RJ45 (8P8C)
Voltage::	5 volts
Warranty::	2 years

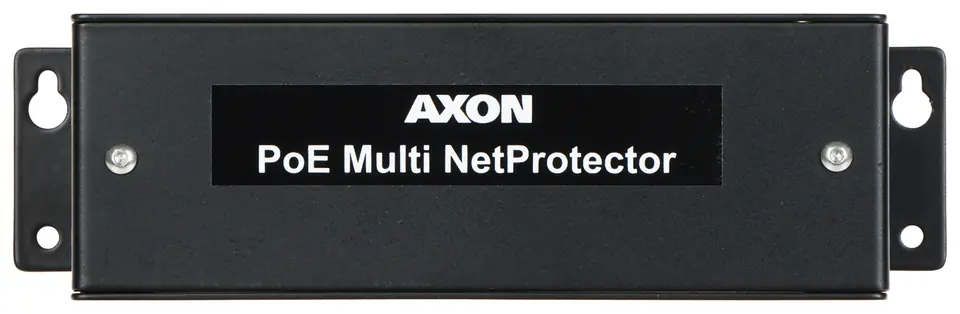

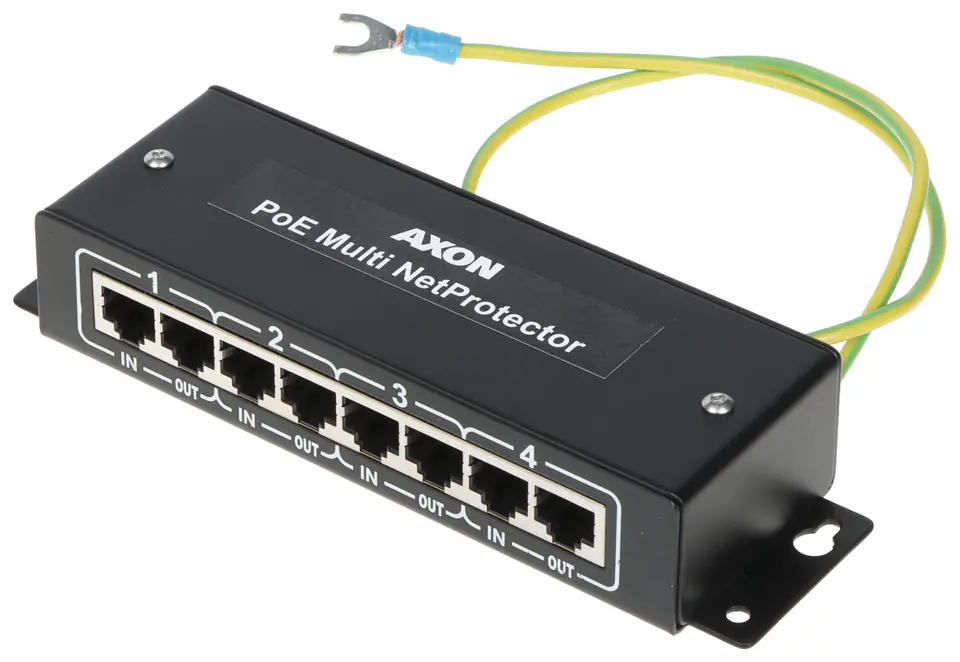

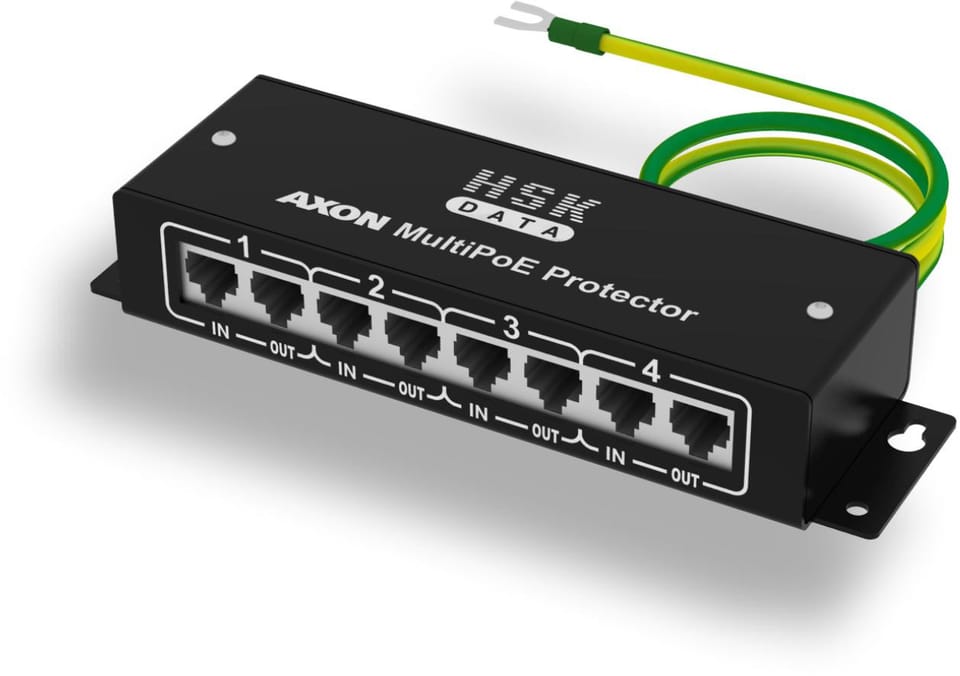

AXON-POE-MULTINET is AXON's multi-channel device for surge protection for devices connected to a 10/100 Mbps Ethernet network and powered remotely in PoE technology

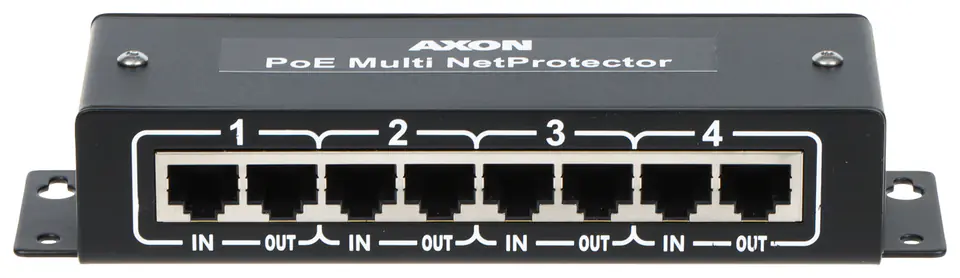

Each of the 4 PoE Multi NetProtector channels contains 2 lanes - data transfer path (lines 1-2, 3-6) and power track (lines 4-5, 7-8)In order to increase the load capacity of the power supply path, line 4 is shorted from 5, and line 7 from 8

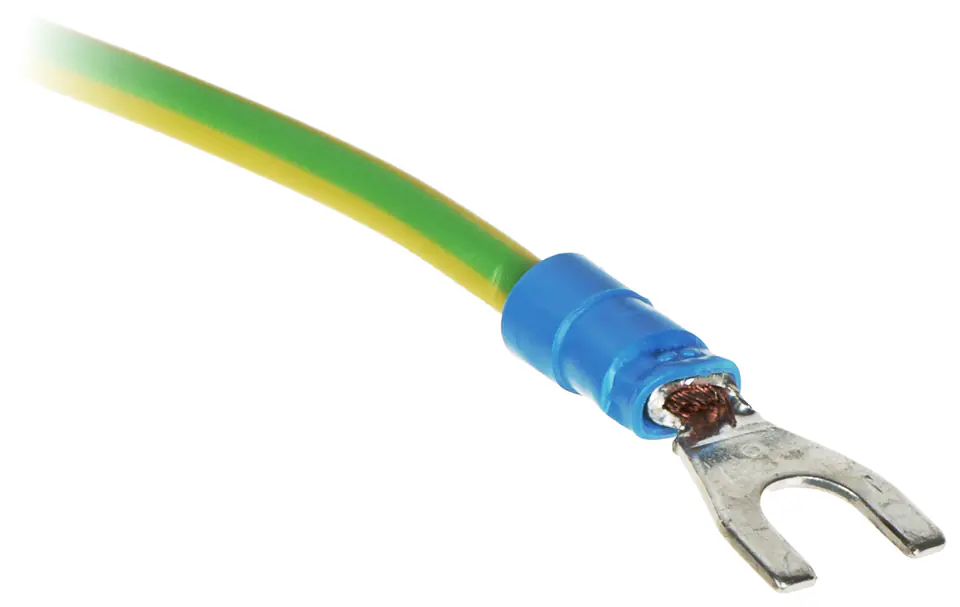

The use of a shielded RJ-45 socket allows you to maintain the continuity of the screen in the case of using twisted pair FTPThe socket screen is attached to the groundIng of proper operation of AXON-POE-MULTINET is to connect it to a working surface or PE protective wire

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
