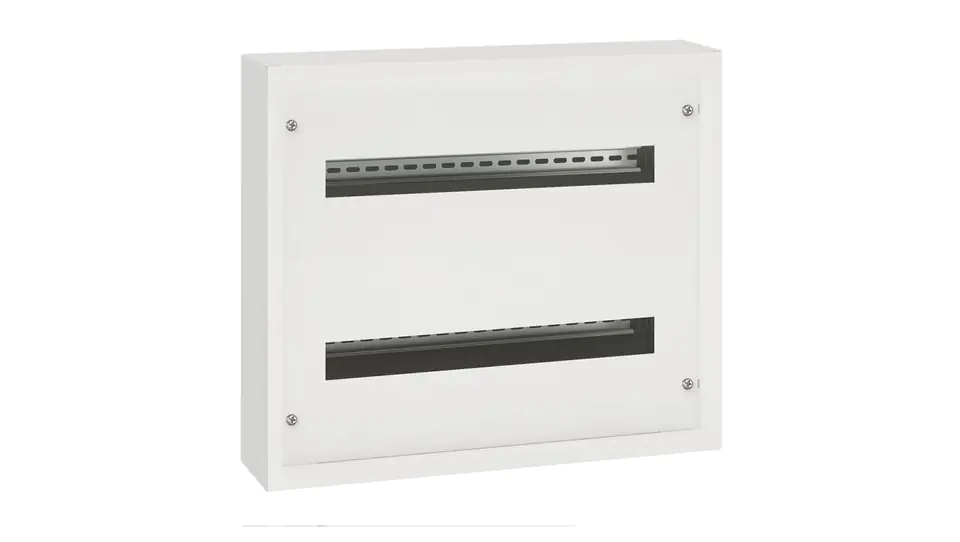

2-row surface-mounted electrical switchgear 48-module
NOTE: Doors and cord rails must be ordered separately
Colour: | white |
---|---|
Colour:: | white |
Compliance with standards: | IEC/EN 61439-1, IEC/EN 61439-3, IEC 60695-2-1 |
Compliance with standards:: | IEC/EN 61439-1, IEC/EN 61439-3, IEC 60695-2-1 |

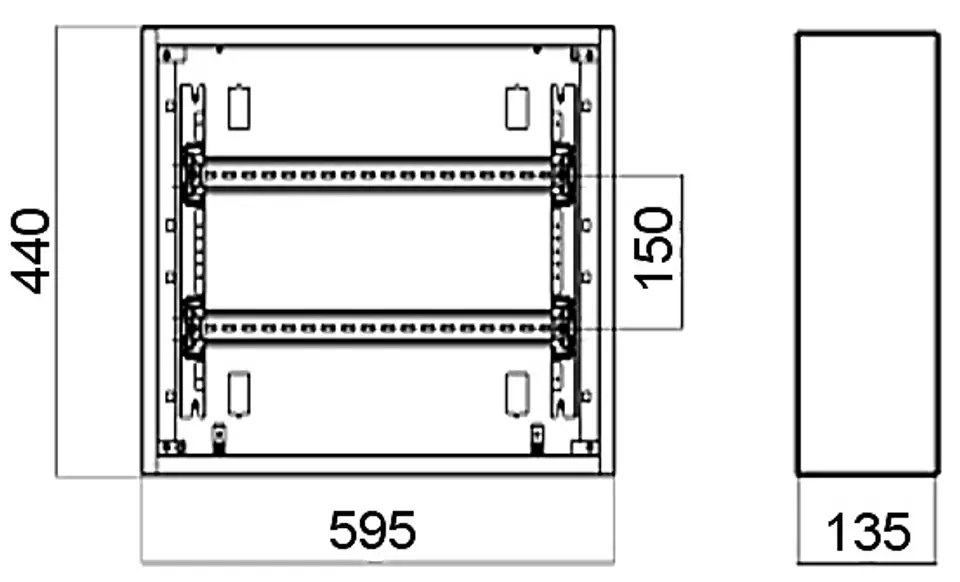

Dimensions: | 595 x 440 x 135 mm |
Dimensions:: | 595 x 440 x 135 mm |

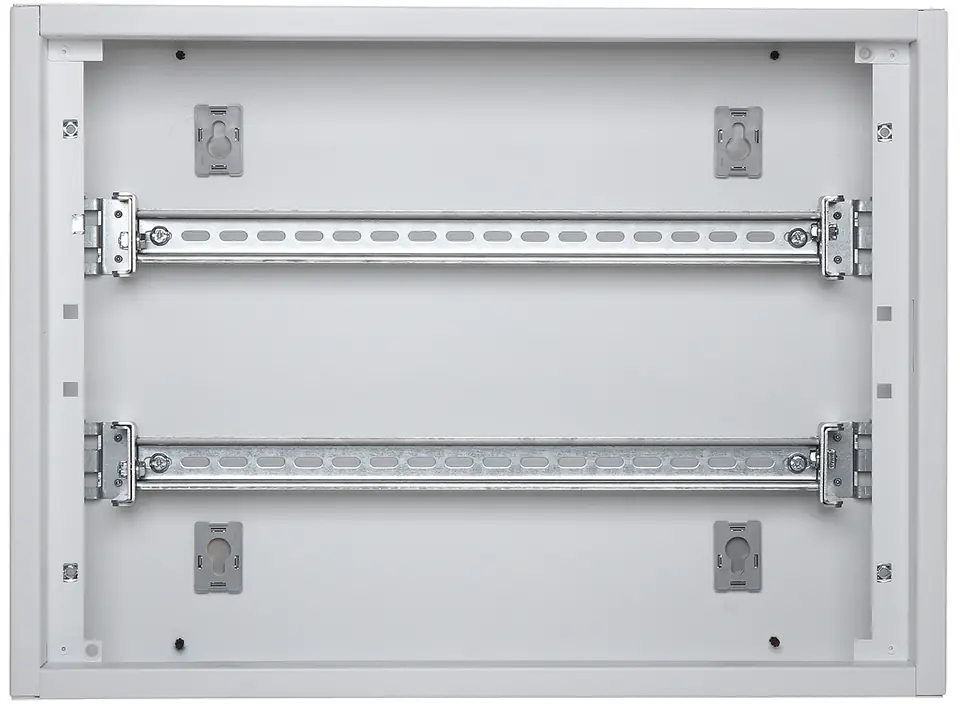

Distance between th 35 brackets: | 150 mm |
Distance between th 35 brackets:: | 150 mm |
Equipment: | Guards : 1 x 2R |
Equipment:: | Guards : 1 x 2R |
Manufacturer / brand:: | LEGRAND |
Material of manufacture: | Steel |
Material:: | Steel |
Mechanical resistance class: | IK04 (without doors) IK07 (with doors) |
Mechanical resistance class:: | IK04 (without doors) IK07 (with doors) |
Method of attachment: | Surface |
Mounting method:: | Surface |
Number of modules to be assembled: | 24 x 2 rows |
Number of modules to be installed:: | 24 x 2 rows |
Operating temperature: | -5 °C ... 40 °C |
Operating temperature:: | -5 °C ... 40 °C |
Producer / brand: | LEGRAND |
Scales: | 8.78 kg |
Scales:: | 8.78 kg |
Sealing: | IP30 (without doors) IP40 (with doors) |
Sealing:: | IP30 (without doors) IP40 (with doors) |
Selected features: | Easy adjustment of the depth of the brackets TH 35 Large capacity Monoblock enclosures Flexibility in the selection of connection strips Possibility of connecting enclosures vertically Max. Current : 160 A Switchable short-circuit current : 17 kA Full height front guards included |
Selected features:: | Easy adjustment of the depth of the brackets TH 35 Large capacity Monoblock enclosures Flexibility in the selection of connection strips Possibility of connecting enclosures vertically Max. Current : 160 A Switchable short-circuit current : 17 kA Full height front guards included |
Transparent door:: | (not included) |
Transparent doors: | (not included) |
Warranty: | 2 years |
Warranty:: | 2 years |
2-row surface-mounted electrical switchgear 48-module
NOTE: Doors and cord rails must be ordered separately
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
