1-row 1-row electric switchgear 22-module
SURFACE-MOUNTED SWITCHBOARD 22-MODULE LE-137435 Practibox S LEGRAND
€30.35
Shipping from warehouse: D4
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- running out
- Brand:
- Legrand
- Product code:
- 137435 / 3414971199286
Share this product:
Specification
| Colour:: | white |
|---|---|
| Compliance with standards:: | IEC/EN 62208, IEC/EN 61439-3 |
| Dimensions:: | 508 x 236 x 107 mm |

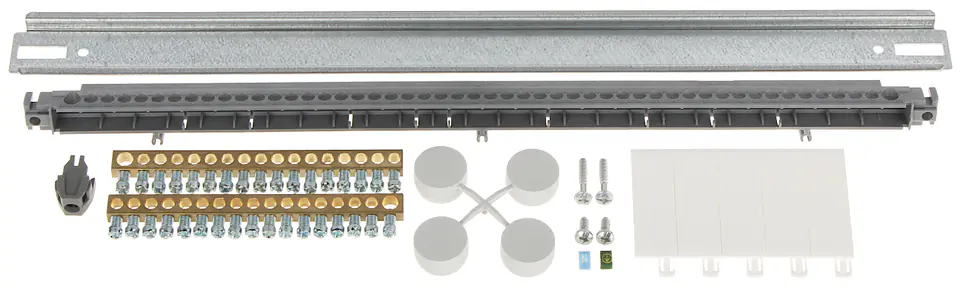

| Equipment:: | Connection strips2 pcs. : 1 x 25 mm² + 16 x 16 mm² |
| Manufacturer / brand:: | LEGRAND |
| Material:: | Self-extinguishing material |
| Mechanical resistance class:: | IK07 |
| Method of fastening:: | Surface-mounted |
| Number of modules installed:: | 22 x 1 row, 17.5 mm |
| Scales:: | 1.38 kg |
| Sealing:: | IP40 |
| Selected features:: | Removable bracket TH 35 Insulating cover fixed with screws Connection strips included |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
