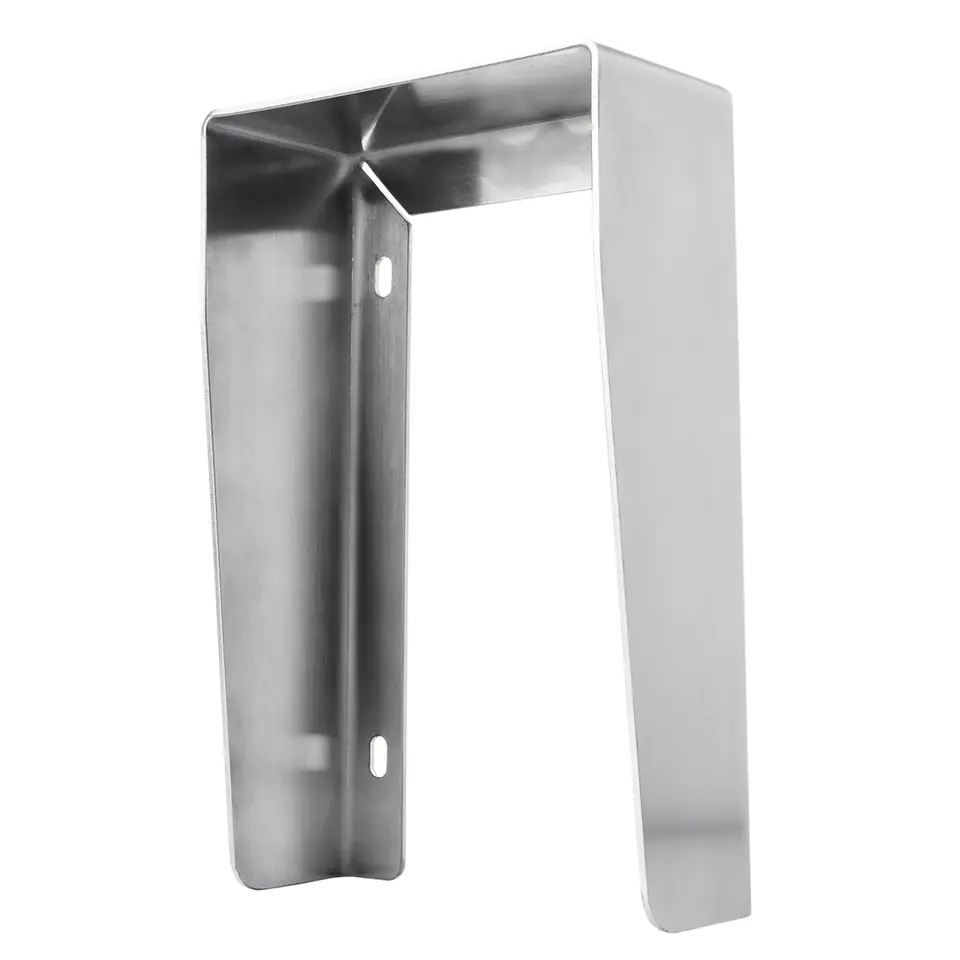

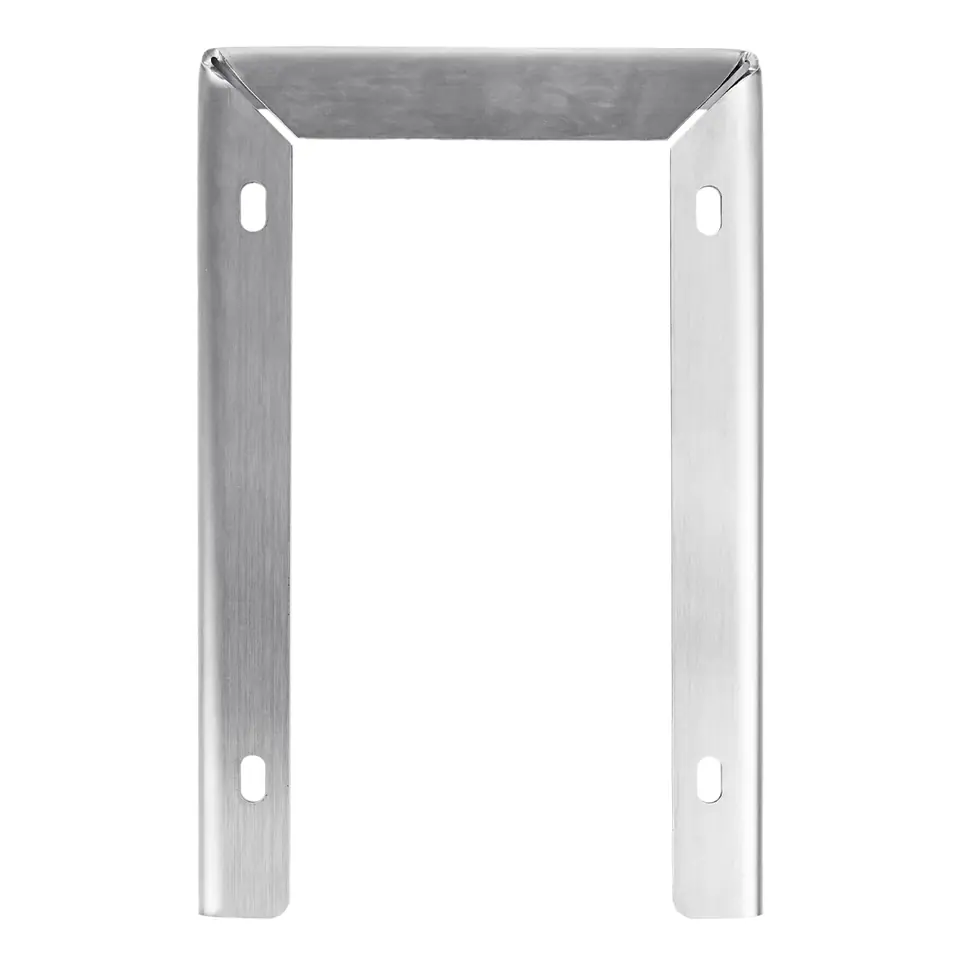

Surface-mounted cover SPD-DC81 for Spacetronik DiO SPD-DS81x
Solid metal weather cover designed for Spacetronik DiO door stations from the SPD-DS81x series. Thanks to the use of this cover, we have the possibility of mounting the door station in a surface-mounted form.

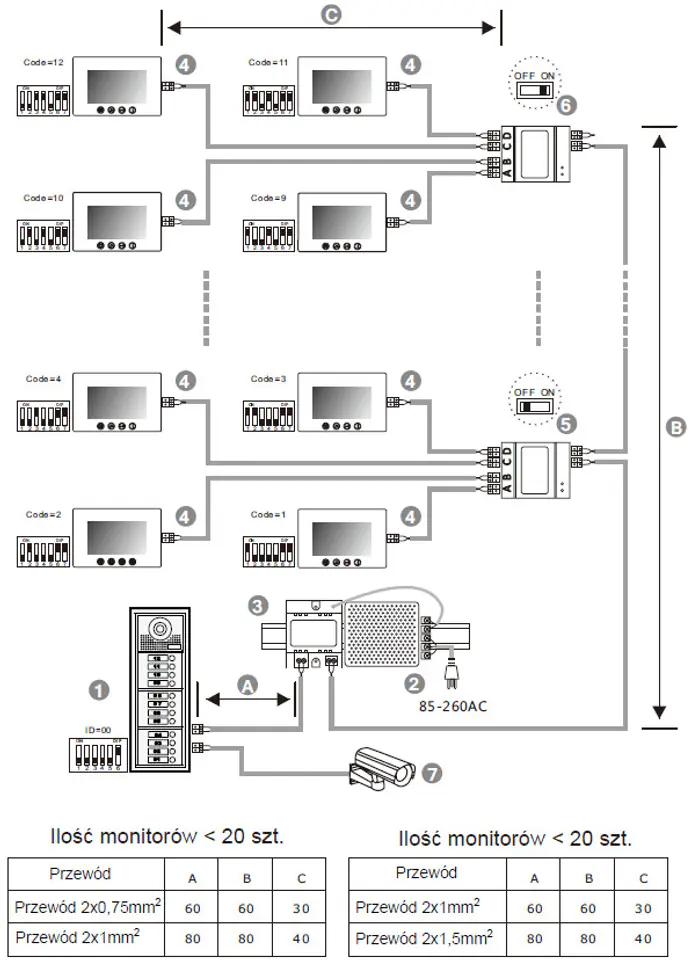

1. External station, when there is only one intercom station, bit-1, bit-2 and bit-3 should be set to OFF
2. Power supply, MUST be installed side by side with power separator
3. Power separator, MUST be installed side by side with power supply
4. Monitors - each with a unique user code, note that in this case all bit-6 should be set to ON
5. Switch the video splitter switch to OFF unless it is at the end of the line
6. Set the video distributor switch to ON at the end of the line
7. Additional camera
- the whole system based on 2 wires (2-wire)
- no polarity
- vandal-resistant housing
- possibility of mounting modules on a DIN rail
- plug-in connector Plug-in
- configuration and addressing using DIP function buttons
- expandable with a camera
- possibility of expansion with SD card
- recording photos and videos
- simple input using RFiD key rings

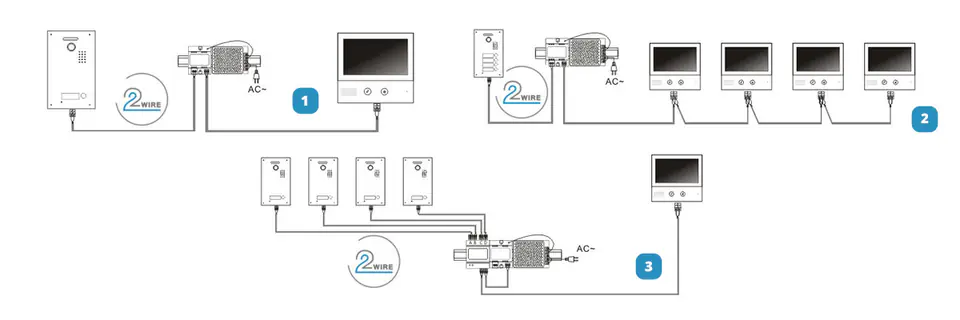

1. Basic connection
2. Connection with several monitors in one apartment (serial)
3. Connection with several stations
