TECHNICAL DATA:
Laser Source: Semiconductor Diode = 635-640 nm,
Power: <1mW każda wiązka, klasa II
Accuracy: +/- 1.0 mm/5m (+/- 0.2 mm/1m)
Self-leveling range: +/- 3°
Line Width: Less Than 3.5mm / 10m
Self-leveling system: magentic pendulum
Operating range (radius): Up to 20 m in the room depending on the exposure and a radius of 50 m using the detector
Power Supply: 3.7V 3.000mAh Li-ion battery
Working Time (all beams on): Approx. 8 hours (all lines)
Dimensions: 135 mm x 85 mm x 140 mm
Weight (with batteries): 0.74 kg
Horizontal / vertical line angle: 2 x 360° / 360°
Operating temperature: -10°C ÷ 45°C
Storage temperature: -15°C ÷ 60°C
FUNCTIONAL FEATURES:

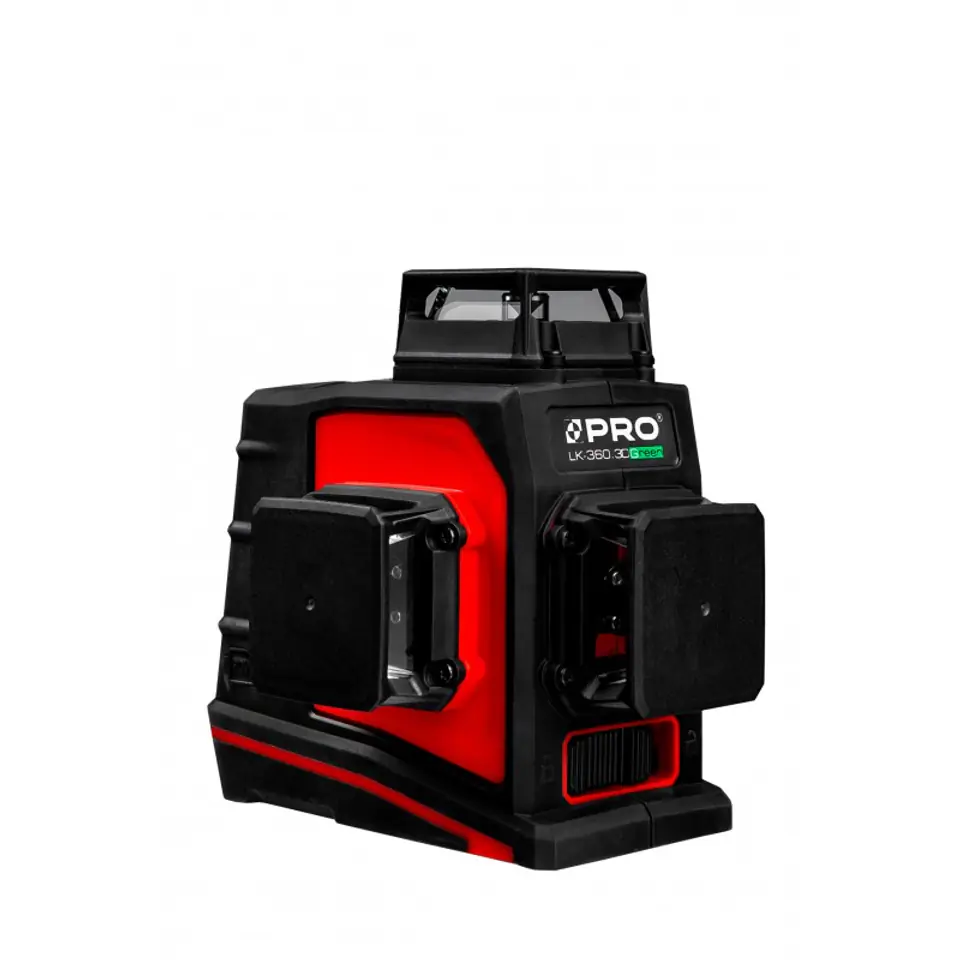

The LK-360.3DG multilinear laser generates three 360° planes, one horizontal and two vertical planes intersecting at an angle of 90°.
Pulse mode for working with laser beam detector, increasing the laser range.
Laser vertical function (cross axis on the ceiling and ground).
Possibility of determining bevels (has a mechanical pendulum lock).
It self-levels thanks to the automatic depreciation of the compensator.
Resistant to water and dust - IP54 protection class.
The inclination of the device outside the operating range (±3°) is indicated by the flashing of green laser lines.
Equipped with a patented magnetic holder in the form of a hanger that allows the laser to be completely moved to the wall (e.g. to lay ceramic tiles or G/K boards without a frame).
Easy to mount on a tripod or 1/4" and 5/8" expansion pole.

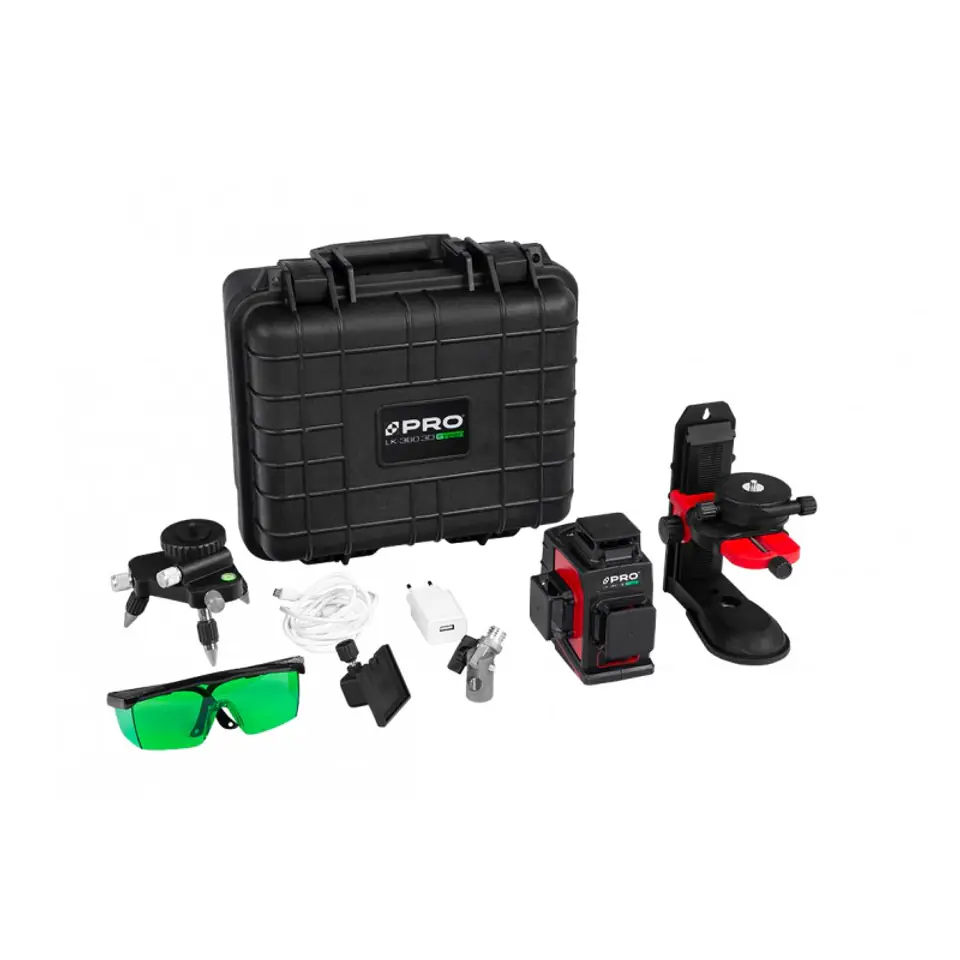

STANDARD EQUIPMENT:
Li-ion battery 3,7V
Charger with micro USB cable
TRANSPORT case class IP67
Laser glasses green
Magnetic holder of the "hanger" type with micro-adjustment in 5-axis with adjustable height of 90 mm of elevator type
360° base with tripod and 3-axis micro-adjustment
5/8" adapter with joint (for bevel determination)
