Specifications:
Item no.: 78 61 125 ESD
EAN: 4003773025184
Pliers: blackened
Head: blackened
handles: with multi-component caps
Weight: 56 g
Dimensions:125 x 70 x 13 mm
Standard: DIN ISO 9654 DIN EN 61 340-5
REACH: does not contain SVHC
RoHS: not applicable
Cutting range of medium hardness wire (diameter): 1.2 mm
Cutting range of soft wire (diameter): 0.2 – 1.6 mm

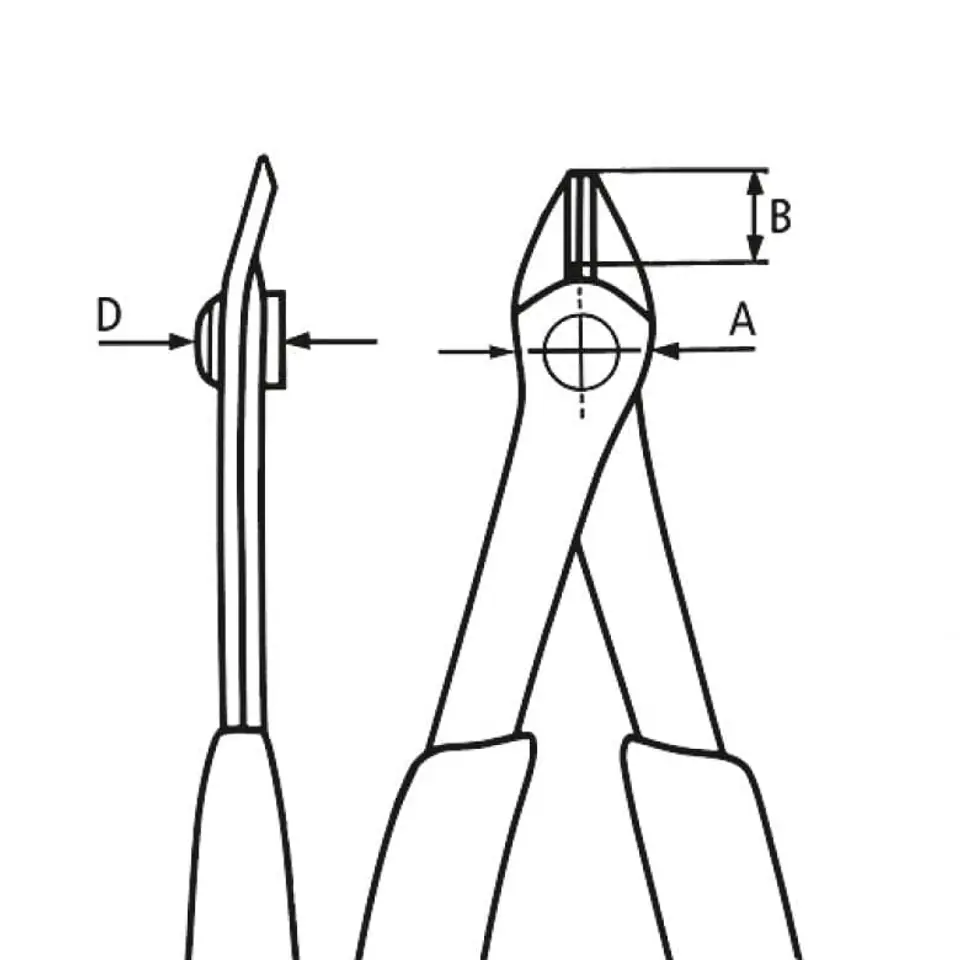

Jaw Length (B): 9mm
Jaw thickness (joint) (D): 7.5 mm
Detail bar width (A): 13.5 mm
ESD: yes
Blades separately induction hardened, blade hardness approx. 62 HRC
Special tool steel, blackened

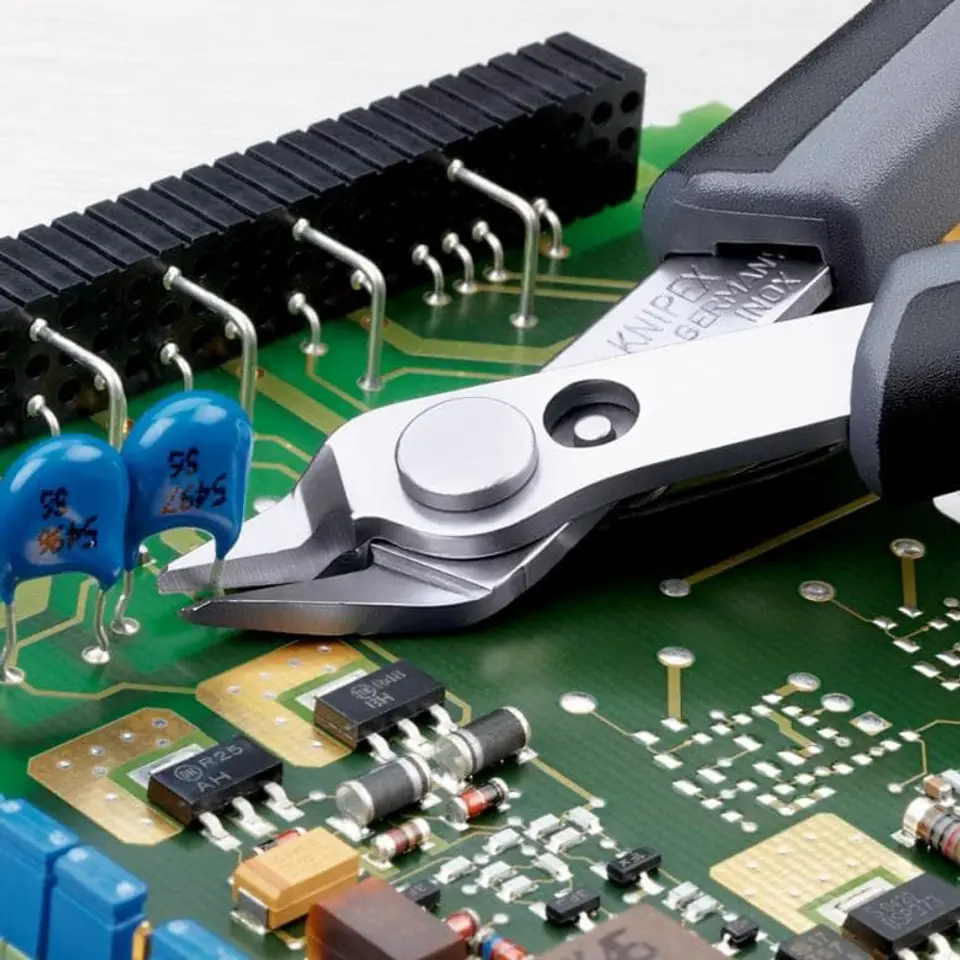

Precision pliers for extremely accurate cutting, e.g. in electronics and mechanics
Handles in electrostatic dissipation version
Grinded, very sharp blades without chamfers
Cutting with controlled micro-shift cutting edge for extremely precise cutting of even the thinnest wires and a long service life

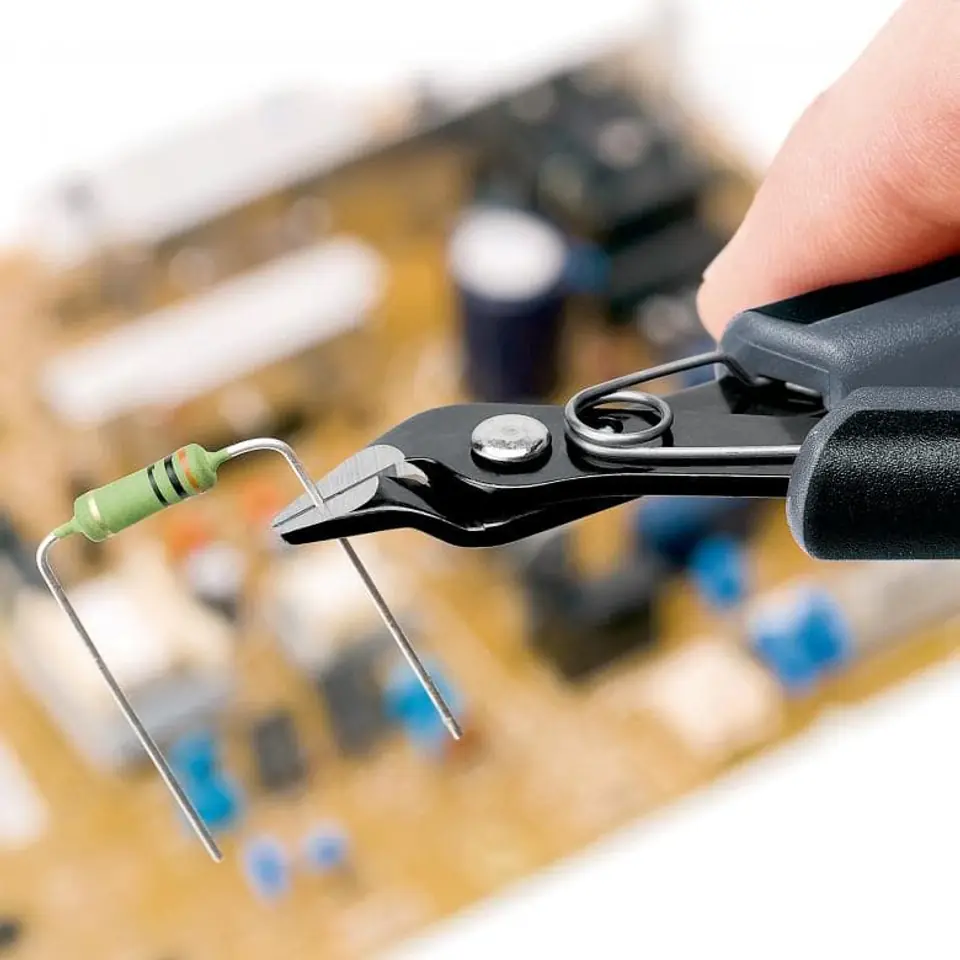

Precisely shaped tips also allow you to cut densely arranged wires with a diameter of 0.2 mm
Stainless steel rivet connector
Extremely smooth pliers, ensures efficient cutting without fatigue
With opening spring and opening pin
**
Illustrative photo.

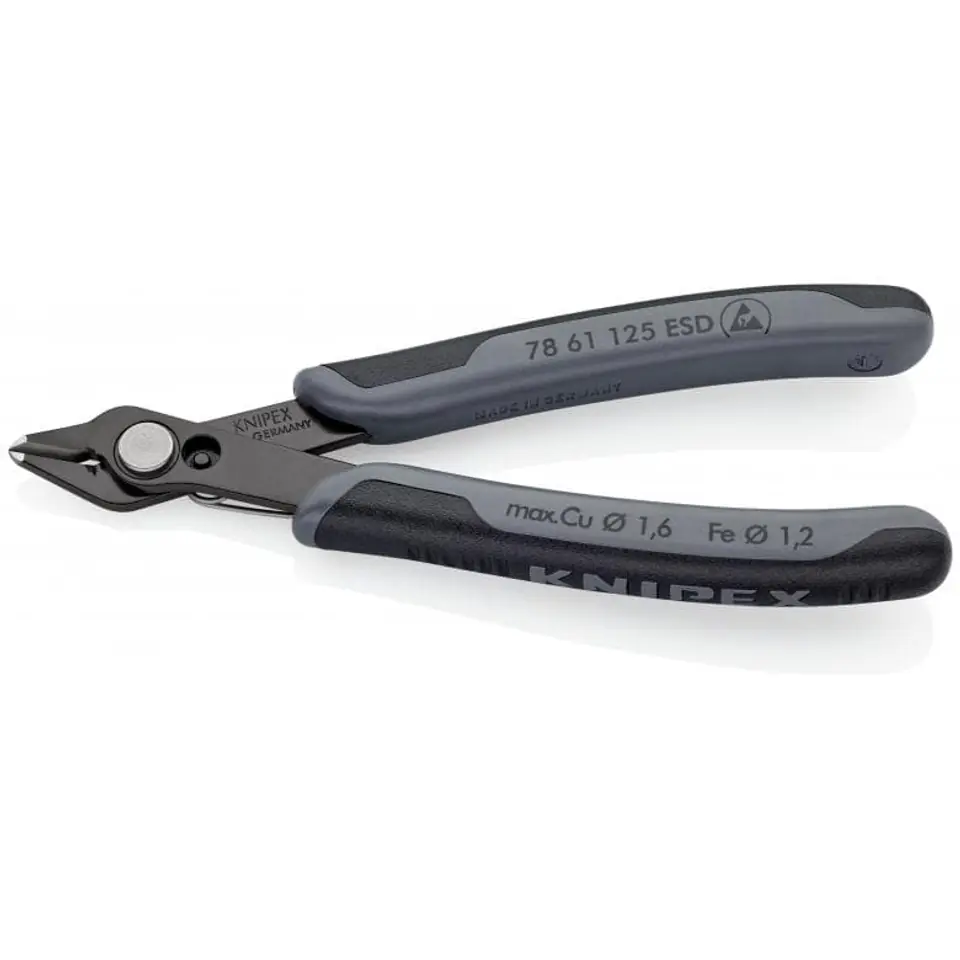

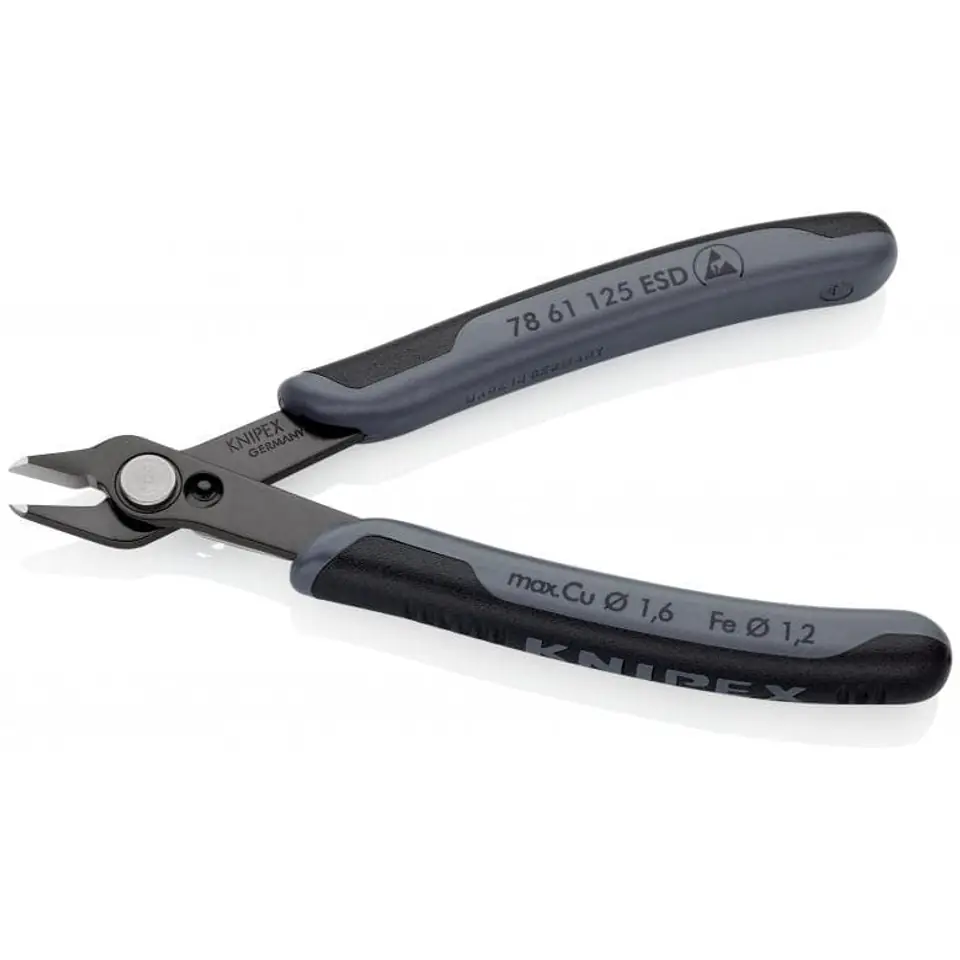

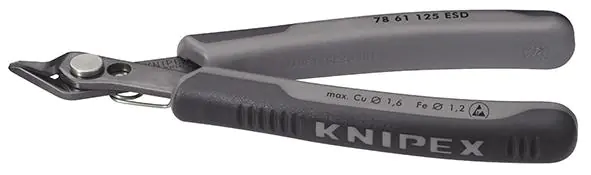

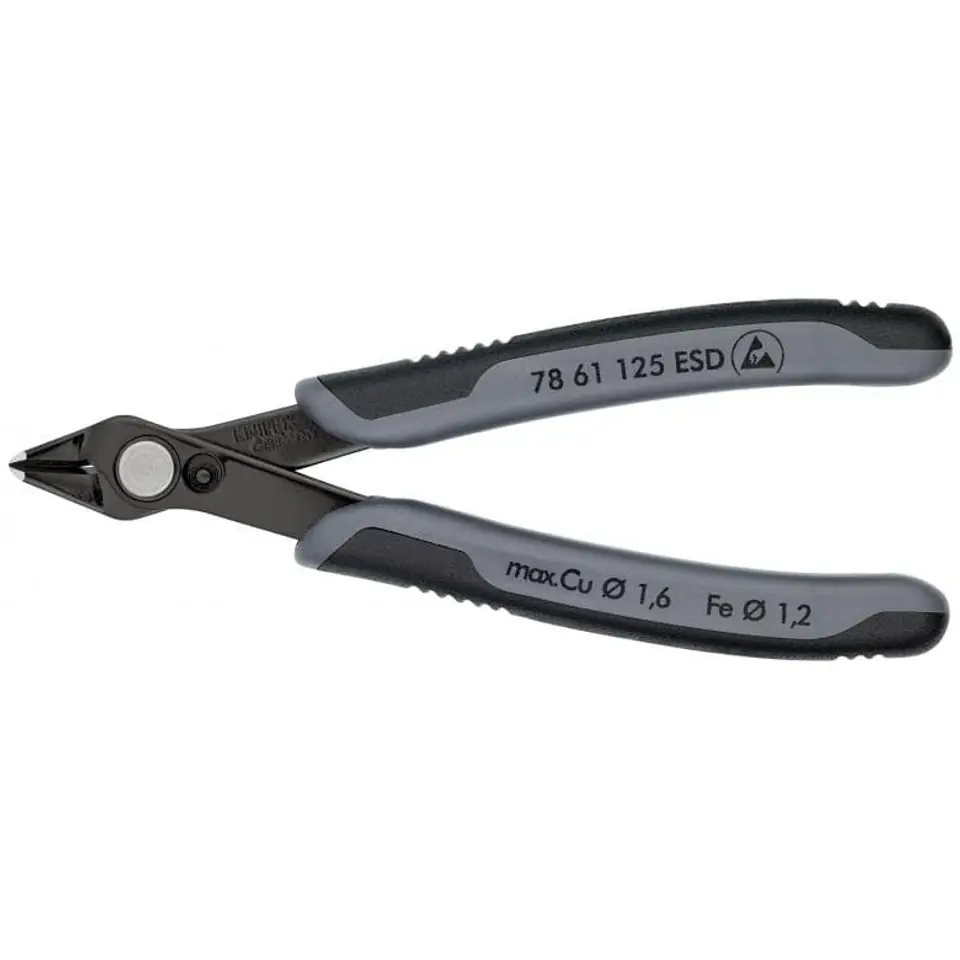

SUPER KNIPS ESD 125MM
€25.58
Shipping from warehouse: U1
Estimated shipping: Mon, Dec 30 - Tue, Dec 31
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- KNIPEX
- Product code:
- 78 61 125 ESD / 4003773025184
Share this product:
Specification
| Cutting parameters, ø medium hard wire: | 0.2 to 1.2 mm |
|---|---|
| Cutting parameters, ø soft wire: | 0.2 to 1.6 mm |
| Execution: | without bevel |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
