Specifications:
Item no.: 78 03 125 ESD
EAN: 4003773025146
Head: polished
handles: with multi-component caps
Weight: 55 g
Dimensions: 125 x 61 x 13 mm
Standard: DIN ISO 9654 DIN EN 61 340-5
REACH: does not contain SVHC
RoHS: not applicable
Cutting range of medium hardness wire (diameter): 1.0 mm
Cutting range of soft wire (diameter): 0.2 – 1.6 mm
Jaw Length (B): 9mm
Jaw thickness (joint) (D): 7.5 mm
Detail bar width (A): 13.5 mm
ESD: yes
Blade hardness approx. 54 HRC
Stainless
Precision pliers for extremely accurate cutting, e.g. in electronics and mechanics
Handles in electrostatic dissipation version
Grinded, very sharp blades without chamfers
Cutting with controlled micro-shift cutting edge for extremely precise cutting of even the thinnest wires and a long service life
Precisely shaped tips also allow you to cut densely arranged wires with a diameter of 0.2 mm
Stainless steel rivet connector
Extremely smooth pliers, ensures efficient cutting without fatigue
With opening spring and opening pin
**

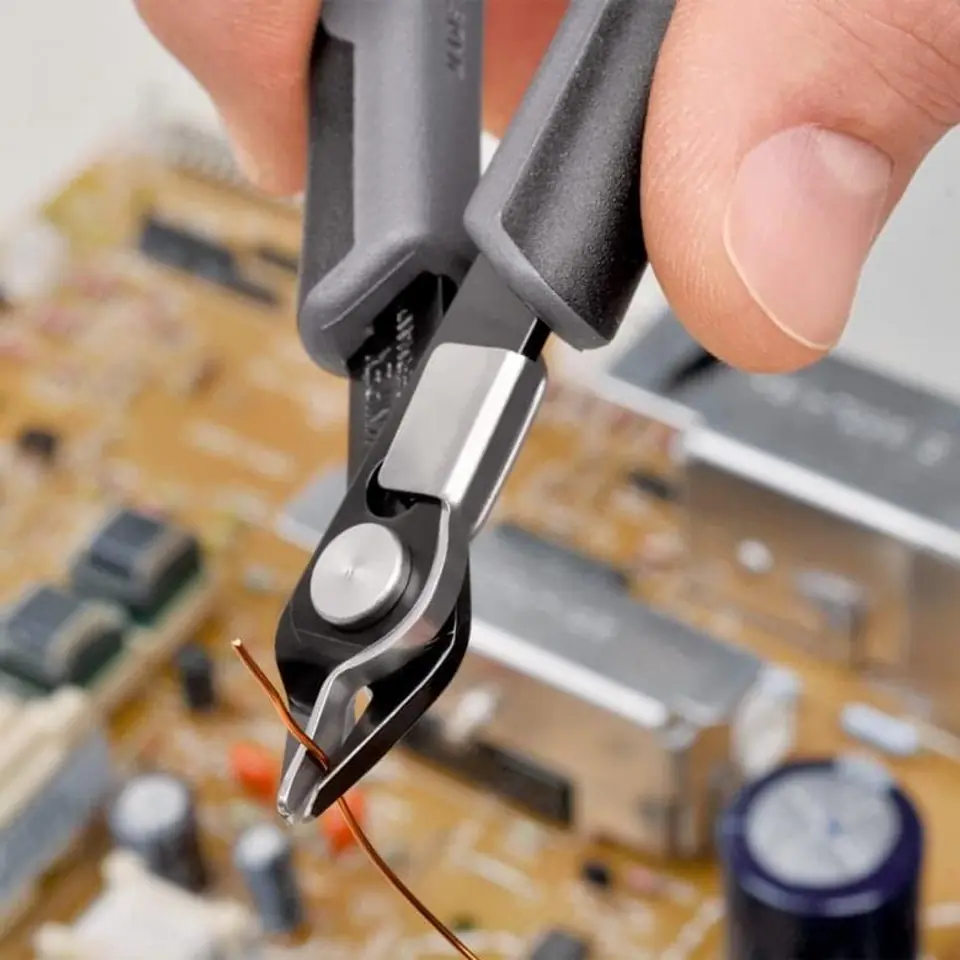

Illustrative photo.

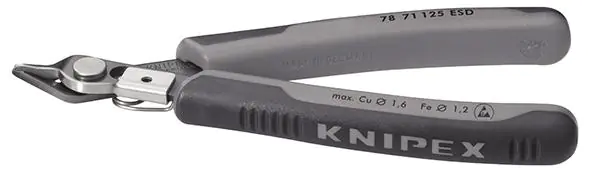

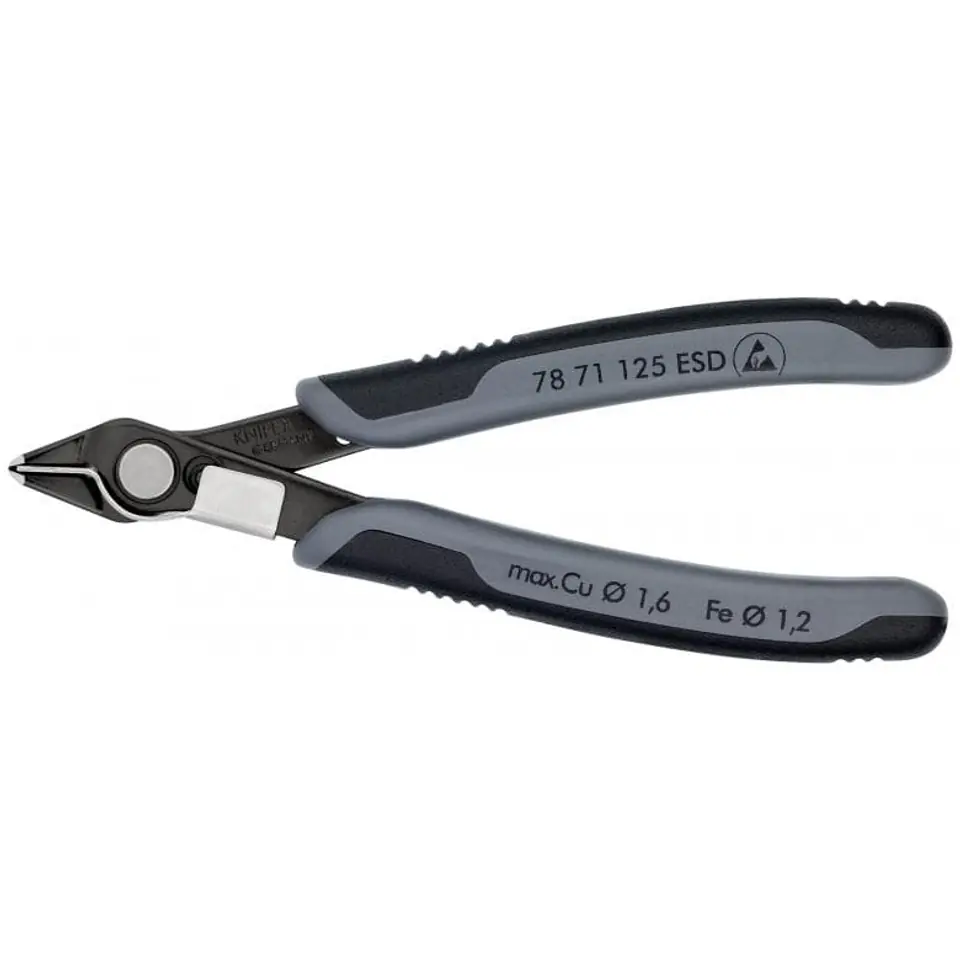

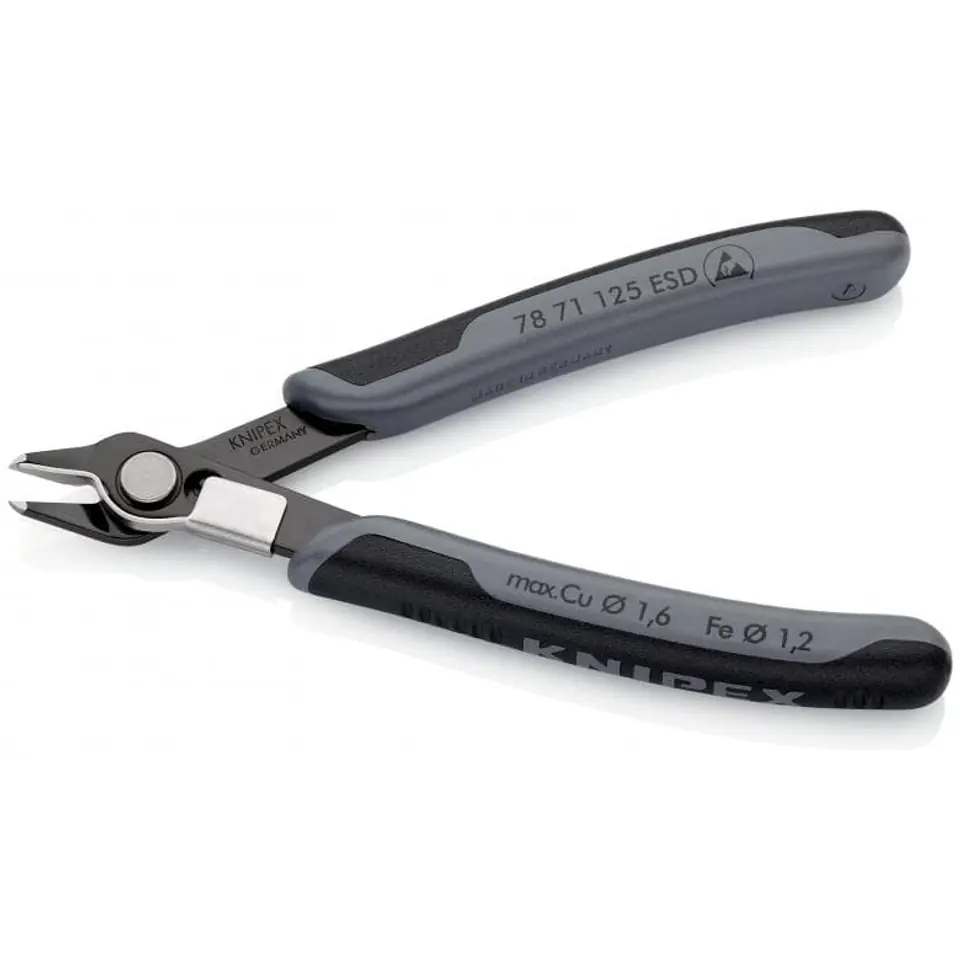

SUPER KNIPS ESD 125MM
€32.05
Shipping from warehouse: B6
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- KNIPEX
- Product code:
- 8253710013 / 4003773025191
Share this product:
Specification
| Cutting parameters, ø medium hard wire: | 0.2 to 1.2 mm |
|---|---|
| Cutting parameters, ø soft wire: | 0.2 to 1.6 mm |
| Execution: | without bevel, with wire clamp |
