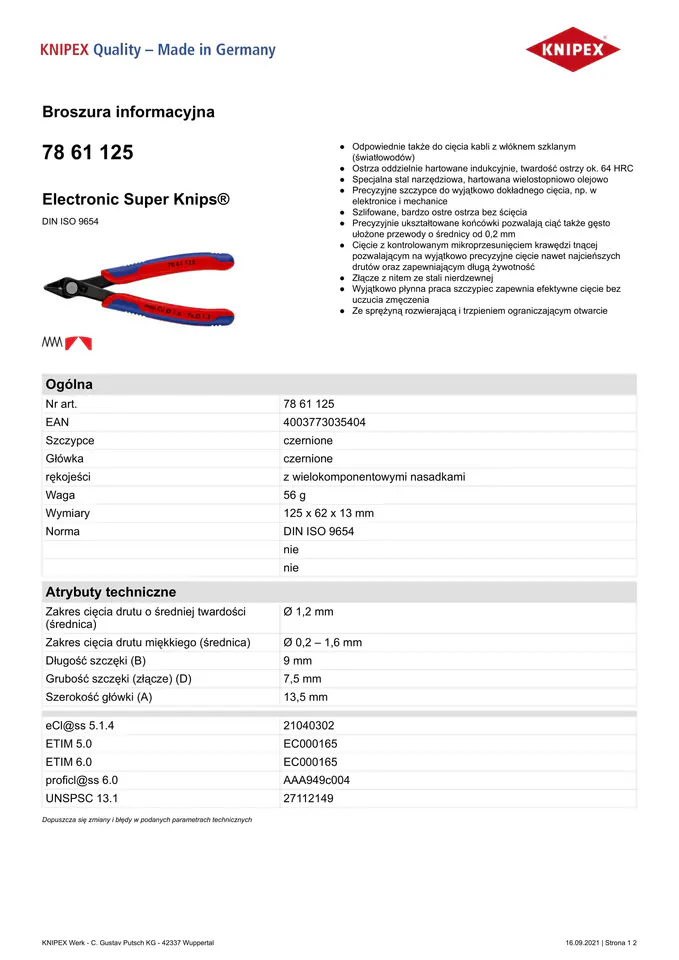

Specifications:
Art.-No.: 78 61 125
EAN: 4003773035404
Pliers: blackened
Head: blackened
handles: with multi-component caps
Weight: 56 g
Dimensions: 125 x 62 x 13 mm
Standard: DIN ISO 9654
Cutting range of medium hardness wire (diameter): 1.2 mm
Cutting range of soft wire (diameter): 0.2 – 1.6 mm
Jaw Length (B): 9mm
Jaw thickness (joint) (D): 7.5 mm
Detail bar width (A): 13.5 mm
Also suitable for cutting glass fibre cables (fibre optics)
Blades separately induction hardened, blade hardness approx. 64 HRC
Special tool steel, multi-stage oil-hardened
Precision pliers for extremely accurate cutting, e.g. in electronics and mechanics
Grinded, very sharp blades without chamfers

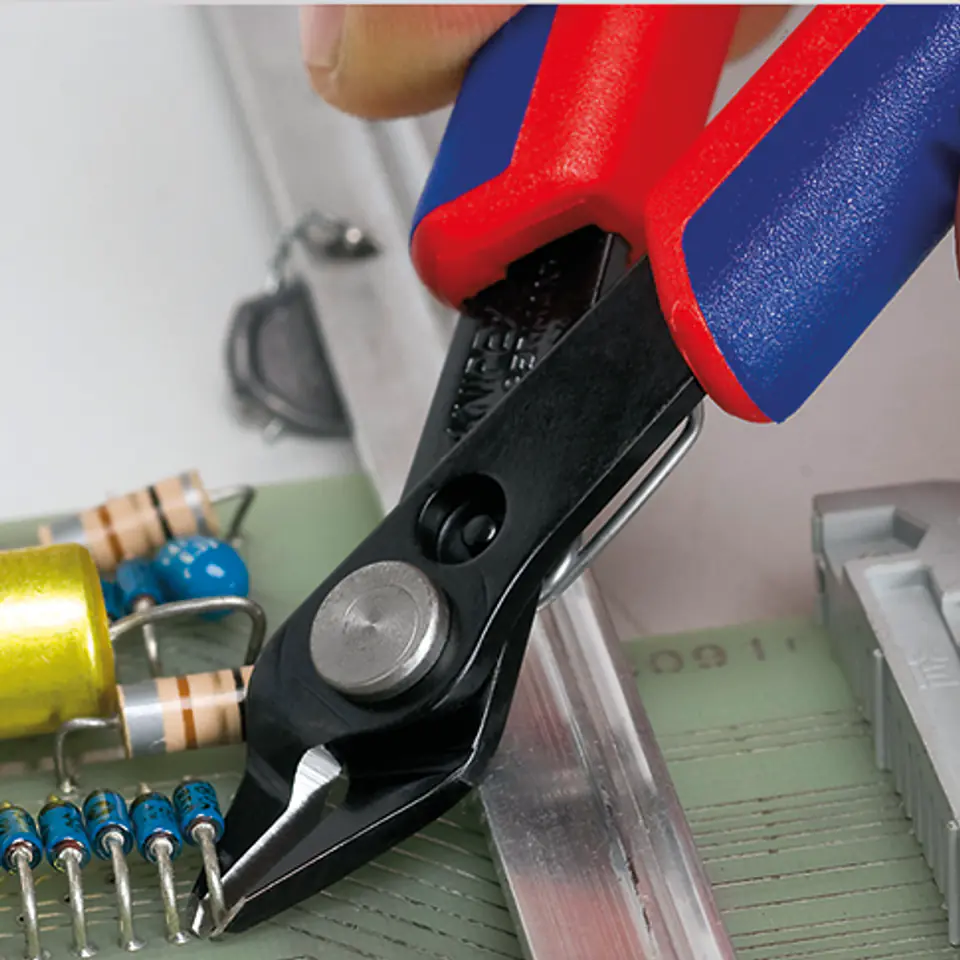

Precisely shaped tips also allow you to cut densely arranged wires with a diameter of 0.2 mm
Cutting with controlled micro-shift cutting edge for extremely precise cutting of even the thinnest wires and a long service life
Stainless steel rivet connector
Extremely smooth pliers, ensures efficient cutting without fatigue
With opening spring and opening pin
**

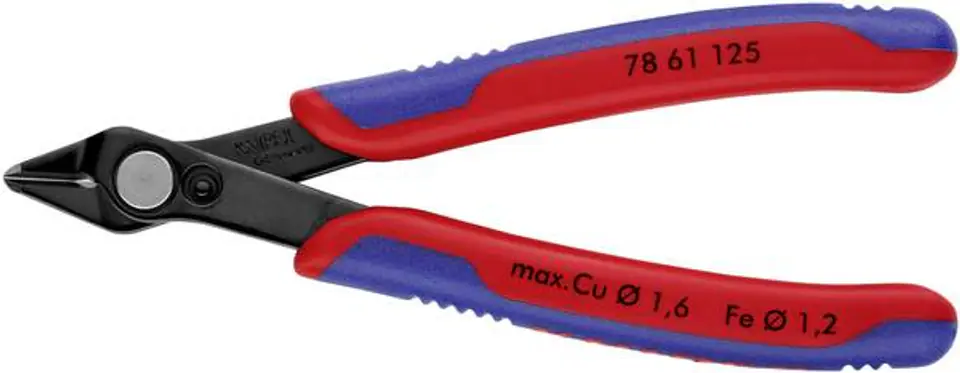

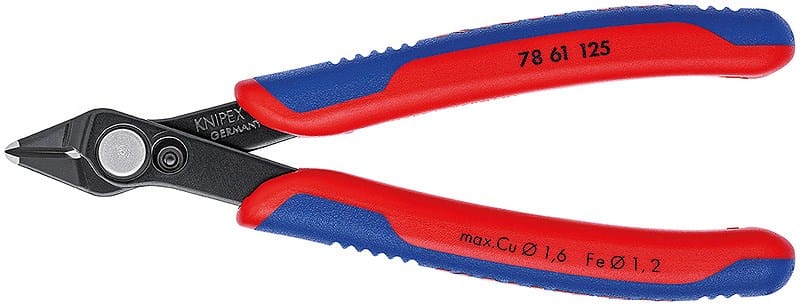

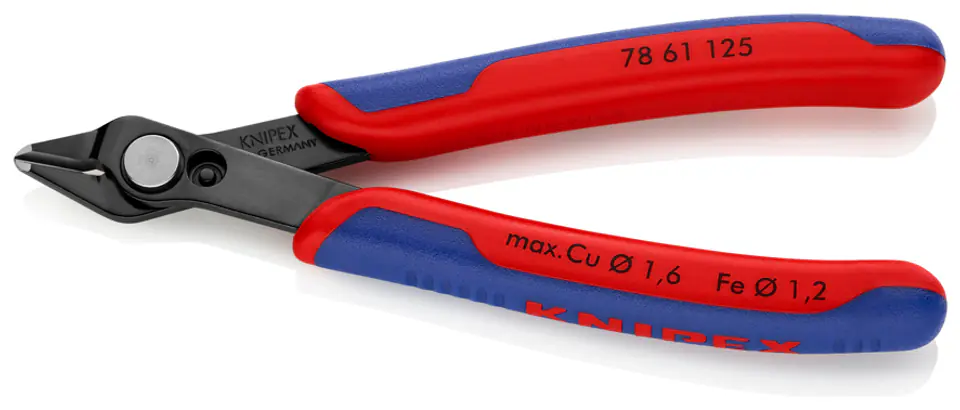

Illustrative photos.

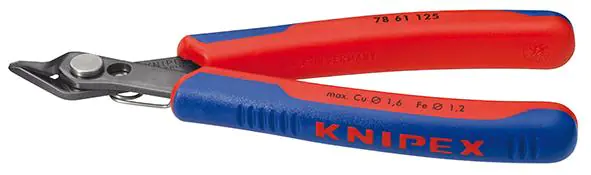

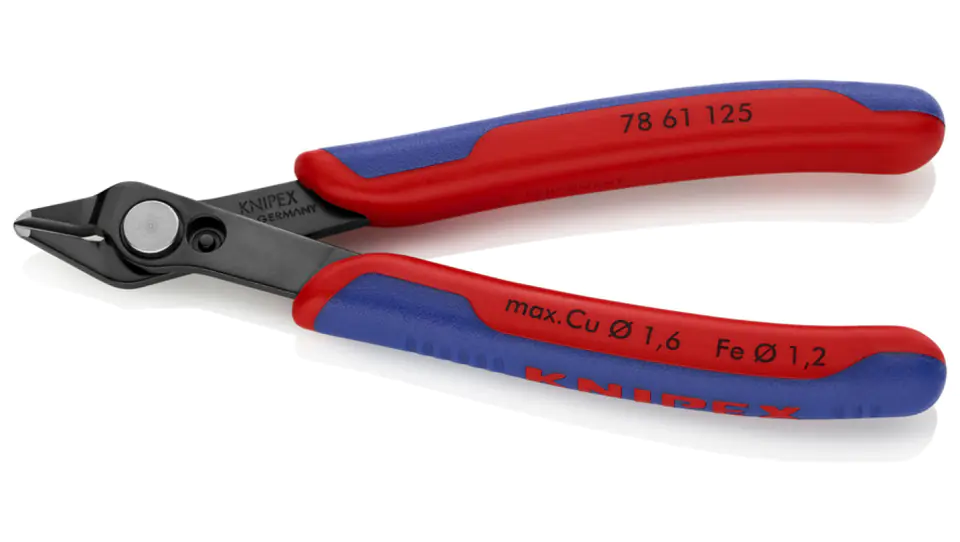

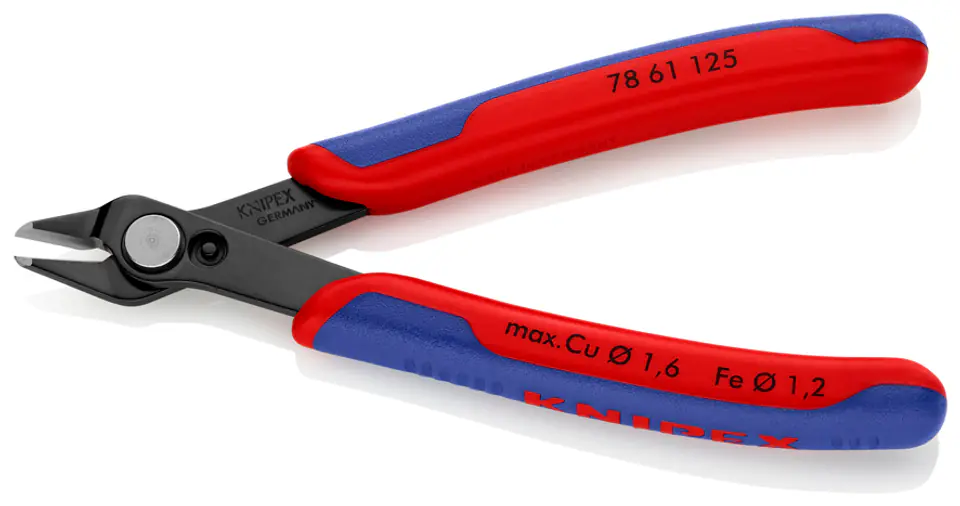

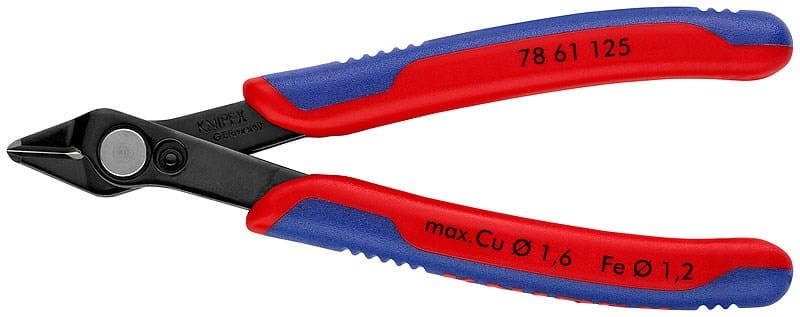

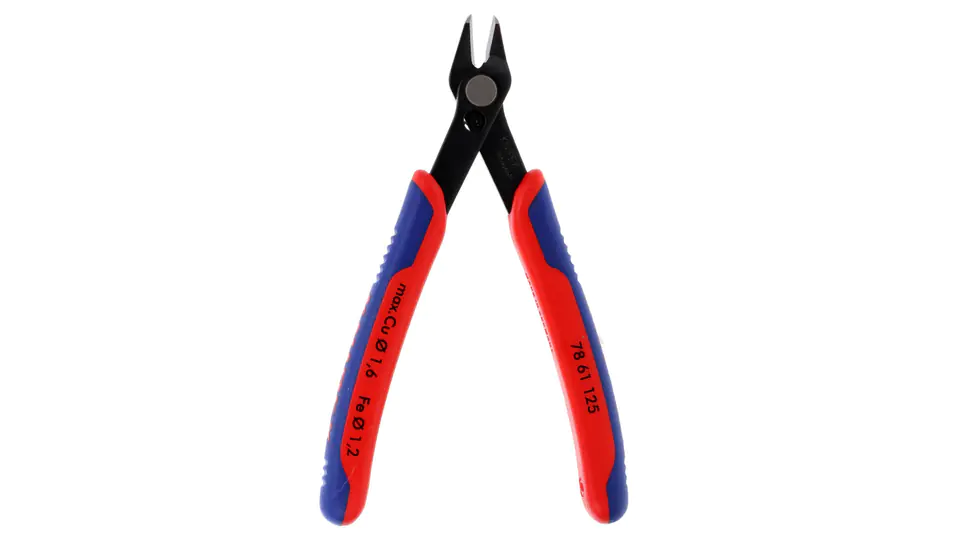

SUPER KNIPS CUTTING PLIERS 125MM
€25.81
Shipping from warehouse: B6
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- KNIPEX
- Product code:
- 78 61 125 / 4003773035404
Share this product:
Specification
| Cutting parameters, ø medium hard wire: | 0.2 to 1.2 mm |
|---|---|
| Cutting parameters, ø soft wire: | 0.2 to 1.6 mm |
| Execution: | without bevel |
| Handle colour: | Blue, Red |
| Handle material: | Plastic |
| Jaw length: | 9 mm |
| Length: | 125 mm |
| Material: | Steel |
| Maximum pipe/tube diameter: | 1.6 mm |
| Number of pliers: | 1 |
| Type: | Diagonal pliers |
| Weight: | 56 g |
