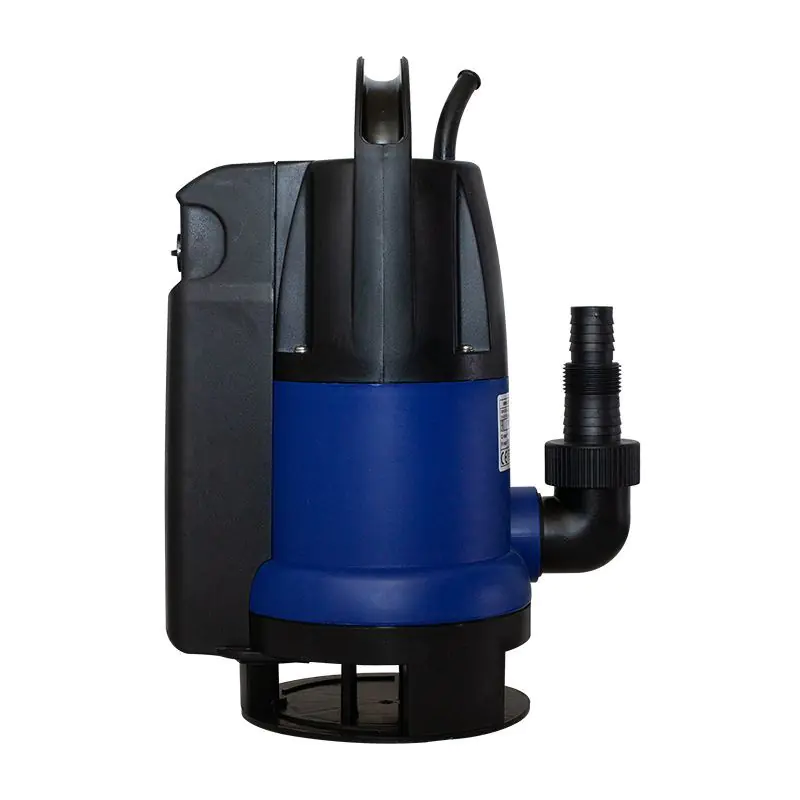

SUBMERSIBLE PUMP TIPI 230V 550AUT

USE:

The TIPI 550AUTO pump is a submersible pump
designed for pumping clean, cold water and gray water
containing organic pollutants with a maximum diameter not exceeding 5 mm.
The TIPI 550AUTO pump instead of traditional float control has
Built-in float, which allows it to be used in narrow well holes and revisions.
The pump is controlled by a slide on the body
by which the level of switching on of the device is determined.
In auto mode, the pump starts,
when the liquid level reaches the height marked with the slider.

Specifications:

Maximum water temperature35°C
Protection classIP 68
Immersion depth maximum [meters]10
Working position vertical
Material execution:
Pump housingplastic
Rotortechnopolymer PPO
Suction sieveplastic
Pump lidplastic:

Parameters

Maximum capacity: 170 l/min
Maximum lifting height: 7 m
Motor power: 0.55 kW
Voltage: 230 V
Pressure connection: 1"
Power cable length: 10m
Size of impurities max.: 5 mm
