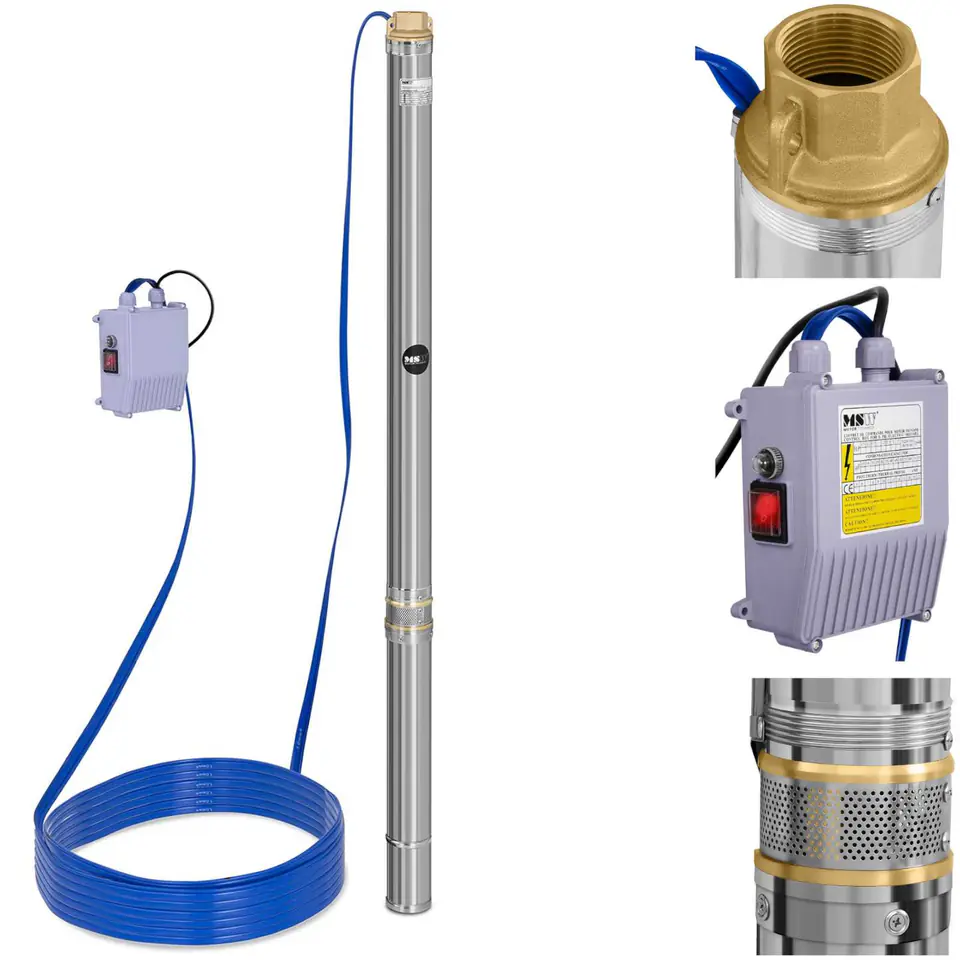

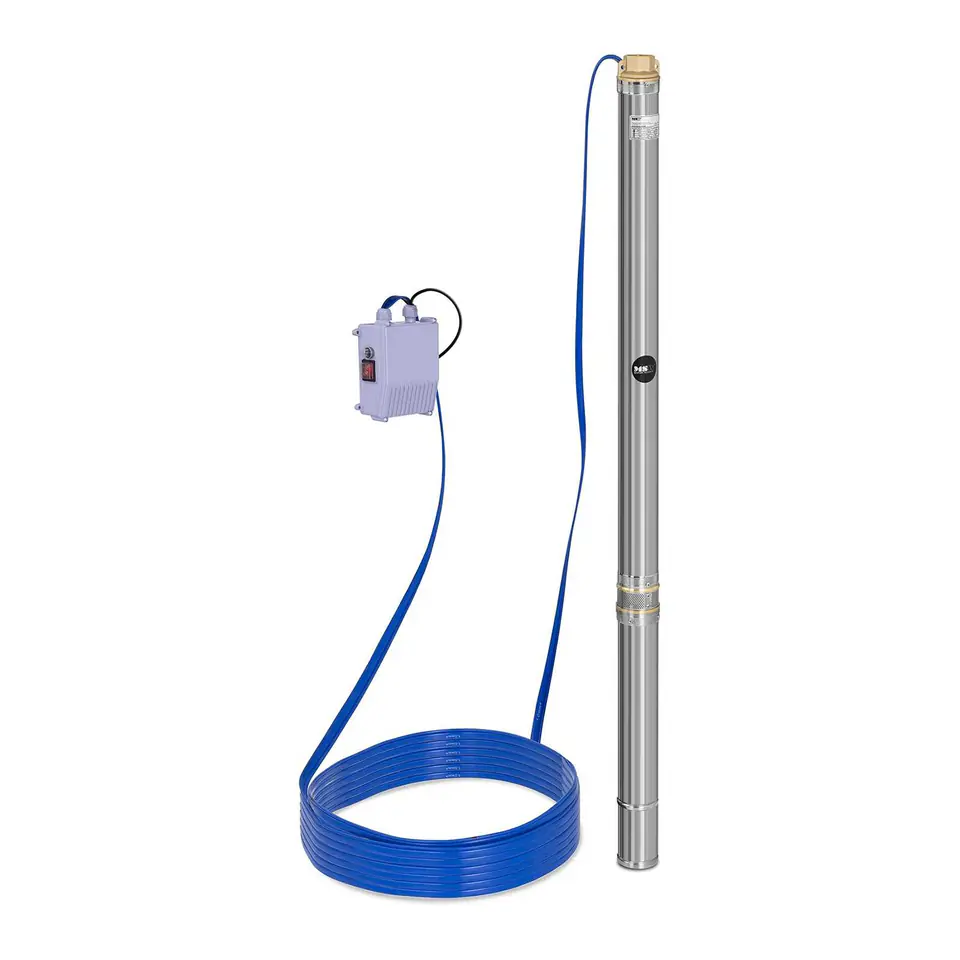

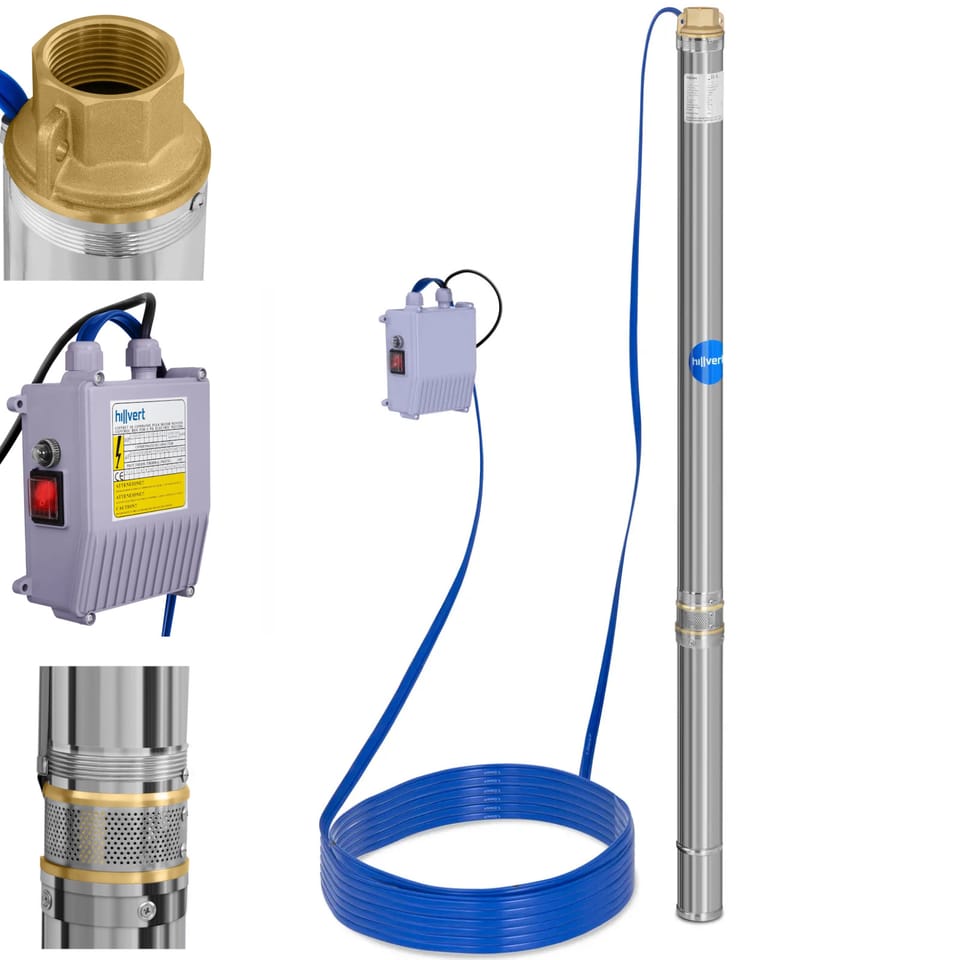

Submersible pump for deep well MSW 3800 L/h up to 85 m

€172.73
Shipping from warehouse: ⁨H1⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
MSW
Product code:
10060172 / 4250928684387

Specification

Sku:1009061

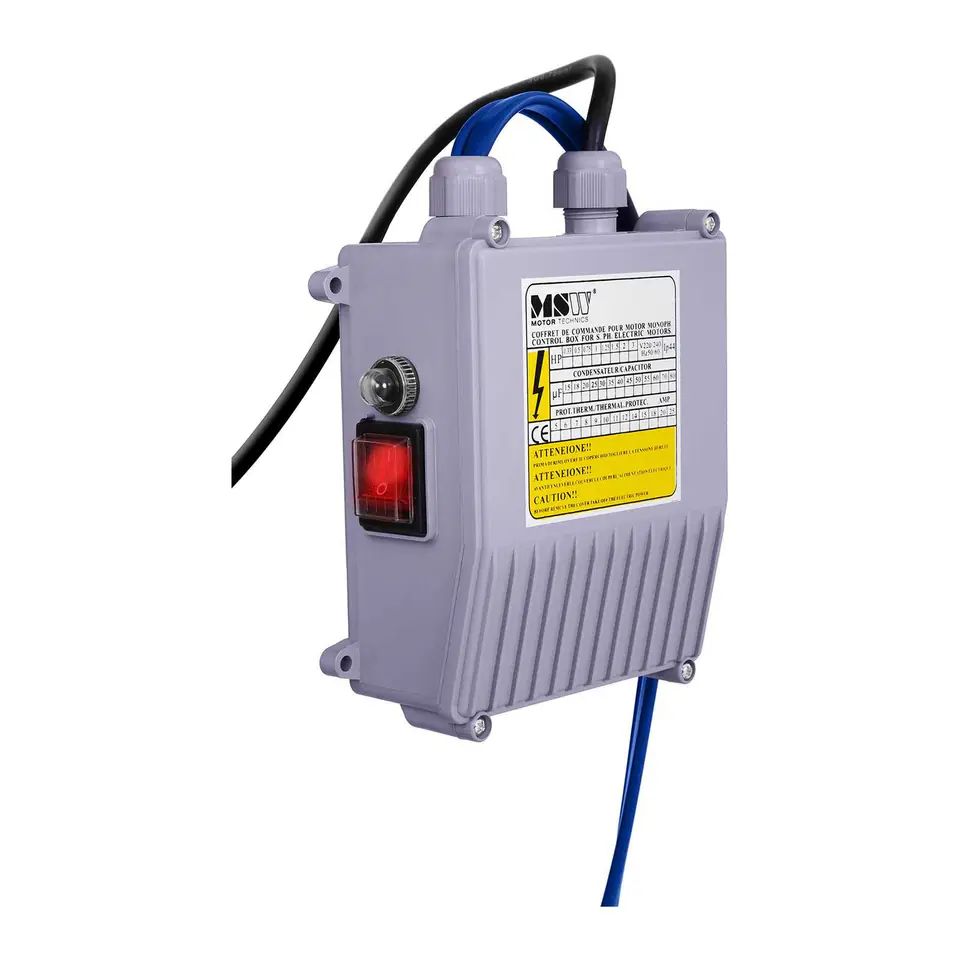

10060172 Efficient submersible pump MSWo power 750 Speed 2850 rpm 3800 lire per hour85 mhermetically closed stainless steel control box equipped with overcurrent switch20-meter power cordProduct features:
  • Functionality - efficient pumping of water from the well to a maximum height of 85 m,
  • Efficiency - 750 W motor providing a flow of 3800 l / h,
  • Simple operation - uncomplicated controller,
  • Convenient use - 20-meter power cord,
  • Durability - housing made of stainless steel.
Technical parameters:
  • - Model - MSW-SPP32-075
  • - Catalog No. - 10060172
  • - Article status - New
  • - Housing material - Stainless steel
  • - Rated power - 750W
  • - Working power - 1000W
  • - Voltage - 230 V / 50 Hz
  • - Rated current - 5 A
  • - Max. lifting height of the water column - 85 m
  • - Max. flow rate - 3800 l/h
  • - Speed - 2850 rpm
  • - Protection class - I
  • - Ip protection class - IP68
  • - Insulation class - B
  • - Operating mode - S1
  • - Number of degrees - 24
  • - Mounting hole diameter - 75 mm

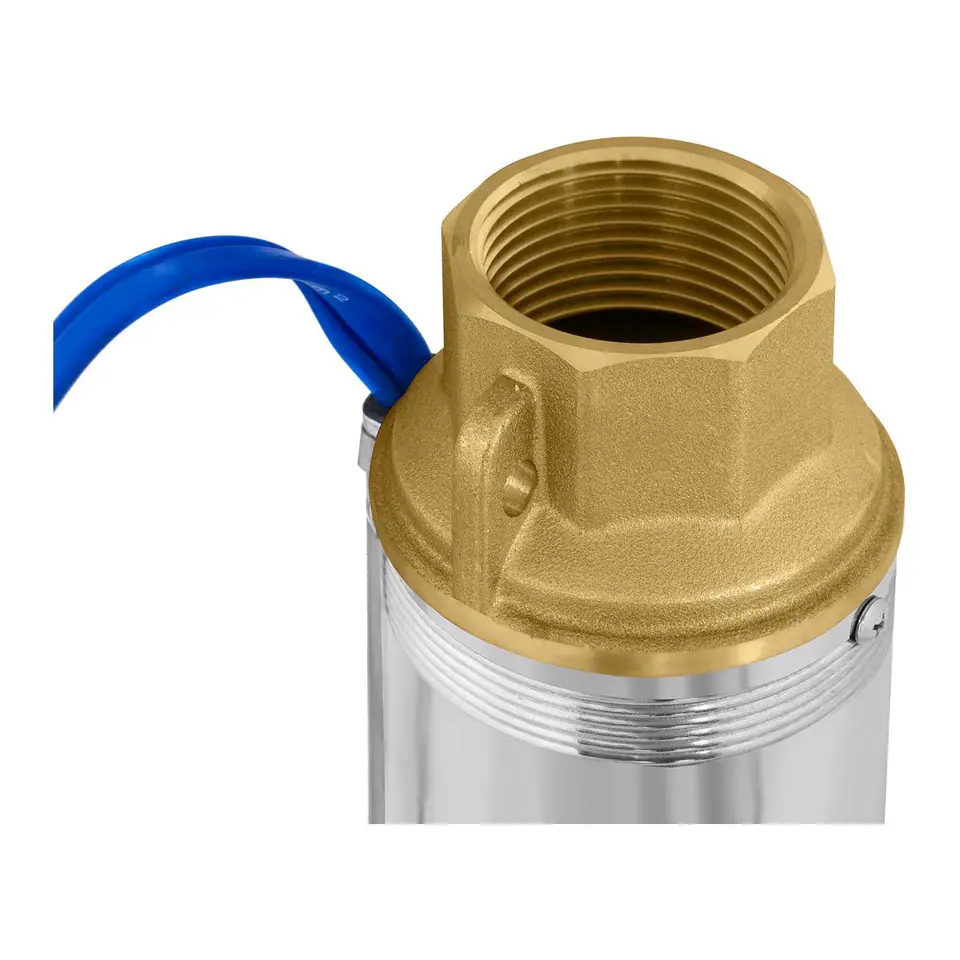

  • - Water connection size - 1,25
  • - Max. sand content in water - 0.25%
  • - Max. pumped water temperature - 35C
  • - Poppy. number of starts per hour - 50
  • - Dimensions (LxWxH) - 8 x 7 x 129.5 cm
  • - Weight - 13.35 kg
  • - Shipping dimensions (LxWxH) - 165 x 22.5 x 9 cm
  • - Shipping weight - 16.2 kg
Included:
  • - Submersible pump
  • - Manual EN

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
