SU diameter with steel pins, 160-430mm,SCHWENK steel

€1,516.04
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Schwenk
Product code:
12400001 / 4053569817608

Specification

Depth of measurement:180 mm
Measurement span:1.6 mm
Measuring discs:4 piece
Measuring pin:7 piece, steel
Measuring range:160-800 mm

SV diameter

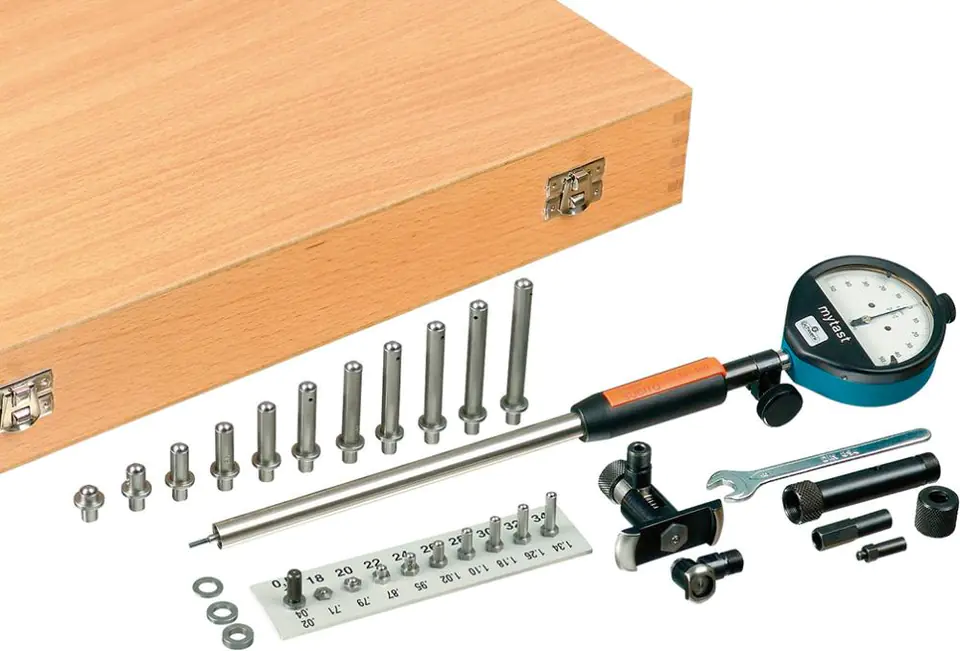

Design: self-centering, precise transfer of the displacement of the measuring stem through the bending element to the measurement value indicator. Repeatability accuracy ≤ 0.5 μm. Spring-loaded centering plates allow you to measure in any position. Carbide measuring pins. Modular construction system for universal use. Delivery with handle, fixed measuring pins, measuring discs and factory calibration certificate, in a wooden cassette.
Application: for measuring internal diameters in frequently changing measurement activities.
Note: delivery without dial indicator.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
