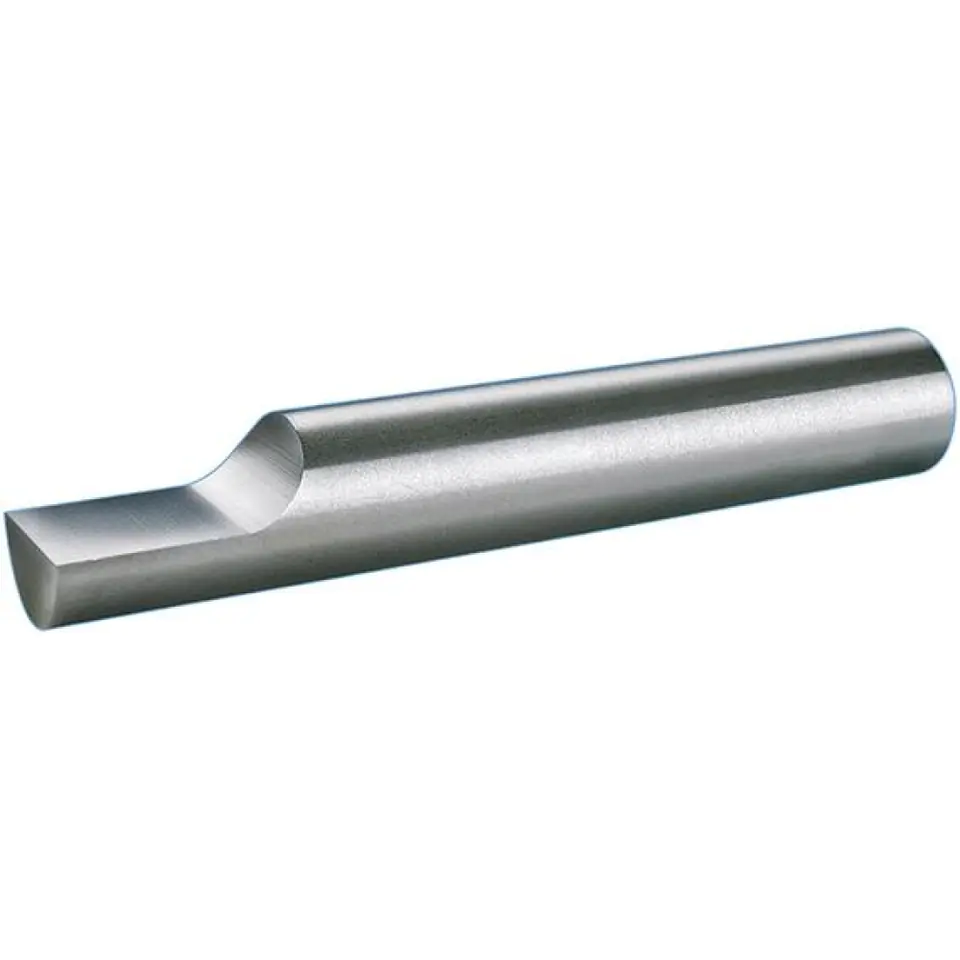

Engraving stylus, shape A, round
Execution: HSS Co10, according to the factory standard, hardened, tempered, dimensionally stable, ground ready. One-sided pre-profiled (half with an allowance of 0.1 mm), with a straight blade (blade length 1.5 x D). One end unprocessed.
Hardness approx. 63–68 HRC.
for shape A: Length: ±2 mm
Ø: Ø: h8
Application: thanks to proper grinding, it is suitable for engraving inscriptions and contours, also for shape turning and copying milling in the production of molds and dies. The pre-profiled fishing can be adapted to the application purpose in a short time by ready-made grinding.
