Stylus for engravers. HSSE 20,0x160mm, pcs. A WILKE

This product is not available
Availability:
expected delivery
Brand:
WILKE
Product code:
01A1020160 / 4030456000909

Specification

Cutting part length:30 mm
Diameter h 8:20 mm
No:01A1020160
Overall length:160 mm

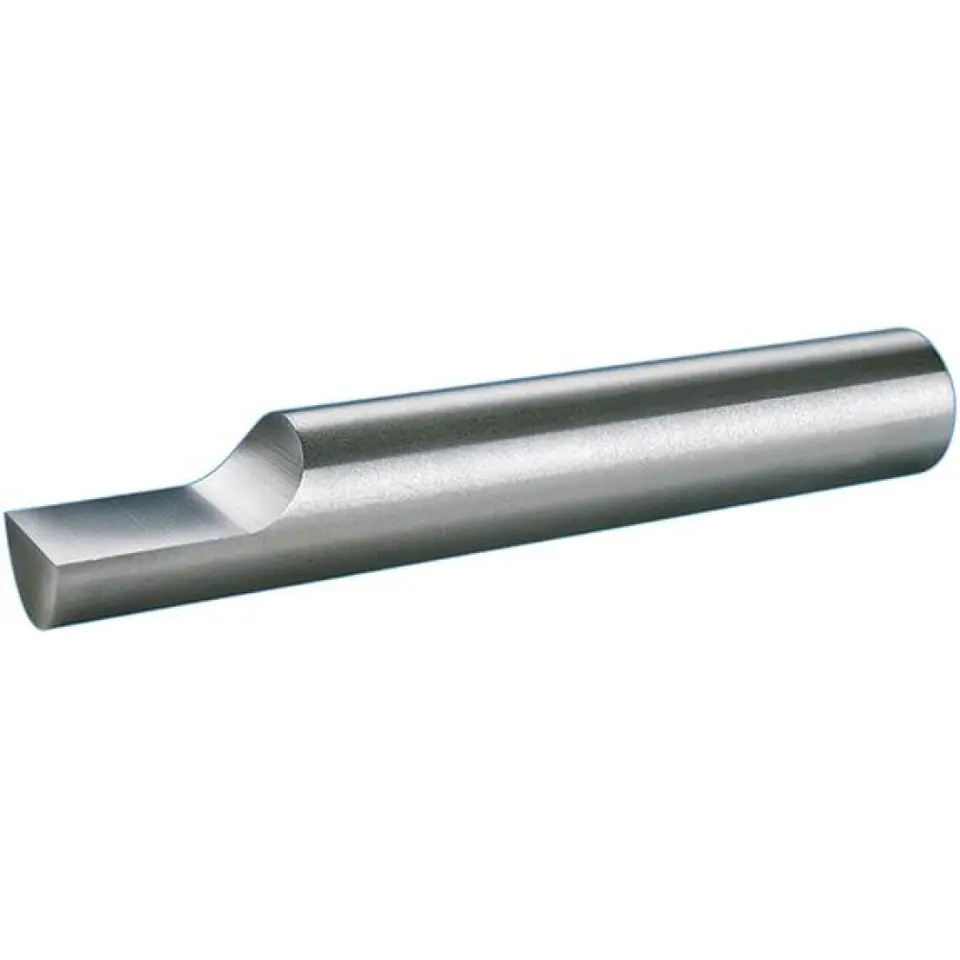

Engraving stylus, shape A, round

Execution: HSS Co10, according to the factory standard, hardened, tempered, dimensionally stable, ground ready. One-sided pre-profiled (half with an allowance of 0.1 mm), with a straight blade (blade length 1.5 x D). One end unprocessed.
Hardness approx. 63–68 HRC.
for shape A: Length: ±2 mm
Ø: Ø: h8

Application: thanks to proper grinding, it is suitable for engraving inscriptions and contours, also for shape turning and copying milling in the production of molds and dies. The pre-profiled fishing can be adapted to the application purpose in a short time by ready-made grinding.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
